Product description: Gravity - I2C hub splitter - 8 ports - DFRobot DFR0759
I2Chubsplitterallows you to connect several modules and peripherals to a single I2C connector. With the DFR0759 hub you have the possibility to connectup to 8Gravity seriessensorsto one slot of the main controller. Dimensions of the product are27 x 37 mm. The set includes also dedicatedconnection cable.
In our offer you will also find other modules ofGravityseries.
Gravity series module - 8-port I2C hub splitter manufactured by DFRobot.
The set also includes a dedicated connection cable compatible with Gravity system.
Technical specification
- Connector standard: Gravity
- Module: I2C bus splitter for Gravity modules
- Number of ports: 8
- Pinouts:
- SDA - I2C bus data line
- SCL - I2C bus clock line
- GND - system ground
- VCC - module power supply
- Dimensions: 27 x 37 mm
- Weight: 17 g

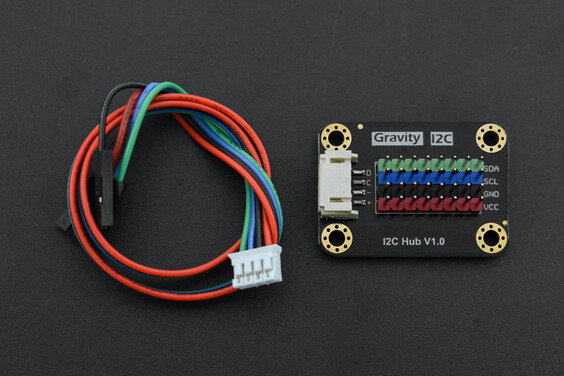

Set contents
- Gravity: I2C Hub
- Gravity 4-pin I2C / UART connection cable
