Product description: Bundle - Toocaa L2 10W Avanced Bundle

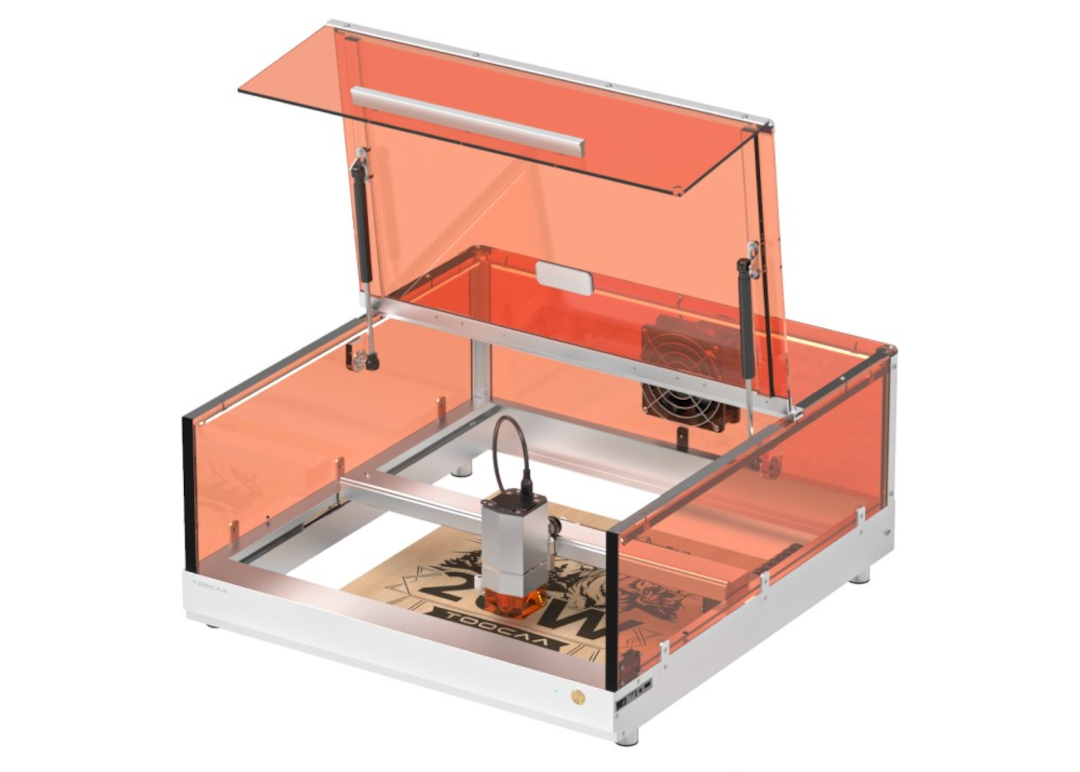

The TOOCAA L2 laser plotter is a modern, versatile device for precise cutting and engraving of various materials. Equipped with a 10W laser, it enables the quick and accurate execution of artistic, decorative, and functional projects. Its work area of 415 x 395 mm and engraving speed of up to 400 mm/s allow for the completion of medium-sized projects with high precision. It is compatible with Toocaa Studio and LightBurn software, as well as Windows, macOS, and Linux systems. The robust aluminum and acrylic panel construction ensures durability and aesthetic appeal, while built-in LED lighting facilitates process control.

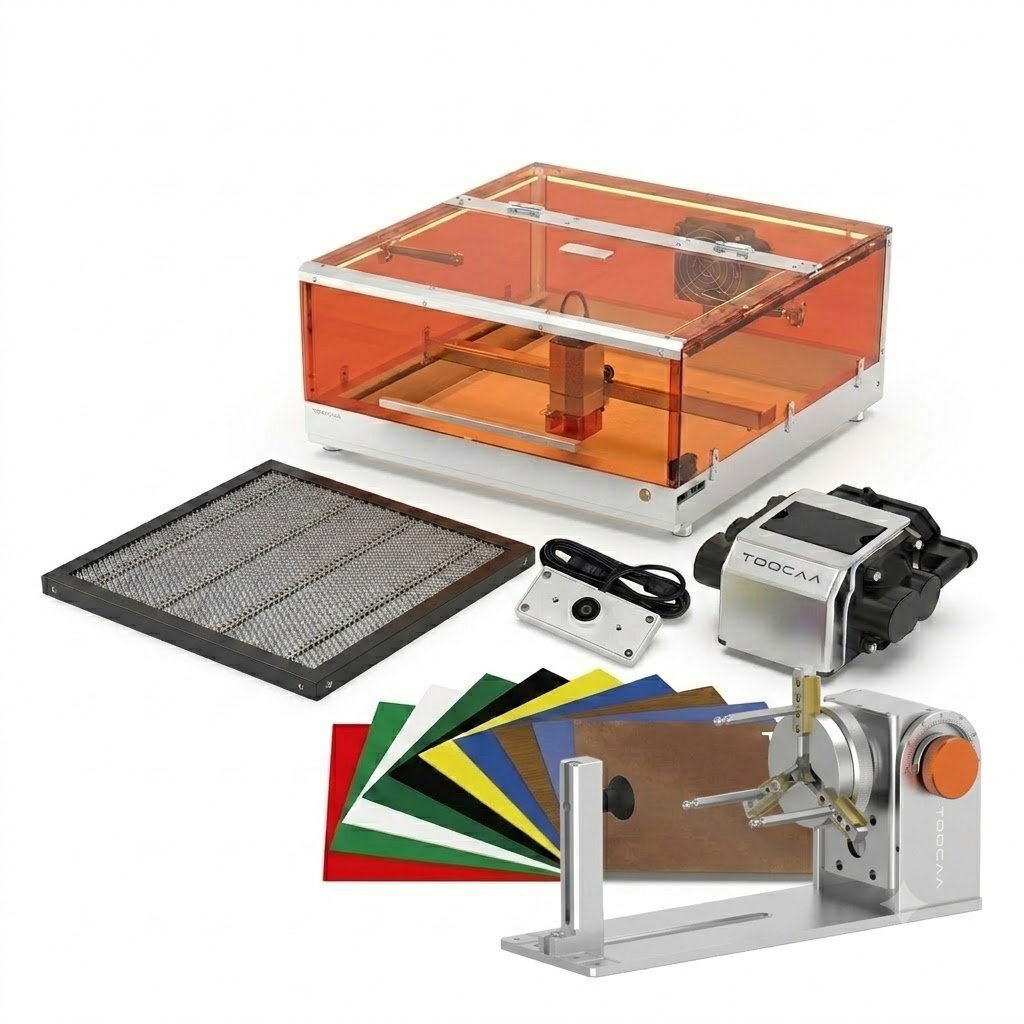

The kit includes a TOOCAA L2 10W laser plotter , an Air Assist air pump, a honeycomb work table, a TOOCAA Material Magic Box , and a smart camera and a 5-in-1 rotation module .
Products offered as part of packages are shown on sales documents (invoice, receipt) as separate items.
Bundle - Toocaa L2 10 W Advanced Bundle.
The TOOCAA L2 plotter has an effective smoke extraction system that effectively filters and removes harmful fumes and dust generated during engraving.
Advanced security systems
The TOOCAA L2 features eight layers of protection , including a lid intrusion detector, a gyroscopic detector, a flame detector, and a USB interlock. The machine meets Class 1 laser safety standards, so you can safely operate it even in your home workshop. Overload and travel limit protection ensure trouble-free and safe operation.
Effective smoke extraction system
Dust and fumes released during engraving are effectively extracted thanks to a smoke filtration system combined with a fan . This helps maintain a clean and safe work environment, minimizing the impact of harmful substances on the operator and the surrounding environment.
Easy installation and pre-assembly
The plotter comes pre-assembled , saving up to 95% of assembly time compared to other devices. Quick connection via USB Type-C or TF card allows you to get started immediately, without lengthy setup.
Practical use of the Air Assist pump
The TOOCAA Air Assist system generates a powerful airflow (up to 28 L/min) that instantly removes smoke and dust from the workpiece. It lowers the material temperature, protecting it from burning, and protects the laser lens. The result is perfectly clean, smooth edges and greater precision!
TOOCAA Smart Camera
The TOOCAA intelligent camera for the L2 plotter enables precise material positioning and real-time engraving preview. Equipped with a 5 MP (2592 x 1944 px) sensor, it allows for perfect pattern matching within a 400 x 400 mm area. eliminating the risk of errors. The one-click calibration feature makes setup extremely fast, while the robust metal housing and USB 2.0 interface guarantee durability and stable operation. This is the key to convenience and complete control over your projects!
5-in-1 rotation module
The multifunctional 5-in-1 rotary attachment for the TOOCAA L2 laser plotter enables precise engraving of cylindrical, spherical, annular, and irregular-shaped objects. A quick-change jaw system, 0° to 180° angle adjustment, and 5 operating modes make it easy to mark cups, bottles, rings, balls, and other objects.

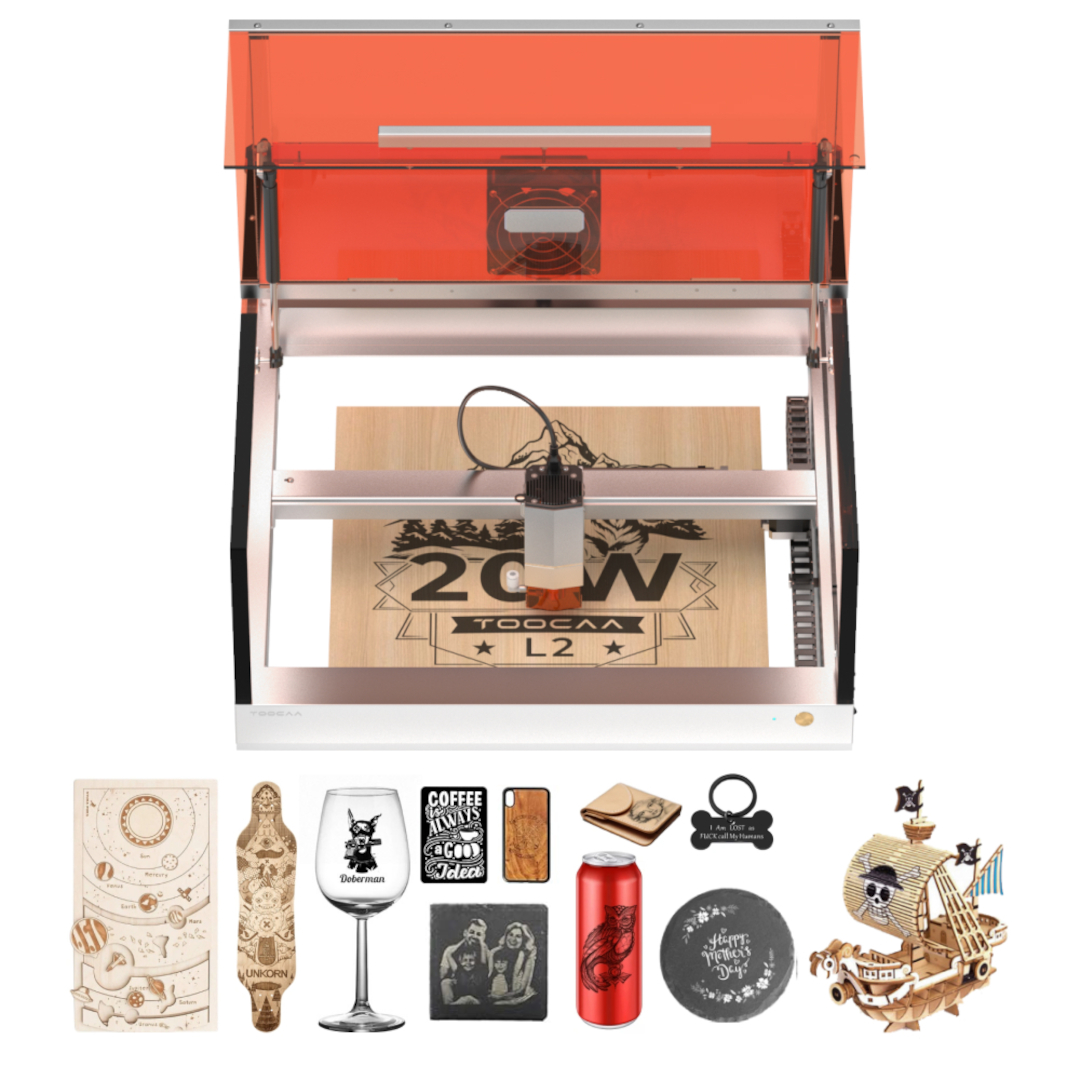

The TOOCAA L2 offers a large work area that allows you to tackle medium-sized projects such as cutting acrylic, wood or leather accessories.

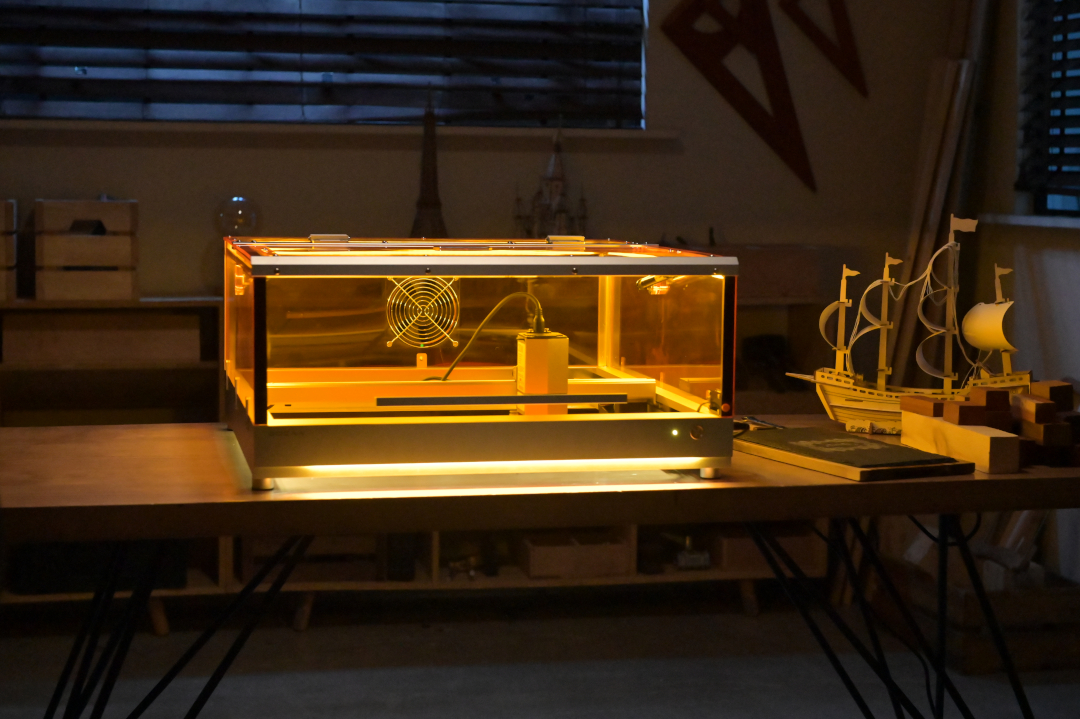

The LED strip shows the operating states of the plotter by displaying different colors.
Honeycomb work table
The 400 x 400 mm honeycomb worktable is a solid platform for laser engravers and plotters. The openwork metal structure ensures optimal airflow and efficient smoke extraction, preventing burns on the underside of wood, plywood, or acrylic. Furthermore, the panel stabilizes the material and reduces unwanted laser beam reflections, resulting in higher precision and exceptionally clean, aesthetic cut edges. An ideal choice for both hobbyist and professional workshops!
TOOCAA Material Magic Box
The package also includes a set of materials designed specifically for laser engraving. Thanks to the multi-layered sheets, you can easily achieve clear and contrasting designs—the laser precisely reveals the underlying color layer. You'll find durable plastic sheets and soft, splash-resistant PU leather with an elegant finish. It's the perfect choice for creating personalized keychains, information signs, ornaments, and unique DIY projects!
Contents of the set
- TOOCAA L2 laser plotter
- 10W laser module
- Power supply and cables
- Fan and exhaust pipe
- TF card and USB disk
- Goggles
- Assembly equipment (screws, wrenches, tools)
- User manual
- Air pump + accessories
- TOOCAA Honeycomb Work Panel - 400 x 400 mm
- Camera for TOOCAA L2 laser plotter
- 5-in-1 rotary module for TOOCAA L2 laser plotter + accessories
- TOOCAA Material Magic Box
- 1x Red/White Plastic Sheet
- 1x Green/White Plastic Sheet
- 1x Plastic sheet black/white
- 1x Black/Green Plastic Sheet
- 1x Plastic sheet black/red
- 1x Plastic Sheet Black/Yellow
- 1x Plastic sheet black/blue
- 1x PU Synthetic Leather Sheet Bamboo/Black
- 1x PU Synthetic Leather Sheet Blue/Silver
- 1x Sheet of PU synthetic leather brown/silver
The plotter is compatible with Toocaa Studio and LightBurn software, as well as Windows, macOS and Linux systems.
| Technical specifications of the TOOCAA L2 laser plotter | |
|---|---|
| Laser power | 10 W |
| Work area | 415 x 395 mm |
| Positioning resolution | 0.01 mm |
| Repeatability of positioning | 0.02 mm |
| Engraving speed | up to 400 mm/s |
| Maximum cutting depth (linden wood) | 6 mm |
| Laser wavelength | 450 ± 5 nm |
| Spot size | 0.08 x 0.18 mm |
| Laser class | Class 1 |
| Supported materials (engraving) | wood (linden, pine, maple, beech, walnut, bamboo), MDF, acrylic, leather, fabrics, painted metal, stainless steel, anodized aluminum, dark glass, stone, ceramics, marble, jade, slate |
| Supported materials (cutting) | wood (linden, pine, maple, beech, walnut, bamboo), MDF, acrylic, leather, fabrics, cardboard, plastic, dark acrylic (blue excluded) |
| Supported software | Toocaa Studio, LightBurn, LaserGRBL |
| Supported operating systems | Windows, macOS |
| File transfer | TF card, USB Type-C |
| Security and detection | flame detector, machine tilt detector, intelligent guard with lock, USB interlock, optional emergency button |
| Extensions/Ports | emergency stop port, universal expansion port, Z-axis port |
| Input voltage | 24V / 3A |
| Input voltage | from 100 V to 240 V, 50/60 Hz |
| Total power | 72 W |
| Construction material | aluminum + acrylic |
| Dimensions | 645 x 617 x 306 mm |
| Mass | 13 kg |
