IPS LCD display - 1.14'' 240x135px SPI - 65K RGB - Waveshare 18231

Index: WSR-19193 EAN: 5904422371852
IPS LCD display produced by Waveshare. It has a diagonal of 1.14" and a resolution of 240 x 135 px. It displays 65K colors in RGB gamut, thanks to which the presented image is very clear and adequately saturated. The module uses SPI bus to communicate with the microcontroller. It is also equipped with ST7789 control chip. The kit comes with dedicated connection cable - 8-pin, 20 cm long.
IPS LCD display - 1.14'' 240x135px SPI - 65K RGB - Waveshare 18231
€8.46
€6.88 tax excl.
Available
Check quantity
Shipping in 24 hours
30-day returns
PayPal payment
Manufacturer: Waveshare
Compatibility: Arduino Raspberry Pi

Product Description: IPS LCD Display - 1,14'' 240 x 135 px SPI - 65K RGB - Waveshare 18231

IPS LCDdisplaymanufactured by Waveshare. It has a diagonal of 1.14'' and a resolution of240 x 135 px. It displays65K colorsin RGB gamut, thanks to which the presented image is veryclearand adequatelysaturated. The module usesSPIbus to communicate with the microcontroller. It is also equipped withST7789control chip. The kit comes with a dedicated connectioncable- 8-pin, 20 cm long.

Wyświetlacz LCD IPS - 1,14'' 240 x 135 px SPI - 65K RGB.

IPS LCD display - 1,14'' 240 x 135 px SPI - 65K RGB.

Product compatible with Arduino, Raspberry Pi and STM32

AProduct Wiki Pageis available on the manufacturer's website, which includes connection instructions for specific microcontrollers.

W skład zestawu wchodzi także dedykowany przewód połączeniowy o długości 20 cm.The kit also includes a dedicated 20cm long connection cable.

Special features of the display from Waveshare

  • Compatible with popular controllers such as Raspberry Pi, Arduino orSTM32
  • Display with resolution equal to 240 × 135 px
  • 65,000 RGB colors, so the image presented is clear and properly saturated
  • SPI interface for communication with the controller, thanks to which more I/O pins are available to the user

Contents of the kit

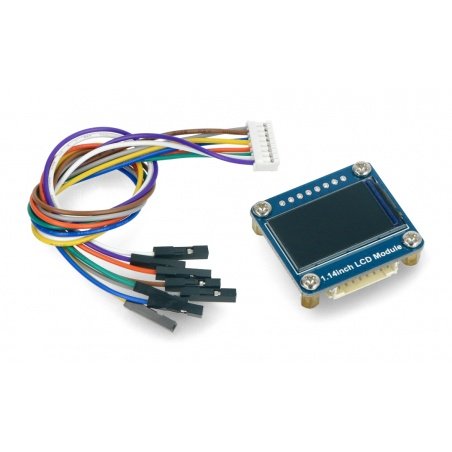

  • 1.14'' 240 x 135 px LCD display from Waveshare
  • Connection cable 8-pin, 20 cm long

Pinout description and wiring diagram

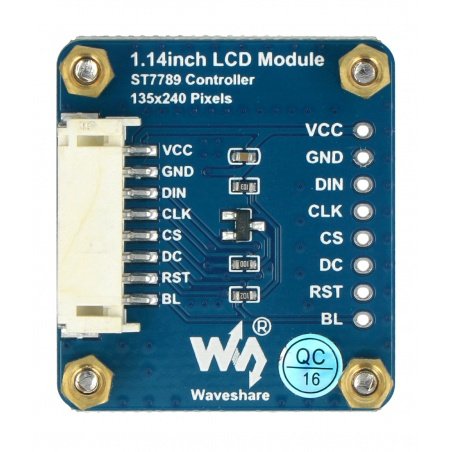

The display is compatible with popular controllers such asArduino, Raspberry Pi andSTM32. The display should be connected to the module according to the following relations:

  • VCC - supply voltage 3,3 V / 5 V
  • GND - system ground
  • DIN - SPI interface data input pin
  • CLK - SPI clock input pin
  • CS - Chip Select
  • DC - data / commands select pin (high state - data; low state - commands)
  • RST - RESET pin (activated by low state)
  • BL - backlight pin
Schemat połączenia wyświetlacza z płytką Arduino, która nie wchodzi w skład zestawu. Można ją kupić osobno w naszym sklepie.

Scheme of connection between display and Arduino board, which is not included in set. You can buy it separately in our shop.

Wyświetlacz został wyposażony w układ ST7789.The display is equipped with ST7789 chip.

Technical specification of the display

  • Type: IPS LCD display
  • Display diagonal: 1,14''
  • Resolution: 240 x 135 px
  • Display size: 24.91 x 14.86 mm
  • Pixel size: 0.1101 x 0.1035 mm
  • Display Colors: 65K RGB
  • Communication interface: 4-wire SPI
  • Embedded control chip: ST7789
  • Supply voltage: 3.3 V / 5 V
  • Module dimensions: 35 x 32 mm

Screen - type LCD IPS
Screen - diagonal 1,14 ''
Screen - interface SPI
Screen - touch no
Screen - resolution 135x240px
