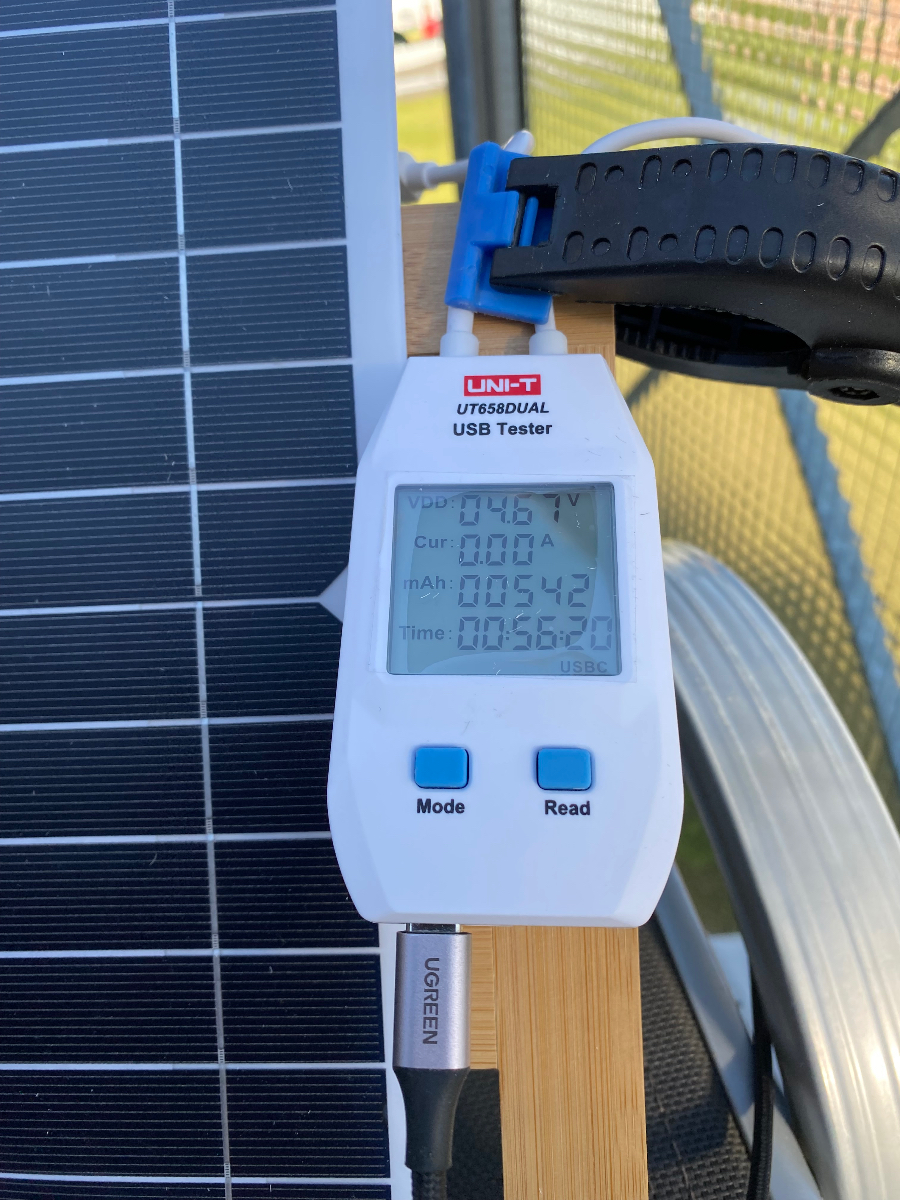

Product description: USB socket tester UNI-T UT658 Dual
The UNI-T UT658 Dual USB socket tester allows you to testUSBchargers, portablepower supplies, USBtype A and Ccablesandothercharging devices. UT658 allows you to check the output voltage, current, energy, capacity and resistance of the USB cable.
Direction of current flow.
UNI-T UT658 UNI-T tester specifications
| UNI-T specification UT658 | |
|---|---|
| Ports of entry/exit | USB Type A and C |
| Data/load protocol | 2.0 (3.0 / 4.0) |
| Voltage range | 4 V to 24 V (0.01 V resolution) |
| Current range (Type A) | 0,05 A to 3 A (0,01 A resolution) |
| Current range (type C) | 0,05 A to 5 A (0,01 A resolution) |
| Capacity | 0 mAh to 999999 mAh (resolution 1 mAh) |
| Energy | 1 Wh to 1000 Wh |
| Resistance of the circuit | 1 Ω to480 Ω |
| USB data cable voltage (D+, D-) | 0 V to 3.3 V |
| Storage of data | 10 sets |
| Maximum recording time | 99 h, 59 min, 59 sec (resolution 1 s) |
| Quick load protocol (type A) | QC 3.0 fast charge |
| Quick Load Protocol (Type C) | QC 4.0 fast charge |
| Colour | white |
| Dimensions | 93 x 55 x 13 mm |
| Mass | 65,8 g |
| Included | tester, instruction |
