Product description: Module with TRRS 3.5 mm Jack connector - PiHut 106606

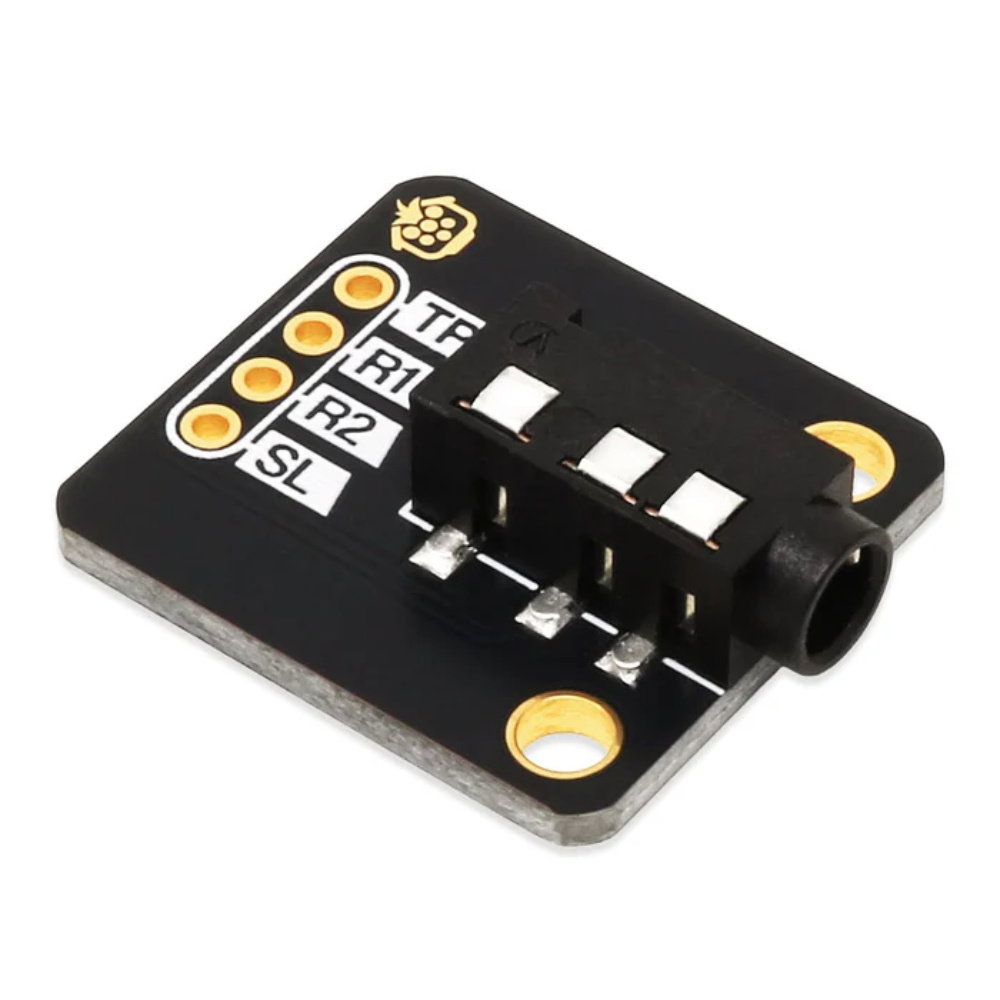

A compact module that conveniently connects all four pins of a standard 3.5mm TRRS audio connector to 2.54mm pitch solder pads. The board was designed for audio projects, embedded devices, and prototyping systems that work with TRRS cables . Each connector signal— Tip, Ring 1, Ring 2, and Sleeve —is connected to clearly labeled solder pads, significantly simplifying module integration with microcontrollers, prototyping boards, and your own electronics projects. Additional solder pads on the underside allow for convenient soldering of wires and easier connection modifications.
Technical specifications
- Connector type: 3.5mm Jack TRRS
- Connector orientation: horizontal
- Pin pitch: 2.54 mm
- Output signals:
- TP - Tip
- R1 - Ring 1
- R2 - Ring 2
- SL - Sleeve
- Additional soldering pads: yes
- Mounting holes: M2.5
- PCB coating: gold-plated
Kit contents
- Module with 3.5 mm TRRS Jack connector
- 4-pin goldpin strip 2.54 mm
