Product description: 230 V RCD socket tester - Benetech GT85
The GT85 from Benetech is a compact electrical installation tester that allows you to quickly assess the condition of power outlets without the need for specialized measurement tools. The device analyzes the wiring in the outlet and uses a combination of LEDs to indicate any detected irregularities. Additionally, the tester is equipped with an RCD test button, which allows you to verify the correct operation of the residual current device by generating a controlled leakage current. The tester is suitable for use in homes, apartments, and offices, as well as for maintenance work and periodic inspections of electrical installations.

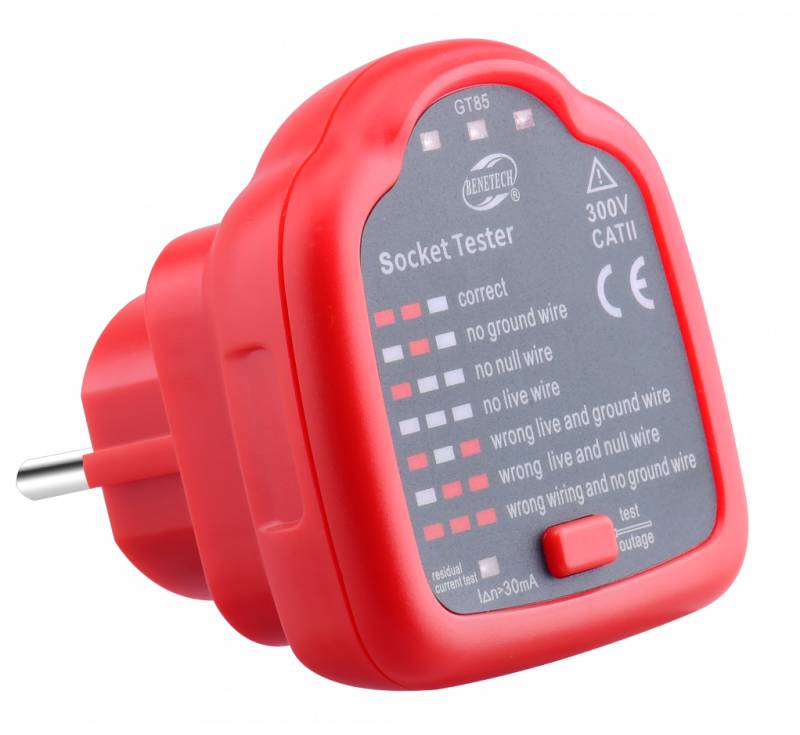

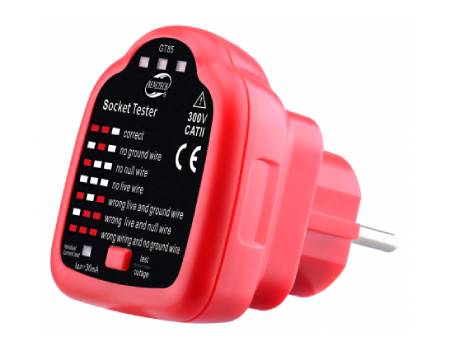

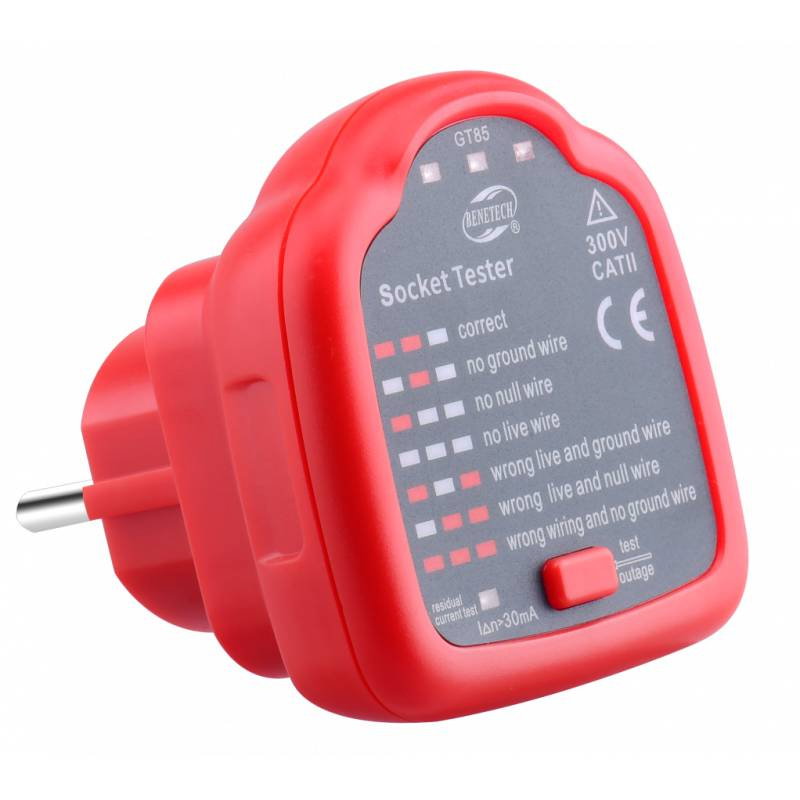

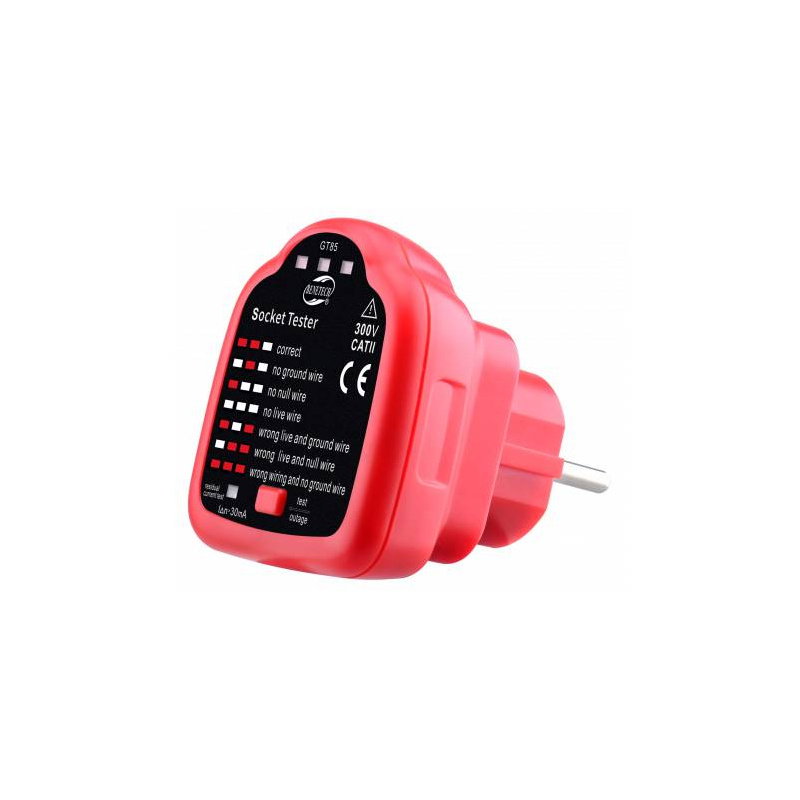

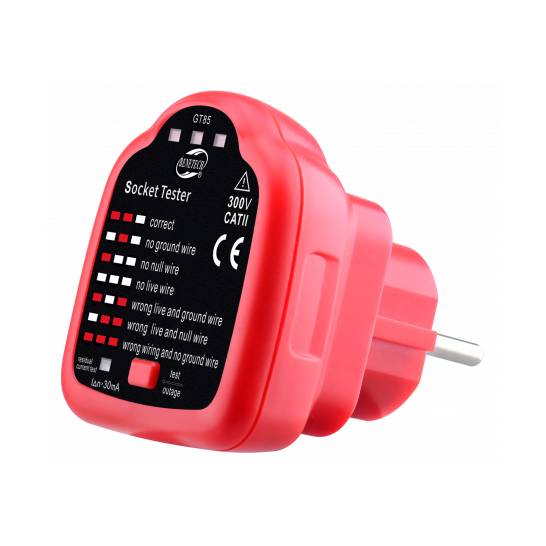

230 V RCD mains socket tester - Benetech GT85.
The tester allows you to quickly check the correct connection of wires in an electrical socket.
Main features of the network socket tester
- Socket polarity check : allows you to quickly check whether the wires are connected correctly in the electrical socket
- RCD test function : allows you to verify the operation of a 30 mA residual current circuit breaker
- Clear LED indication : intuitive controls make it easy to interpret the test result
- Installation fault detection : identifies missing phase, neutral or ground wires
- Wiring error detection : detects reversed phase, neutral and ground wires
- Compact design : small housing makes it easy to store and transport
- Safe operation : the device is CE certified and has a CAT II 300 V safety category
Practical applications
The GT85 tester is a useful tool for electricians, maintenance technicians, and users who want to verify the condition of electrical installations. It enables quick inspection of new and modernized installations, as well as fault diagnosis in existing power outlets . It is useful during technical inspections, periodic safety inspections, and testing the operation of differential circuit breakers.
Detected installation states
- Correct connection
- No grounding
- No neutral wire
- No phase wire
- Phase and ground wires swapped
- Phase and neutral wires swapped
- Phase and ground wires swapped and grounding missing
The RCD test function allows you to verify the operation of a residual current circuit breaker with a tripping current of 30 mA.

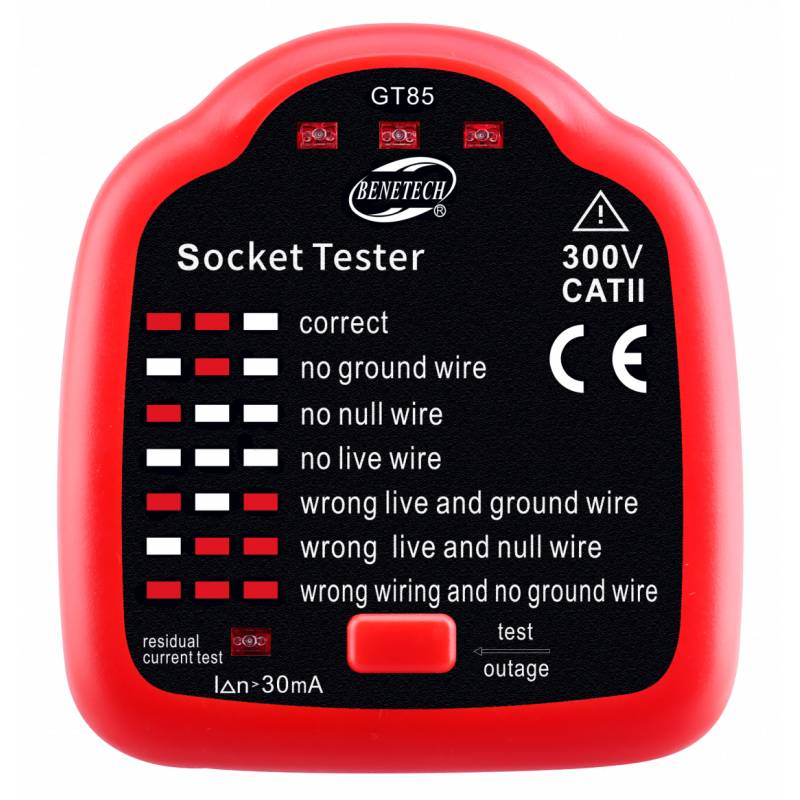

The tester uses a combination of LEDs to inform about detected irregularities.
Technical specifications of the tester
- Model: GT85
- Operating voltage of the differential circuit breaker: 220 V ± 20 V
- RCD current: 30 mA
- Safety level: CAT II 300 V
- Operating temperature: 0°C to 40°C
- Operating humidity: 20% RH to 75% RH
- Storage temperature: -10°C to 50°C
- Storage humidity: 20% RH to 80% RH
- Maximum operating altitude: up to 2000 m above sea level

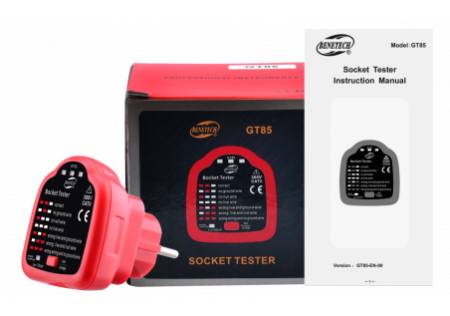

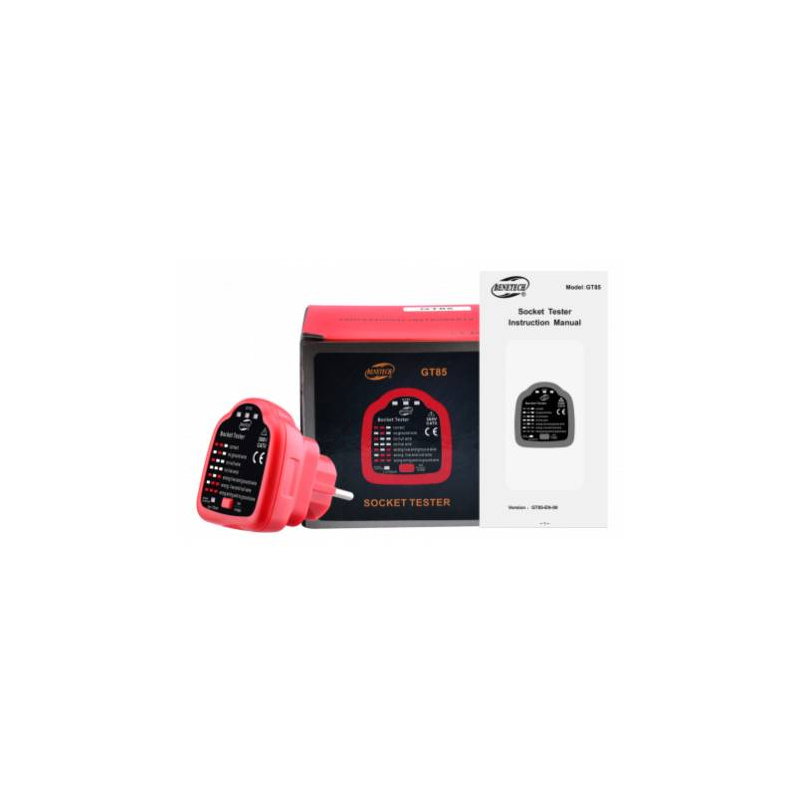

Contents of the set
- 1x GT85 Power Socket Tester
