Product description: Two Trees TS2 20 W laser plotter
The Two Trees TS2 laser plotter is a high-performance engraving and cutting machine that combines high power, precision, ease of use, and a modular design. With 20W of power and a precise laser spot (0.18 x 0.21 mm) , the device delivers excellent results when engraving and cutting wood, acrylic, leather, metal, and other materials . Its large 410 x 410 mm working area makes it ideal for larger projects. It supports Wi-Fi, TF card , mobile app, and offline control , making work significantly easier. Additionally, the design with a gyroscope sensor and flame alarm enhances user safety. Compatibility with popular programs such as LaserGRBL and Lightburn allows for easy integration with MacOS and Windows systems.

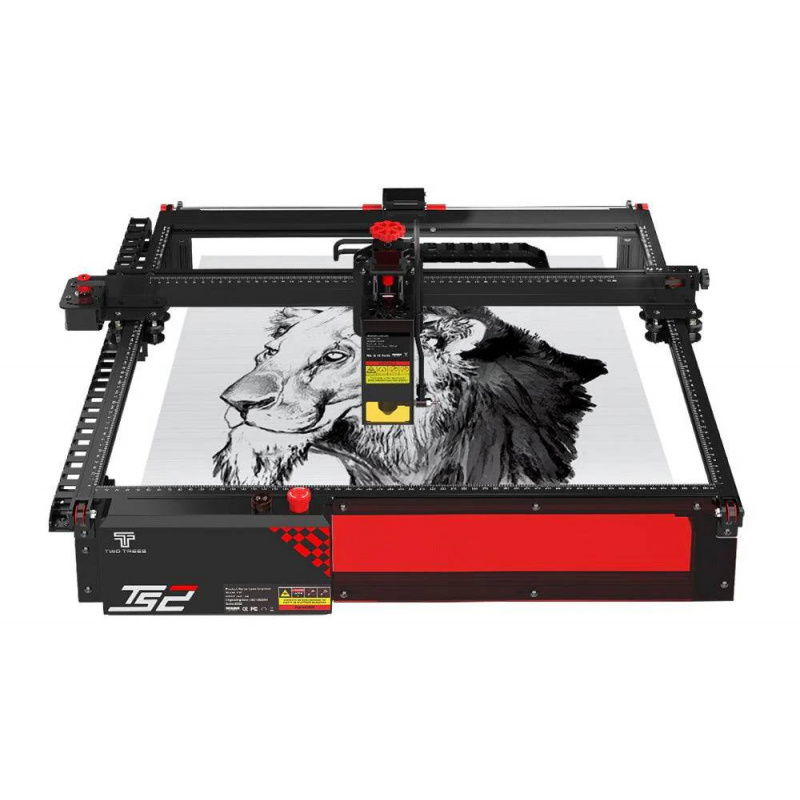

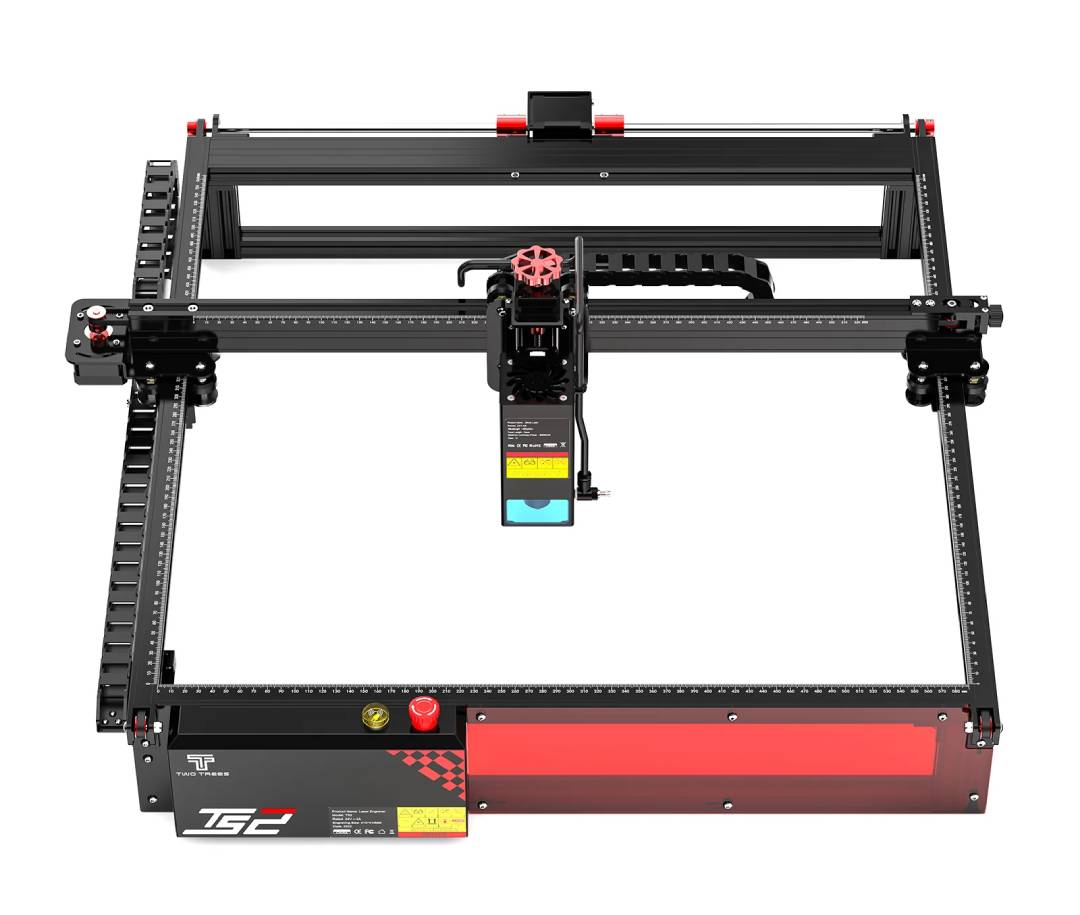

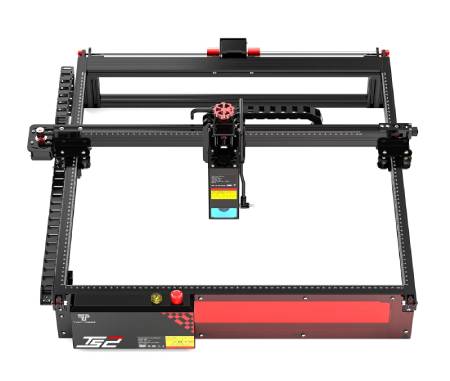

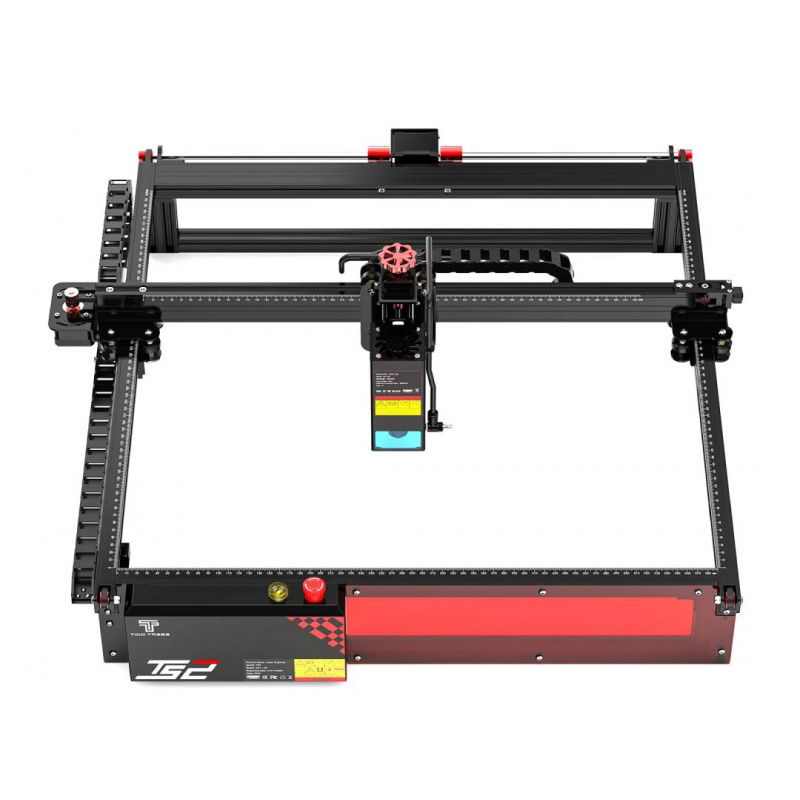

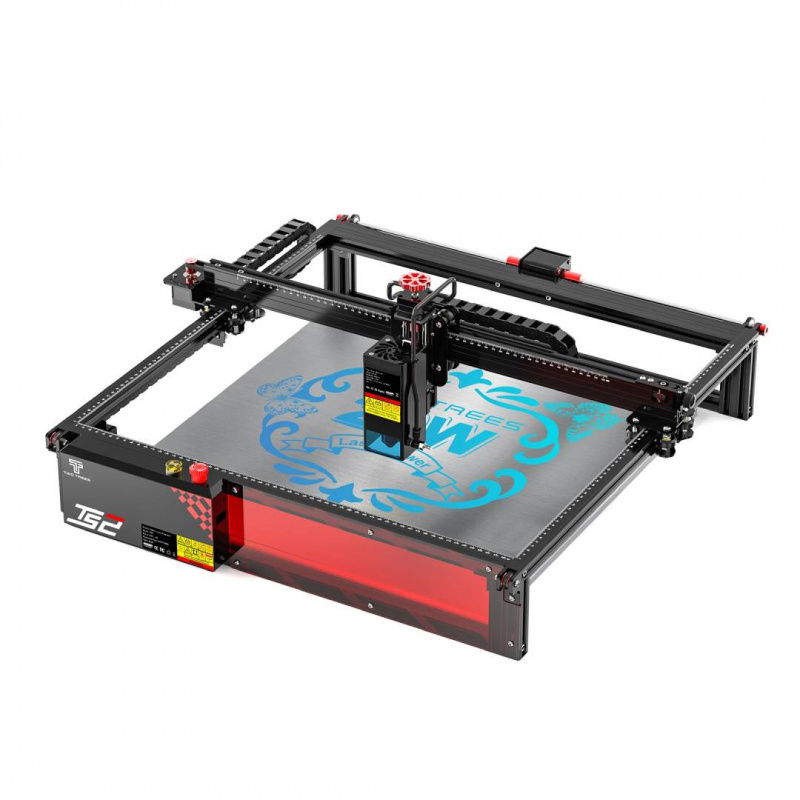

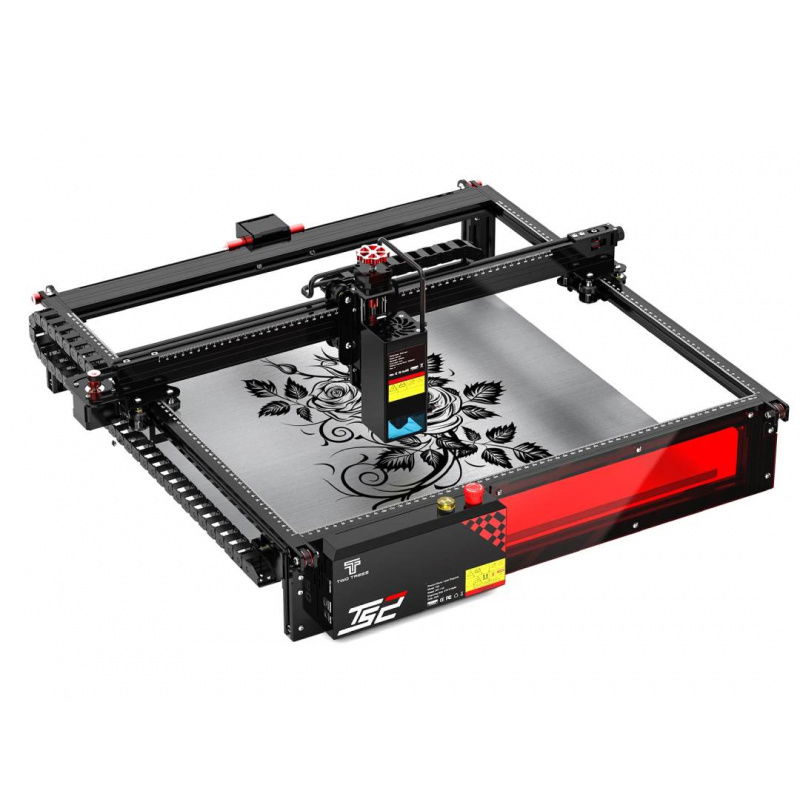

Two Trees TS2 20W Laser Plotter

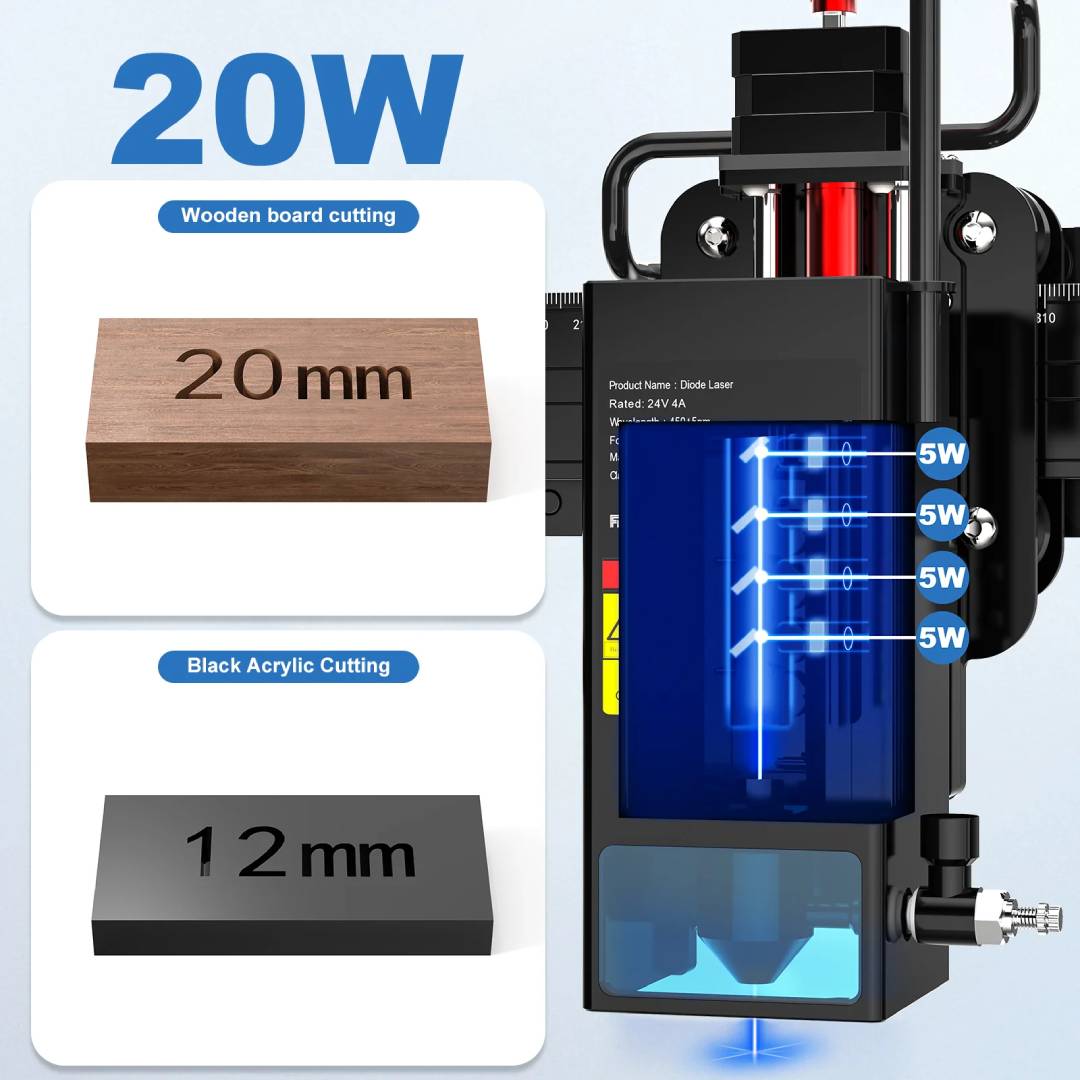

The TS2 uses a powerful laser that allows it to cut a 20mm board in a single pass.
Powerful 20W laser and precise focus point
The TS2-20W utilizes an advanced 20W (4 x 5W) diode laser module , delivering high performance for engraving and cutting a variety of materials. With an incredibly small laser spot measuring 0.18 x 0.21mm , the plotter offers exceptional precision, enabling highly detailed and realistic engravings. Its powerful, focused energy allows it to cut wood up to 20mm thick, black acrylic up to 12mm thick, MDF up to 10mm thick, and plastic up to 6mm thick , even in a single pass. Automatic focusing eliminates the need for manual calibration , significantly increasing ease of use and reducing project preparation time.
Modular design with expandability
The TS2-20W was designed with easy expansion and maximum customization in mind. The device features a modular design, with 60% of its components pre-assembled , significantly simplifying the installation process. The basic work area is 410 x 410 mm , but with an optional expansion kit, you can increase the Y-axis work area up to 410 x 900 mm—without having to purchase a new device. Additionally, the plotter supports 360° cylindrical processing using a rotary attachment (available separately) , enabling engraving on bottles, glasses, and pipes. The design is also equipped with a display connector, allowing DIY enthusiasts to further customize and experiment.

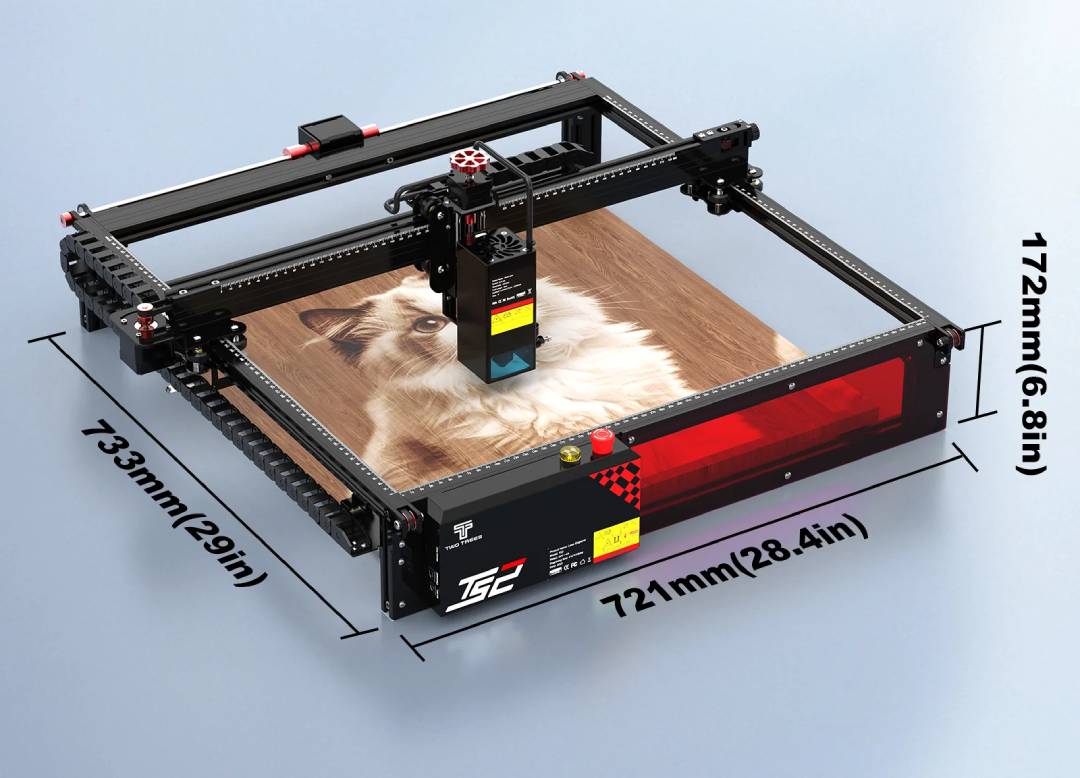

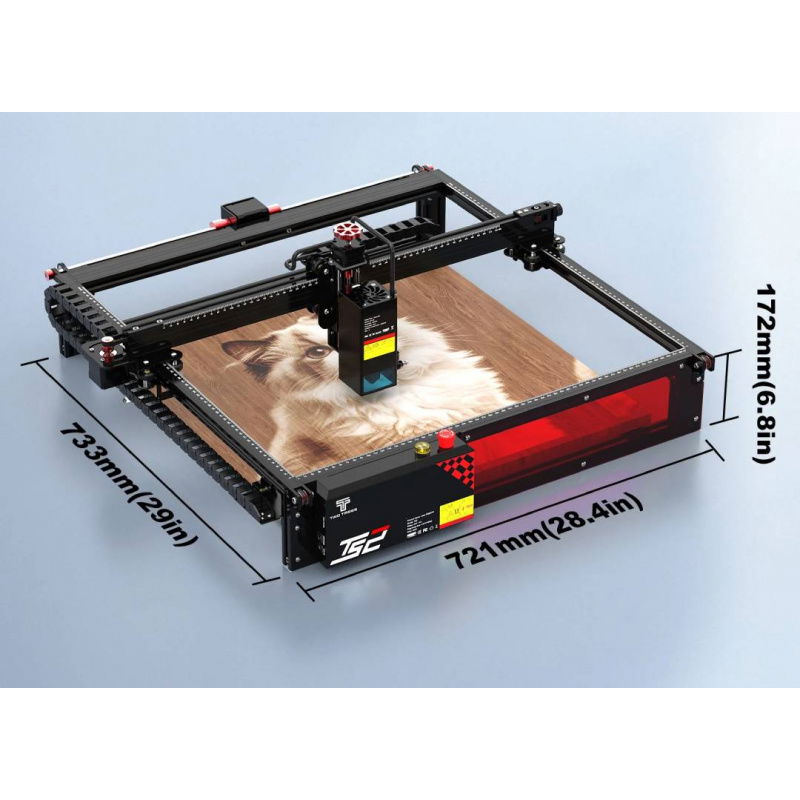

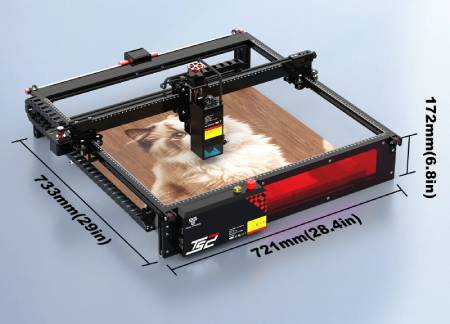

The plotter offers dimensions of 733 x 721 mm and a working area of 410 x 410 mm.

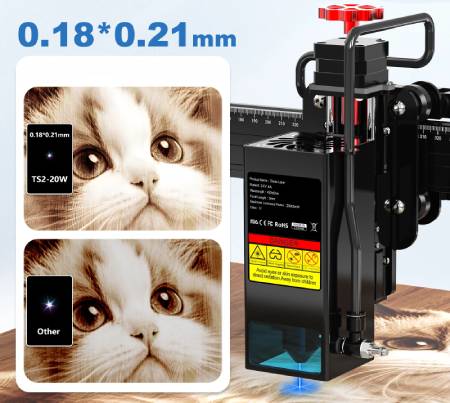

The 0.18 x 0.21 mm laser spot ensures high engraving accuracy.
Advanced connectivity and control features
The TwoTrees TS2-20W is equipped with a modern MKS DLC32 control system with an ESP32 module , which supports fast WiFi connections and offline mode via a TF card . This allows for computer-free engraving – directly from your phone or mobile app . The plotter supports popular LightBurn and LaserGRBL software, giving the user the freedom to configure and control the machine from a PC. Various connection methods increase versatility in both workshop and home environments.
Safety systems and comfort of everyday work
User safety is a key priority for the TS2-20W. The plotter is equipped with a gyroscopic sensor that immediately stops the laser operation if the machine tips over, tilts, or falls . Furthermore, a built-in flame alarm, axis limit switches, and an emergency stop button ensure complete control over the work process. Furthermore, the cable management system in the chain guard increases operator comfort and safety. The plotter also supports air-assisted cutting – simply connect the external Air Assist pump, available as an accessory, to achieve clean and fast cuts , especially with flammable materials.
The plotter allows you to easily engrave and cut a variety of materials.
| TECHNICAL SPECIFICATIONS TWO TREES TS2 20 W | |
|---|---|
| Laser power: | 20 W |
| Work area: | 410 x 410 mm |
| Cutting speed: | up to 6000 mm/min |
| Engraving speed: | up to 36000 mm/min |
| Laser wavelength: | 445 nm (+/- 5 nm) |
| Laser spot size: | 0.18 x 0.21 mm |
| Communication: | WiFi, USB, TF card, mobile app |
| Supported files: | SVG, NC, BMP, JPG, PNG, GCODE |
| Software: | LaserGRBL, Lightburn |
| Operating system: | Windows, macOS |
| Supported languages: | Chinese, English, Italian, French, German |
| Engraving materials: | wood, plastic, paper, leather, bamboo, stainless steel, acrylic, glass |
| Material of manufacture: | aluminum, sheet metal, acrylic |
| Operating voltage: | 24V / 4A |
| Dimensions: | 733 x 721 x 172 mm |
| Mass: | 7.4 kg |
