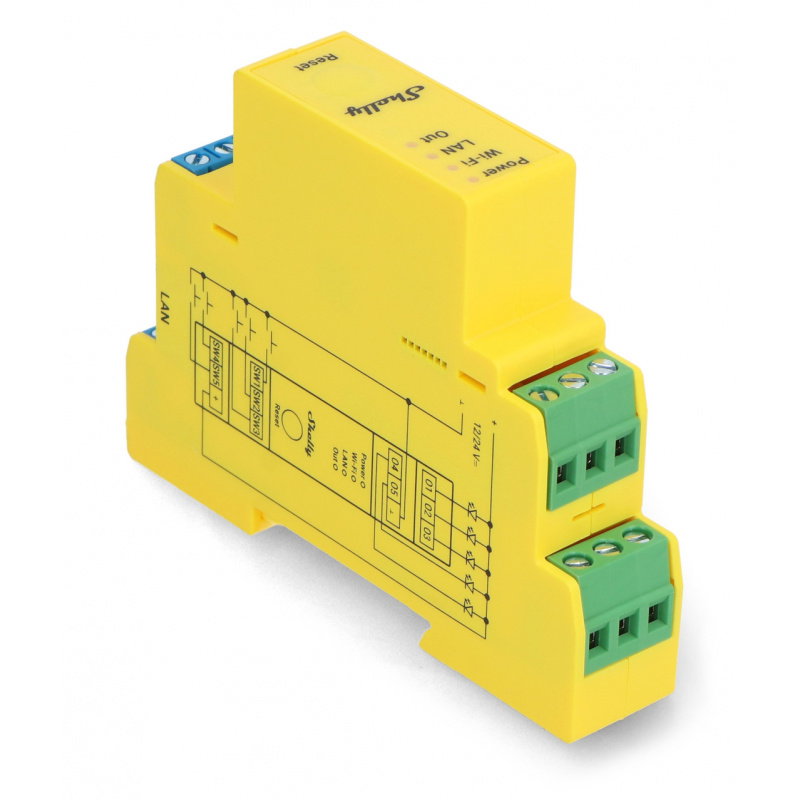

Product description: Shelly Pro RGBWW PM - 5-channel WiFi/Bluetooth/LAN lighting controller for DIN rail
The Shelly Pro RGBWW PM is an intelligent lighting controller for DIN rail mounting. It supports WiFi , Bluetooth , and LAN connectivity and can function as a WiFi signal repeater or BLE gateway. Shelly Pro RGBWW PM offers reliable communication within a local network and remote access via the Shelly Smart Control app. The device supports four operating profiles: RGB + CCT, CCT x2, RGB + 2x Light , and Light x5 . The Light x5 profile allows for independent control of five outputs, providing maximum configuration flexibility, while RGB + CCT mode allows for simultaneous control of light color and color temperature. Thanks to the built-in power measurement function, the controller allows for precise monitoring of energy consumption in real time, while scripting enables the creation of intelligent scenes and automation. It is ideal as a system component for homes, offices, commercial, and industrial facilities. Shelly Pro RGBWW PM ensures an appropriate level of operational safety thanks to protection against overvoltage, overload, and overheating. Integration with Smart Home systems, including: Google Home, Alexa and SmartThings give users extended control over lighting at home or at work.

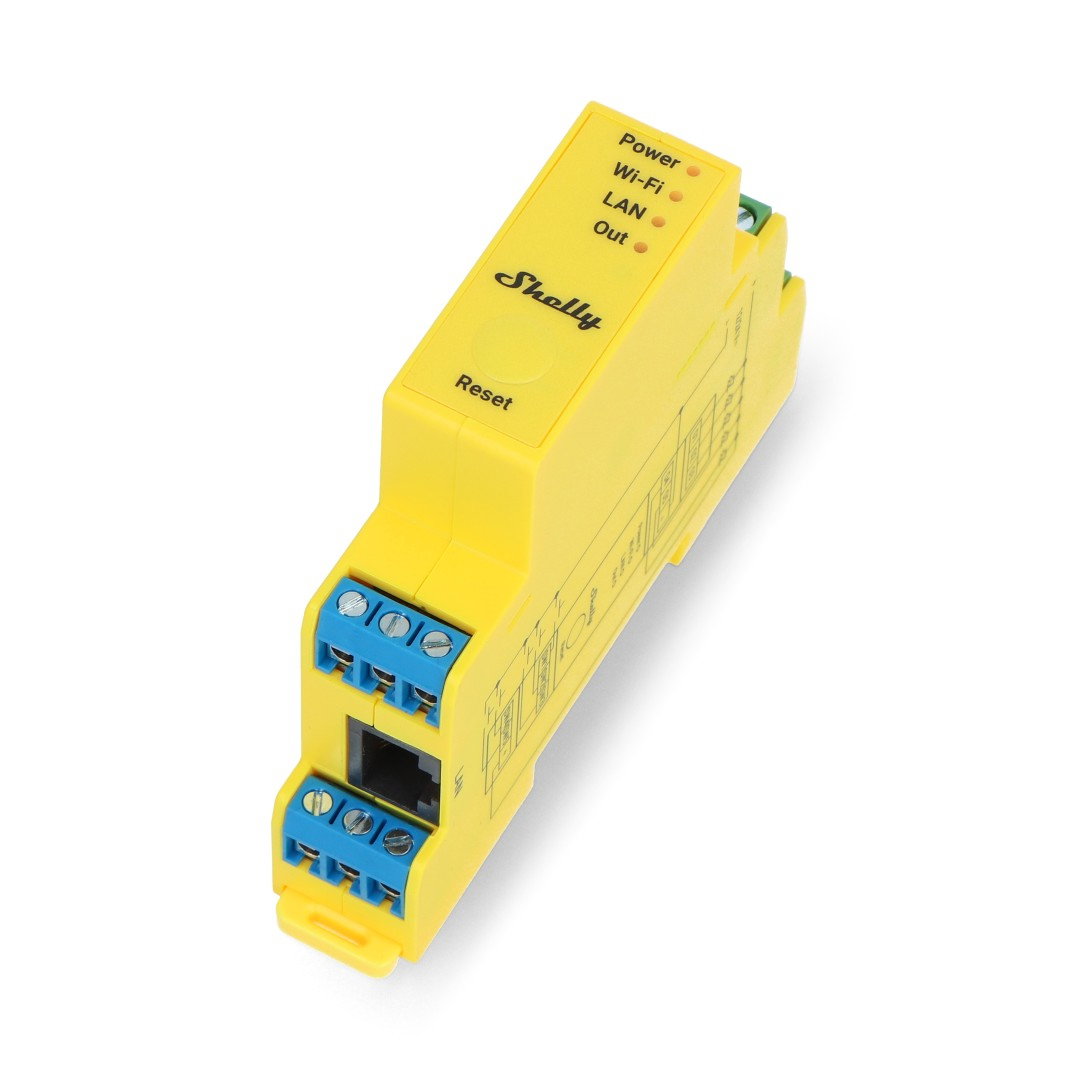

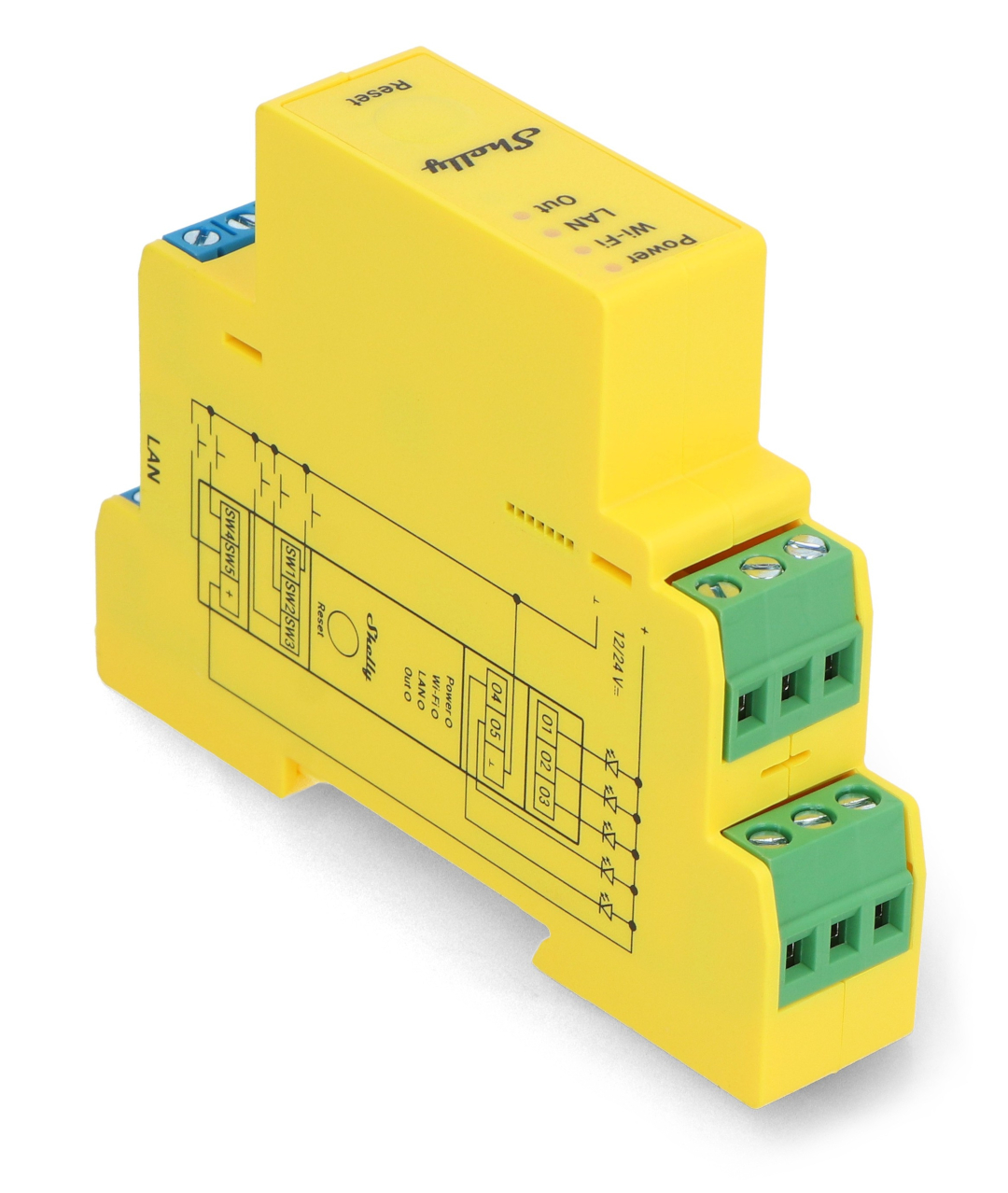

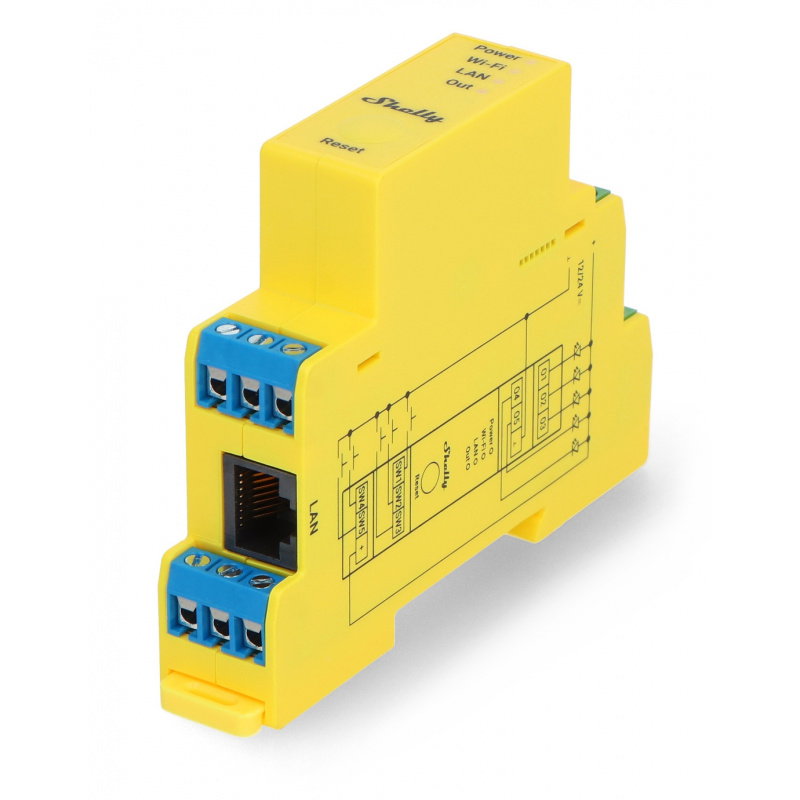

Shelly Pro RGBWW PM - 5-channel WiFi/Bluetooth/LAN lighting controller for DIN rail.
The driver as an element of advanced installations

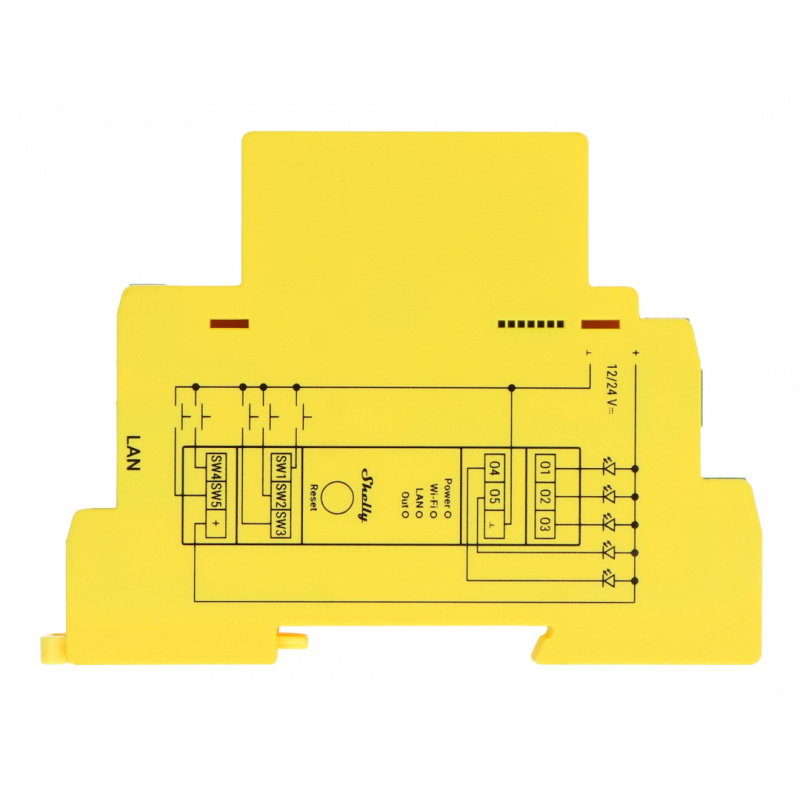

The Shelly Pro RGBWW PM controller can become an important element of advanced lighting installations and building automation systems. The device is a 5-channel DIN-rail-mounted controller with 5 inputs and 5 outputs, allowing for flexible adaptation to various LED lighting configurations. It operates with a 12-24 V DC power supply, supports a maximum control current of 16 A total and up to 6 A per channel , and has a maximum switching voltage of 24 V DC . A built-in measurement module allows for real-time monitoring of voltage, current, power, and energy consumption, facilitating the operation of connected circuits. Low power consumption of less than 1.5 W ensures the device itself is a low energy burden, which is particularly important in 24/7 installations. Shelly Pro RGBWW PM supports Ethernet, WiFi, and Bluetooth connectivity, as well as scheduling, automation, scripting, MQTT, and local actions, making it suitable for use as part of an extensive Smart Home or Smart Office system. An additional advantage is protection against overheating, overvoltage, overcurrent and excessive power, which increases the safety of the installation.
Office and conference room lighting automation
Shelly Pro RGBWW PM allows you to tailor the control method to your specific lighting installation by offering multiple operating profiles , making it suitable not only for homes but also for offices, conference rooms, and reception areas. The RGB + CCT profile allows you to combine colored LED lighting, for example, behind a company logo, on the ceiling, or in built-in furniture, with separate control of white light with adjustable color . The CCT ×2 profile is useful where there are two independent white light zones , for example, lighting above a conference table and additional lighting near a wall with a screen. RGB + Lights ×2 is suitable for rooms where striking LED lighting is required to operate alongside two separate light circuits , for example, above a workstation and near a presentation board. The Lights ×5 profile, on the other hand, allows for control of five separate channels , providing great flexibility in larger spaces.
The variety of profiles offered by Shelly Pro RGBWW PM allows for smooth adjustment of color temperature and brightness, making it possible to adjust lighting conditions to current needs.
Intelligent outdoor lighting control
Shelly Pro RGBWW PM is also perfect as an outdoor lighting control center – both for summer garden parties and quiet evenings on the terrace. The controller allows you to divide the space into different zones , such as the terrace, gazebo, entrance, driveway, or garden beds, and then control them independently – turning on selected sections, changing the brightness, or selecting the backlight color. This is an extremely convenient solution for both everyday use and special occasions, when a single setting can create a striking lighting ambiance for the entire garden. The ability to create schedules and automation allows you to adjust the lighting to the time of day, sunset, or individual preferences, and also increases comfort and safety, for example, by automatically illuminating the entrance after dark or simulating the presence of household members when you're away.
Comfort and safety of use at any time
Taking care of the quality of sleep for both young and old household members is extremely important, and properly planned lighting can significantly improve the comfort and safety of everyday life after dark. Thanks to the night mode function , Shelly Pro RGBWW PM allows you to create intelligent lighting that helps you navigate your home safely at night . This solution is especially effective when only soft light is needed, to safely navigate the house without having to turn on the main lighting, for example, when going to the kitchen or bathroom at night or caring for a child. The delicate backlight can turn on automatically at a selected time or operate according to a preset schedule, providing subtle light exactly where it's needed. Furthermore, the Shelly Pro RGBWW PM is equipped with advanced safeguards to prevent surges, overloads, and overheating, ensuring safe operation and longevity. These features, along with the ability to program a night mode to suit individual user preferences, ensure the controller can reliably support household members at any time of day or night.
Thanks to the night mode function and the safety of the controller's advanced security features, creating intelligent lighting becomes extremely accessible.

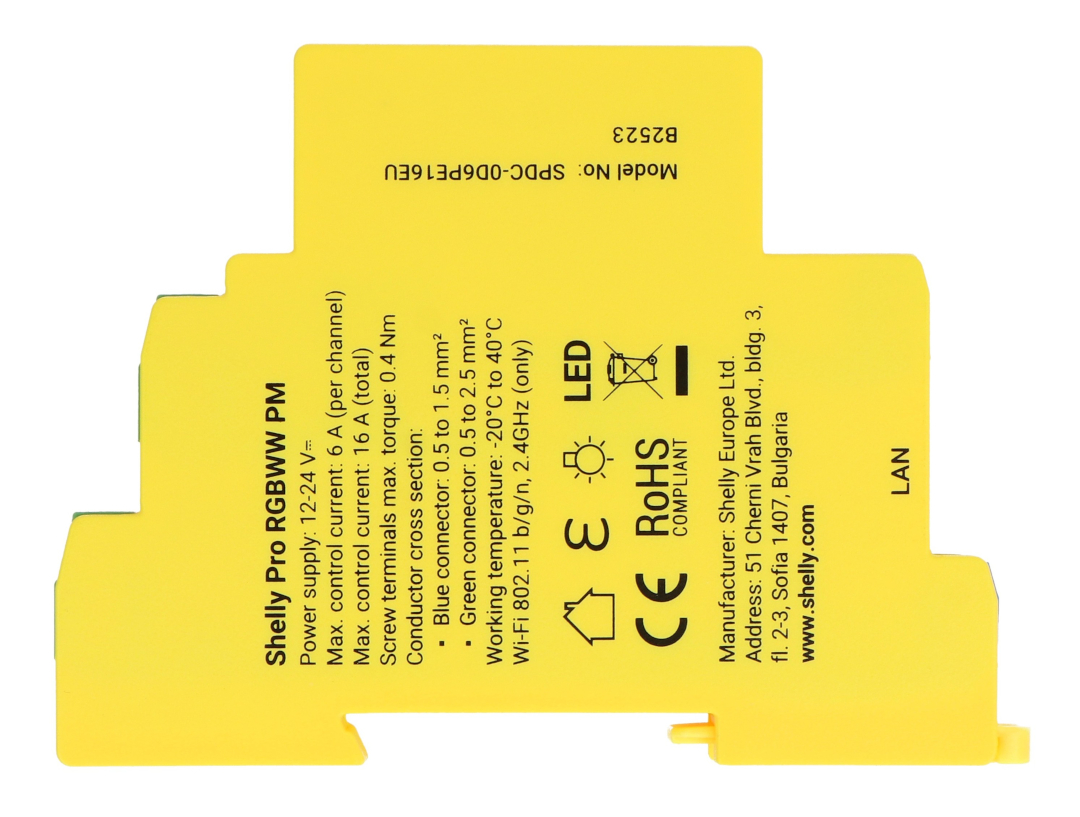

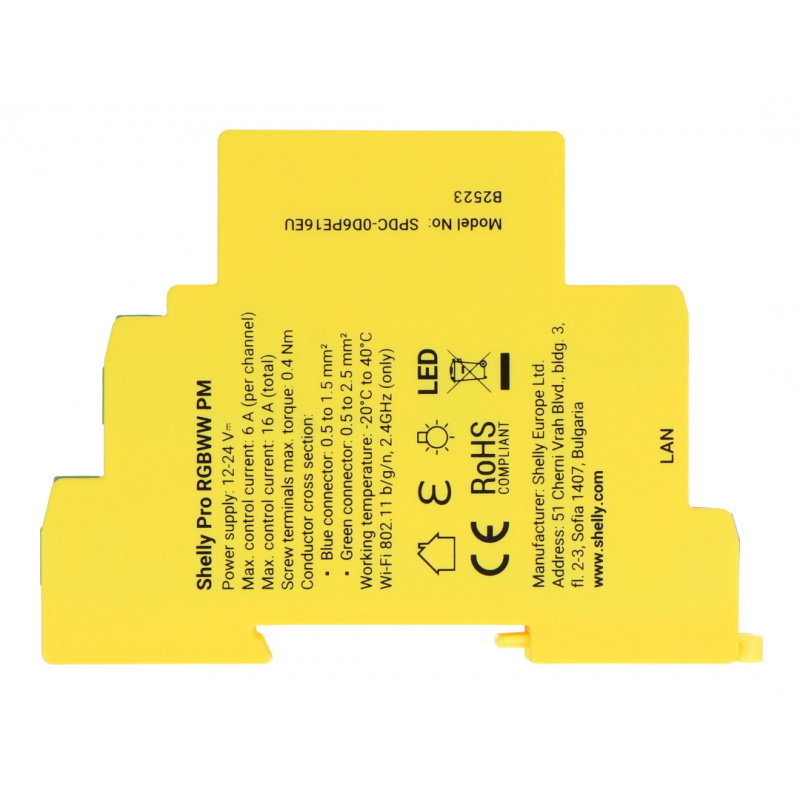

Controller technical specifications
- Power supply: 12V to 24V DC
- Power consumption: less than 1.5 W
- Maximum switching current: 16 A
- Maximum control current: 16 A (total), 6 A (per channel)
- WiFi:
- WiFi protocol: 802.11 b/g/n
- WiFi range: up to 30 m indoors and up to 50 m outdoors (depending on local conditions)
- Maximum RF power: up to 20 dBm
- RF band: from 2401 MHz to 2495 MHz
- Bluetooth:
- Bluetooth Standard: 4.2
- Bluetooth range: up to 10 m indoors and up to 30 m outdoors (depending on local conditions)
- Maximum RF power: up to 4 dBm
- RF Band: 2400MHz to 2483.5MHz
- Processor: ESP32-D0WDQ6
- Clock frequency: 40 MHz
- Flash memory: 8 MB
- Number of schedules: 20
- Firmware: Webhooks: 20 with 5 URLs/hook, scripts, MQTT, CoAP
- CCT range 2700K - 6500K (default value, configurable in any range from 1000K to 10000K)
- Operating temperature: -20°C to 40°C
- Operating humidity: 30% to 70% RH
- Maximum altitude: 2000 m
- Protection: against overvoltage, overload and overheating
- Temperature sensor: built-in
- Maximum tightening torque of screw connections: 0.4 Nm
- Maximum wire cross-section: 0.5 mm² to 2.5 mm² / 20 AWG to 14 AWG (green connectors), 0.5 mm² to 1.5 mm² / 20 to 16 AWG (blue connectors)
- Stripped wire length: 6 mm to 7 mm (green connectors), 5 mm to 6 mm (blue connectors)
- Mounting: DIN rail
- Material: plastic
- Color: yellow housing, black printing, green and blue connectors/terminals
- Dimensions: 94 x 19 x 69 mm
- Weight: 61 g
