Product description: LaserPecker LP5 - 20W Fiber Optic and Diode Laser Engraver - Deluxe Kit
The LaserPecker LP5 is a modern, compact laser engraver with a dual laser source that combines a 20W diode laser (450nm) and a 20W fiber laser (1064nm) . This configuration allows for marking and cutting a wide range of materials – from wood and glass, through plastics, to stainless steel and precious metals. A speed of up to 10,000 mm/s and a precision of 0.0027 mm enable the implementation of even the most demanding projects – both in single-item and mass production. The LP5 stands out with its compact design and weighing only 3.36 kg , enabling both mobile and handheld operation . Thanks to the mobile app and compatibility with LightBurn software, operation is fast, intuitive, and flexible. It is an ideal solution for companies personalizing products, as well as for artists, creators, and CNC workshops. The Deluxe kit includes two key modules that extend the functionality of the LP5 - a rotary module for engraving on cylindrical objects and a Slide Extension module that extends the working area of the device to a length of 300 mm.

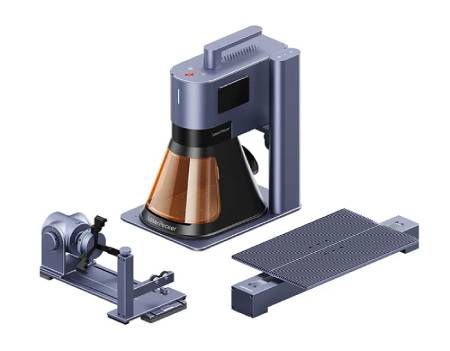

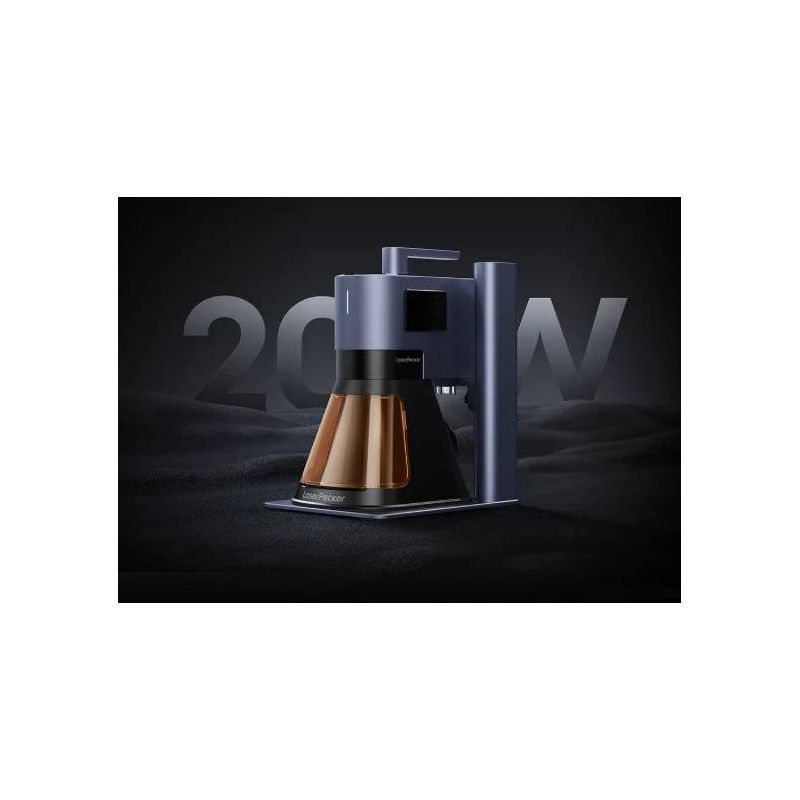

LaserPecker LP5 - 20W Fiber Optic and Diode Laser Engraver - Deluxe Kit.

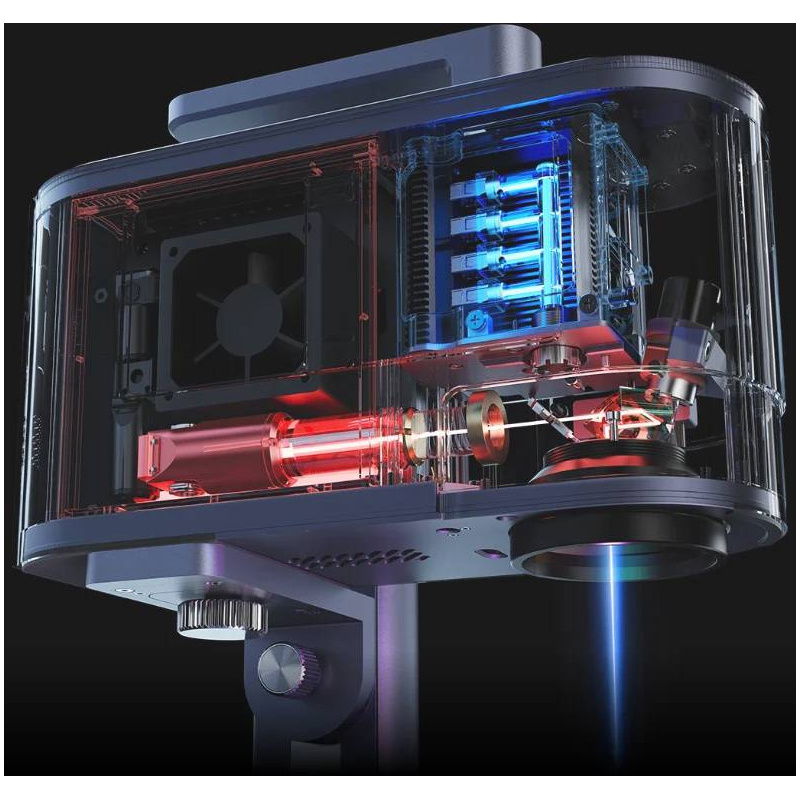

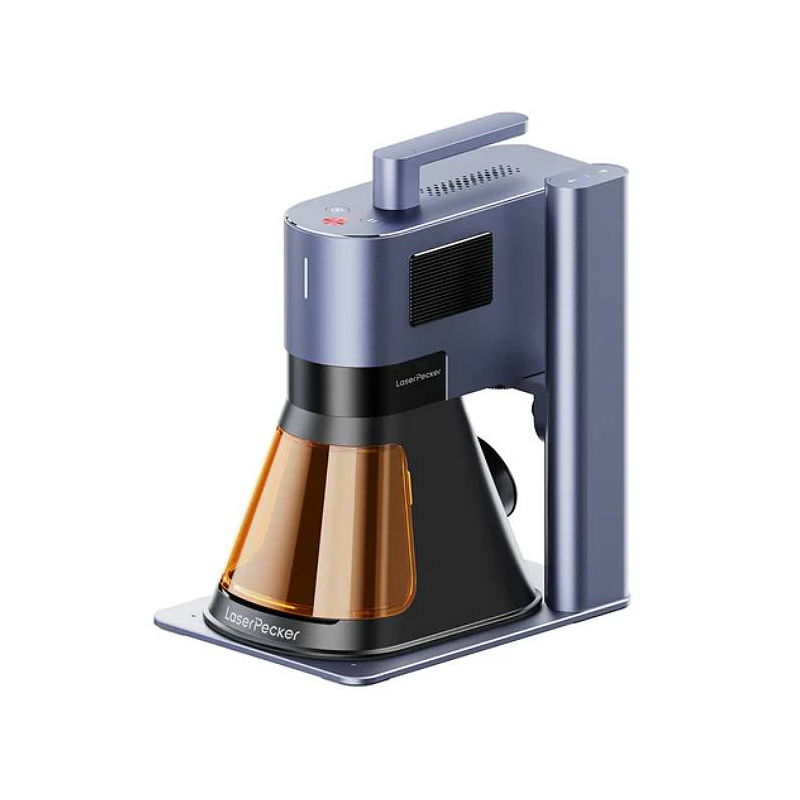

The LP5 integrates a 20W fiber laser with a 20W diode laser.
Dual laser source and exceptional precision
The LaserPecker LP5 is equipped with two light sources: a 20W diode laser with a wavelength of 450nm and a 20W fiber laser (1064nm) . This configuration allows for processing over 99% of materials, including wood, acrylic, leather, glass, stone, plastics, and metals—from aluminum and stainless steel to titanium and brass. The device offers automatic source switching and predefined settings for different materials , significantly reducing setup time and minimizing the risk of errors. Advanced optics provide a spot size of 0.08 x 0.1mm for the diode laser and 0.06 x 0.06mm for the fiber laser , allowing the LP5 to achieve exceptional positioning accuracy of 0.0027mm. Operating speed reaches a whopping 10,000mm/s, and the built-in Smart Path algorithm optimizes the engraving path , increasing efficiency in both batch and piece production. The device easily cuts 0.4 mm iron (2 passes), 0.5 mm stainless steel (4 passes), 12 mm black acrylic, and 20 mm wood. It also allows you to create color engravings on metals and clear black markings without a raised effect. It also supports deep engraving and impressive 3D reliefs.
Mobility, lightness and work anywhere
The LP5 was designed with flexibility and mobility in mind – the total laser unit weighs just 3.36 kg . Thanks to its compact dimensions and special design with an open bottom and adjustable stand, the device can be operated in handheld mode, at any angle , without the need for rigid mounting. This enables easy engraving directly on large objects or in hard-to-reach places. This mobility makes the LP5 ideal not only for workshops and plants, but also for trade shows, events, or customer work .

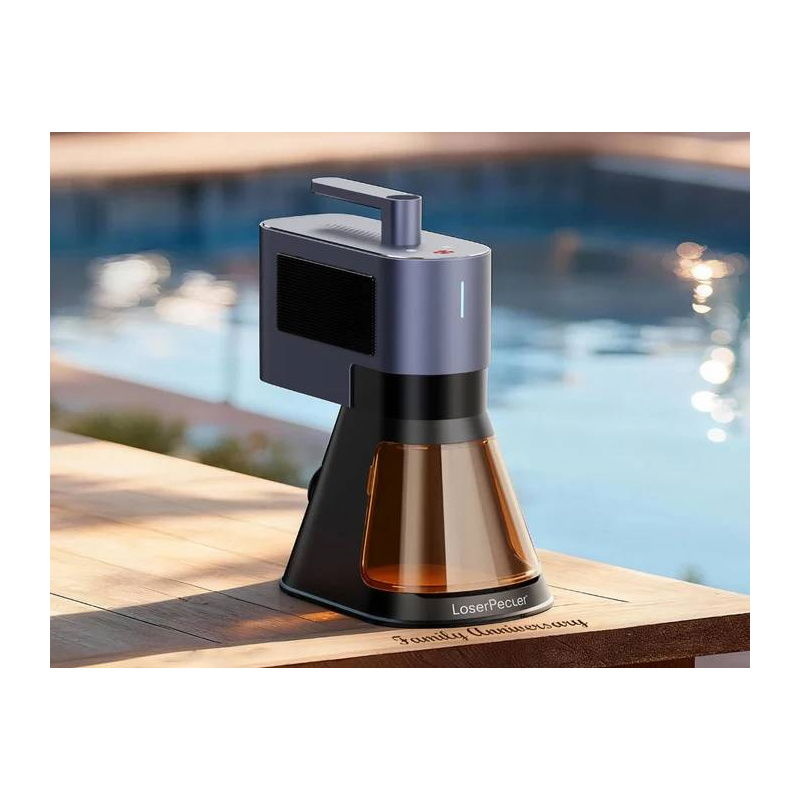

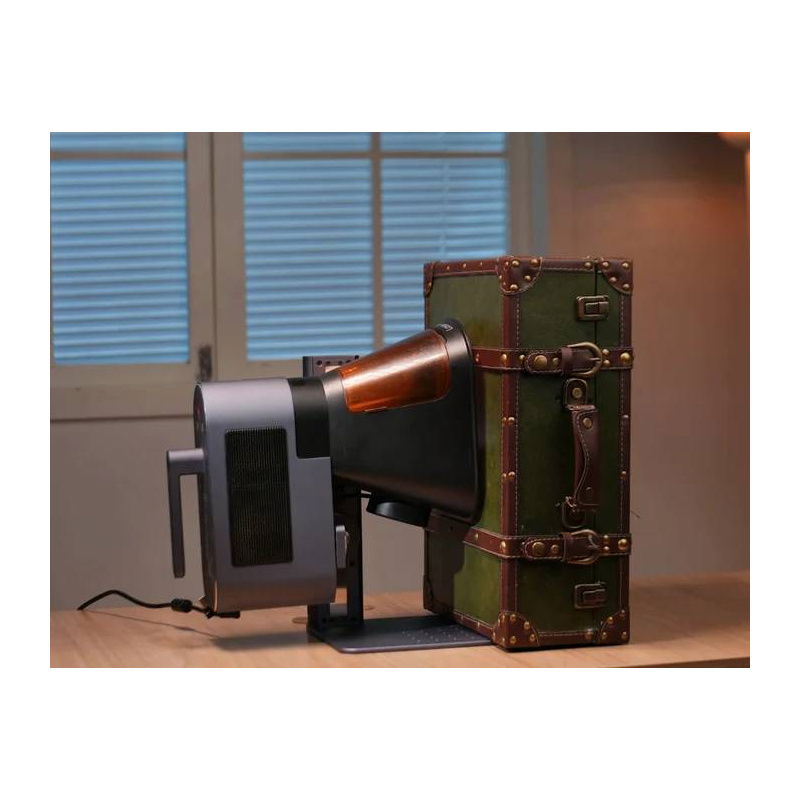

Weighing just 3.36 kg, the LP5 allows you to engrave at a variety of angles.

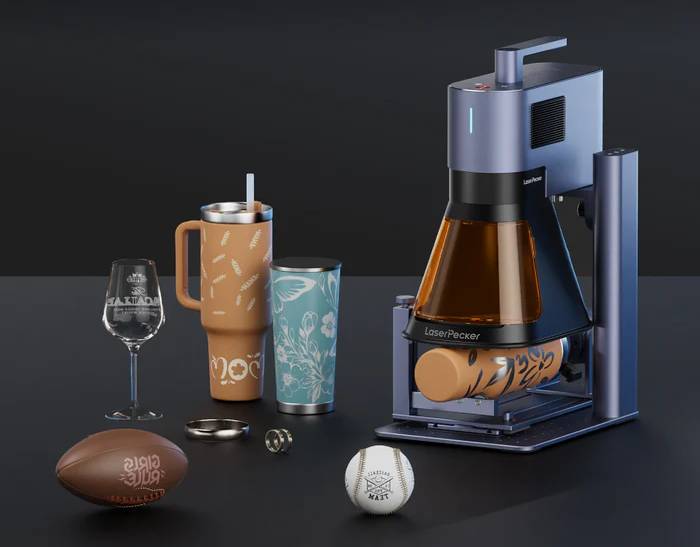

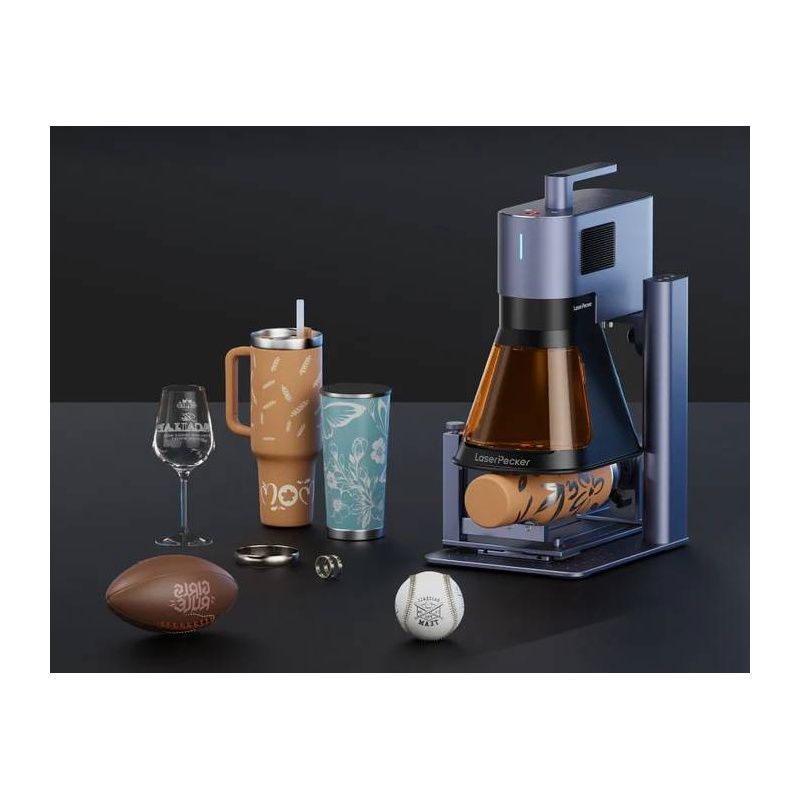

The rotation module has a precise mechanism for clamping and rotating cylindrical objects.
Extended functionality thanks to included modules
The device comes with two professional extensions: the Rotary Extension and the Slide Extension. The Rotary Extension enables engraving on cylindrical objects such as cups, rings, or pipes – the object is clamped and precisely rotated during operation, allowing for full 360° marking. The Slide Extension, on the other hand, expands the work area to 160 x 300 mm , allowing for efficient processing of longer materials or the completion of serial orders in a single session. Both modules expand not only the range of applications but also the commercial value of the LP5, making it a semi-industrial solution.
Software, security and ease of use
The LP5 offers full compatibility with the free LaserPecker Design Space software available for PCs, smartphones, and tablets, as well as the LightBurn environment. The device can be operated via Wi-Fi, USB, or offline using a USB drive, providing flexible work anywhere. The enclosed version of the device meets Class 1 safety standards, featuring 99.99% laser filtration, door sensors, and an emergency stop button . An optional 3-stage air filtration system ensures a clean work environment. All this makes the LP5 safe and comfortable to use even in shared spaces, offices, or service centers.

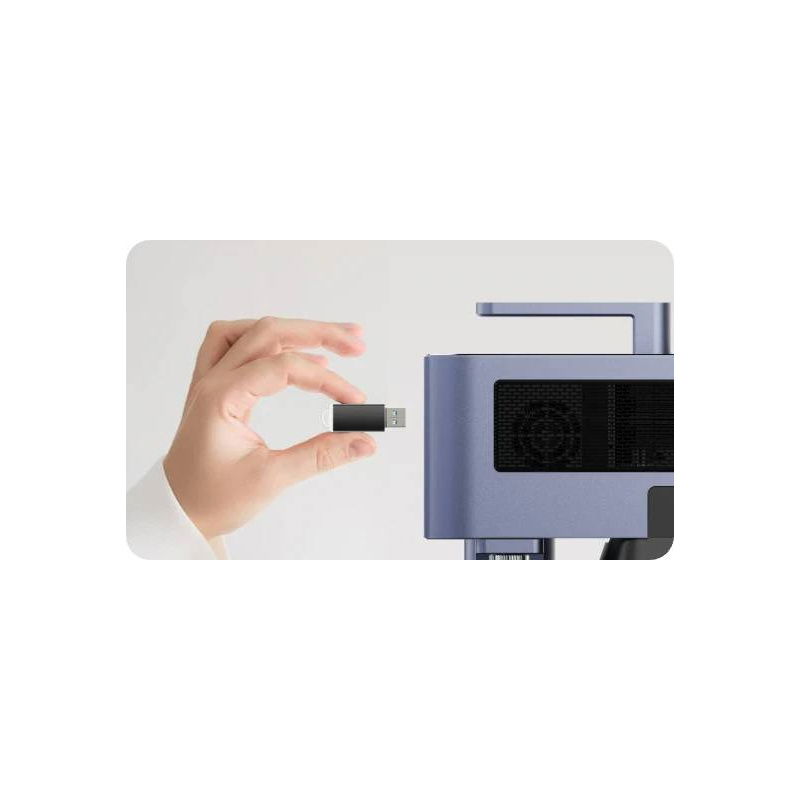

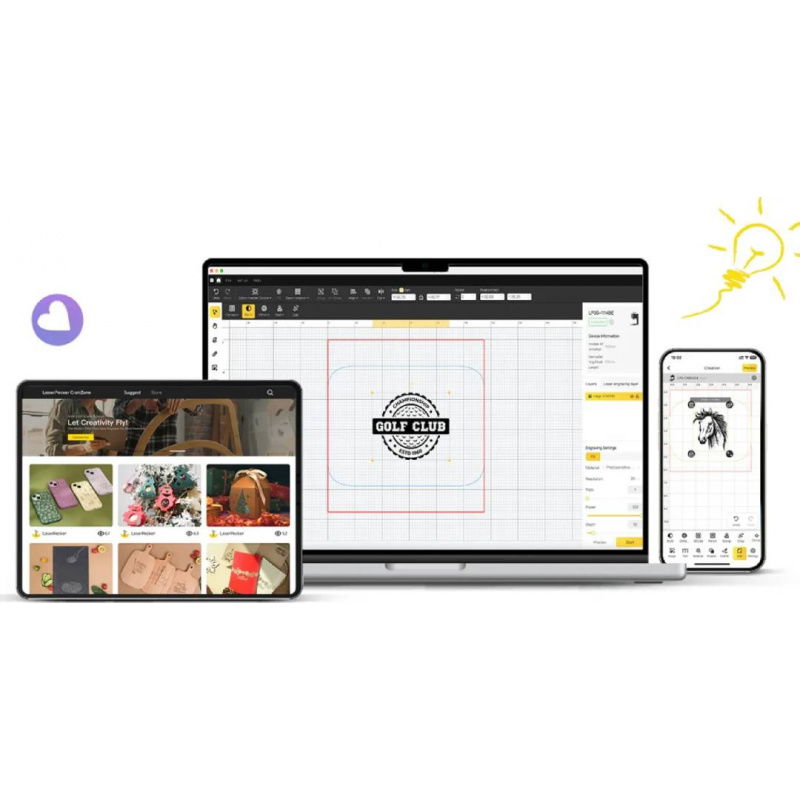

The LP5 allows control via WiFi or wired connection , as well as offline USB drive support.

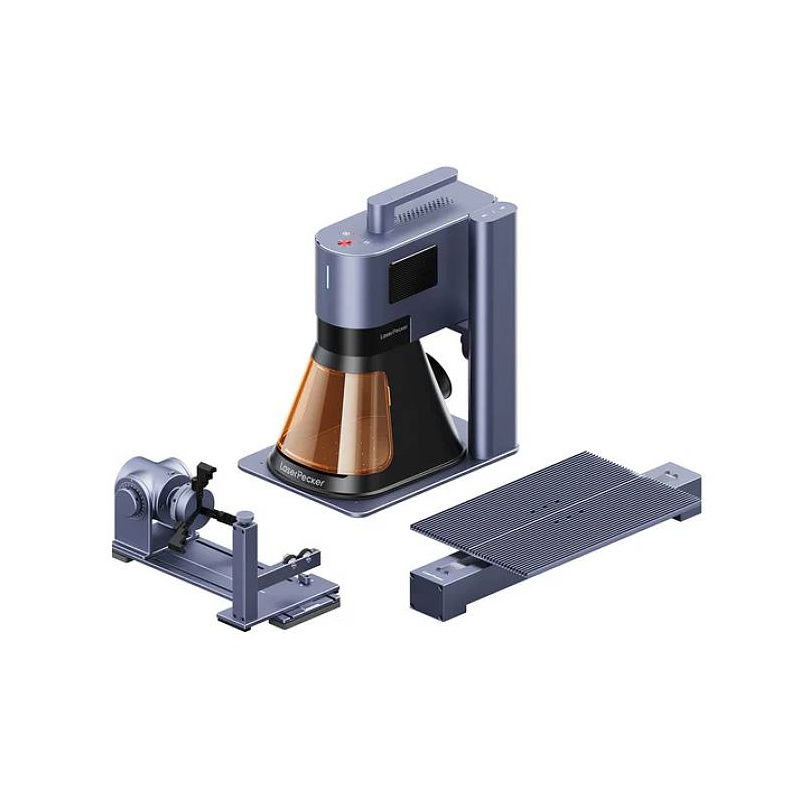

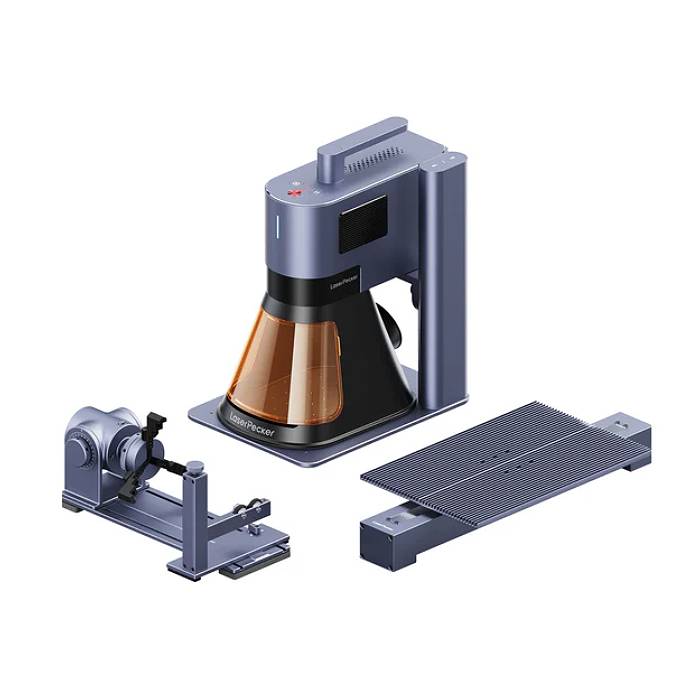

Elements included in the set.
Contents of the set
- LP5 laser engraver
- Rotation module
- Work area extension module
- Electric stand
- Protective cover
- Goggles
- USB cables (1.5m and 0.6m)
- Charger
- Angle positioner
- USB drive
- Pipe with adapter
- Tools
- User manual
| Technical specifications of the LaserPecker LP5 laser engraving machine | |
|---|---|
| Laser type | diode 450 nm + fiber optic 1064 nm |
| Laser power | 20 W |
| Laser spot | 0.08 x 0.1 mm (diode), 0.06 x 0.06 mm (fiber optic) |
| Positioning accuracy | 0.0027 mm |
| Movement accuracy | 0.0027 mm |
| Image resolution | 1K / 2K / 4K / 8K |
| Work area | 120 x 160 mm (ellipse), 100 x 100 mm (square), 160 x 300 mm (with Slide Extension module) |
| Max operating speed | 10000 mm/s |
| Max processing height | 137 mm |
| Max. rotating diameter | 200 mm |
| Cutting depth | up to 1 mm (metal), up to 20 mm (wood), up to 15 mm (black acrylic) |
| Supported materials - fiber laser | stainless steel, aluminum, brass, silver, plastic, platinum, titanium |
| Supported materials - diode laser | wood, acrylic, leather, glass, stone, paper, rubber |
| Preview modes | rectangular / contour / center point |
| Cooling | semiconductor + air cooling |
| File formats | PC: G-code, JPG, PNG, BMP, SVG, DXF mobile: G-code, JPG, PNG, SVG |
| Operating systems | Windows 10+, macOS 10+, Android 7.0+, iOS 9.0+ |
| Communication | USB, WiFi |
| Input power | DC 24V, 7.5A/AC 100V to 240V, 50/60Hz (180W) |
| Ambient temperature | from 10°C to 35°C, humidity from 10% RH to 95% RH |
| Certificates | CE, ROHS, FCC, FDA, NCC, KC, UKCA, TELEC, SRRC |
| Supported languages | Polish, English, German, Spanish, French, Japanese, Korean, Russian, Portuguese, Traditional and Simplified Chinese |
| Dimensions | Laser: 255 x 98 x 183 mm; Stand: 198 x 286 x 323 mm; Cover: 167 x 231 x 160 mm |
| Mass | Laser: 3.36 kg; Stand: 2.28 kg; Cover: 0.38 kg; Total: 6.02 kg |
