Product description: LaserPecker LP5 - 20W fiber optic and diode laser engraver - set with housing
The LaserPecker LP5 is a modern, compact laser engraver that combines two laser sources in a single design: a 20W diode laser with a wavelength of 450nm and a 20W fiber laser (1064nm). This combination ensures effective processing of almost all common materials – from wood and glass to precious metals, aluminum, and titanium. It offers a working speed of up to 10,000 mm/s and precision of 0.0027 mm , enabling projects requiring high accuracy and repeatability. The compact design and low weight of the laser unit ( 3.36 kg) enable mobile operation and work at various angles. The LaserPecker LP5 is compatible with the free LaserPecker Design Space software, available for computers and mobile devices, as well as with the LightBurn environment. A dedicated enclosure is also included , allowing for safe operation of the laser indoors. The housing meets the requirements of class 1 safety class, ensures high efficiency of laser radiation filtration, is equipped with door opening sensors and an emergency stop button .

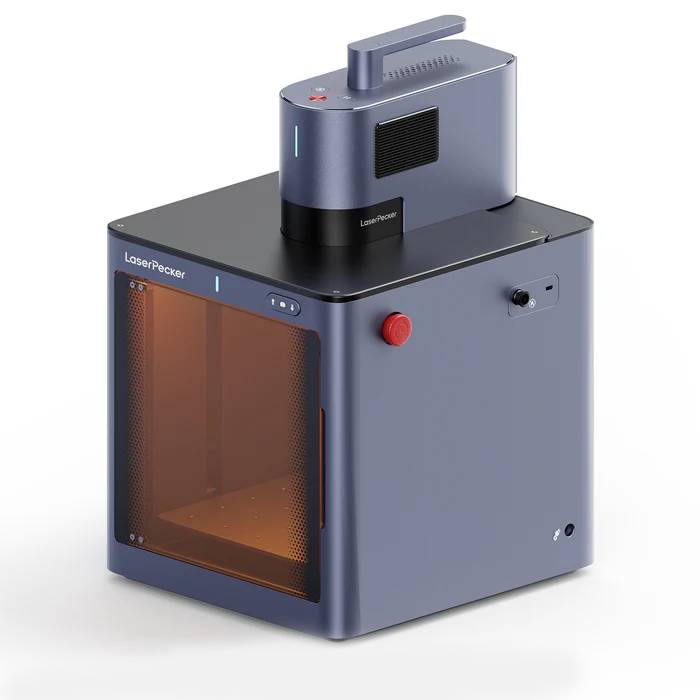

LaserPecker LP5 - 20W fiber optic and diode laser engraver - kit with housing.

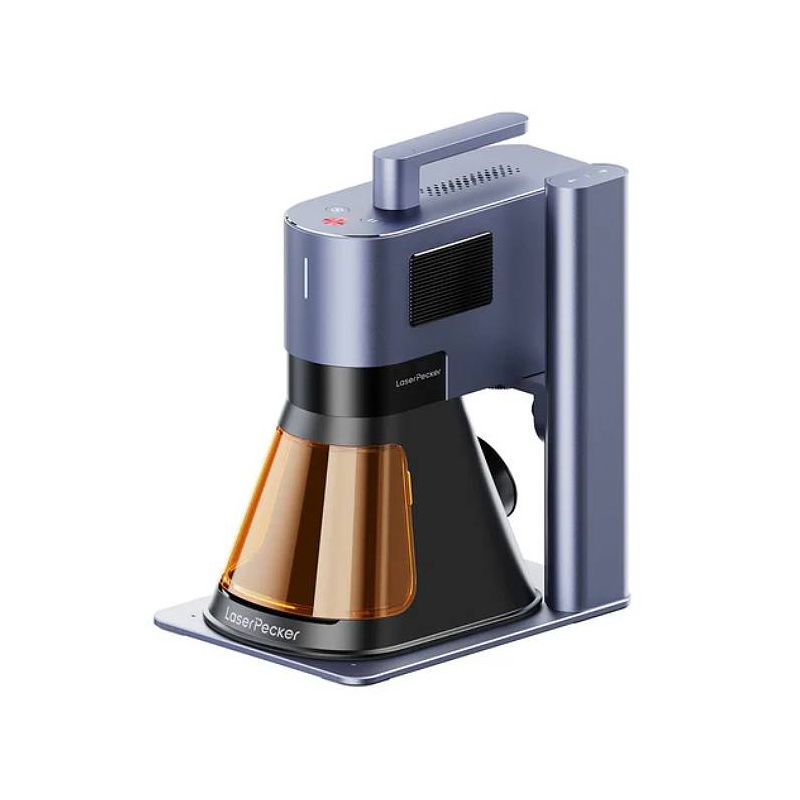

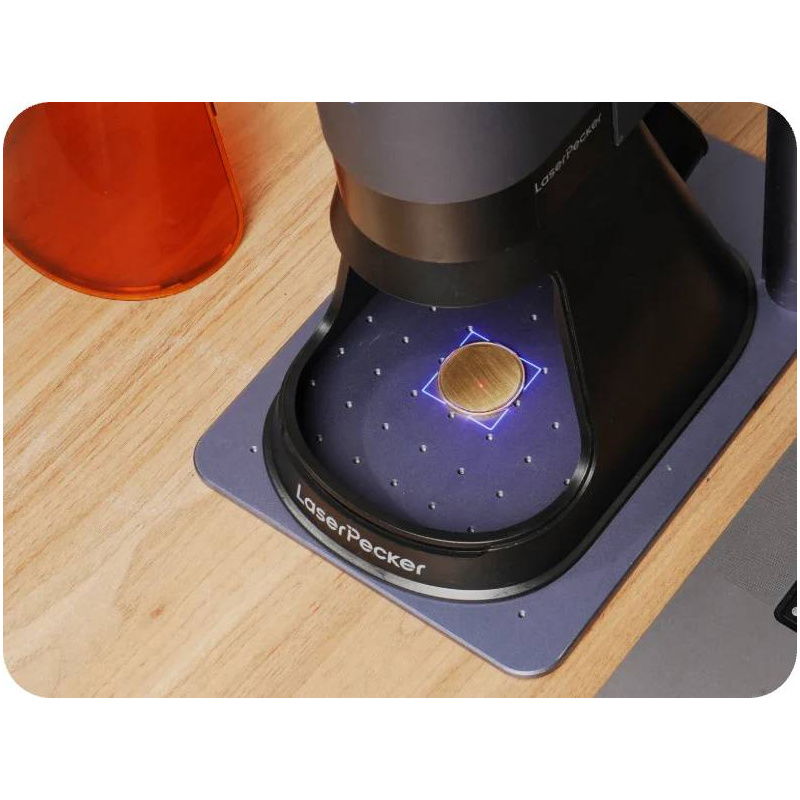

The LP5 integrates a 20W fiber laser with a 20W diode laser.
Double laser technology - material versatility
The LaserPecker LP5 is an advanced laser engraver that combines a 20W diode laser with a 450nm wavelength and a 20W fiber laser with a 1064nm wavelength. This configuration allows you to process almost any material – wood, leather, paper, acrylic, stone, glass, aluminum, brass, stainless steel, and titanium. Its maximum operating speed is 10,000 mm/s , and its positioning precision is 0.0027 mm . The fiber laser spot is 0.06 x 0.06 mm , while the diode laser spot is 0.08 x 0.1 mm . The standard working area is 120 x 160 mm (ellipse) or 100 x 100 mm (square) , and with the optional Slide Extension module, it can expand to 160 x 300 mm. The LP5 effortlessly cuts thin sheet metals (e.g., 0.4mm iron in 2 passes, 0.5mm stainless steel in 4 passes, 0.2mm aluminum in 1 pass), while the diode laser easily cuts 12mm acrylic or 20mm wood . It also supports deep engraving, 3D relief, and color metal marking.
Mobility, ergonomics and field work
The LP5 is designed for portability and versatility. The laser unit weighs just 3.36 kg . This allows for easy portability and manual operation, even at an angle or directly on large objects that cannot be accommodated in traditional CNC machines. This makes the LP5 an ideal tool for both stationary and field work, such as at trade shows, workshops, events, or customer sites. Operation via the mobile app and the live project preview function significantly increase user convenience.

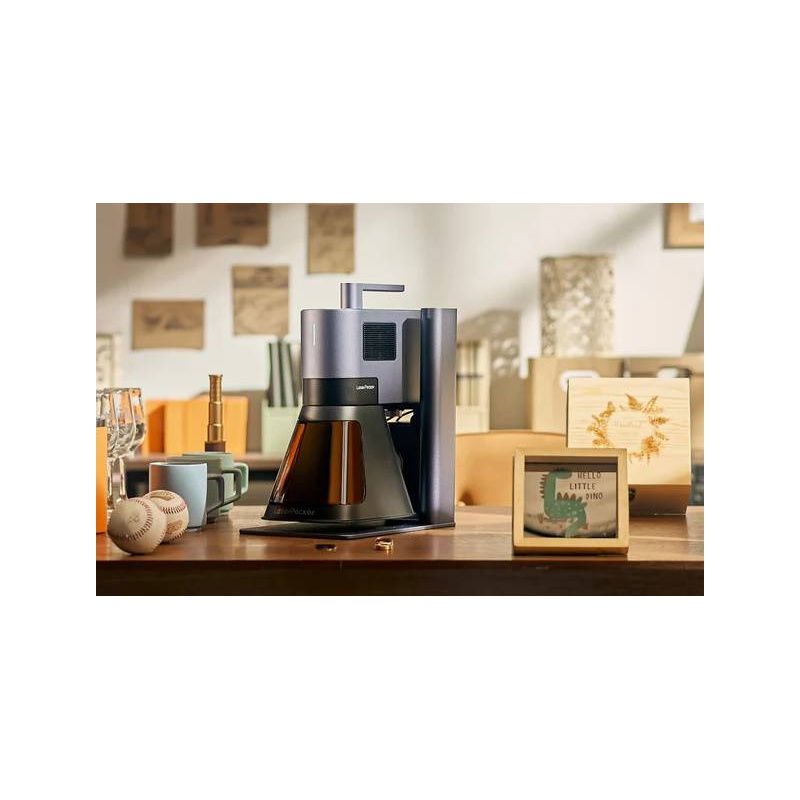

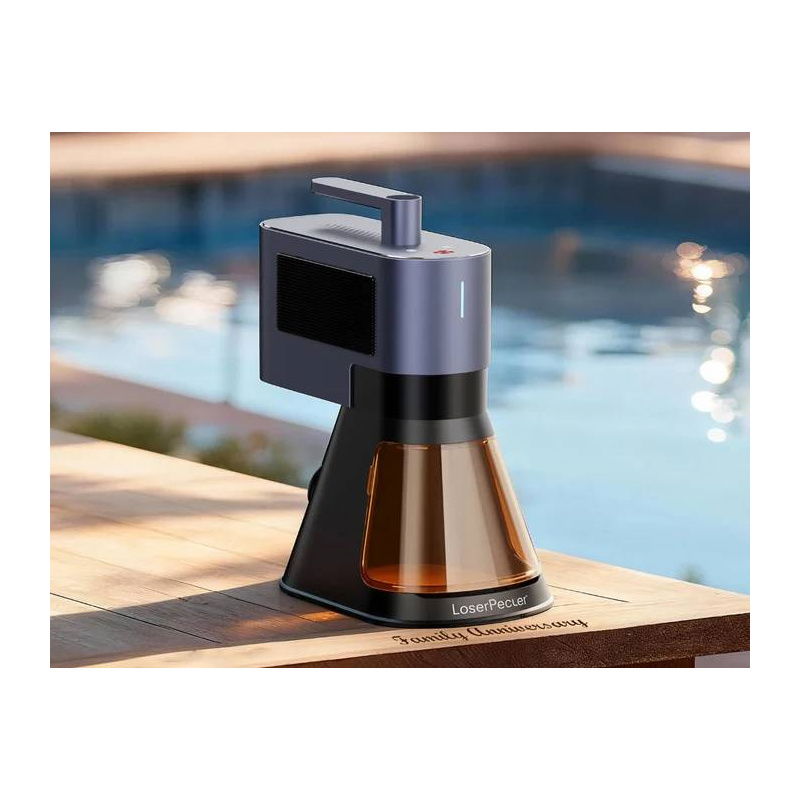

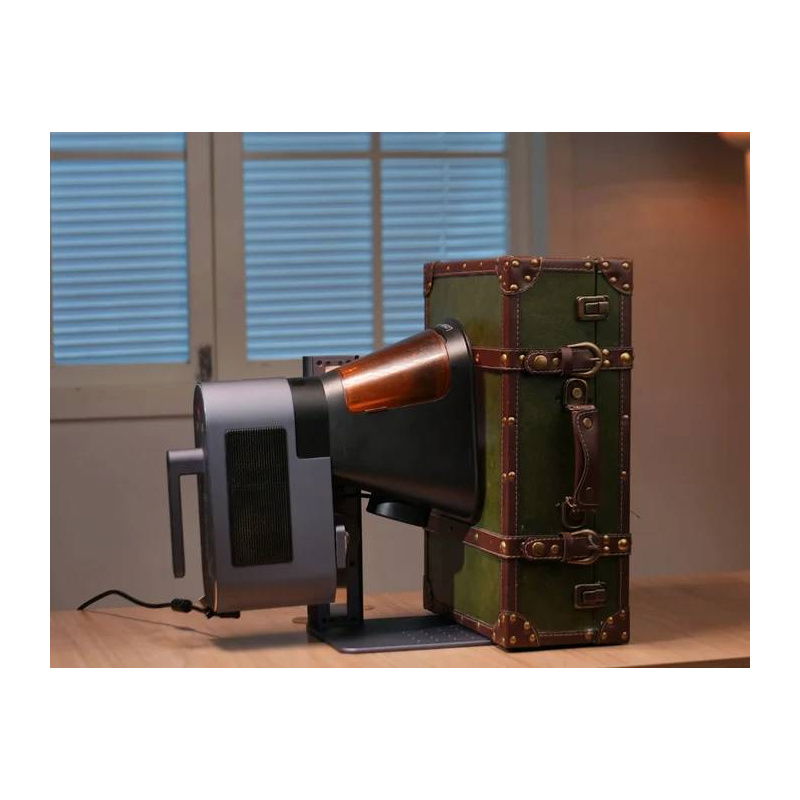

The compact design with a laser unit weighing only 3.36 kg allows you to work at an angle.

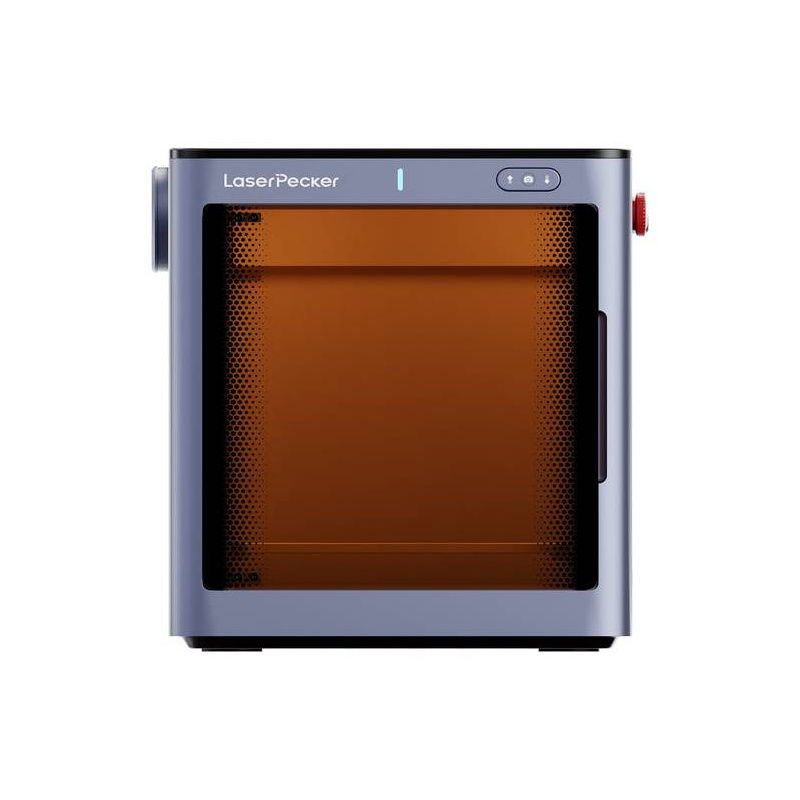

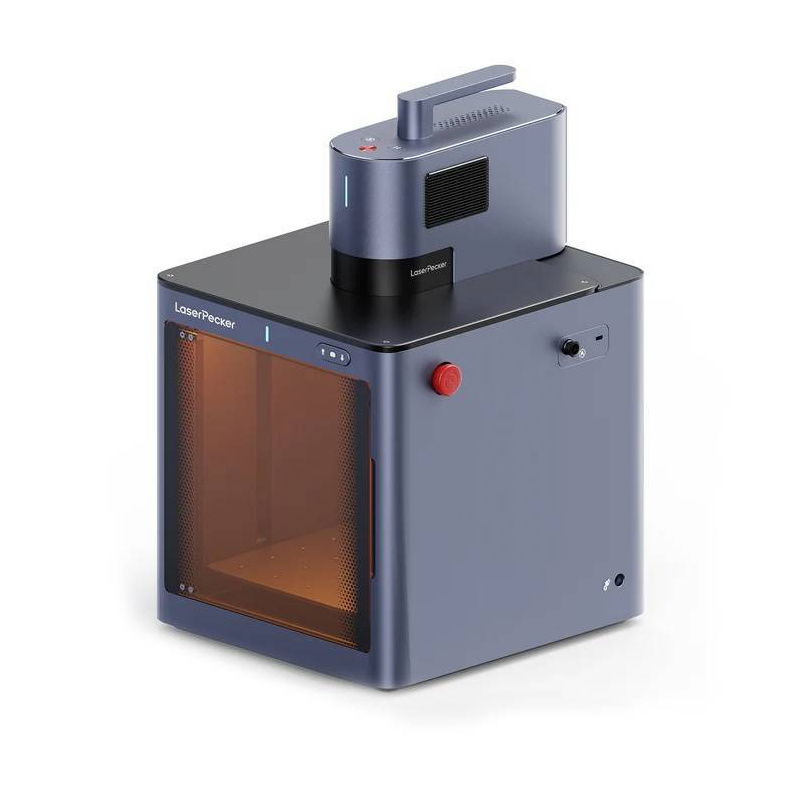

The housing is equipped with door sensors that immediately stop the laser when opened.
Containment - Protection and Automation
The kit includes a professional-grade safety enclosure designed specifically for the LP5. It meets Class 1 laser requirements and offers 99.99% filtration of light at wavelengths of 450 nm and 1064 nm. An integrated door sensor automatically stops the laser when opened, and built-in safety features include an emergency stop button, overheat protection, and a key to prevent unauthorized access . Additionally, the enclosure is equipped with a material positioning camera and an automatic build platform lift system , which facilitates focusing and allows for intelligent, batch engraving. Built-in fans efficiently extract smoke and keep the workspace clean.
Software and ease of use

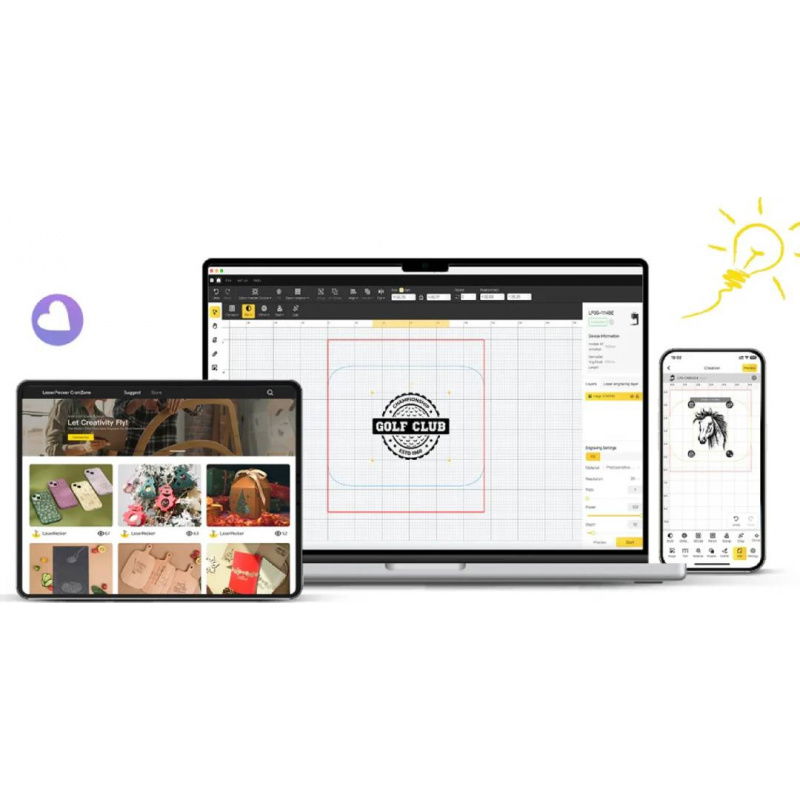

The LaserPecker LP5 works with the free LaserPecker Design Space software, available for PCs and Macs, as well as for Android and iOS mobile devices. Users can also use LightBurn software. The device supports USB and Wi-Fi connections and allows offline operation via a USB flash drive. The intuitive interface, live preview, and precise positioning modes (outline, spot, and rectangle preview) ensure that even beginners can quickly get started without the need for time-consuming setup.

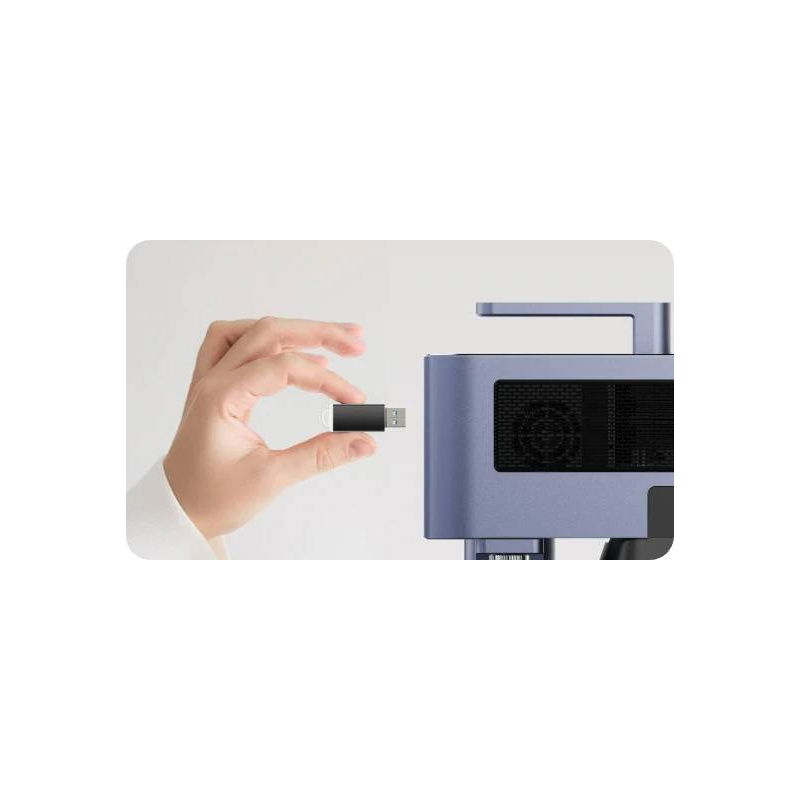

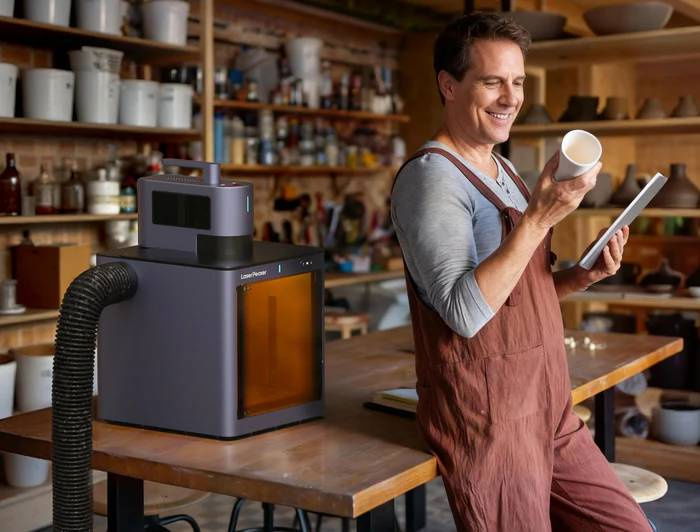

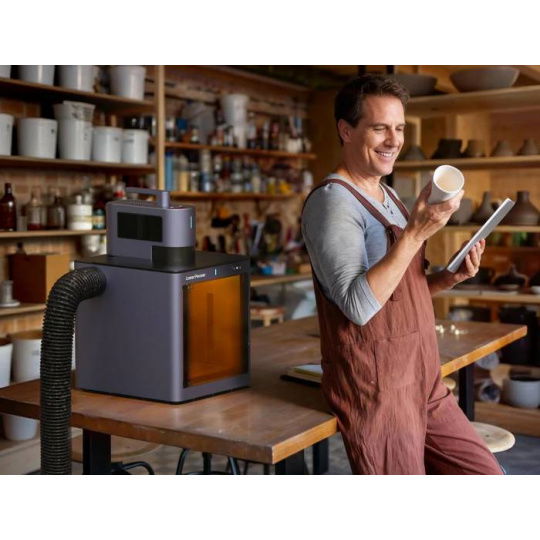

The LP5 allows control via WiFi or wired connection , as well as offline USB drive support.
Elements included in the set.
Contents of the set
- LP5 laser engraver
- Case
- Electric stand
- Protective cover
- Goggles
- USB cables (1.5m and 0.6m)
- Charger
- Angle positioner
- USB drive
- Pipe with adapter
- Tools
- User manual
| Technical specifications of the LaserPecker LP5 laser engraving machine | |
|---|---|
| Laser type | diode 450 nm + fiber optic 1064 nm |
| Laser power | 20 W |
| Laser spot | 0.08 x 0.1 mm (diode), 0.06 x 0.06 mm (fiber optic) |
| Positioning accuracy | 0.0027 mm |
| Movement accuracy | 0.0027 mm |
| Image resolution | 1K / 2K / 4K / 8K |
| Work area | 120 x 160 mm (ellipse), 100 x 100 mm (square) |
| Max operating speed | 10000 mm/s |
| Max processing height | 137 mm |
| Max. rotating diameter | 200 mm |
| Cutting depth | up to 1 mm (metal), up to 20 mm (wood), up to 15 mm (black acrylic) |
| Supported materials - fiber laser | stainless steel, aluminum, brass, silver, plastic, platinum, titanium |
| Supported materials - diode laser | wood, acrylic, leather, glass, stone, paper, rubber |
| Preview modes | rectangular / contour / center point |
| Cooling | semiconductor + air cooling |
| File formats | PC: G-code, JPG, PNG, BMP, SVG, DXF mobile: G-code, JPG, PNG, SVG |
| Operating systems | Windows 10+, macOS 10+, Android 7.0+, iOS 9.0+ |
| Communication | USB, WiFi |
| Input power | DC 24V, 7.5A/AC 100V to 240V, 50/60Hz (180W) |
| Ambient temperature | from 10°C to 35°C, humidity from 10% RH to 95% RH |
| Certificates | CE, ROHS, FCC, FDA, NCC, KC, UKCA, TELEC, SRRC |
| Supported languages | Polish, English, German, Spanish, French, Japanese, Korean, Russian, Portuguese, Traditional and Simplified Chinese |
| Dimensions | Laser: 255 x 98 x 183 mm; Stand: 198 x 286 x 323 mm; Cover: 167 x 231 x 160 mm |
| Mass | Laser: 3.36 kg; Stand: 2.28 kg; Cover: 0.38 kg; Total: 6.02 kg |
