Product description: reComputer R1013-10 - Raspberry Pi CM4 - 2 GB RAM + 8 GB eMMC - Seeedstudio 113991295
reComputer R1013-10 is a high-performance IoT controller based on Raspberry Pi CM4 , designed for industrial applications and building automation. Thanks to the quad-core Cortex A72 processor (1.5 GHz), 2 GB RAM and 8 GB eMMC memory , it ensures smooth and reliable operation. The module is equipped with a rich set of interfaces, including 3 isolated RS485 ports, two Ethernet ports, an M.2 slot for an NVMe SSD drive and support for communication protocols such as BACnet and Modbus (RTU, TCP/IP). Thanks to WiFi and BLE support and the possibility of expanding with optional 4G, LoRa and ZigBee modules, it can act as an IoT gateway in building automation, energy management and industrial monitoring systems. Compatibility with Raspberry Pi OS and Ubuntu systems facilitates integration with existing IT infrastructure.

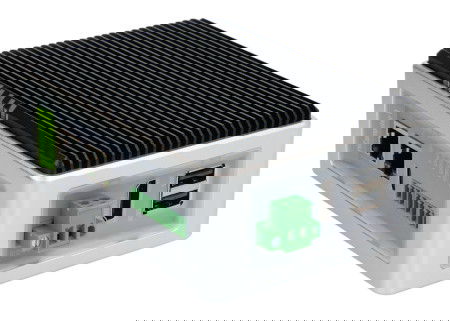

reComputer R1013-10 - Raspberry Pi CM4 - 2 GB RAM + 8 GB eMMC - Seeedstudio 113991295.

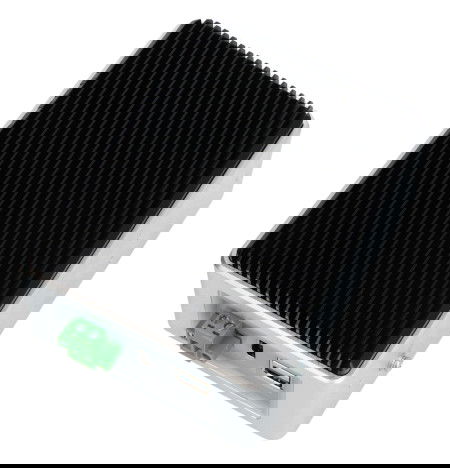

reComputer provides versatile wireless connectivity.
Main features of the reComputer R1013-10
- Processor : Raspberry Pi CM4 with quad-core Cortex-A72 clocked at 1.5 GHz
- RAM : 2 GB RAM LPDDR4 for smooth operation of industrial applications
- Mass storage : built-in 8GB eMMC for fast data writing and reading
- AI Compatibility : Expandable with NPU accelerators for AI applications
- Communication ports : 3 isolated RS485 ports and 2 Ethernet ports (1 GbE PoE + 100 MbE)
- Expansion interfaces : M.2 slot for NVMe drives, SIM card slot, HDMI 2.0, USB Type-A and USB Type-C
- Wireless connectivity : Supports WiFi, BLE, LoRa, ZigBee and 4G LTE (with optional modules)
- Power : Powered by 9V to 36V DC, 12V to 24V AC or PoE for flexible installation
- Security : TPM 2.0 module, RS485 isolation and EMC interference immunity
- Industrial strength : operating temperature range from -30°C to 70°C, adapted to harsh conditions
Applications of reComputer R1013-10
reComputer R10xx-10 is used in many industries, such as fleet management, cloud solutions, industrial edge computing, and image analysis. The platform enables integration with a wide ecosystem of technologies, including NodeRed, FUXA, FIN, N3uron, balena, Home Assistant, AWS IoT Core, and Ultralytics Computer Vision . It can be used in intelligent supermarket management systems based on Raspberry Pi CM4, lighting control systems analyzing body posture, and in the IIoT industry for data management using MING Stack. In addition, the FIN platform supports building management automation, enabling efficient monitoring and optimization of processes in various environments.
Smart supermarket system powered by Raspberry Pi CM4

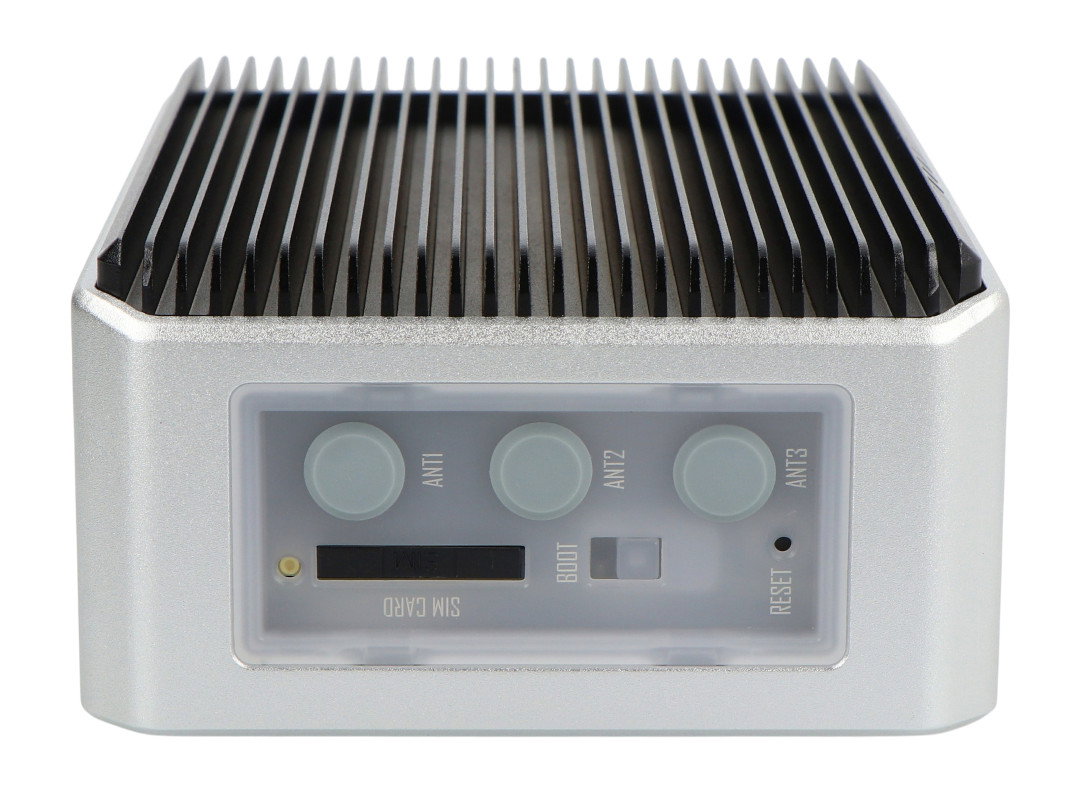

reComputer has a variety of interfaces and works with many wireless communication protocols.
Interfaces in reComputer
- 1x mini-PCIe1 slot : supports 4G LTE, USB LoRa and USB ZigBee modules
- 1x mini-PCIe2 slot : supports SPI LoRa, USB LoRa and USB ZigBee modules
- 3x RS485 (isolated) : supports serial communication with isolation for higher level of security
- 1x 10/100/1000 Mbps Ethernet : Supports Power over Ethernet (PoE), allowing power to be delivered over the network cable
- 1x Ethernet 10/100 Mbps : Supports Ethernet port for standard network connectivity
- 1x HDMI 2.0 : Support HDMI port for high definition video output
- 2x USB Type-A 2.0 : supports standard USB ports for connecting peripherals or storage devices
- 1x USB Type-C 2.0 : Supports USB port, mainly used for OS updates and other possible functions
- 1x SIM card slot : supports SIM cards, usually used for mobile network connectivity
- 1x M.2 slot : Supports M.2 expansion card slot for added functionality or SSD storage option
Durable construction
The controller housing is made of durable and shock-resistant materials, including 6061 aluminum alloy and transparent PC panels , which ensures high durability in demanding conditions. The device can operate in a wide temperature range from -30°C to 70°C and meets vibration, shock, electrostatic discharge (ESD), fast surge (EFT) and surge (Surge) resistance standards. Additionally, the IP40 protection class effectively protects against dust, making it an ideal solution for industrial applications.

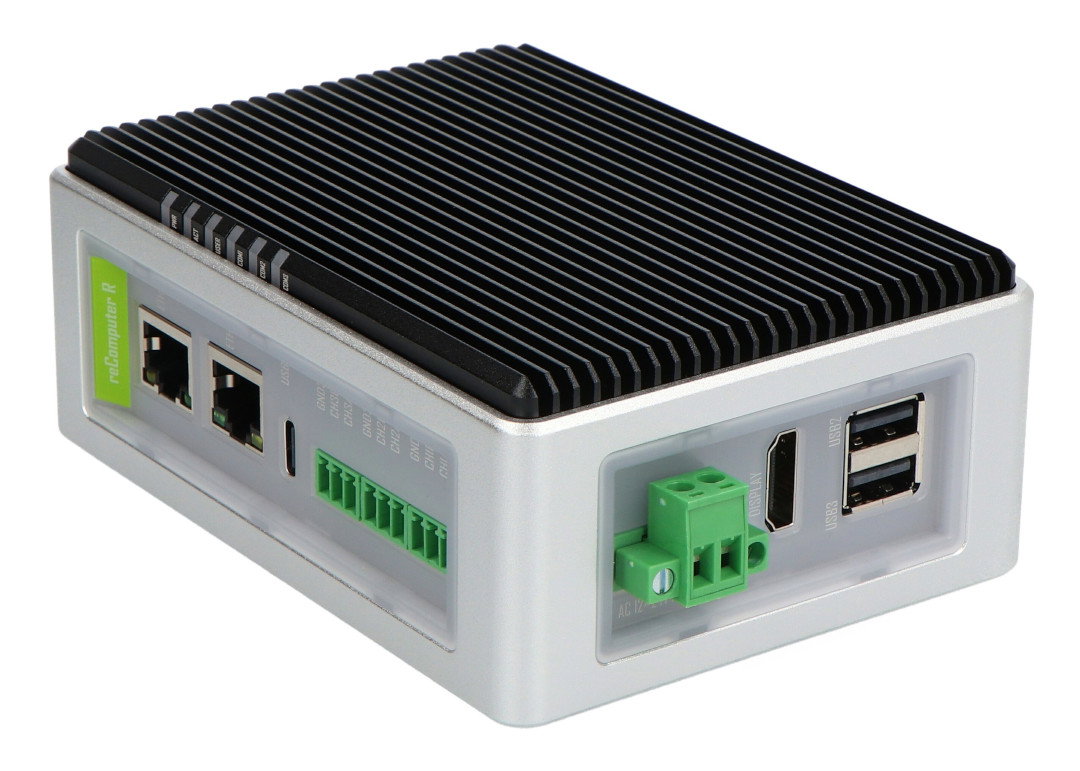

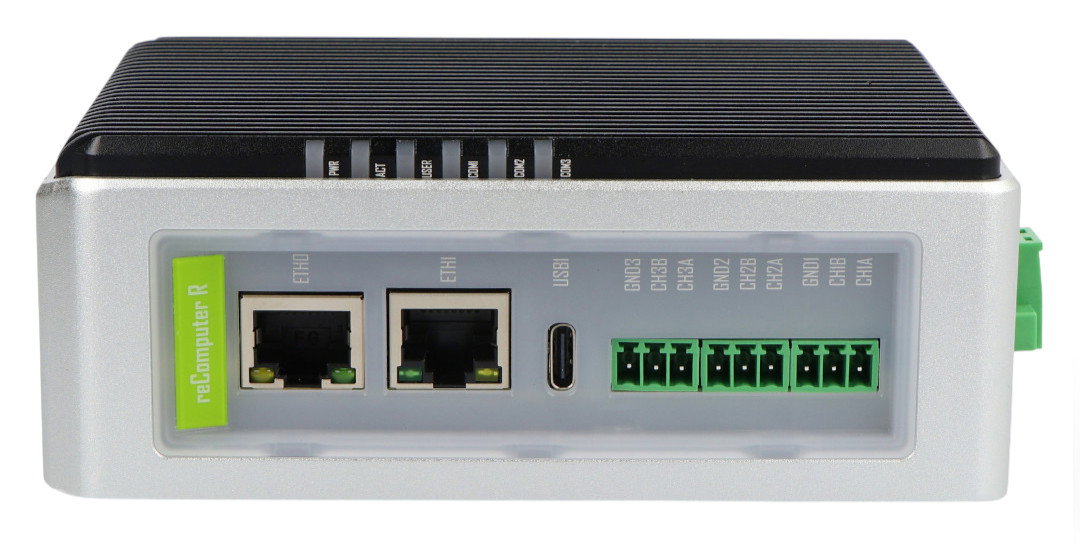

The controller is equipped with two Ethernet ports.

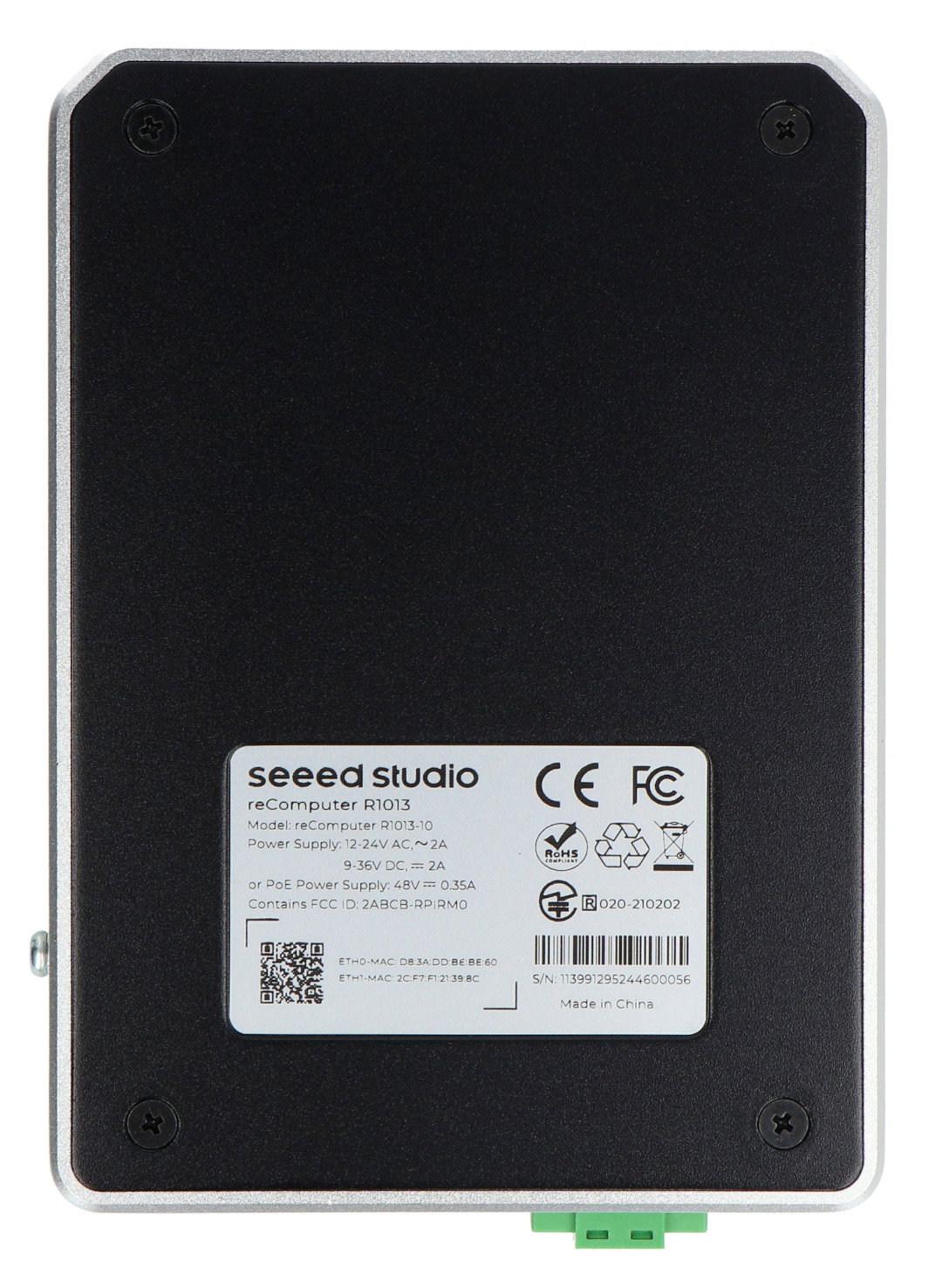

The housing is suitable for mounting on a DIN rail and on a wall.
Power and mounting options for industrial requirements
The controller supports a wide input voltage range from 12 V to 24 V AC and from 9 V to 36 V DC , which provides flexibility in choosing a power source. For critical applications, it is worth considering the option of redundant power supply using PoE (Power over Ethernet), which is available as a separate module. Thanks to low energy consumption and optimized current consumption, the device generates less heat. Additionally, the optional UPS module guarantees uninterrupted operation and monitors power outages. The controller can be easily mounted on both a wall and a DIN rail , which makes it perfect for industrial cabinets and control panels.
Kit Contents
- 1x reComputer R1013-10
- 1x DIN rail mount
- 1x Screw set
- 1x Female socket to screw terminal adapter
- 3x 3-pin male terminal connector
- 5x Resistor 120Ω
- 1x English User Manual

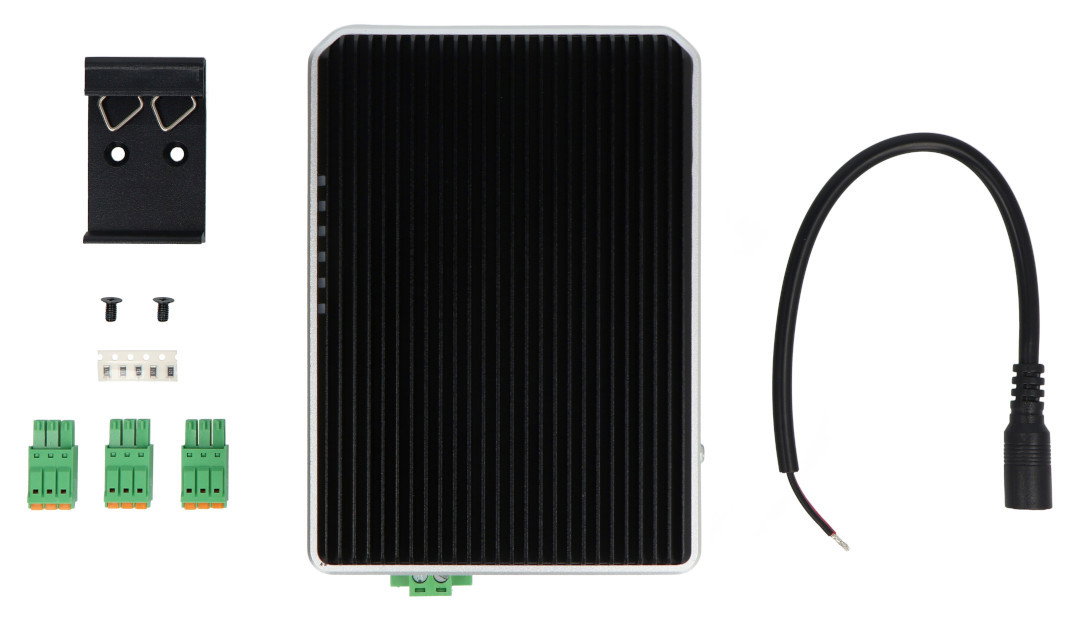

Items included in the set.
| reComputer R1000 Technical Specifications and Comparison | ||
|---|---|---|
| Product | ||
| CPU | ||
| Operating system | ||
| RAM | ||
| eMMC | ||
| Power supply | ||
| PoE | ||
| Fuse | ||
| Energy consumption | ||
| Power switch | ||
| Restart switch | ||
| Interfaces | 1x 10 / 100 Mb/s IEEE802.3/802.3u, 2x USB A 2.0, 1x USB C 2.0 (OS flashing), 3x RS485, 1x HDMI 2.0, 1x SIM slot, 1x M.2 NVMe SSD |
|
| LED | ||
| Buzzer | ||
| Reset button | ||
| Wi-Fi | ||
| BLE | ||
| Lora | ||
| ZigBee | ||
| Operating temperature | ||
| Working humidity | ||
| Dimensions | ||
| Mass | ||
