Product description: Tinycontrol tMDS-16 - temperature meter - Modbus RTU - up to 16 DS18B20 sensors
The tMDS-16 is a professional module designed for temperature measurement using DS18B20 digital sensors . It features two independent 1-Wire buses , each supporting up to 8 sensors, allowing simultaneous temperature readings from up to 16 measurement points. All data is shared via the Modbus RTU RS485 protocol , allowing for easy integration with automation systems and PLCs . The module also offers the ability to individually calibrate each sensor using offsets, ensuring accurate and consistent measurements. Thanks to pre-built configuration files, it works with LK4, LK3.5+, and LK3.9 controllers, enabling quick implementation into existing installations.

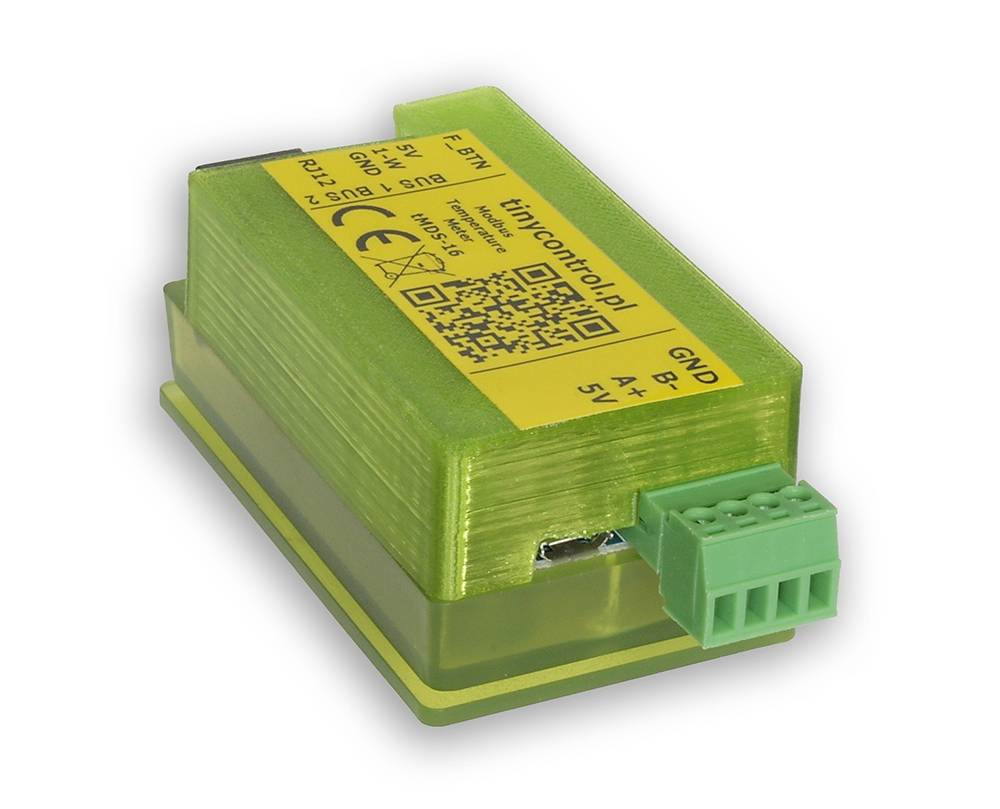

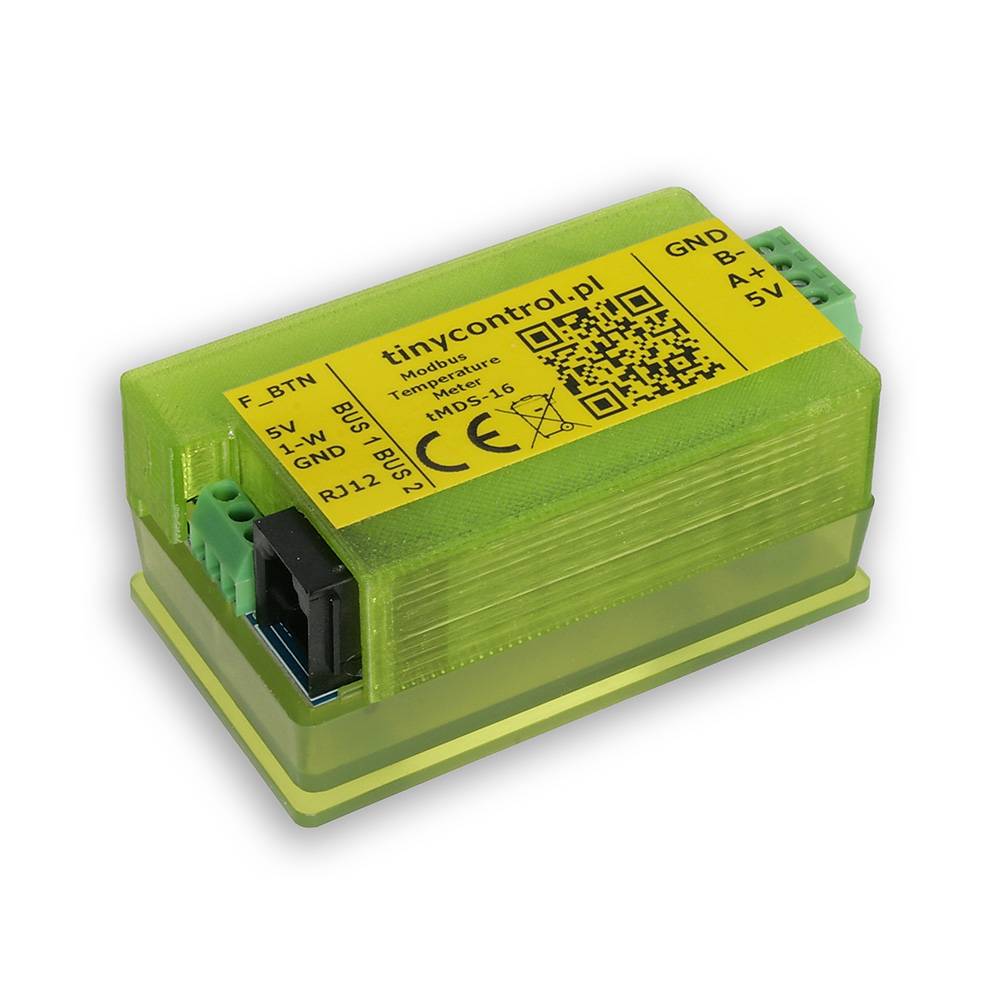

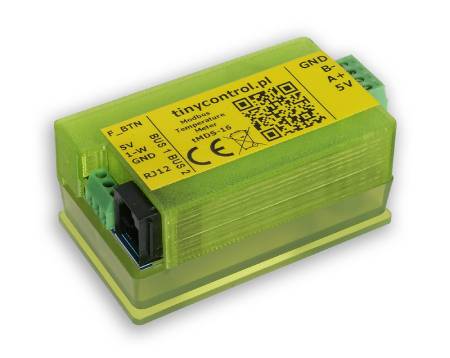

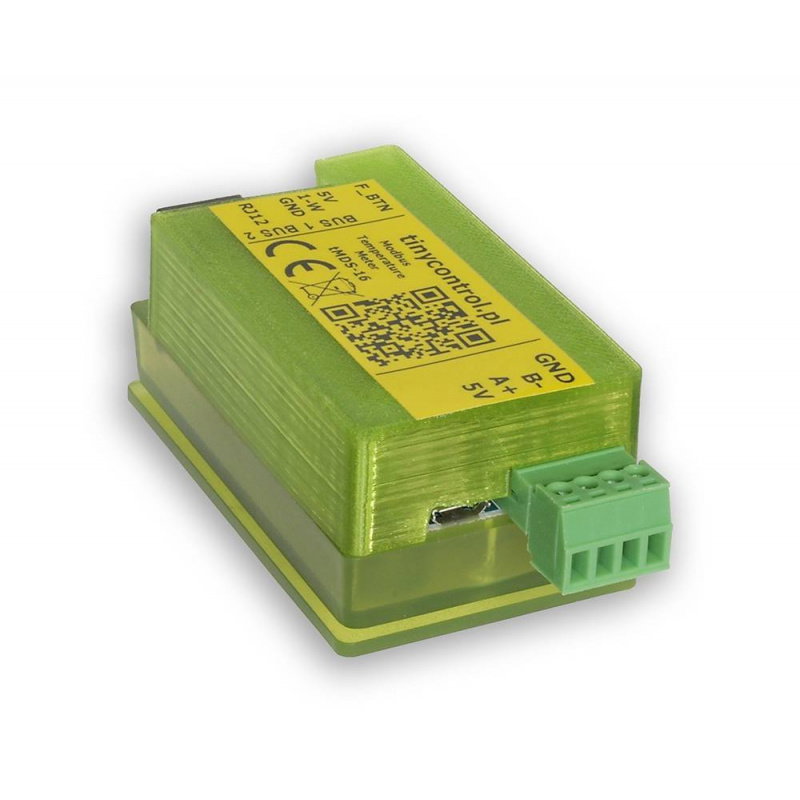

Tinycontrol tMDS-16 - temperature meter - Modbus RTU - up to 16 DS18B20 sensors.
The tMDS-16 is designed to operate as an expansion module for LK4, LK3.9 or LK3.5+ devices.
Main features of the temperature meter
- Support for up to 16 DS18B20 sensors : two independent 1-Wire buses allow the connection of 8 sensors each
- Modbus RTU communication : reading temperatures, offsets and device parameters via the RS485 interface
- Individual sensor calibration : possibility of setting an offset for each of the 16 measurement channels
- Compatibility with LK controllers : full support for LK4, LK3.5+ and LK3.9 devices
- Easy setup : change settings via USB serial console or function button
- Firmware update : convenient software update via USB in bootloader mode
- Extensive Modbus registers : access to measurements, reading errors, offsets and software version information
- Ready-made configuration presets : quick integration with LK device-based systems
Technical specifications of the meter
- Power supply: 5V DC via power connector or 5V via USB
- Supported sensors: up to 16 DS18B20 sensors
- 1-Wire buses: 2 independent buses, 8 sensors on each
- Communication interface: Modbus RTU RS485

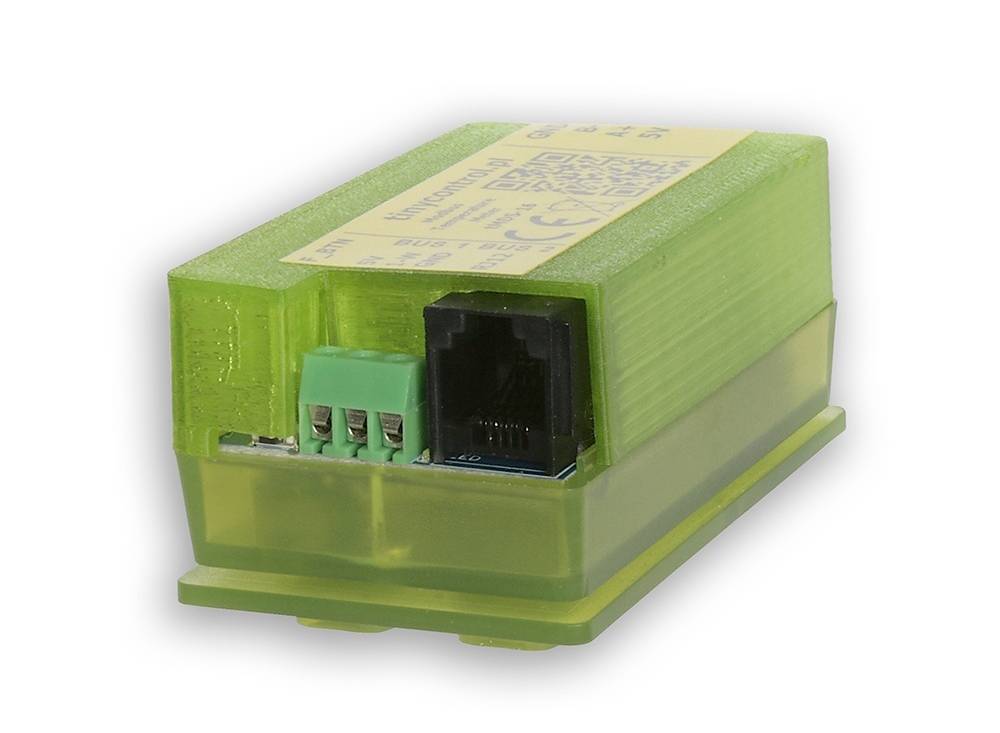

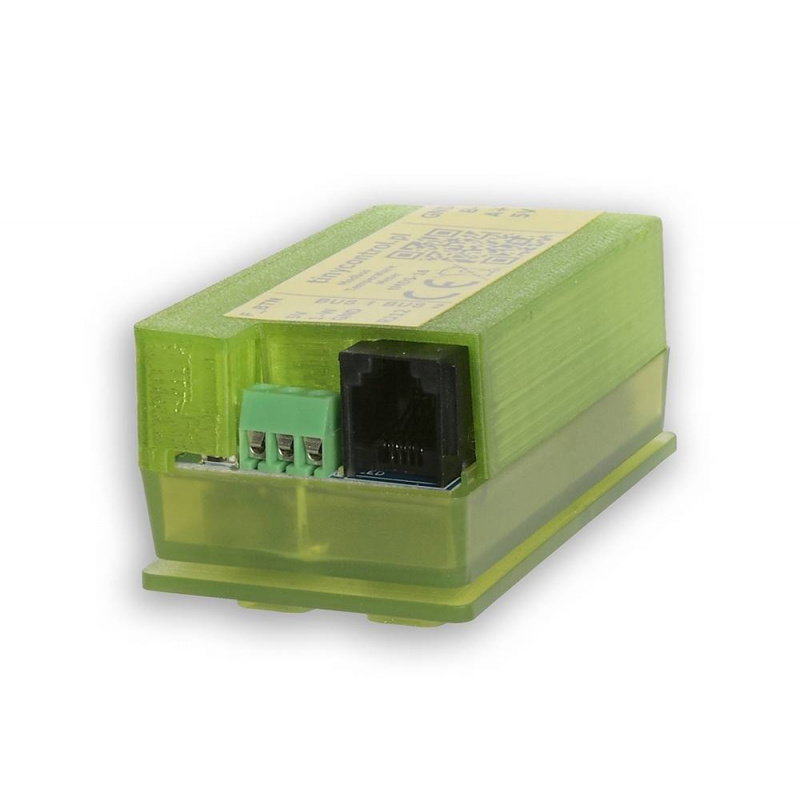

- Sensor connectors: RJ12 and 3-position terminal block
- Configuration interface: USB Serial
- USB transmission speed: 115200 baud
- Calibration: individual offset for each sensor
- Firmware update: via USB in UF2 bootloader mode
- Default Modbus address: Slave ID 1
- Compatibility: LK4, LK3.5+ and LK3.9
- Dimensions: 74 x 40 x 28 mm (without DIN holder)
- Weight: 44 g
Kit contents
- tMDS-16 measurement module
tMDS-16 will work wherever simultaneous temperature measurement at multiple points is required.
