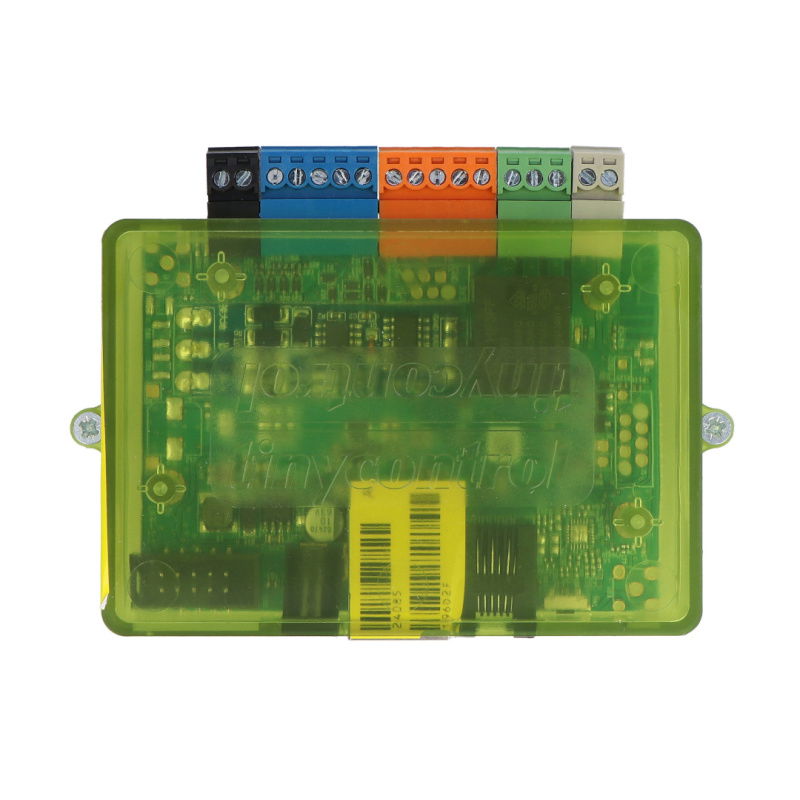

Tinycontrol-005 - LAN controller LK4 - digital I/O / 1-wire / I2C
A device that acts as a web server. It allows you to read sensors and remotely control 6 outputs thanks to two communication interfaces: wired Ethernet and wireless WiFi. Configuration takes place via the built-in web server, as well as via the HTTP and MQTT protocols. Modern features, such as the ability to configure a status panel, an advanced event table and support for multiple communication protocols, make LK4 a perfect solution for home and industrial applications.
We could not load the price.
The promotional price does not combine with quantity discounts.
Product description: Tinycontrol-005 - LK4 LAN controller - digital I/O / 1-wire / I2C
The new generation of the LK4 LAN controller combines the latest technology with functionality and ease of use. This advanced controller allows you to monitor sensors and remotely control 6 outputs using a bidirectional Ethernet or WiFi communication interface. Configuration is carried out using the built-in web server, enabling full adjustment of the device parameters, as well as via HTTP and MQTT protocols. Additionally, LK4 offers advanced features , such as the ability to configure a status panel, an advanced event table, support for SNMP, HTTP and MQTT communication protocols, and the ability to update the software directly from the user interface. This makes it an ideal solution for home users looking for a reliable and versatile automation and monitoring tool.
Tinycontrol-005 - LK4 LAN controller - digital I/O / 1-wire / I2C.

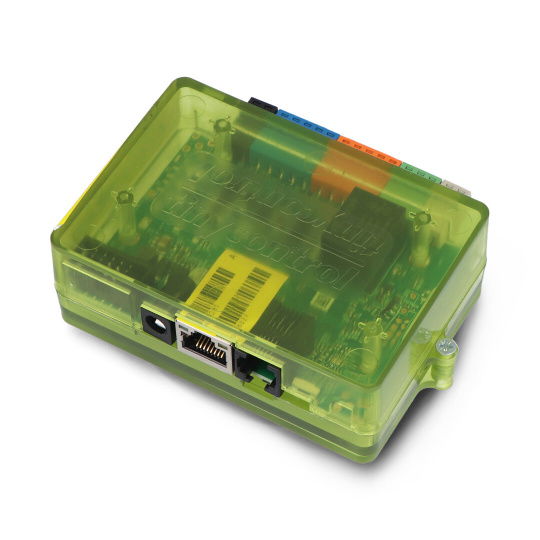

Tinycontrol LAN LK4.
Improvements over the previous version
The module has a number of improvements compared to the previous version V3.5 .
- Expanded Communication Capabilities : The LK4 offers a dual communication interface, allowing you to use both an Ethernet connection and wireless WiFi. Thanks to this, the user can easily adapt the device to his preferences and needs.
- Modern user interface : the controller has a responsive web interface that is easy to use and allows full configuration of the device directly through a web browser. Moreover, the user can customize the status panel to his needs by selecting and arranging the necessary readings and buttons.
- Increased configuration capabilities : LK4 offers advanced configuration functions such as setting conditions and tasks, event scheduling and the ability to read from your own Modbus RTU devices. Moreover, the user can use many modern communication protocols, such as SNMP, HTTP and MQTT.
- Greater flexibility and support for a variety of devices : The controller supports a wide variety of sensors and devices, so it can be used in a variety of applications, from smart home to renewable energy and industry.
- Increased performance and security : thanks to TLS encrypted connections for HTTP, SMTP, MQTT and SNMP v3, it provides greater security of data transmission. Additionally, modern hardware and software make the device work more efficiently and stably than the previous version.
To sum up, the LK4 controller offers greater configuration possibilities, higher performance, greater flexibility and security, and easier operation thanks to a modern user interface and mobile application.
Application examples
- ISP watchdog to check Ethernet connection and reset devices
- Room temperature control
- Remote lighting control
- Control on and off using a wall switch or remotely
- Supply voltage monitoring and switching to a backup source
- Remotely turn on remote devices
- Measurements of the operation of solar cells, wind turbines, etc.
- Battery charging control
- Measurement of energy consumption by AC receivers
- Control and control of temperature and humidity in greenhouses and much more
The controller allows you to monitor sensors and remotely control 6 outputs.
The store also offers other Tinycontrol controllers.
Device specifications
- Supply voltage: 8V to 55V
- Power consumption: 0.5 W (without relays included)
- Power supply:
- External DC 5.5/2.5 mm power supply
- PoE (Power over Ethernet)
- Interface:
- Ethernet 10 / 100 Mbit/s
- WiFi 802.11n
- 2 analog inputs with switchable range up to 3.3 V or up to 58 V: for measuring voltages, DC current, AC current (additional sensors)
- 1 analog input with a switchable range up to 3.3 V or up to 58 V: for measuring voltages, DC current, AC current (additional sensors), operation of pressure sensors, thermocouples, distance sensors, photoresistors for measuring lighting and many others
- 1 digital input in the 1-wire and I2C standard: measurement of up to 8 DS18B20 temperature probes and for connecting various devices, e.g. temperature and humidity sensor, air quality sensors (PM), CO2 measurement sensors, OLED display with the ability to configure the displayed text and others
- Support for AM2320 and BME280 temperature and humidity sensors
- 4 logic inputs: status sensors, infrared motion sensors, for manual switching with bistable mode option, pulse sensors and timer between input resets
- 1 relay: NC, NO and C
- 1 transistor output: control of devices up to 0.6 A
- 4 outputs for switching transistors, relays, etc.
- 3 PWM outputs from 1 Hz to 1 MHz
- UART interface: for connecting devices and sensors
- RS485 bus for supporting devices and sensors with the Modbus RTU protocol
- Temperature and humidity measurement on the board
- Possibility to upload your own website
- Login as admin (configuration) or as user (view only)
- Scheduler (Scheduler) for setting 50 programmed time events
- Event table with the ability to check three conditions, including time events from the schedule
- Communication protocols: SNMP, HTTP and MQTT
- Support for TLS encrypted connections for HTTP, SMTP, MQTT or SNMP v3
- Send email or MQTT notifications as a result of an event
- Possibility to transmit data from sensors via Modbus TCP
- Remote control from one to multiple devices via UDP - useful as a button implementation over the Internet
- Relay: 255V AC / 10A
- Operating temperature: from -20°C to 85°C
- Dimensions: 106 x 79 x 38 mm
- Weight: 130 g
Useful links
| Name | Value |
|---|---|
| Smart Home | Universal Binary Sensor |
| Communication | LAN |
| Width | 15 cm |
| Height | 11 cm |
| Depth | 6 cm |
| Weight | 0.181 kg |
