Product description: L1/L5 Breakout GNSS Module - NEO-F10N - SMA - SparkFun GPS-24114
SparkFun GNSS L1/L5 Breakout - NEO-F10N is a next-generation satellite navigation module that uses L1 and L5 bands , providing more accurate positioning in dense urban areas. It supports simultaneous reception of GPS , Galileo and BeiDou signals, and u-blox F10 technology reduces multipath interference, increasing accuracy. The module has a UART port and a CH340 USB-UART converter, which makes it easy to connect to a computer. An integrated battery supports RTC , reducing the time to obtain position from 28 s (cold start) to 2 s (hot start). Leaded pins facilitate integration with microcontrollers , and the SMA connector allows for the connection of an external antenna. The module supports NMEA and UBX protocols, configured via u-center.
First time using this type of module? Be sure to check out the manufacturer's user guide !

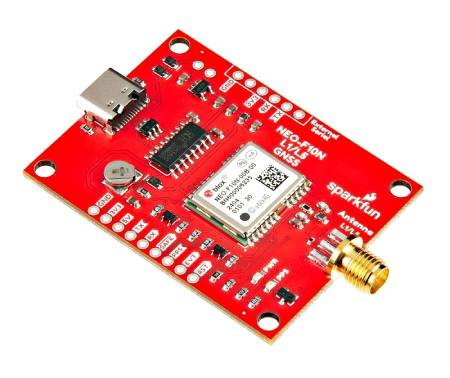

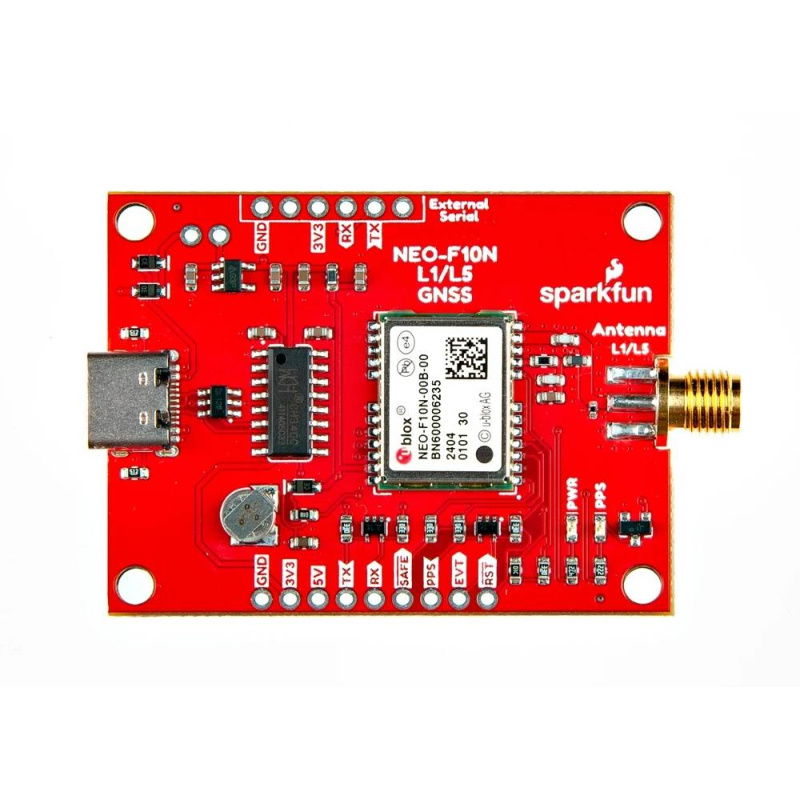

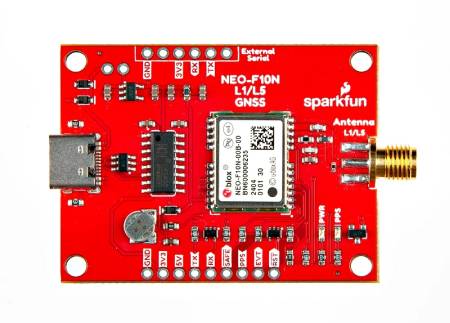

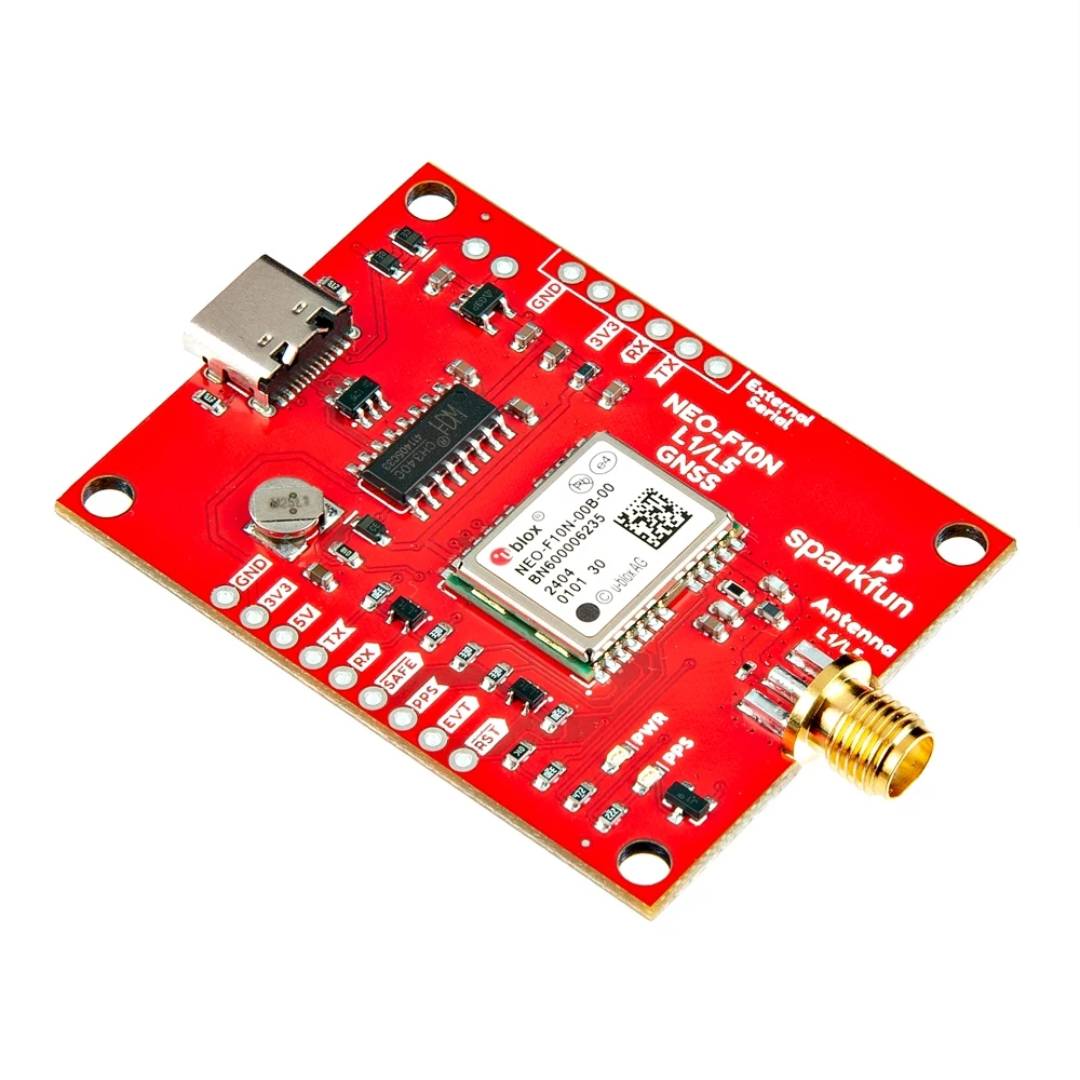

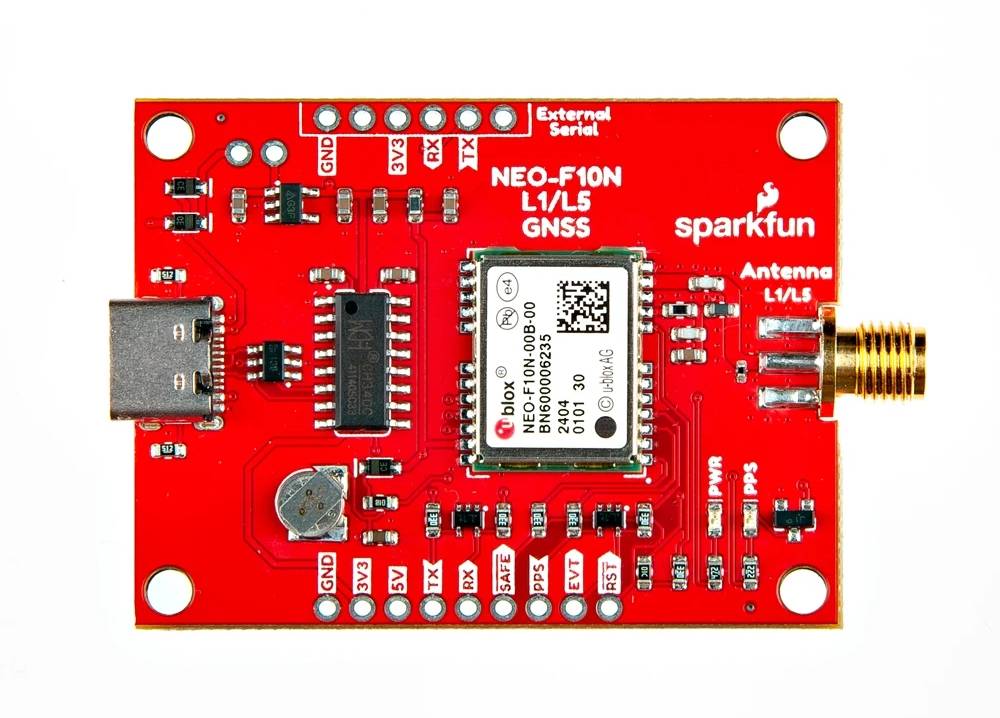

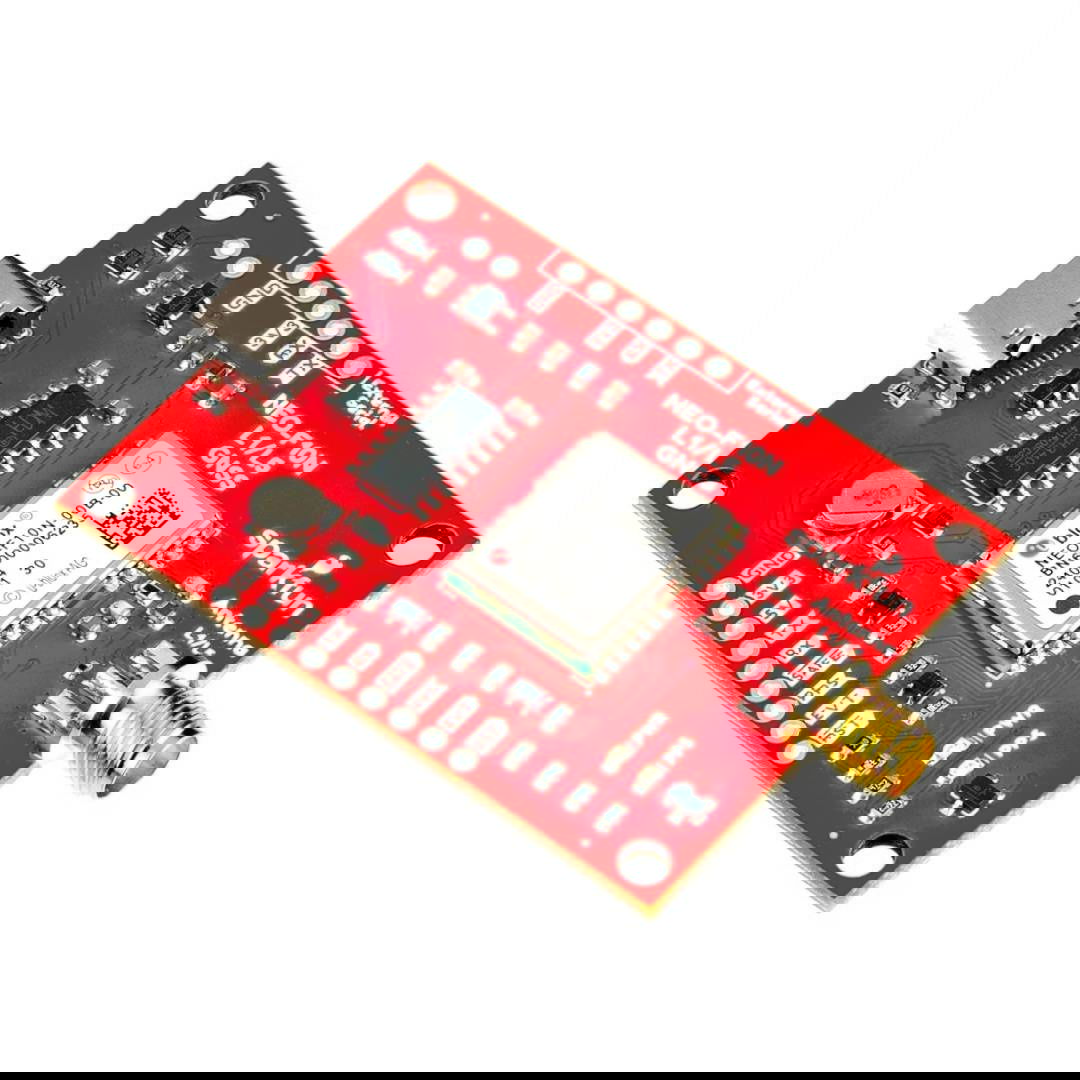

L1/L5 Breakout GNSS Module - NEO-F10N - SMA - SparkFun GPS-24114.
The NEO-F10N provides better performance in challenging urban environments by utilizing the L5 band.
Special features of the module
- GNSS support : simultaneous reception of GPS, Galileo and BeiDou for better positioning
- L1/L5 band : higher precision and better interference immunity than traditional L1/L2
- Faster localization : RTC battery reduces positioning time from 28 s to 2 s
- Easy connection : CH340 USB - UART allows connection via USB without additional adapters
- Configurability : ability to set operating parameters via the u-center program
- SMA connector : allows you to connect an antenna for better signal
- 3.3V/5V power supply : supports a variety of logic voltages for easy integration with microcontroller systems
Attention!
This product requires an antenna to function properly. Check out our offer and choose the right GNSS antenna for your project.
What is GNSS?
GNSS (Global Navigation Satellite System) is a global satellite navigation system including GPS (USA), Galileo (Europe), BeiDou (China) and GLONASS (Russia). It allows determining the position on Earth by receiving signals from satellites . The use of multiple systems simultaneously increases precision and resistance to interference, which is crucial in modern navigation systems.
Practical applications
The NEO-F10N module will prove useful in many applications:
- Drones and robotics - precise positioning in space
- Geodetic measurements - better accuracy in difficult urban conditions
- Navigation systems - integration with microcontrollers to build GPS devices
- Vehicle monitoring - precise tracking of transport routes
- IoT projects - integration with position tracking systems in smart devices
Explaining how the GPS system works.

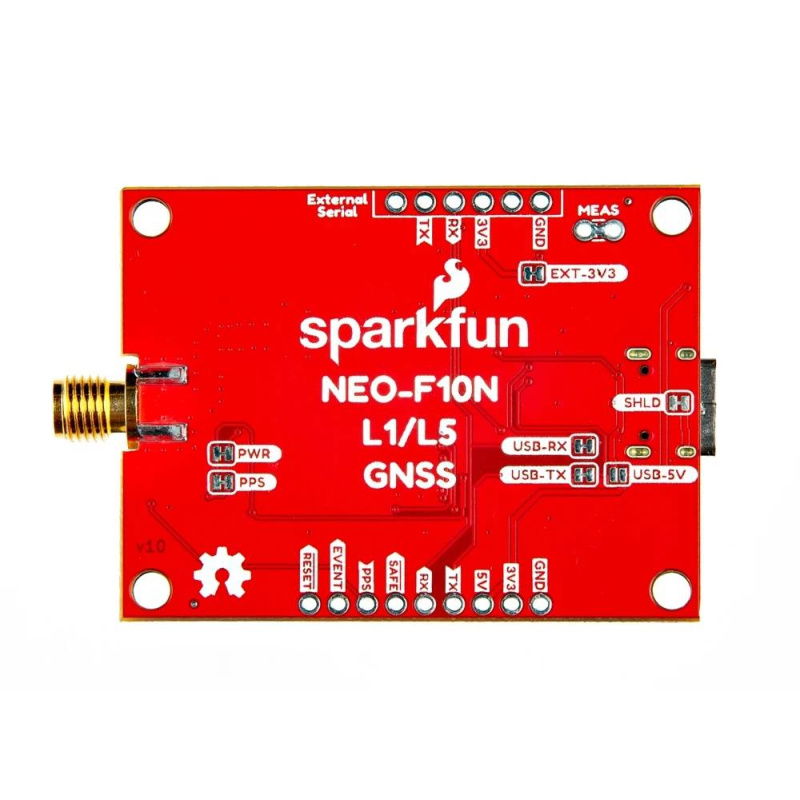

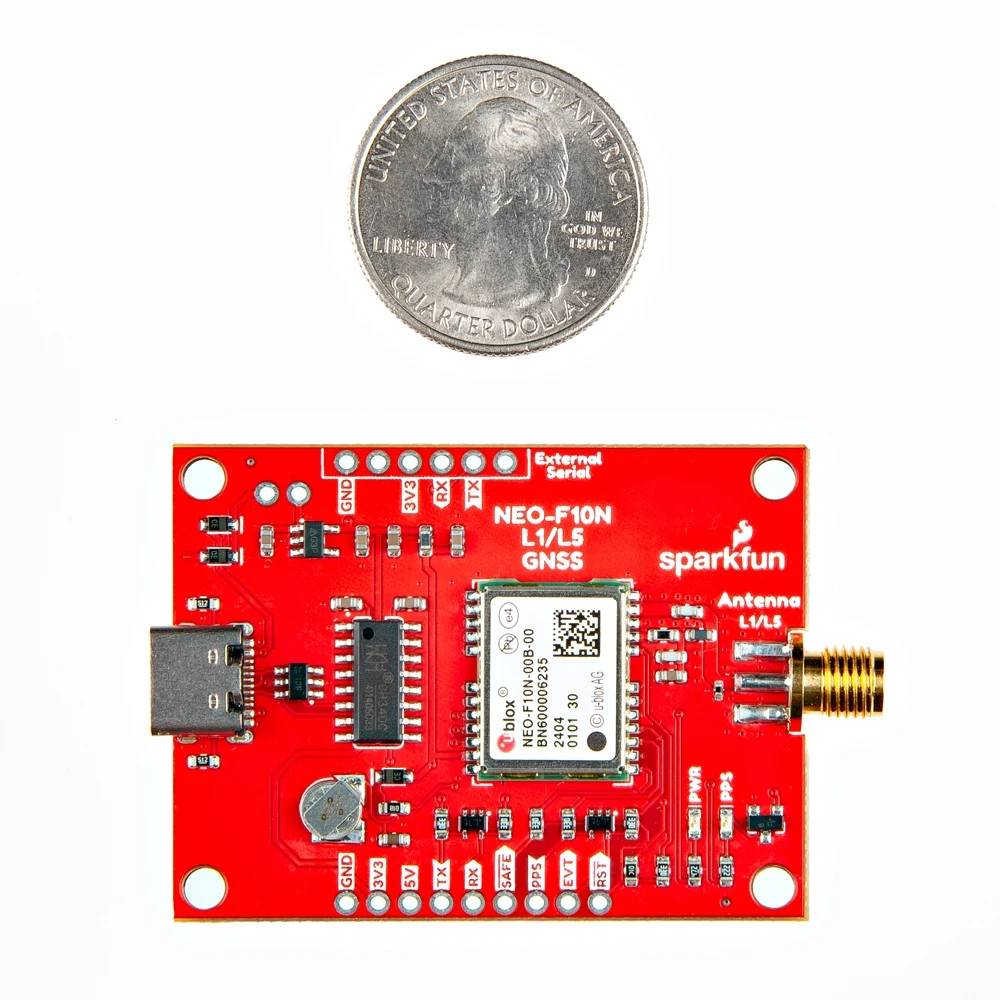

Board with compact dimensions of 50.8 x 38.1 mm.
Technical specification of the module
- Built-in system: NEO-F10N
- Supported systems: GPS, Galileo, BeiDou
- Frequency range: L1 (1575.42MHz), L5 (1176.45MHz)
- Positioning accuracy: 1.5 m
- Time to first position: 28 sec (cold start), 2 sec (hot start)
- Maximum refresh rate: 20 Hz
- Maximum altitude: 80 km
- Maximum speed: 500 m/s
- Power supply: 3.3V/5V (all logic is at 3.3V)
- Current consumption: 21 mA to 26 mA
- Interfaces: UART, USB Type-C
- Supported protocols: NMEA, UBX
- Antenna connector: SMA
- Converter: CH340C
- Voltage regulator: AP2112K 3.3V/600mA
- Protection: ESD diodes for USB data lines
- Dimensions: 50.8 x 38.1 mm (without connector)
- Weight: 9.75 g
