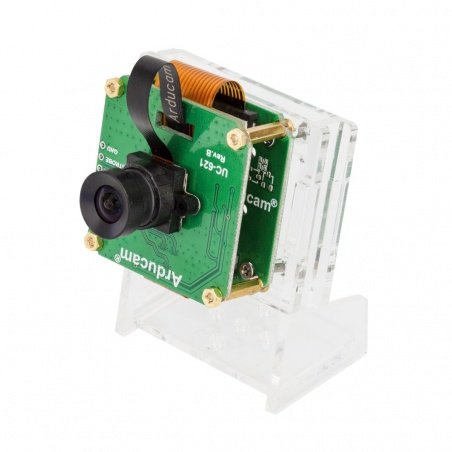

OV2311 2Mpx Mono camera Global Shutter with M12 NoIR lens for Nvidia Jetson Nano - Arducam B0221

Index: ACM-19210 EAN: 5904422358334
Arducam camera module for Nvidia Jetson Nano minicomputer. The camera is equipped with OmniVision OV2311 Global Shutter sensor , 2 Mpx monochrome resolution and M12 lens. The camera communicates with the minicomputer via CSI-2 interface, without additional elements.
€122.98
€99.98 tax excl.

Available
(Check quantity)
Shipping in 24 hours
30-day returns
PayPal payment
Manufacturer: ArduCam

Product description: OV2311 2Mpx Global Shutter camera with M12 lens for Nvidia Jetson Nano - NoIR - monochrome - Arducam B0221

Arducamcameramodule for minicomputerNvidia Jetson Nano. The camera is equipped withOmniVision OV2311 Global Shuttersensor,2 Mpxmonochrome resolution and M12 lens. The camera communicates with a minicomputer via CSI-2 interface, without additional elements. Based on a1/2.9"OMV2311sensor, it uses OmniPixel3-GS technology, provides full-frame, subsampled and windowed 8/10-bit MIPI images, and can operate at up to60 fpsat full resolution on a 2-band MIPI bus with full user control over image quality. Due to the high resolution of the sensor, it offers extremely accurate eye tracking capabilities and also achieves high near-infrared quantum efficiency to minimize active illumination power and reduce system power requirements.

Kamera Global Shutter do Nvidia Jetson NanoGlobal Shutter monochrome camera for Nvidia Jeston Nano.

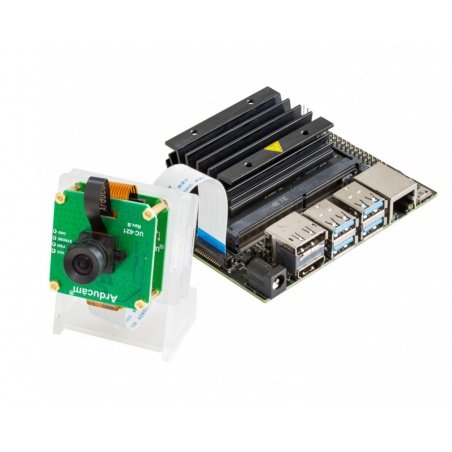

Kamera podłączona do Nvidia Jetson NanoCamera connected to Nvidia Jetson Nano. Minicomputer not included, can be purchased separately.

Attention!

Thecamera driveruses the kernel of the operating system. Upgrading or downgrading the system version may change the system kernel, which involves changing the driver.

Main features of the driver

  • Supports Gray, Y10, Y16
  • Supports V4L2 framework, Video Nodes and Controls (exposure, gain depending on camera parameters)
  • Supports external Global Shutter trigger
  • Single command driver installation
  • Supports OpenCV and includes sample code
  • Synchronization of two cameras possible

Example of camera application

  • DSC (Digital Security Controls)
  • Machine vision
  • Robotics
  • Face recognition

Camera specifications

  • Sensor: OMVOV2311 Global Shutter monochrome
  • Pixel size: 3 x 3 µm
  • Active field size: 1600 x 1300 px
  • Format: 1/2.9"
  • Maximum image transfer rate: 1600 x 1300 / 60 fps
  • Supported image sizes:
    • 1600 x 1300 px
    • 1280 x 720 px
    • 640 x 480 px
  • Input clock frequency: 6 MHz to 27 MHz
  • Maximum S/N Ratio: 37.4 dB
  • Dynamic range: 68 dB
  • Lens mounting: M12 x 0.5P
  • Viewing angle: 83°
  • IR sensitivity: no IR filter
  • Camera interface: 2-line MIPI
  • Output format: RAW 8/10-bit
  • Minimum exposure time: 1 line period (11.3 s at 1600 x 1300 px resolution on NvidiaJetson Nano)

Camera kit contents

  • Camera for Nvidia Jetson Nano
  • FFC tape
  • Housing components
  • Mounting screws and nuts
Zawartość zestawu kameryCamera set contents for Nvidia Jetson Nano.
Interface CSI - Raspberry Pi
Resolution 1600x1200px
Camera - matrix OV2311
Camera - IR filter No
Camera - lens M12x0.5
Camera - format 1/2,9 "
Camera - type module
