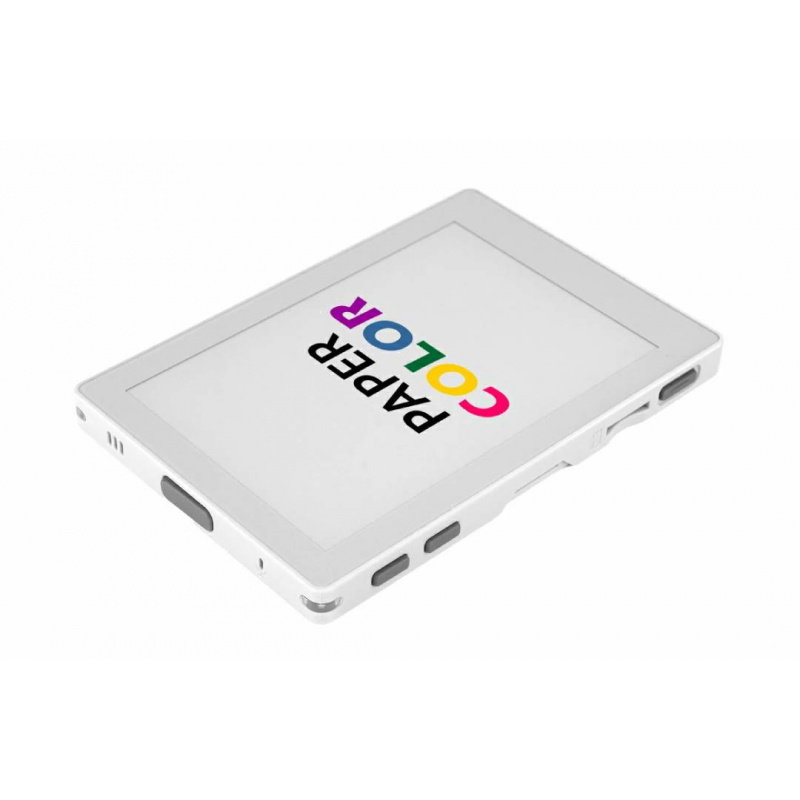

Product description: M5Paper Color ESP32S3 Dev Kit - ESP32-S3 development module - 4'' e-paper E Ink Spectra 6 color display - M5Stack C151
M5Stack PaperColor is a modern development platform featuring an ESP32-S3R8 microcontroller equipped with a dual-core Xtensa LX7 processor clocked at up to 240 MHz, 16 MB of Flash memory, and 8 MB of PSRAM. The M5Paper Color utilizes a 4-inch E Ink Spectra 6 display with a resolution of 400 x 600 pixels, capable of displaying six colors while maintaining excellent readability even in direct sunlight. A built-in 1250 mAh battery and the advanced M5PM1 power management system enable long-term operation with minimal power consumption. Additionally, the module offers audio functions, environmental sensors , a real-time clock (RTC), a microSD card slot, and an HY2.0-4P expansion interface compatible with the M5Stack ecosystem.
M5Paper Color ESP32S3 Dev Kit - ESP32-S3 development module - 4'' e-paper E Ink Spectra 6 color display - M5Stack C151.

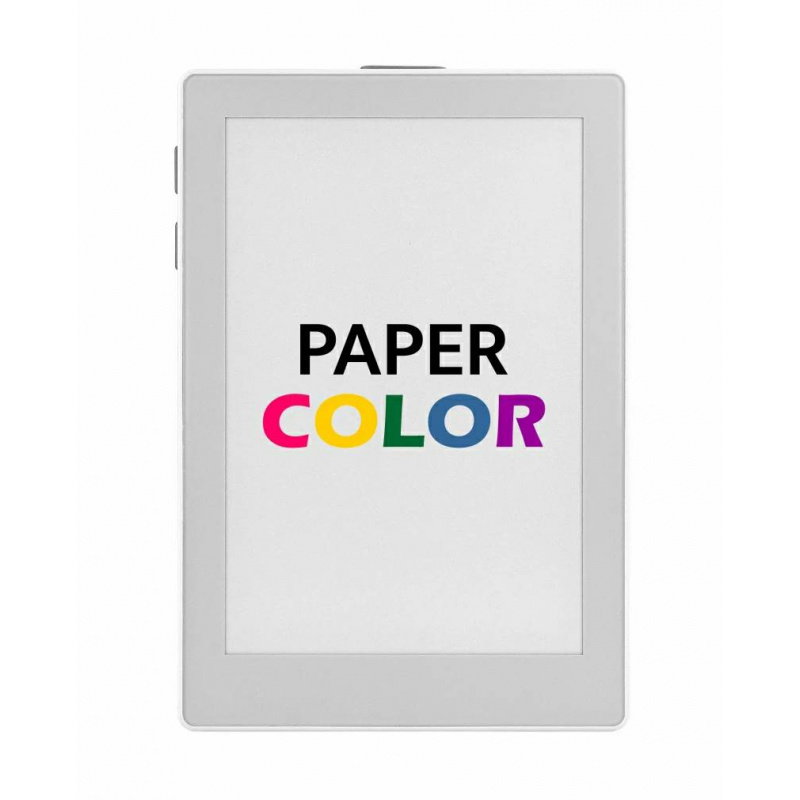

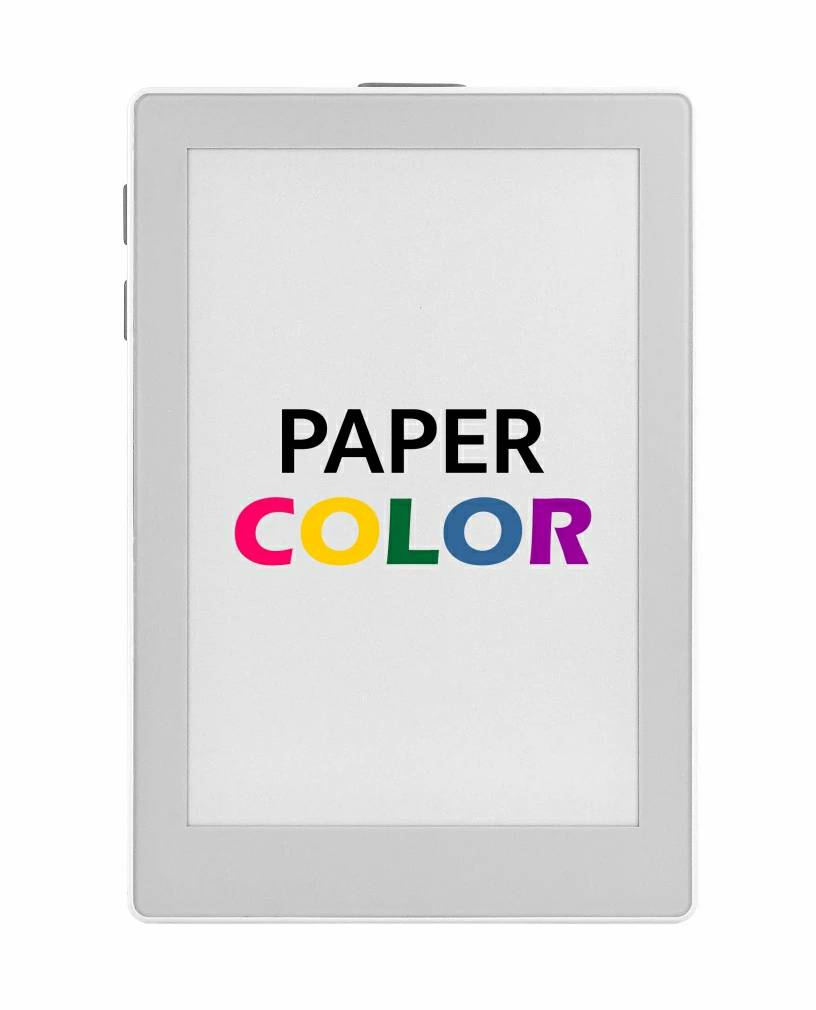

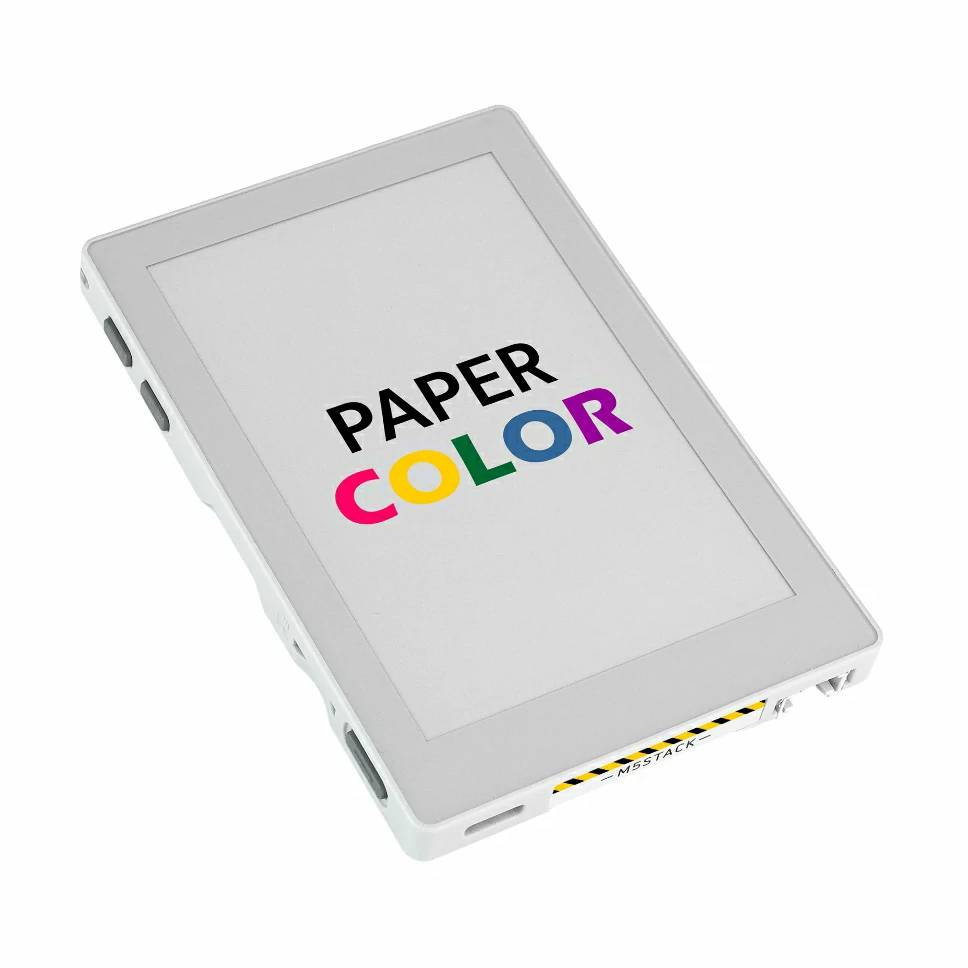

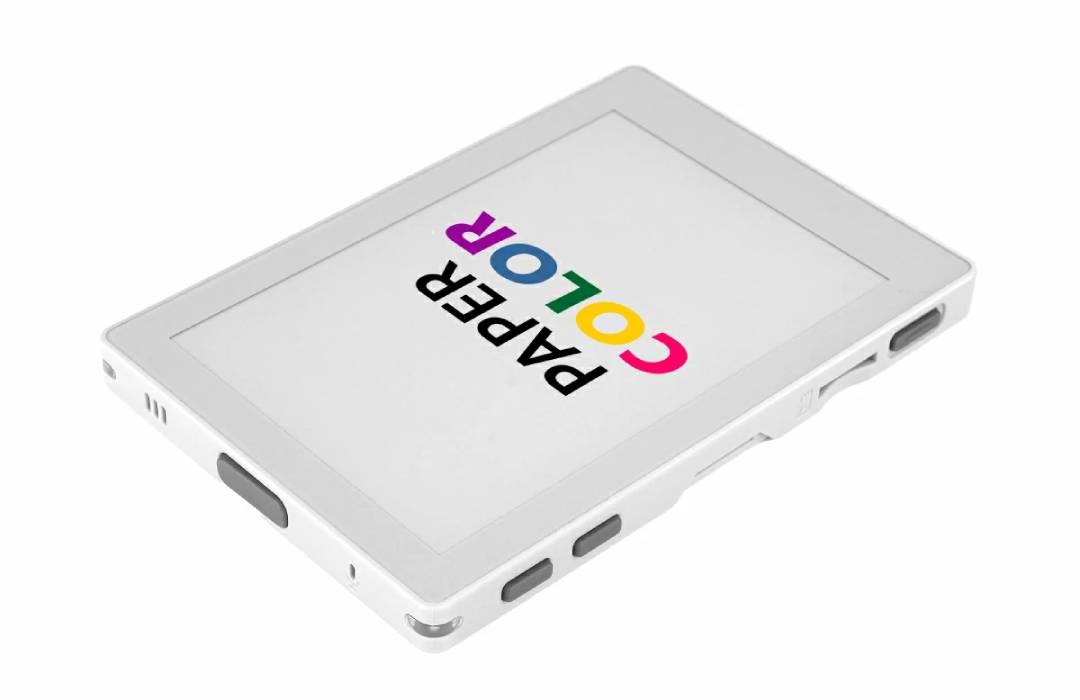

The module has a 4-inch, full-color E Ink Spectra 6 display with a resolution of 400 x 600 px.
Main Features of the M5Paper Color ESP32S3 Dev Kit
- ESP32-S3R8 : Xtensa LX7 dual-core microcontroller with up to 240 MHz
- 16 MB Flash and 8 MB PSRAM : plenty of memory for extensive IoT and GUI applications
- E Ink Spectra 6 color display : 4'' diagonal, 400 x 600 px resolution
- 2.4 GHz WiFi connectivity : wireless communication with the IoT network and services
- 1250 mAh battery : long operating time in the field
- Audio system : ES8311 codec, MEMS microphone and 1W speaker
- SHT40 sensor : measuring ambient temperature and humidity
- RX8130CE Real Time Clock : Timekeeping during standalone operation
- microSD slot : ability to store data and image files
- HY2.0-4P interface : easy expansion of the project with additional modules
- Low power consumption : only 92.53 μA in standby mode

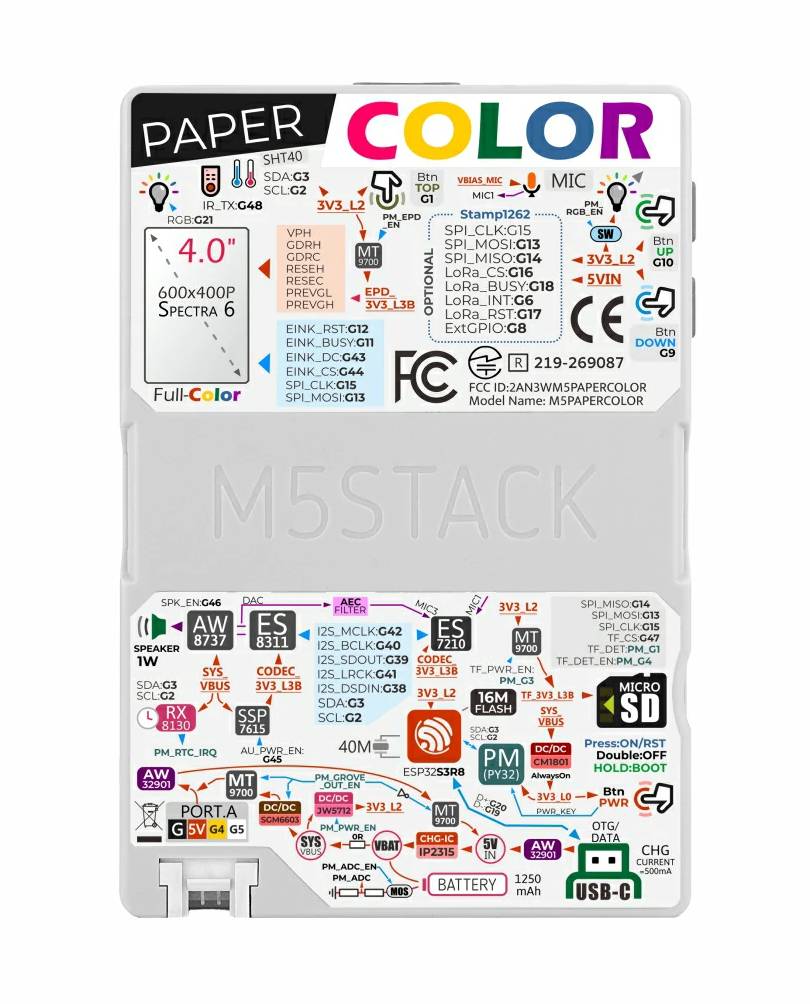

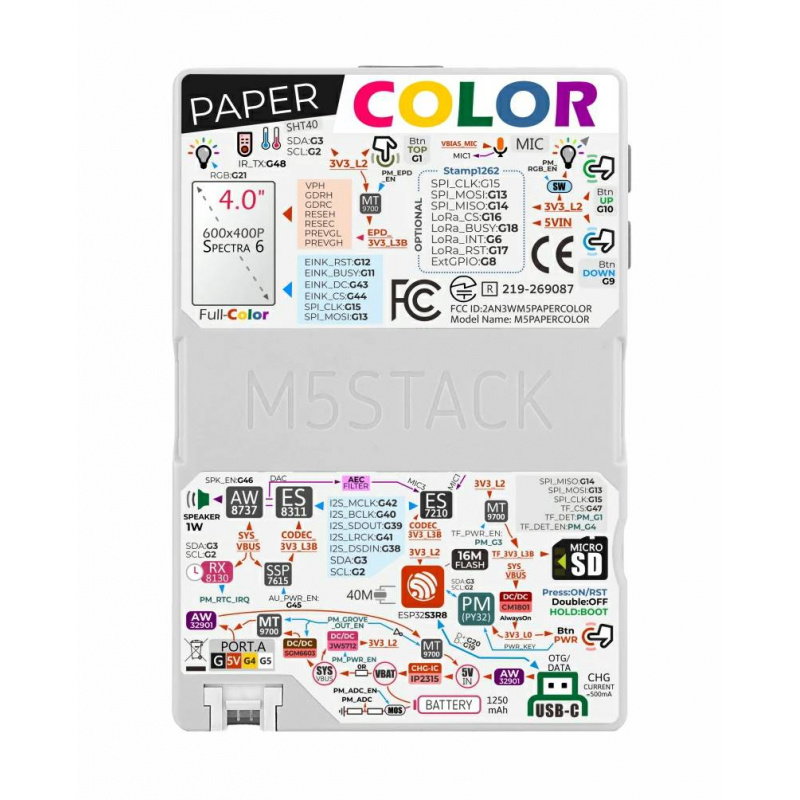

Pinout and connectivity of the M5Stack PaperColor module
The module is equipped with numerous hardware interfaces enabling integration with additional devices and sensors. The E Ink display communicates with the microcontroller via an SPI bus, while the SHT40 sensor, RX8130CE RTC, and M5PM1 power management system share an I2C bus. A Grove HY2.0-4P expansion port (Port A) is available, providing GPIO4 and GPIO5 lines along with a 5V power supply and ground. This allows for quick, solderless connection of compatible Grove and M5Stack modules . Additionally, the device features an IR transmitter , two programmable RGB LED indicators, three user buttons, and a microSD card slot connected via an SPI interface. The audio system uses an I2S bus for communication between the ESP32-S3, the ES8311 codec, and the ES7210 DAC, allowing for projects involving audio recording and playback.

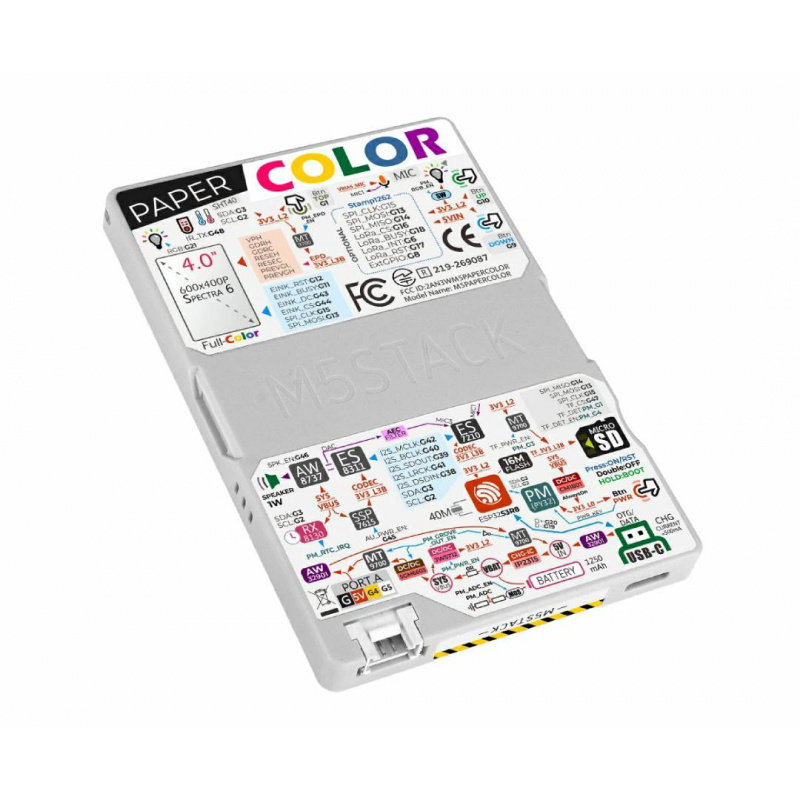

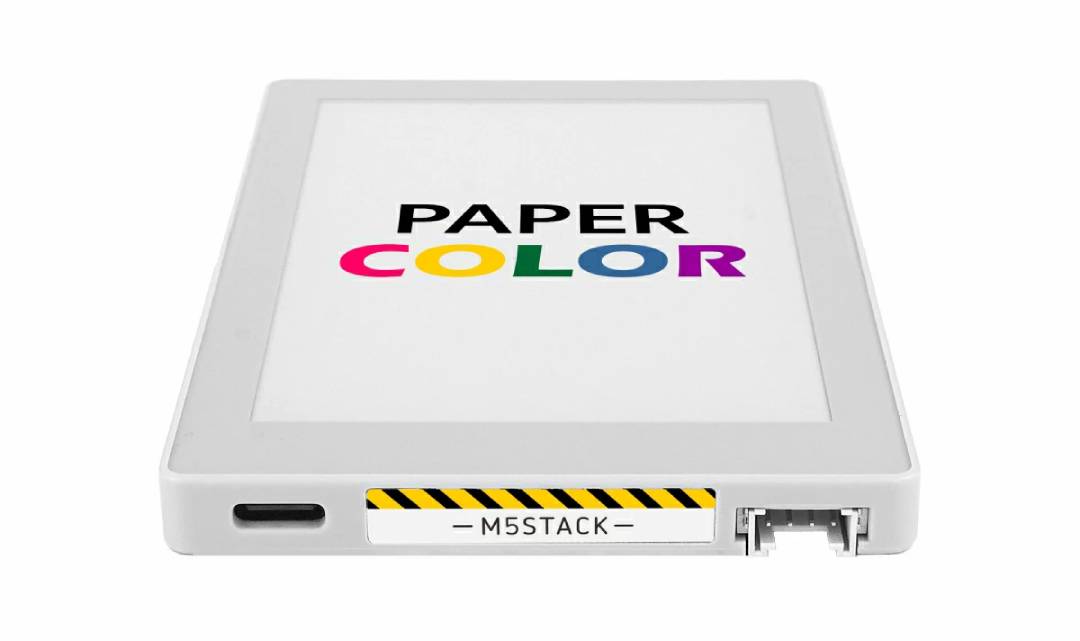

M5Stack PaperColor offers an extensive set of interfaces that facilitate integration with additional sensors, modules and actuators.

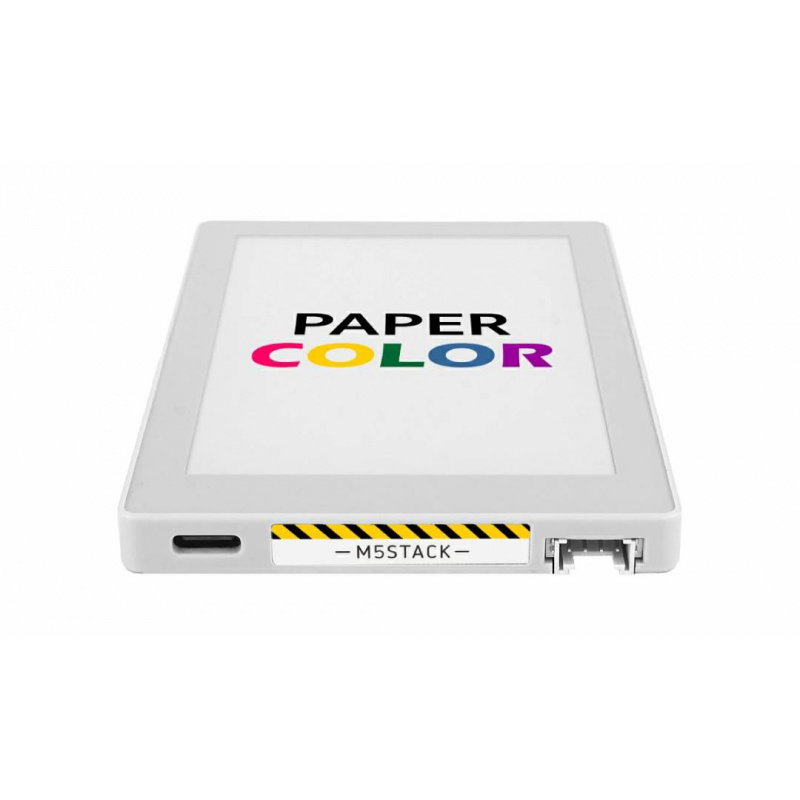

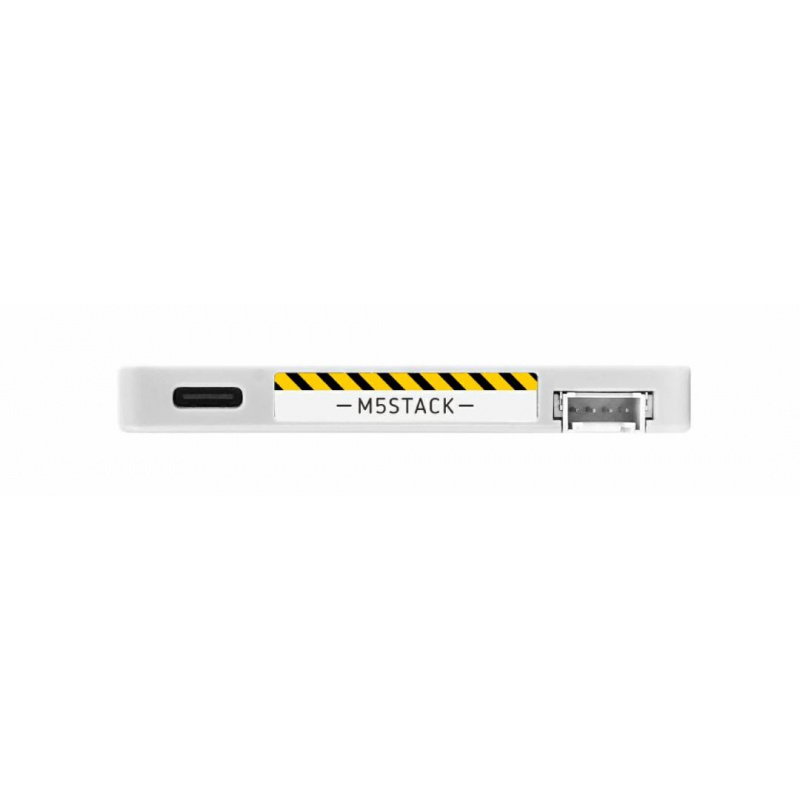

A USB Type-C connector is used to upload software and communicate with a computer.
M5Stack PaperColor Programming
The M5Stack PaperColor supports several popular programming environments, making it suitable for both beginners and advanced users. The manufacturer provides full support for the Arduino IDE, PlatformIO, ESP-IDF, and the graphical UiFlow2 environment based on block-based programming. Communication and software uploads are handled via a USB Type-C connector . Programming can be performed using the M5Unified, M5GFX, and M5PM1 libraries, which simplify the operation of the display, peripherals, and power management. The manufacturer also provides sample projects, drivers, and the source code for the factory firmware, significantly accelerating the development of your own applications.
M5Paper Color Technical Specifications
- Microcontroller: ESP32-S3R8
- Core: Dual-Core Xtensa LX7
- Clock speed: up to 240 MHz
- Memory: Flash 16 MB, PSRAM: 8 MB
- Connectivity: WiFi 2.4 GHz
- Display: 4'' E Ink Spectra 6, ED2208-DOA / EL040EF1, 400 x 600 px
- Refresh time: 10 s to 20 s
- Power supply: USB Type-C 5V DC
- Battery: 1250 mAh
- Audio codec: ES8311
- Microphone: MEMS, ES7210 Audio ADC, AEC chip
- Speaker: 1W / 8Ω
- Audio amplifier: AW8737A
- Temperature and humidity sensor: SHT40
- RTC: RX8130CE
- External memory: microSD
- Expansion Interface: HY2.0-4P, GPIO4, GPIO5, 5V, GND
- Buttons: 3 user buttons + 1 power button
- Additional elements: IR transmitter, 2 RGB LEDs
- Standby current consumption: 92.53 μA
- Current consumption at full load: 211.97 mA
- Dimensions: 70.8 x 103.9 x 8.5 mm
- Weight: 73.3 g
Contents of the set
- 1x M5Stack PaperColor ESP32-S3 Dev Kit

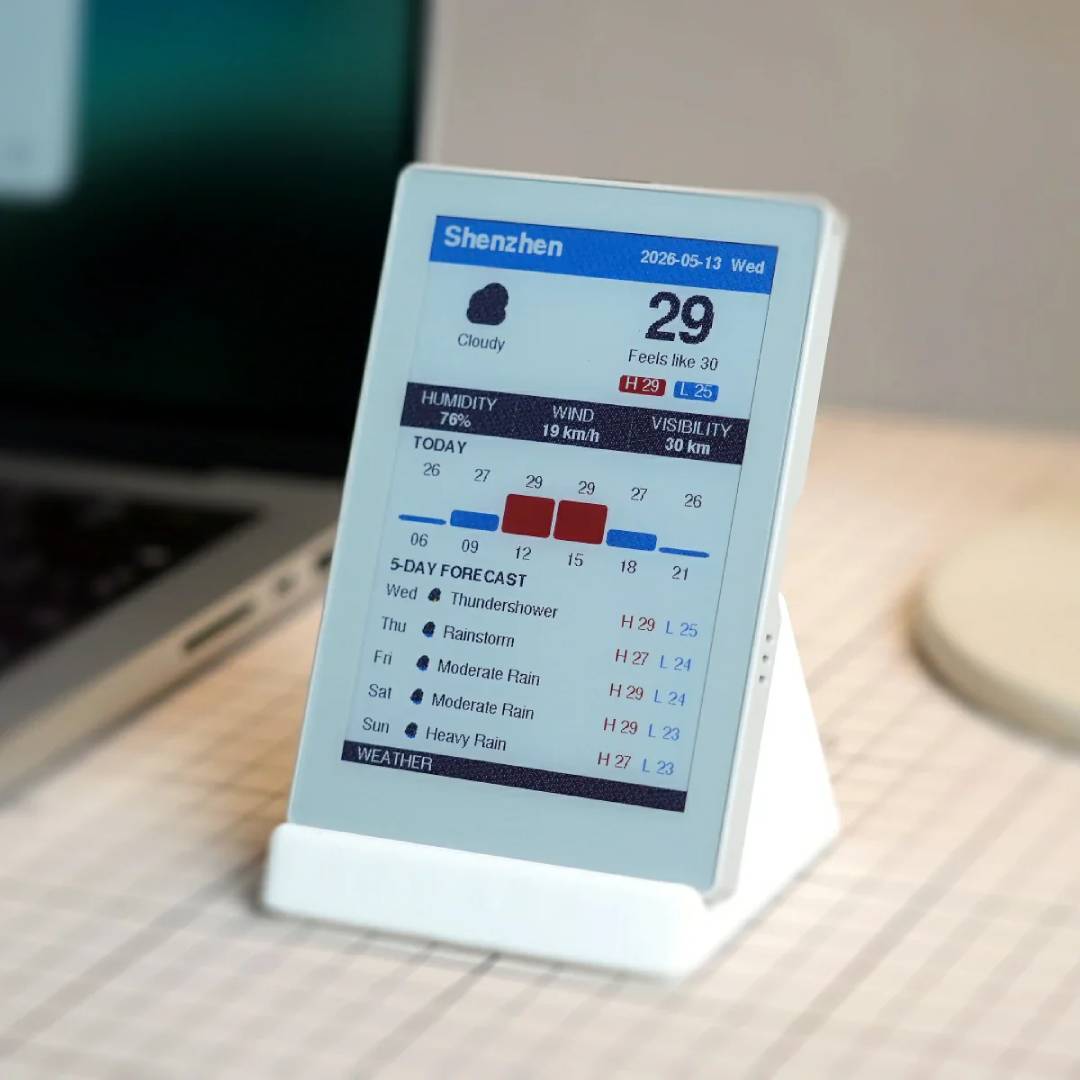

M5Stack PaperColor can be used as a smart digital frame for showcasing photos and graphics, or as an IoT data dashboard with information from sensors or the cloud.
