Product description: Live wire, metal and wood detector - FNIRSI WD-02
The FNIRSI WD-02 is an advanced detector for cables and structural elements hidden in walls, floors, and ceilings . The device allows for quick and precise location of electrical cables, metal pipes, rebar, and wooden elements beneath the surface of building materials. Thanks to the HPC detection module, the detector offers greater resistance to interference and faster signal analysis, resulting in higher measurement accuracy. The easy-to-read TFT HD screen displays the depth of the detected object, its position relative to the detection center, and the material type. Light indicators and an audible signal inform the user when approaching the target, significantly simplifying precise drilling location marking.

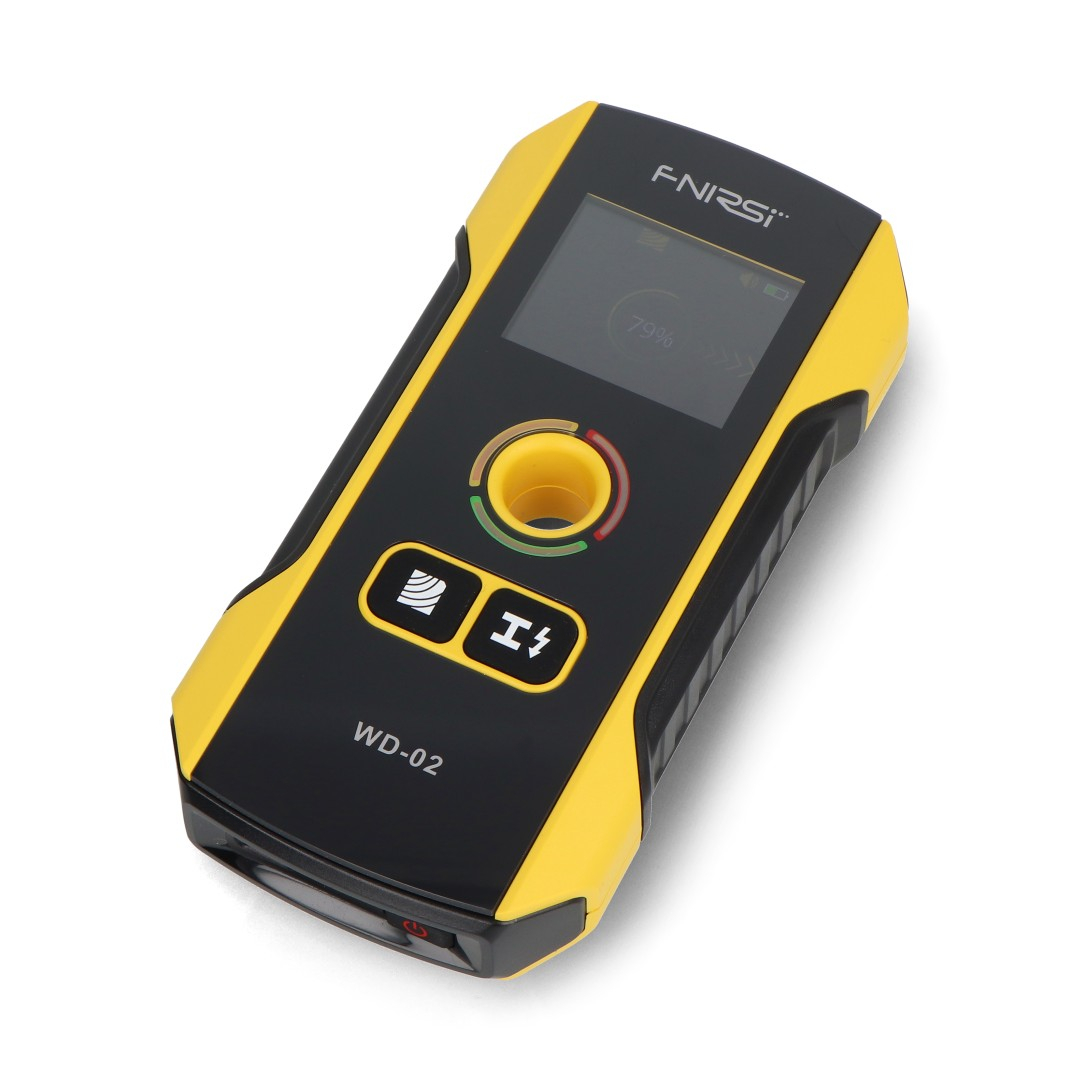

Live wire, metal and wood detector - FNIRSI WD-02.

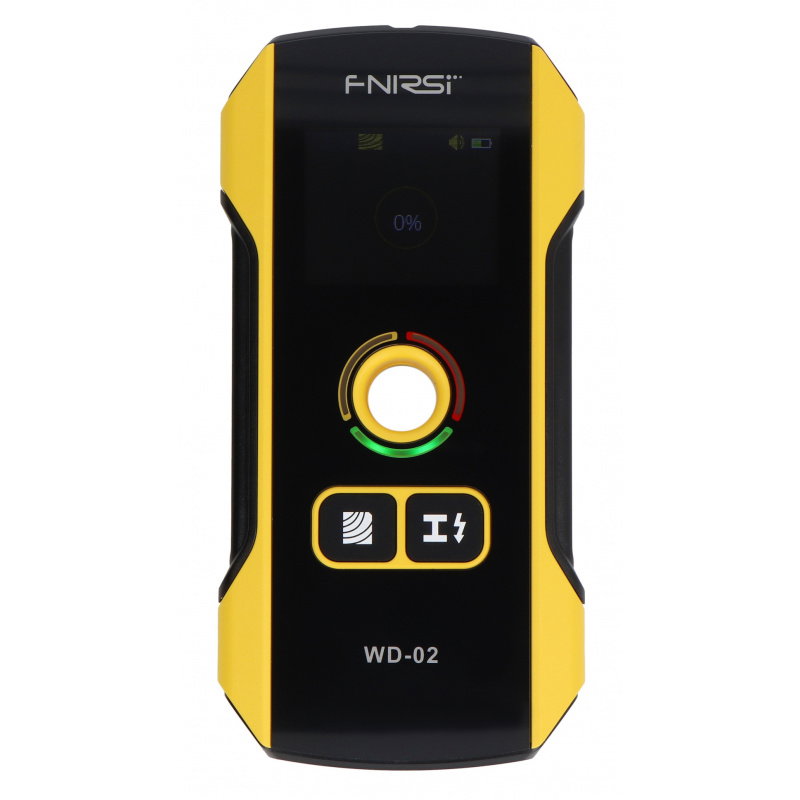

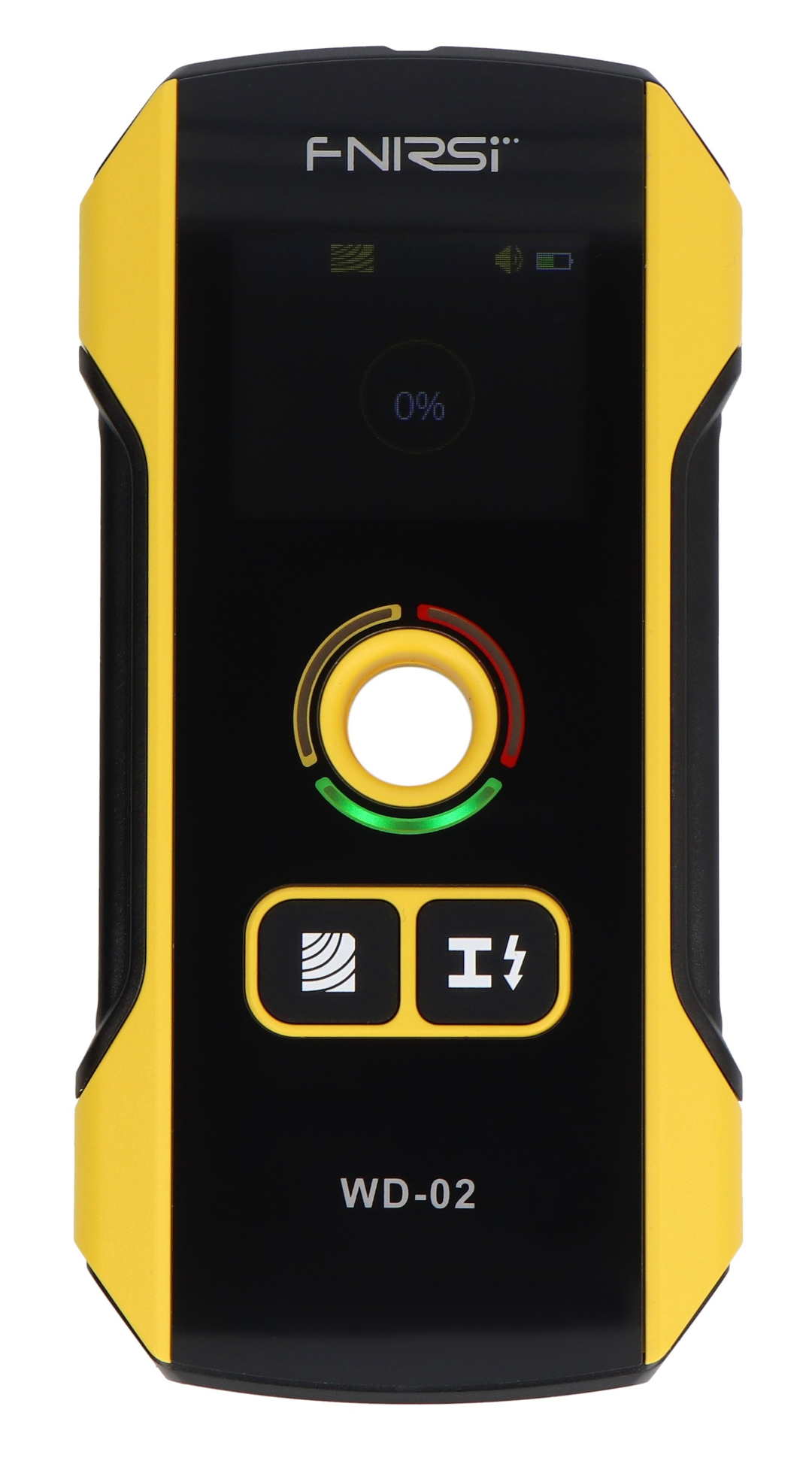

The easy-to-read LCD display indicates the approximate distance to the detected object.
Main features of the FNIRSI WD-02 detector
- Three detection modes : detecting metal, AC live wires and wooden elements
- High detection depth : up to 120 mm for metals
- HPC module : increased measurement accuracy, noise immunity and faster signal analysis
- TFT HD color screen : clear display showing depth, material and center position of the object
- Light and sound signals : green, yellow and red diodes informing about the distance to the target
- Sensitivity adjustment : 3 sensitivity levels to suit different materials and working conditions
- Built-in battery : 300 mAh charged via USB Type-C
- Auto power off : after 5 minutes of inactivity
Practical applications of the WD-02 detector
The FNIRSI WD-02 detector is ideal for renovation, installation, and construction work . It allows you to safely drill holes in walls by locating electrical wires, metal structural elements, and pipes hidden within the building material. The device is ideal for installing shelves, cabinets, air conditioners, televisions, and electrical systems . Its high accuracy and ease of use make it suitable for both DIY enthusiasts and professionals involved in installation and building renovations.

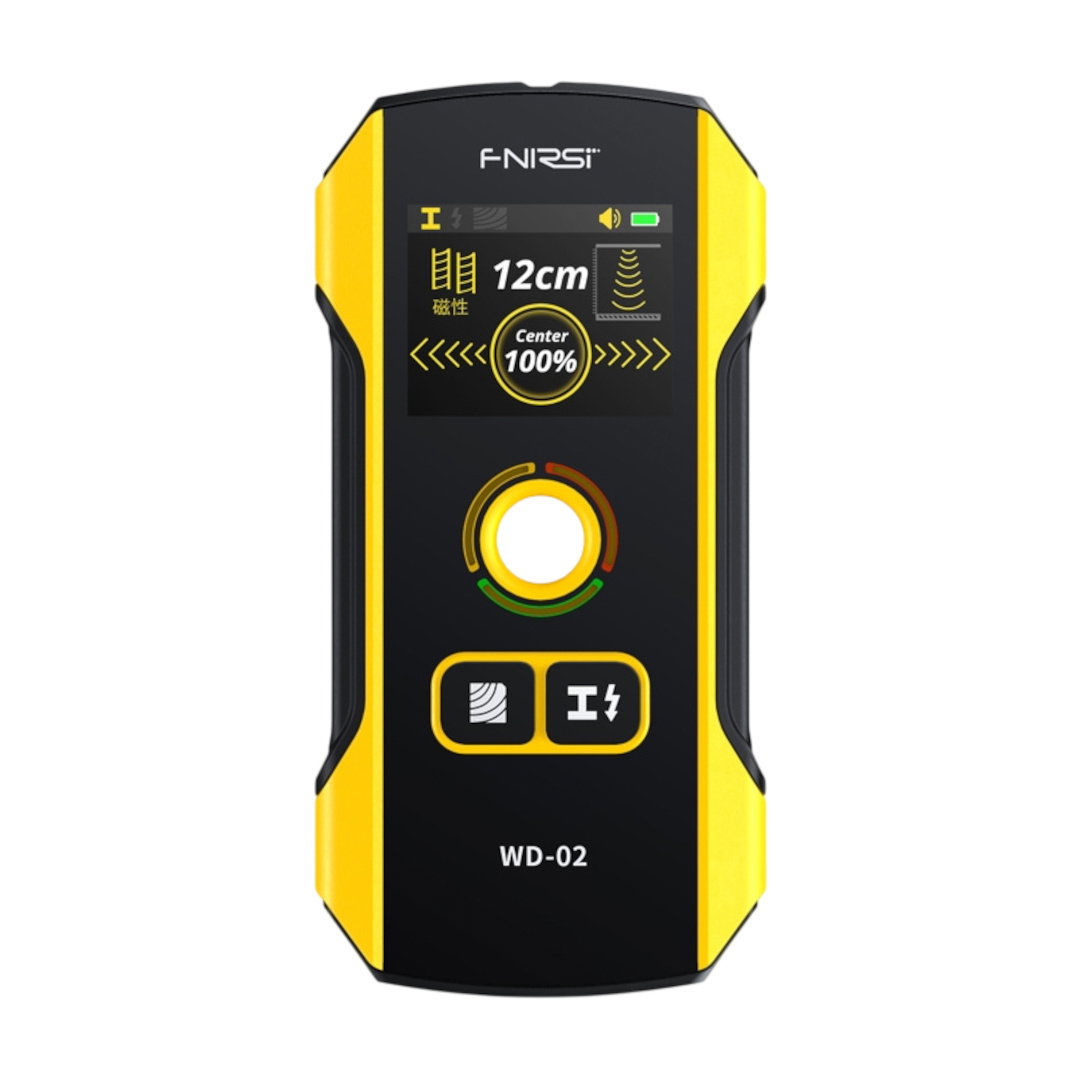

The detector detects objects from 20 mm to 120 mm.

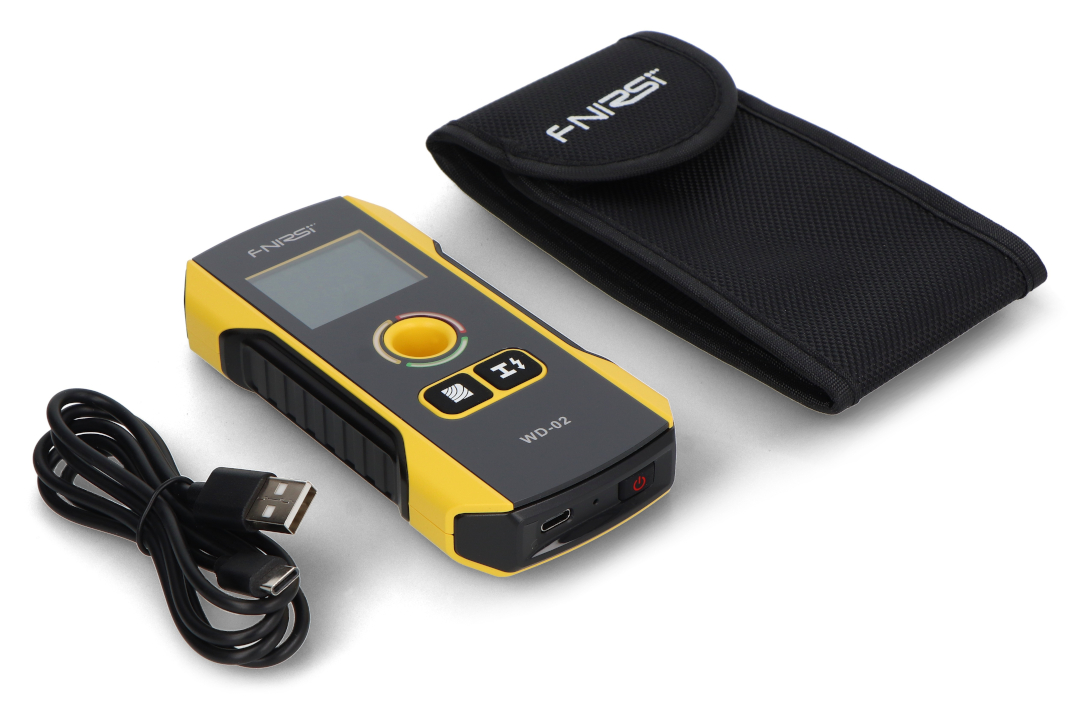

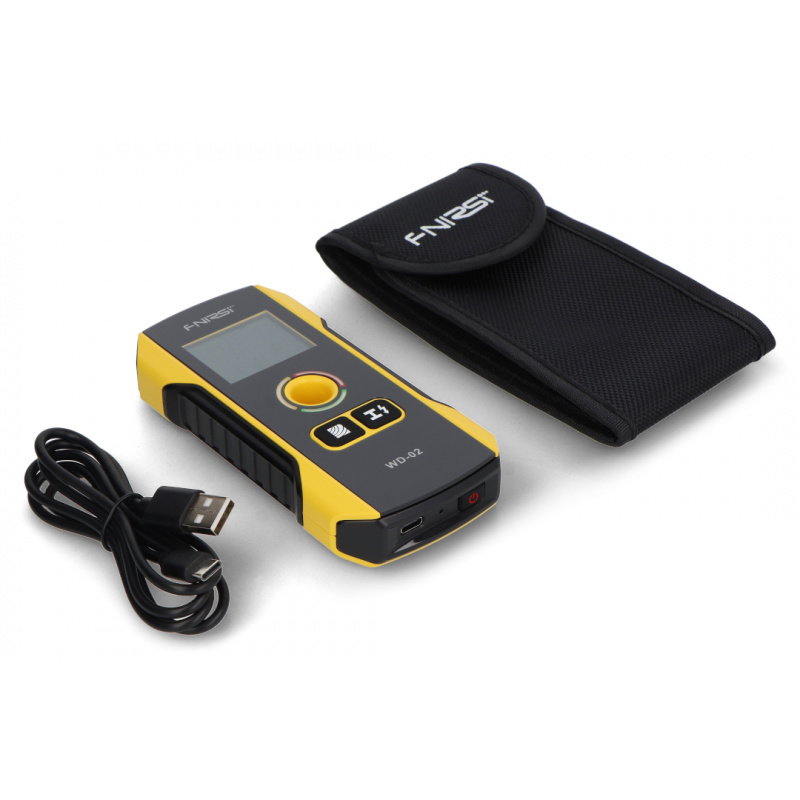

Elements included in the set.
Technical specifications of the FNIRSI detector
- Model: WD-02
- Maximum metal detection depth: 120 mm
- Maximum detection depth for non-ferrous metals (e.g. copper): 100 mm
- Maximum AC cable detection depth: 50 mm
- Maximum detection depth for single-wire copper wire: 40 mm
- Wood: 20mm precision mode, 38mm depth mode
- Sensitivity adjustment: 3 levels
- Supported languages: English, Russian, Portuguese, Japanese, Simplified Chinese, Traditional Chinese
- Screen: TFT HD
- Power supply: 3.7V 300mAh lithium battery
- Charging: USB Type-C
- Automatic shutdown: after 5 minutes
- Dimensions: 138 x 68 x 22 mm
- Weight: 122 g
Contents of the set
- FNIRSI WD-02 Cable Detector
- USB Type-C cable
- Carrying bag
- User manual
