Product description: Laser plotter - Creality Falcon A1 - 10 W
Creality Falcon A1 is an advanced 10 W laser engraver designed for fast and precise work. It has a large working area measuring 305 x 381 mm , the CorexY system providing speeds up to 600 mm / s and precision up to 0.01 mm . The plotter is equipped with an HD camera with Live Preview function, automatic material recognition via QR codes and a closed Class 1 housing with active smoke extraction. Thanks to its full assembly, intuitive software and wide material compatibility, Falcon A1 is an ideal tool for both professionals and beginners.
Laser Plotter - Creality Falcon A1 - 10 W.

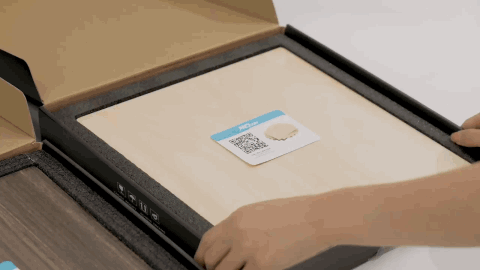

The plotter automatically detects materials marked with special QR codes and selects optimal parameters for them.
Material versatility
Falcon A1 supports a wide range of materials : wood, plywood, leather, acrylic, coated metal, glass, PU, rubber, fabrics and plastics - engraving and cutting even delicate surfaces with high precision. The work area of 305 x 381 mm allows you to create larger projects without the need to divide elements. The device allows you to cut materials up to 6 mm thick (wood) and up to 9.6 mm (acrylic). In addition, the Creality Selected Materials system automatically recognizes materials marked with QR codes and selects the optimal laser settings , which eliminates the need for trial tests and speeds up work.
A laser that keeps up with your creativity
The 10 W laser generates a strong and focused beam thanks to the dual beam compression technology, and the CorexY system with dual drive provides a speed of up to 600 mm / s . Automatic belt tensioning guarantees smoothness and accuracy to 0.01 mm . As a result, you get a perfect engraving and a clean cut - even at high speed.
Smart camera and automatic settings
The built-in HD camera with Live Preview allows you to see exactly how the design will be placed on the material. Drag and done. The camera automatically positions the design, extracts contours and allows for quick placement of many elements at once thanks to the One-Click Batch Fill function. This is an irreplaceable tool for the production of personalized items, gifts or a series of identical engravings.
Safe work - also at home
Falcon A1 is a class 1 device - safe for eyesight and ready to use even in home conditions. The closed housing with a transparent cover blocks laser emission , and the cover opening sensor automatically stops work. The built-in fan on the laser module effectively removes smoke from the material . For even better air filtration, you can add an optional smoke purifier with HEPA and carbon filter - ideal for work in closed rooms. The whole is complemented by an emergency button and an advanced anti-leak system.
HD camera with Live Camera Preview allows you to precisely position graphics on your footage before you start working.
Compact dimensions (567 x 468 x 196 mm) and a weight of 15.55 kg mean that the device will fit on a desk, while providing a large working area - 305 x 381 mm.
Intuitive software
Falcon A1 works with popular applications: LightBurn, LaserGRBL and Falcon Design Space , which offer extensive editing tools - from simple drawing to shaping contours and paths. Supports the most commonly used formats: JPG, PNG, SVG, DxF, BMP . You connect via USB Type-C , run on Windows or macOS - without complicated configuration.
Well thought out design

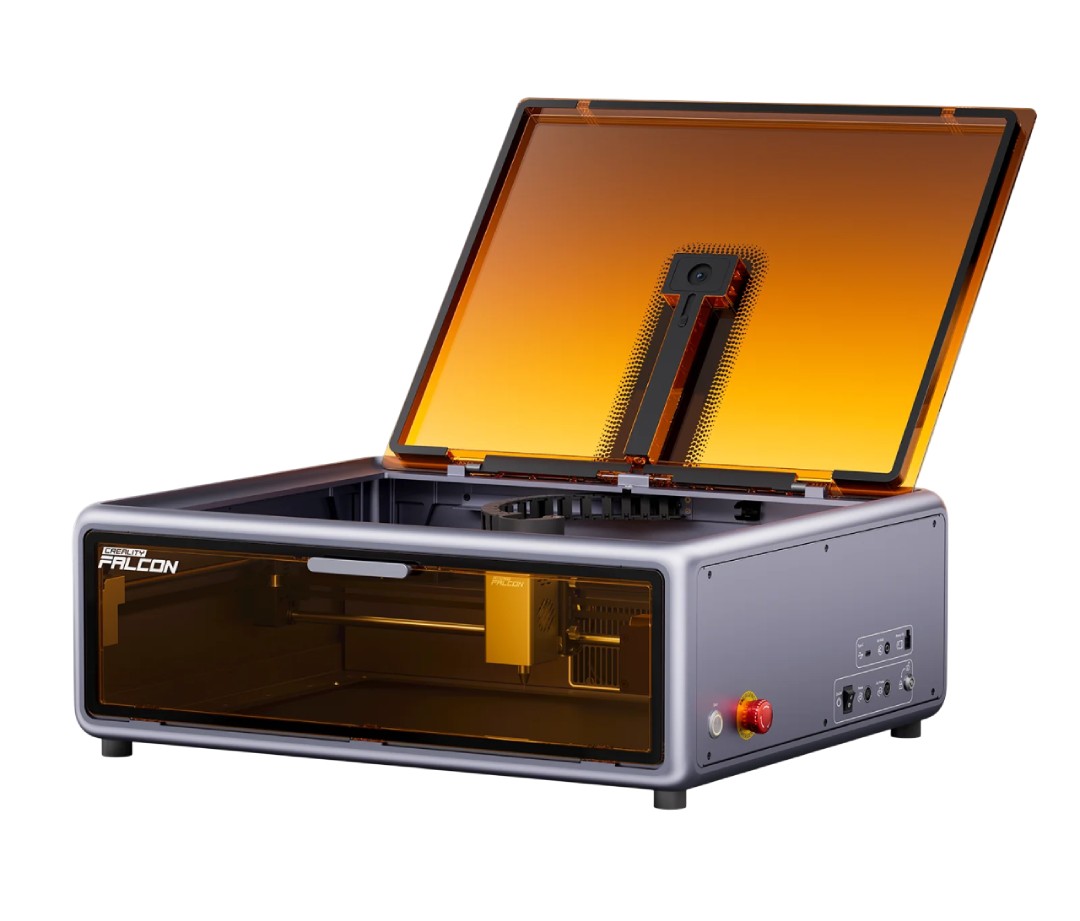

Falcon A1 combines solidity with mobility. The metal frame with cast elements (≥ 205 MPa) minimizes vibrations, and the compact dimensions (567 x 468 x 196 mm) allow you to place the device on a desk or workshop table. The large transparent cover allows you to observe the work process . The set includes everything you need to start: test material (300 x 300 x 3 mm), a focus block, cables, an antistatic brush and an Allen key. This is a complete tool for professional and creative work.
Kit Contents
- Creality Falcon A1
- Exhaust pipe
- Clamping band
- Air Assist Kit
- AC adapter
- Linden wood test sheet (300 x 300 x 3 mm)
- Calibration card
- Connecting cable for rotary attachment (Rotary Kit sold separately)
- Multi-level focus block
- USB Type A - USB Type C Cable
- Antistatic brush
- Allen key

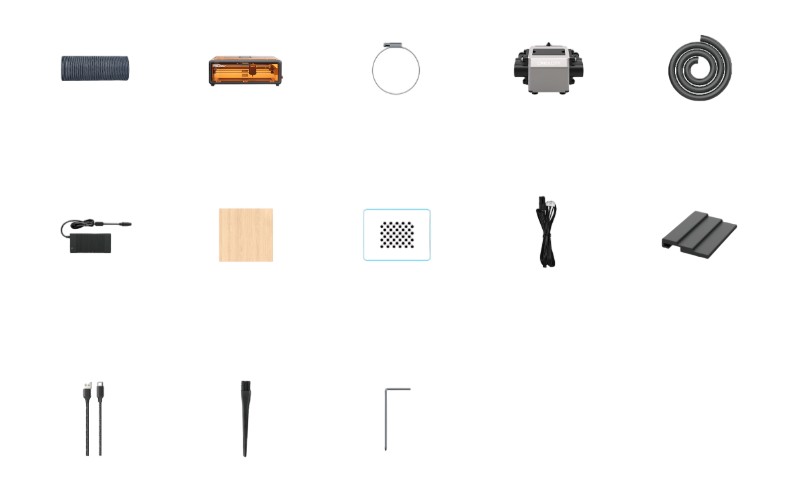

Items included in the set.
| Creality Falcon A1 Technical Specifications | |
|---|---|
| Laser power | 10 in |
| Laser source | diode laser |
| Laser wavelength | 455 ±15nm |
| Laser spot | 0.06x0.08mm |
| Laser class | Class 1 (FDA) |
| Work area | 305 x 381mm |
| Software | LightBurn, LaserGRBL, Falcon Design Space |
| Operating system | Windows / macOS |
| Supported file formats | jpg, jpeg, png, bmp, svg, dxf, etc. |
| Supported materials | cardboard, wood, bamboo, rubber, leather, fabrics, acrylic, plastic |
| Input voltage | from 100 V to 240 V AC, 50/60 Hz |
| Output voltage | 24VDC/5A |
| Power (max) | 120 W |
| Operating temperature | from 5°C to 35°C |
| Dimensions | 567x468x196mm |
| Mass | 15.55 kg |
