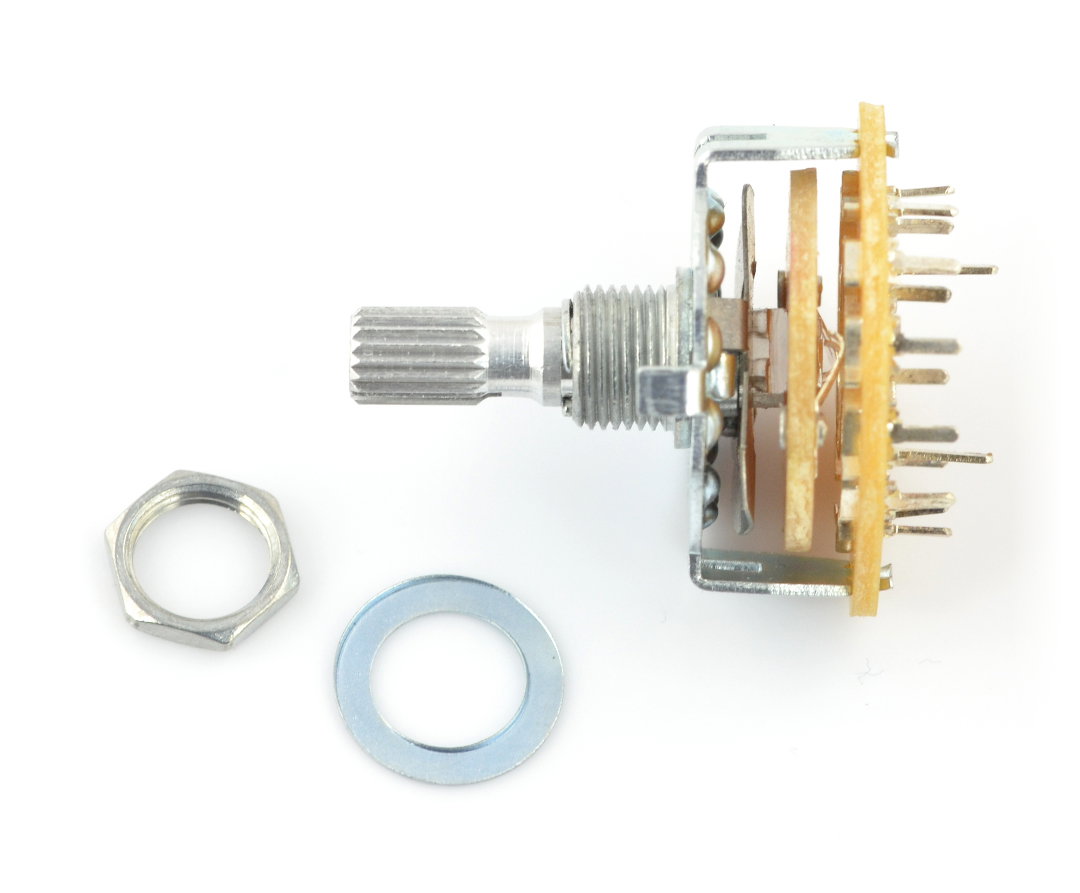

Rotary switch 6-position 2 circuits - 37mm

Index: UCC-06149 EAN: 5904422304072

Six-state rotary switch for housing equipped with 14 contacts. Total height is 37 mm.

Rotary switch 6-position 2 circuits - 37mm
€1.50
€1.22 tax excl.
Available
Shipping in 24 hours
PayPal payment

Volume discounts

Quantity Discount You Save
5 5% Up to €0.38
Manufacturer: OEM

Product Description: 6-position rotary switch 2 circuits - 37mm

Six-position rotary switch for housing equipped with 14 contacts. The total height is 37mm.

Przełącznik obrotowy 6-pozycji 2 obwody - 37mm

Rotary switch specification

  • Type: rotary 6-state
  • Number of circuits: 2
  • Number of leads: 14
  • Electrical parameters:
    • 0,3 A / 125 V AC
    • 1 A / 30 V DC
  • Contact resistance: 25 mΩ
  • Lifetime: 10,000 switchings
  • Rotation angle one position: 30 °
  • Mounting thread: M10 x 0.75
  • The switch does not short-circuit when switching
  • Washer and nut included (we also offer 6 mm caps)
  • Axle thread diameter: approx. 6 mm
  • Height: 37 mm

Switch - type2 bistable
Switch - type rotary 6x
Switch - shape round
Switch - backlight no
Colour orange
Diameter 6.0 mm
Height 37 mm
Package width 6 cm
Package height 2.5 cm
Package depth 4 cm
Package weight 0.012 kg
