Product description: TLA-1 500 N 7 mm/s 12 V tubular actuator with overload switch - stroke 30 cm
The TLA-1 tubular actuator by Elektrobim is an electric linear actuator designed for applications requiring a compact design and high precision. Thanks to the placement of the motor in the actuator axis, the TLA-1 model achieves exceptionally small dimensions while maintaining a dynamic force of 500 N. It operates with a voltage of 12 V DC and offers an extension speed of 7 mm/s without load. The built-in overload switch protects the mechanism from damage in the event of overload or encountering an obstacle, automatically stopping the piston rod. The IP65 tightness class design ensures resistance to difficult environmental conditions, making the actuator an excellent choice for both indoor and outdoor applications.
Our store offers a wide selection of other models of linear actuators - check them out!
Tubular actuator TLA-1 500 N 7 mm/s 12 V with overload switch - stroke 30 cm.

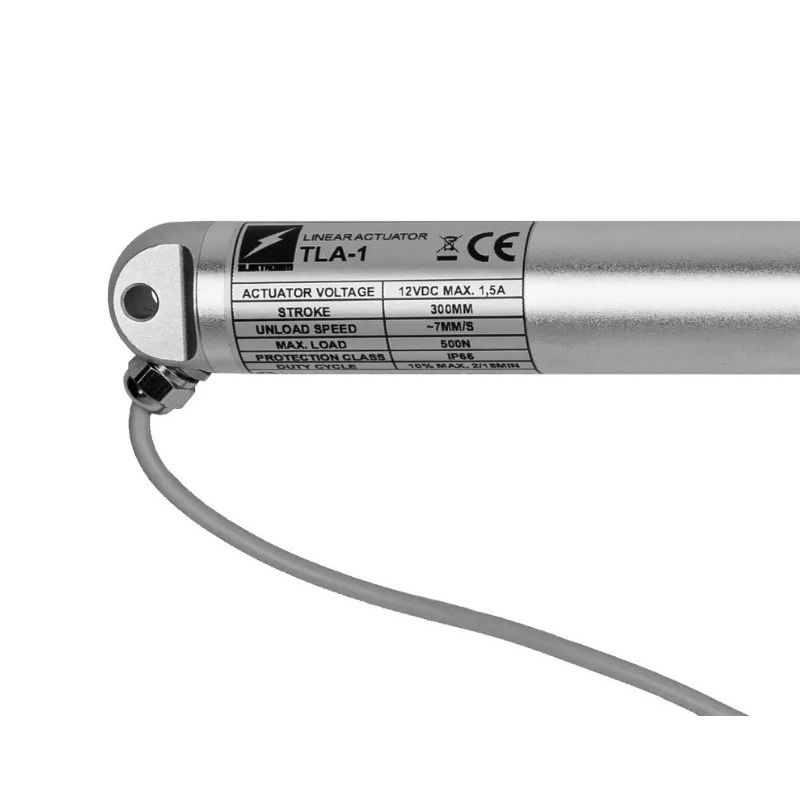

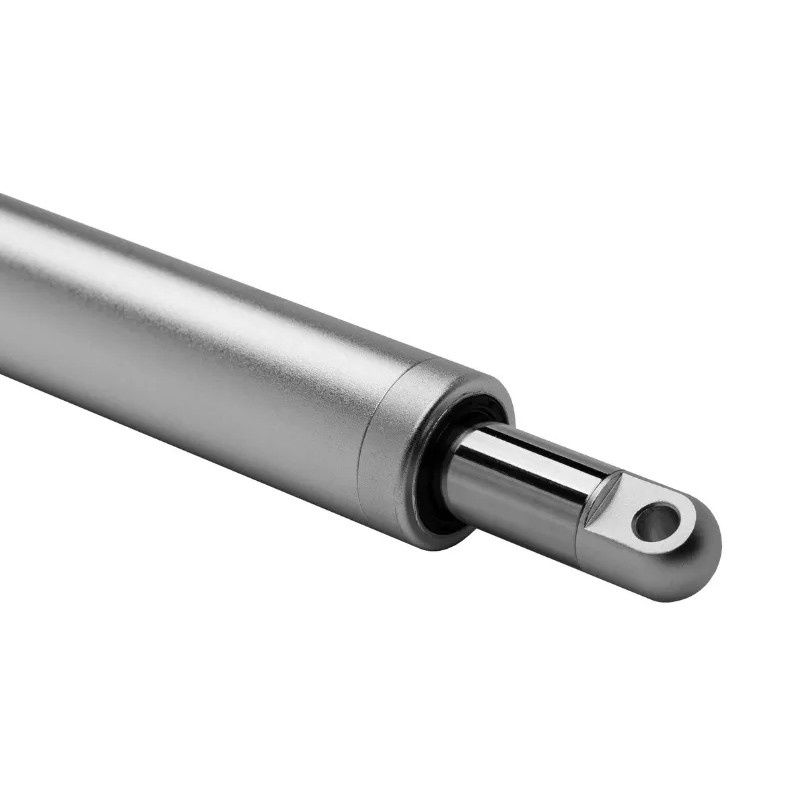

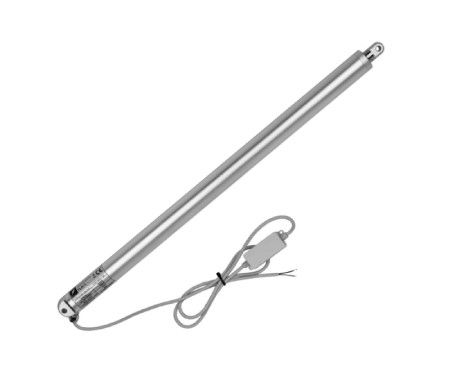

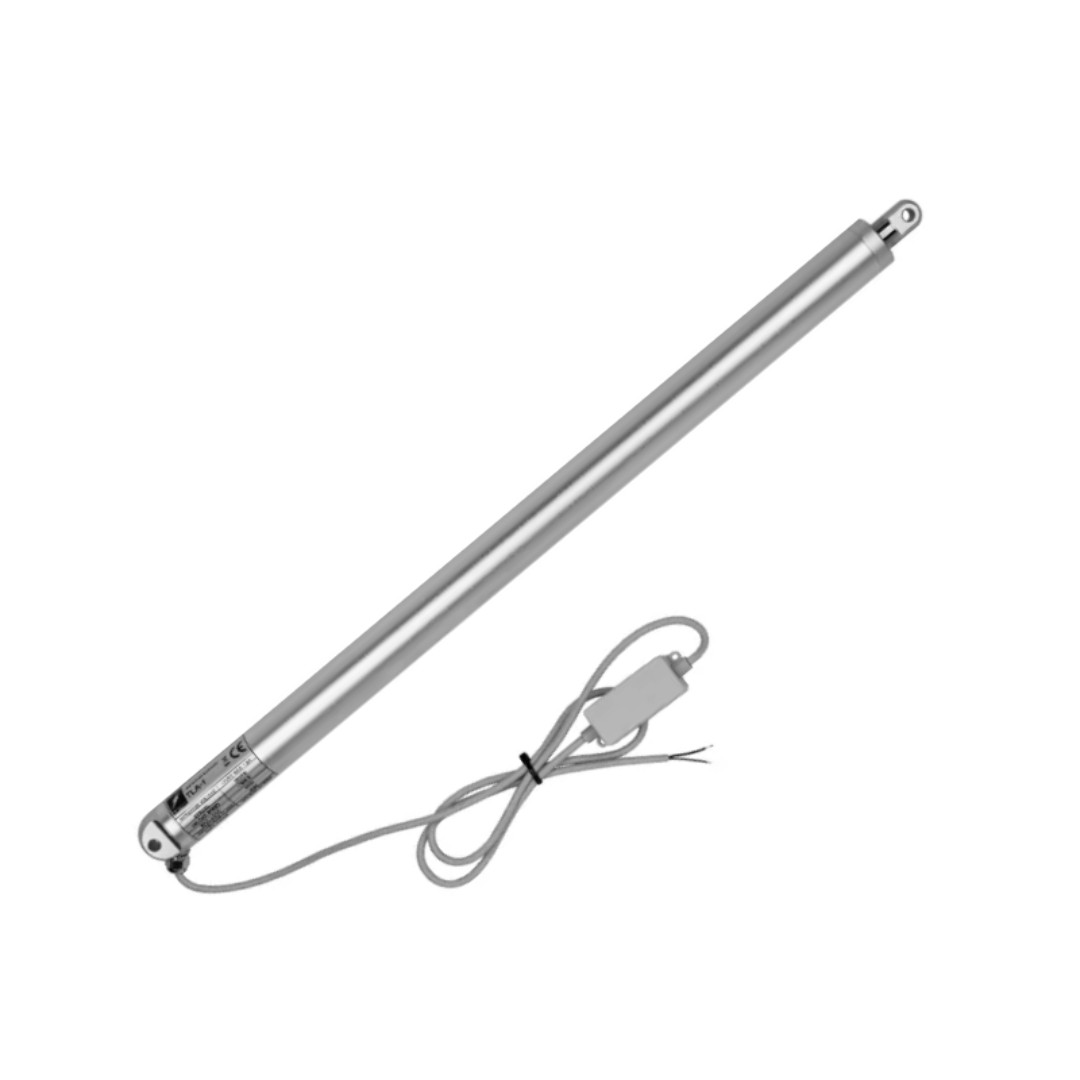

The 28 mm diameter actuator, thanks to its compact dimensions, will work well in many projects.
Main features of the TLA-1 actuator
- Compact design : the engine is mounted in the actuator axis, the housing diameter is only 28 mm
- Overload switch : protects the mechanism against damage and increases safety of use
- 300mm stroke : suitable for most linear applications
- Duty cycle 10% : maximum 2 minutes of continuous operation, intended for intermittent operation
- IP65 protection class : resistant to dust and water jets from all directions
- Quiet operation : noise level ≤ 55 dB
- Wide operating temperature range : from -15°C to 65°C
Connecting and controlling the actuator
The TLA-1 actuator is powered by 12 V DC and controlled by changing the polarity on the power cables - changing the voltage direction changes the direction of the piston rod movement. The actuator does not have mechanical limit switches, so the built-in electronic overload switch is responsible for stopping it. The actuator stops when the piston rod is fully extended, retracted or after contact with a mechanical obstacle. For connection, use cables with a minimum cross-section of 2 x 0.5 mm² . Control can be carried out both manually and via relay controllers. Two holes with a diameter of 6 mm are used for mounting the actuator.
The tubular drive has a load capacity of 500 N, and the built-in overload switch automatically stops the actuator.

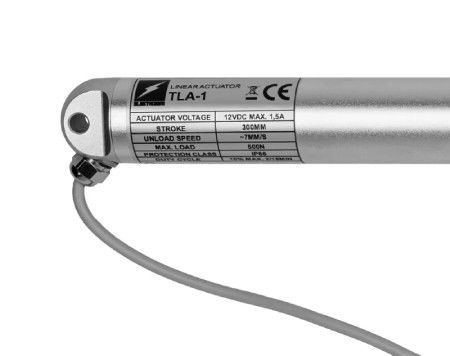

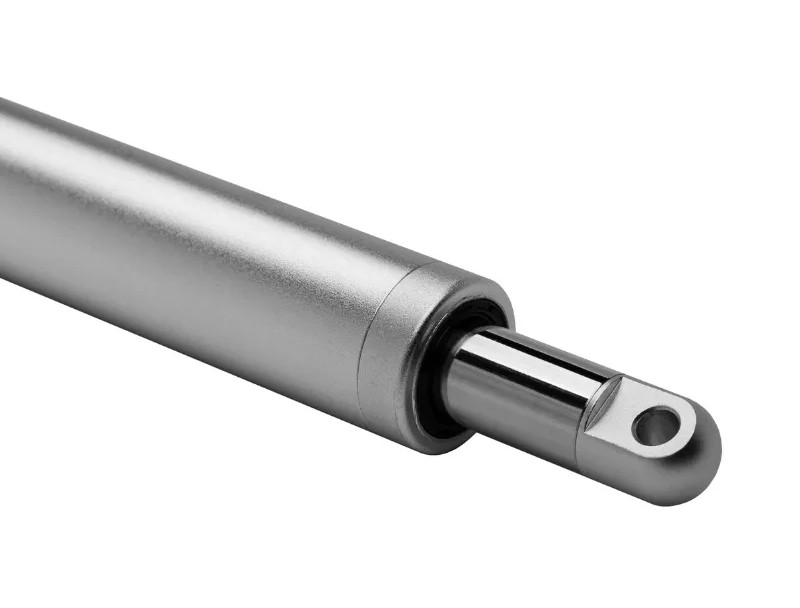

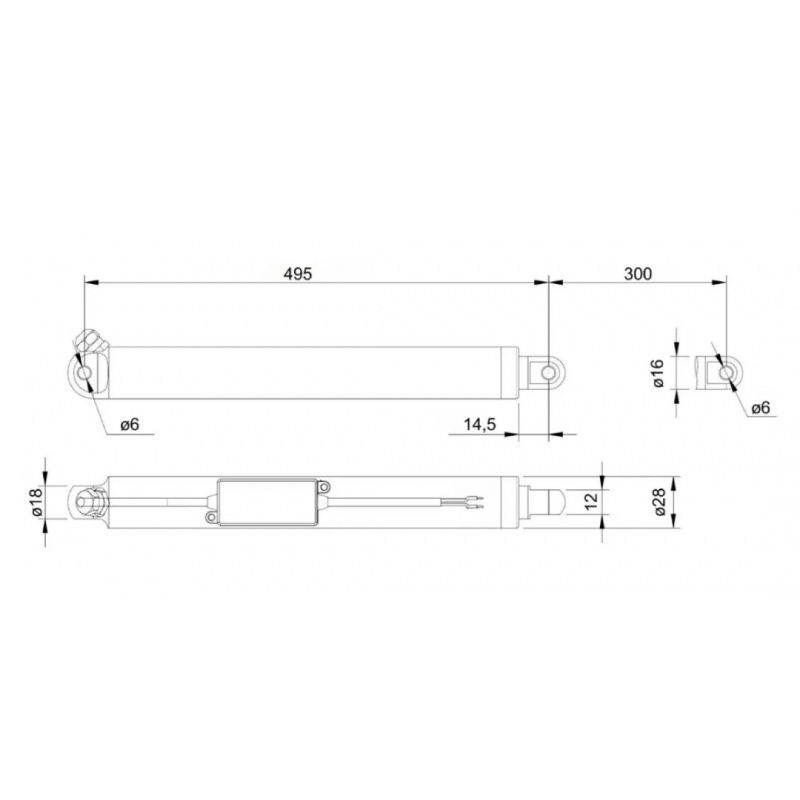

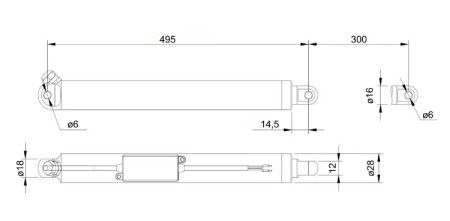

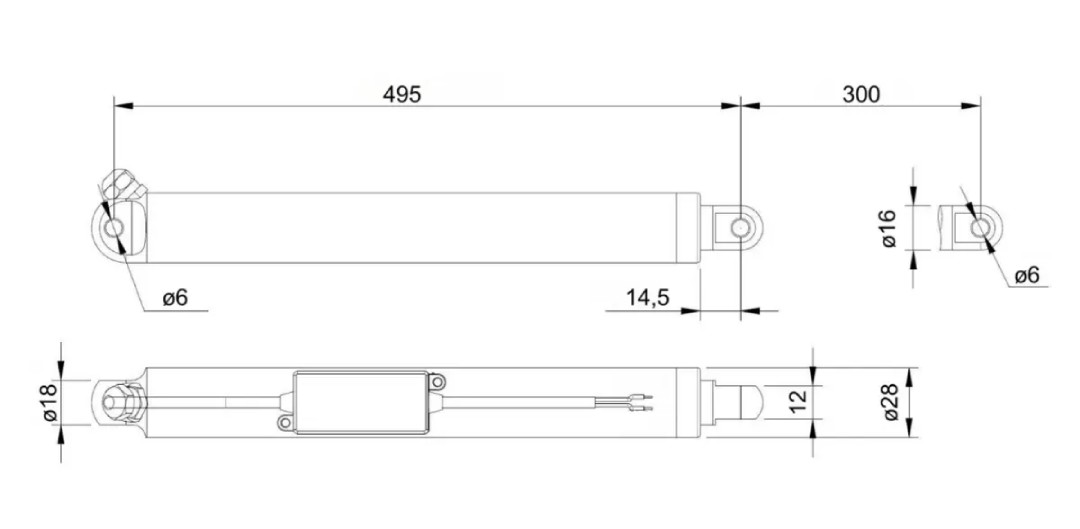

The actuator dimensions in the diagram are given in mm.
Practical applications
The TLA-1 actuator is suitable for many home and industrial automation applications. It can be used to automate flaps, hatches, windows or solar panels . It is also often used in ventilation systems, DIY projects and animal husbandry - wherever precise and reliable linear movement is needed with limited installation space.
| Technical specification of the TLA-1 tube actuator | |
|---|---|
| Supply voltage | 12V DC |
| Power | 18 In |
| Rated current | 1.5A |
| Dynamic load capacity | 500 N |
| Piston rod stroke | 300mm |
| Feed speed (no load) | 7mm/sec |
| Tightness class | IP65 |
| Work cycle | 10% (max. 2 min of continuous operation) |
| Noise level | ≤ 55dB |
| Operating temperature | from -15°C to 65°C |
| Feedback | lack |
| Security | overload switch |
| Total length when folded | 495mm |
| Housing diameter | 28mm |
