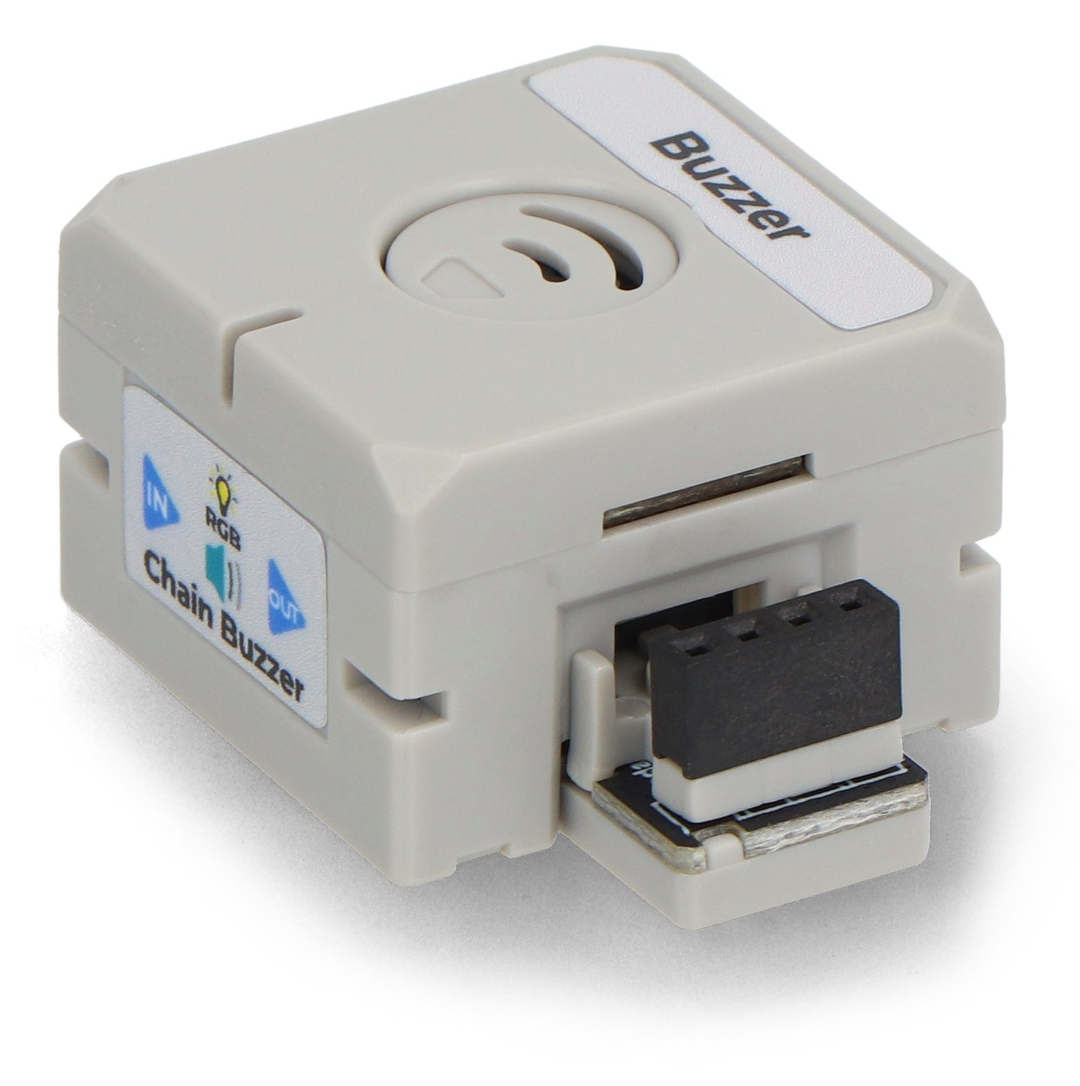

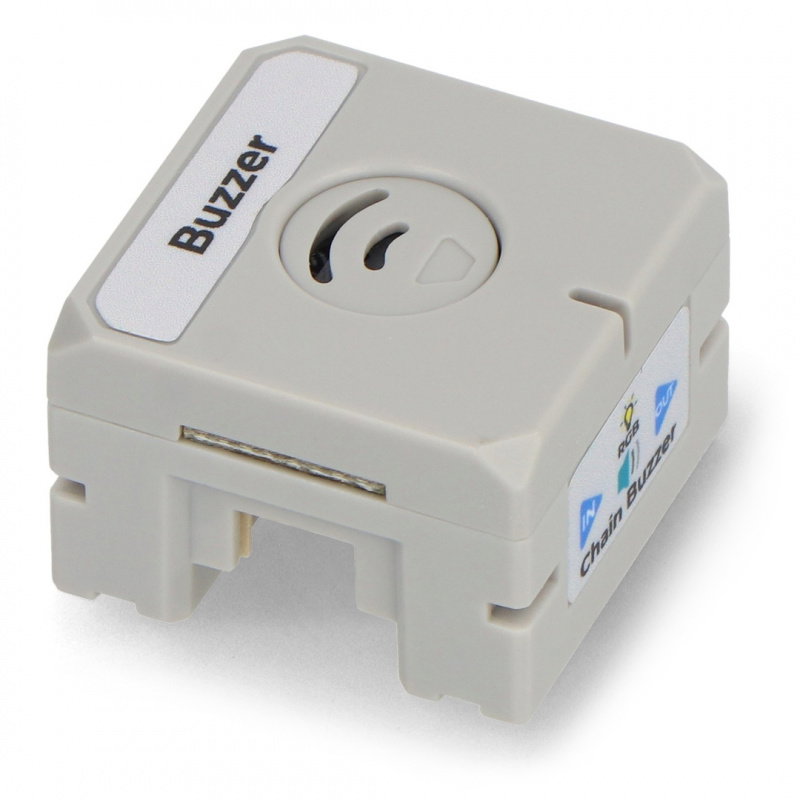

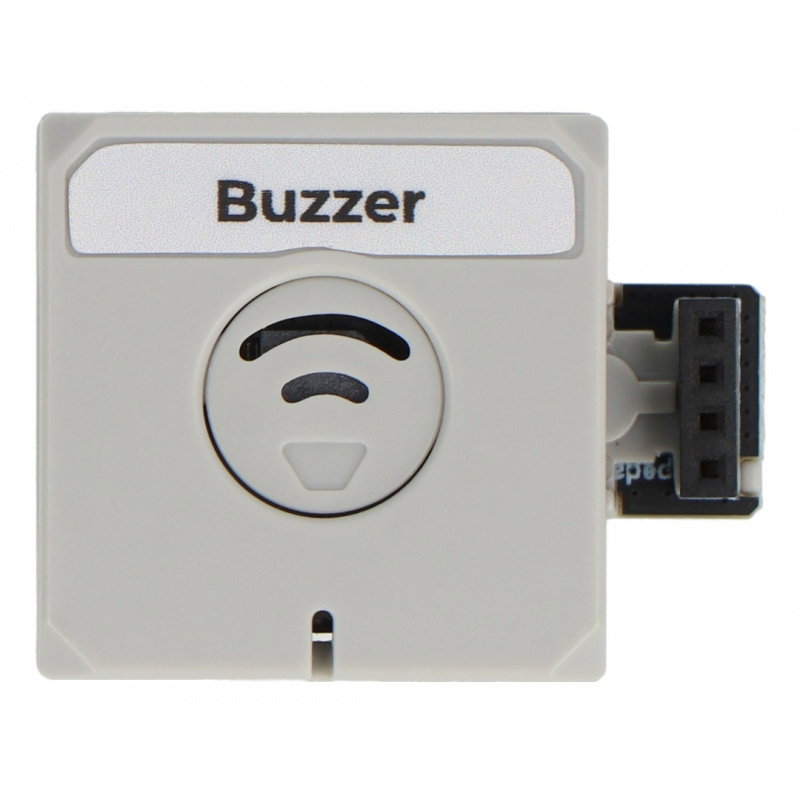

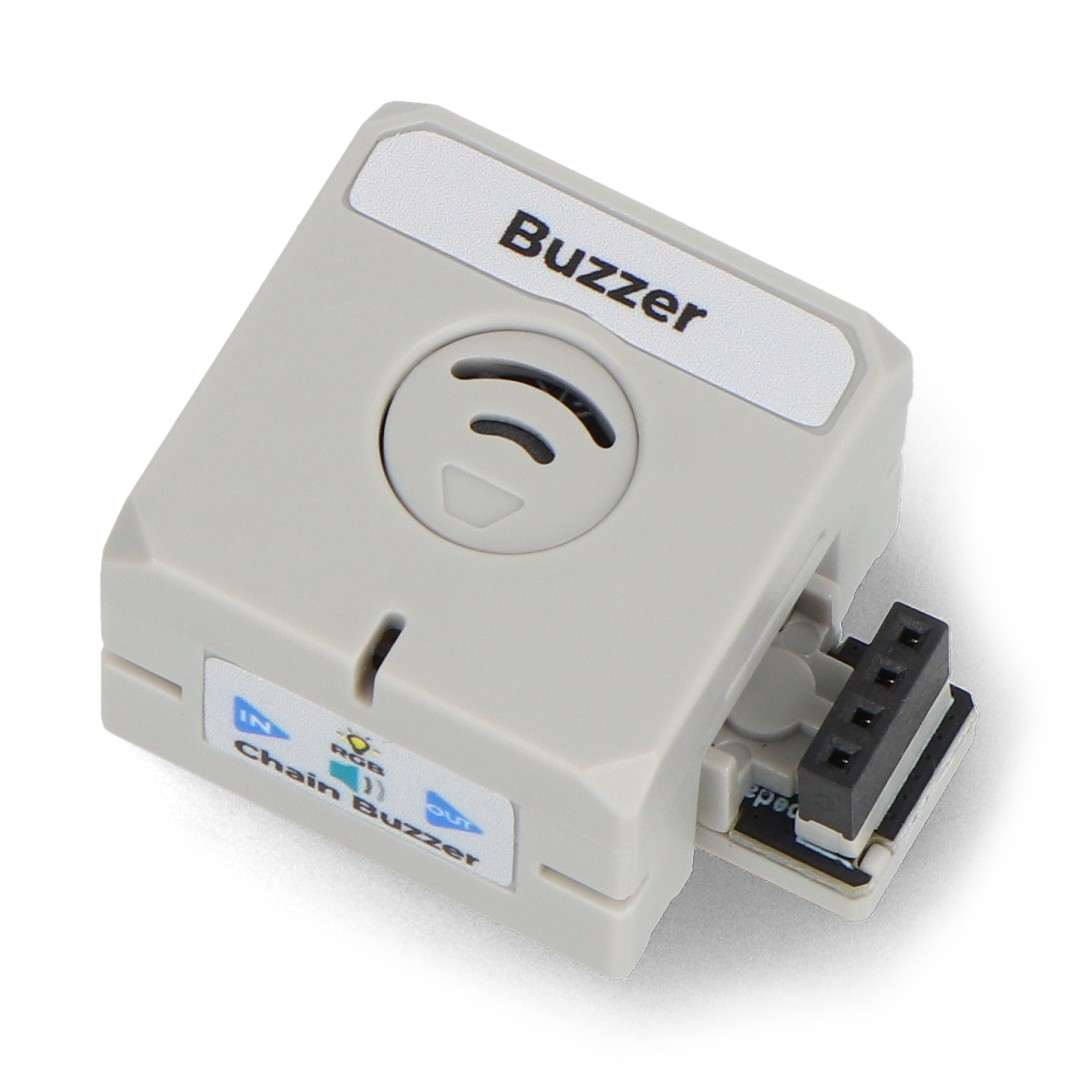

Product description: Chain Buzzer - buzzer module with RGB diode - M5Stack U224
The M5Stack Chain Buzzer is an output node designed for creating acoustic and visual signals in projects using the M5Stack Chain ecosystem. The module incorporates an MLT-5020 buzzer and an addressable WS2812C RGB LED , allowing it to simultaneously generate audible signals and inform the user about the device's status via light. The device is operated by an STM32G031G8U6 microcontroller . Communication is via UART at 115,200 bps, and two HY2.0-4P ports allow for chaining with other Chain series devices. Its compact size makes the module ideal for alarms, operator panels, automation, and Smart Home systems.

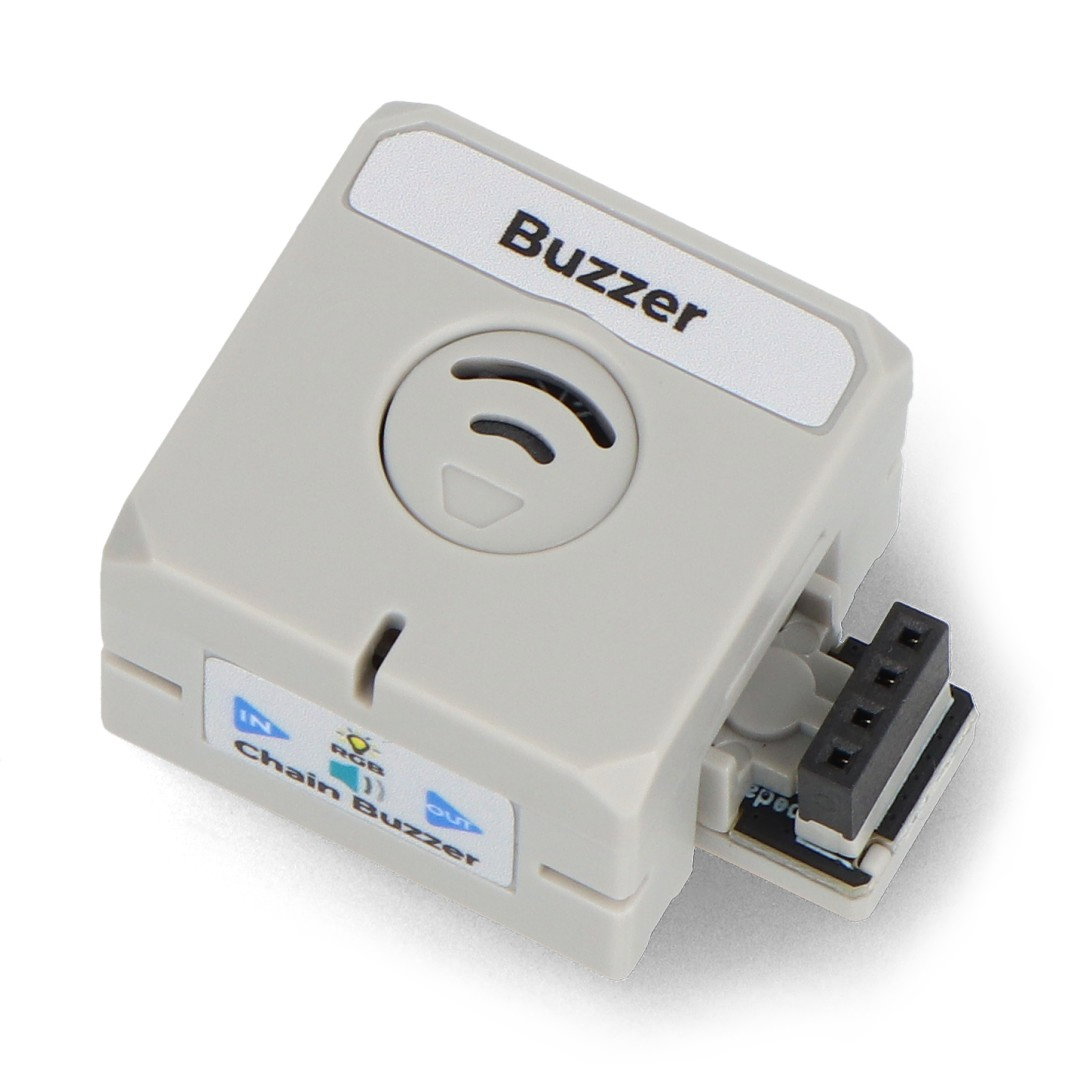

Chain Buzzer - buzzer module with RGB diode - M5Stack U224.
The ability to connect modules in the Chain bus facilitates the construction of more complex interactive systems.
Main features of the Chain Buzzer module
- Sound signaling : the built-in MLT-5020 buzzer allows you to generate messages and warning signals
- Programmable RGB diode : WS2812C chip enables visual presentation of the device status
- STM32G031G8U6 microcontroller : responsible for controlling the module functions and handling communication
- UART communication : data transmission is at a speed of 115200 bps in 8N1 configuration
- Daisy chain connection : two HY2.0-4P connectors allow you to connect additional M5Stack Chain devices
- Combination of sound and light : allows you to create clear alarm, warning and status signals
- Compact size : small housing makes it easy to use the module in complex electronic projects
- Arduino and UIFlow2 support : the manufacturer provides a library, examples and programming documentation
M5Stack U224 Technical Specifications
- Microcontroller: STM32G031G8U6
- Supply voltage: 5 V DC
- Communication: UART
- UART parameters: 115200 bps, 8N1

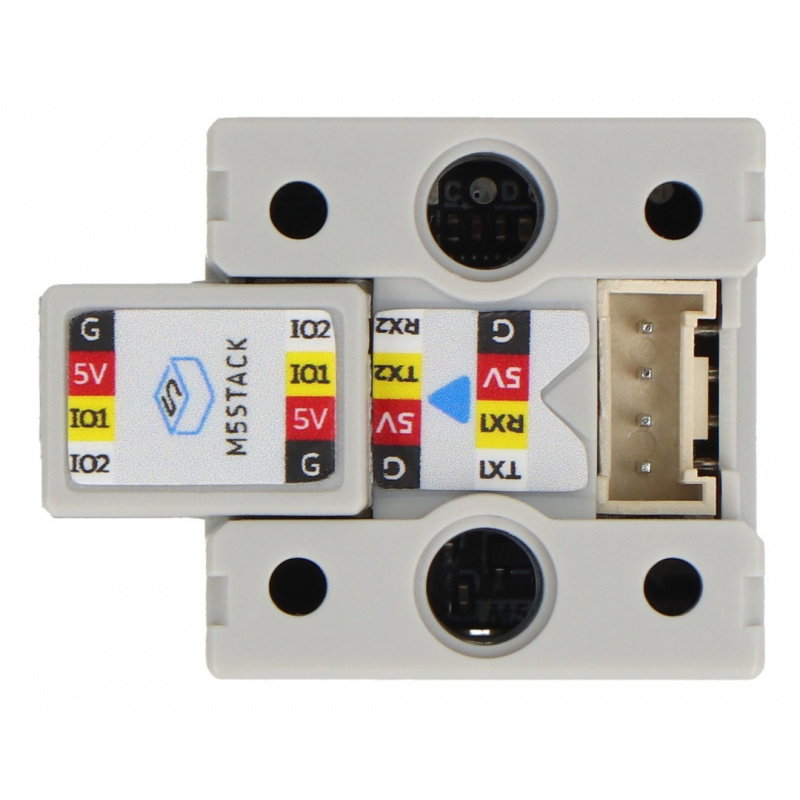

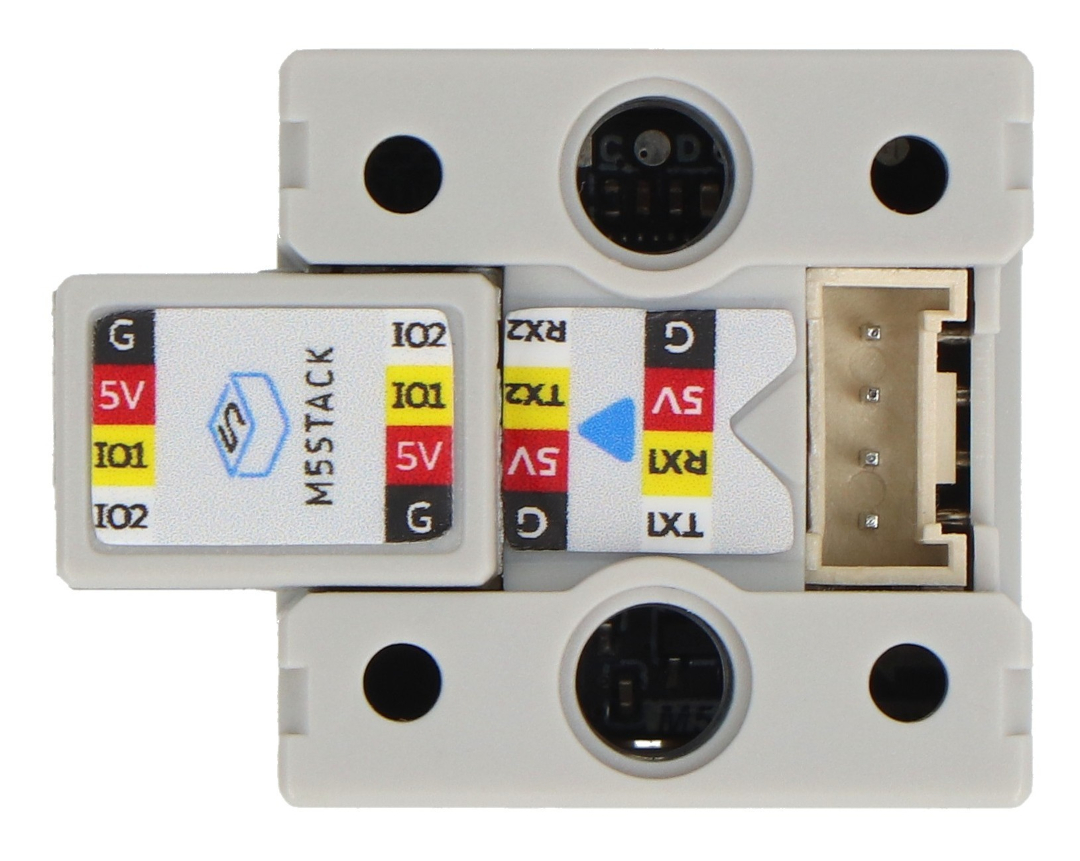

- Interface: 2 x HY2.0-4P
- Buzzer: MLT-5020
- RGB diode: 1 x WS2812C
- RGB diode pinout: PA8
- Buzzer output: PA0
- UART1: PB6 - TXD1, PB7 - RXD1
- UART2: PA2 - TXD2, PA3 - RXD2
- Current consumption during operation: 198.3 mA at 5 V - with a buzzer duty cycle of 50% and a frequency of 9.9 kHz
- Operating temperature: 0°C to 40°C
- Dimensions: 23.9 x 23.9 x 16 mm
- Weight: 5.9 g
Contents of the set
- 1 x M5Stack Chain Buzzer
- 1 x Chain Bridge
The kit includes a buzzer module and a Grove Chain Bridge connector.
