Chain Joystick - Precision Hall Effect Joystick - M5Stack U205
The Chain Joystick is a precision input module designed for advanced applications in human-machine interaction and robot control . The device uses a Hall-effect joystick, which measures changes in a magnetic field instead of traditional mechanical contact.
We could not load the price.
The promotional price does not combine with quantity discounts.
Product description: Chain Joystick - precise joystick with Hall effect - M5Stack U205
The Chain Joystick is a precision input module designed for advanced applications related to human-machine interaction and robot control . The device utilizes a Hall-effect joystick, which measures changes in the magnetic field instead of traditional mechanical contact. This solution ensures high accuracy, wear resistance, long service life, and high immunity to electromagnetic interference. The module supports three control axes: analog X and Y inputs and a digital Z input (button) , enabling intuitive and precise motion control. The integrated STM32G031G8U6 microcontroller is responsible for signal processing and communication, while the built-in programmable RGB LED (WS2812C) allows for status and operating mode indication, or the creation of visual interface elements.
Chain Joystick - precision joystick with Hall effect - M5Stack U205.
Botland is an official distributor of the M5Stack module family in Poland. We have extended this system of stackable functional devices with accessories from our range and numerous blog guides. All M5Stack products presented here are original.

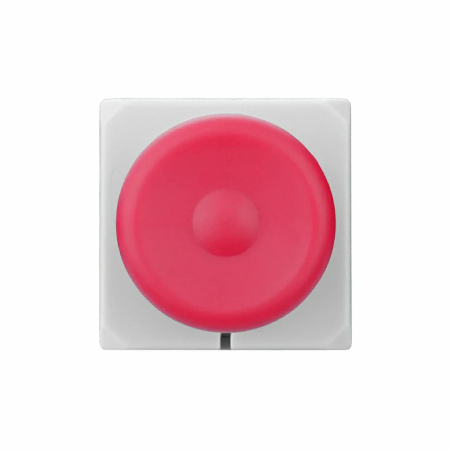

Chain Joystick is a precision input module designed for advanced human-machine interaction and robot control applications.
Special features
- Precision Hall effect joystick for high accuracy and long life without mechanical wear
- Three-axis control: analog X and Y axes and digital Z axis button
- High resistance to electromagnetic interference and stable operation over time
- Built-in STM32G031G8U6 microcontroller for signal processing and communication
- Programmable RGB LED (WS2812C) for status indication and user interaction
- UART communication with support for cascading modules
- Two HY2.0-4P connectors, enabling easy expansion of the system with additional Chain modules
- Compact design, ideal for embedded projects, robotics, and HMIs
Practical applications
The Chain Joystick is ideal for projects involving robotics, motion control systems, human-machine interfaces, and educational and interactive device prototypes. It can be used to control mobile robots, manipulators, mobile platforms, and simulators, as well as a component of operator panels and user controllers in embedded systems.
Joystick technical specifications
- Input type: Hall effect joystick
- Control axes: X, Y, Z
- Microcontroller: STM32G031G8U6
- Supply voltage: DC 5 V
- Communication interface: UART
- Connector type: 2x HY2.0-4P (Chain)
- LED: 1x RGB WS2812C
- Current consumption: approx. 25.4 mA
- Operating temperature range: 0°C to 40°C
- Dimensions: 23.9 x 23.9 x 30.4 mm
- Weight: 8.6 g
Contents of the set
- 1x Chain Joystick
- 1x Chain Bridge

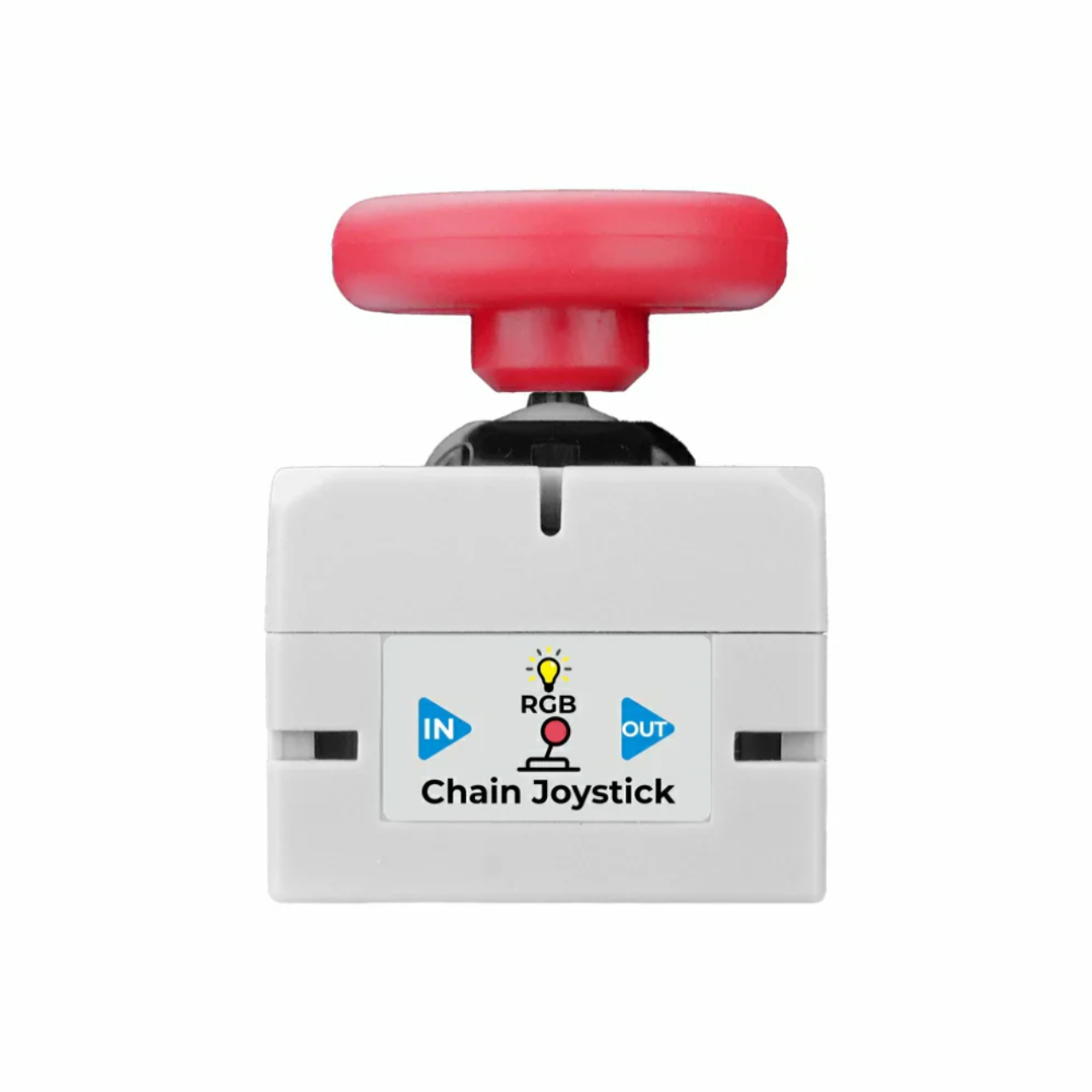

The module supports three control axes: analog X and Y inputs and digital Z input (button).
