Product description: Chain PIR - PIR motion sensor - STM32G031- M5Stack U225

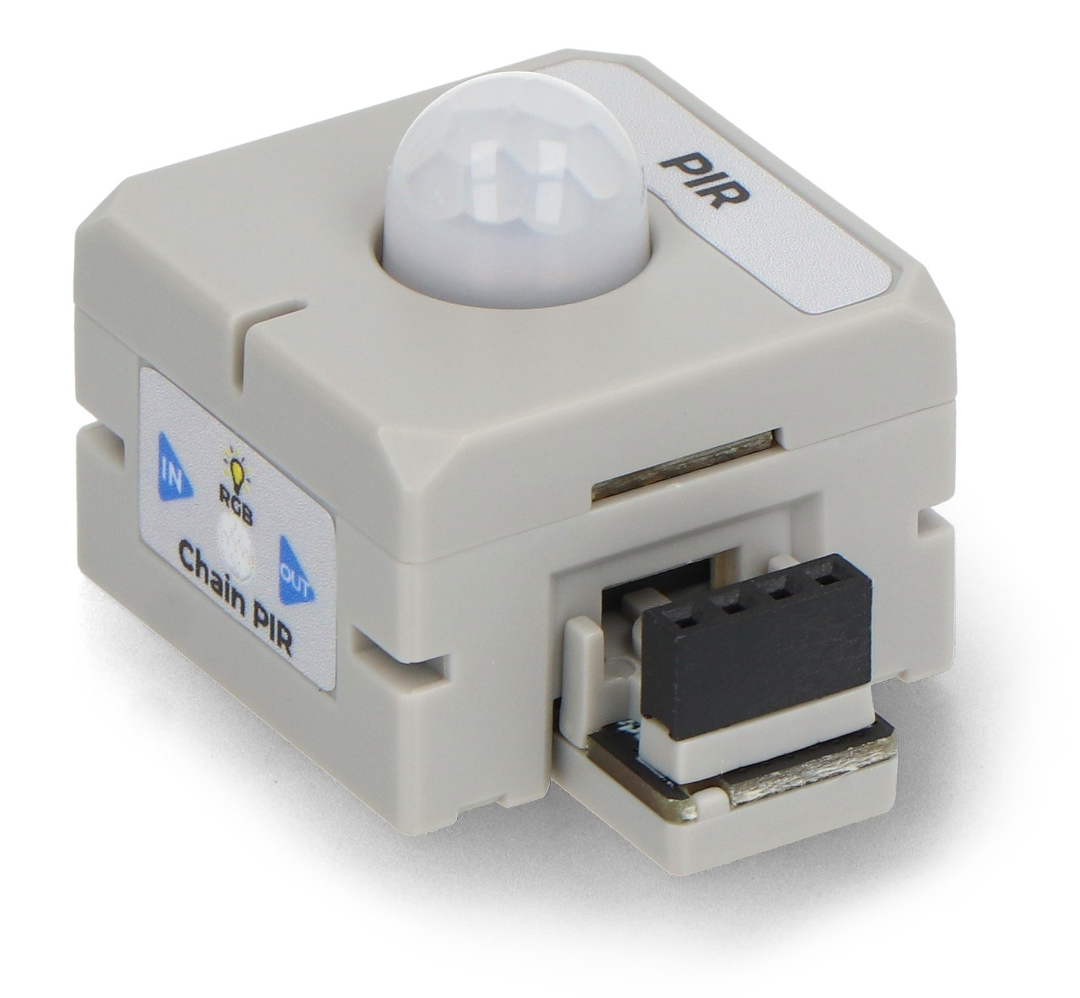

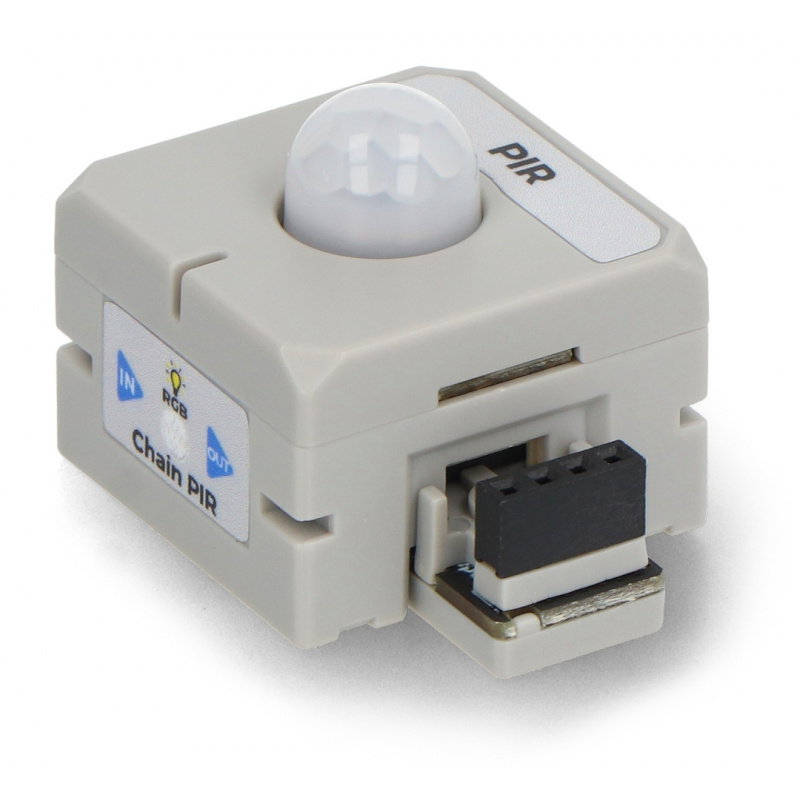

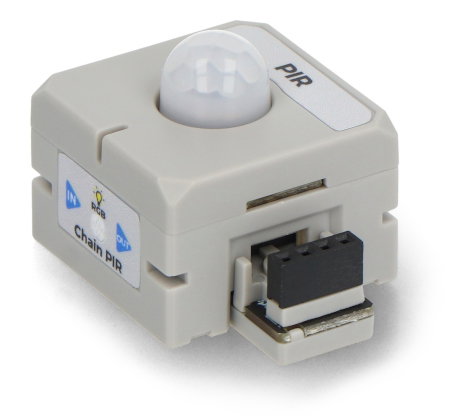

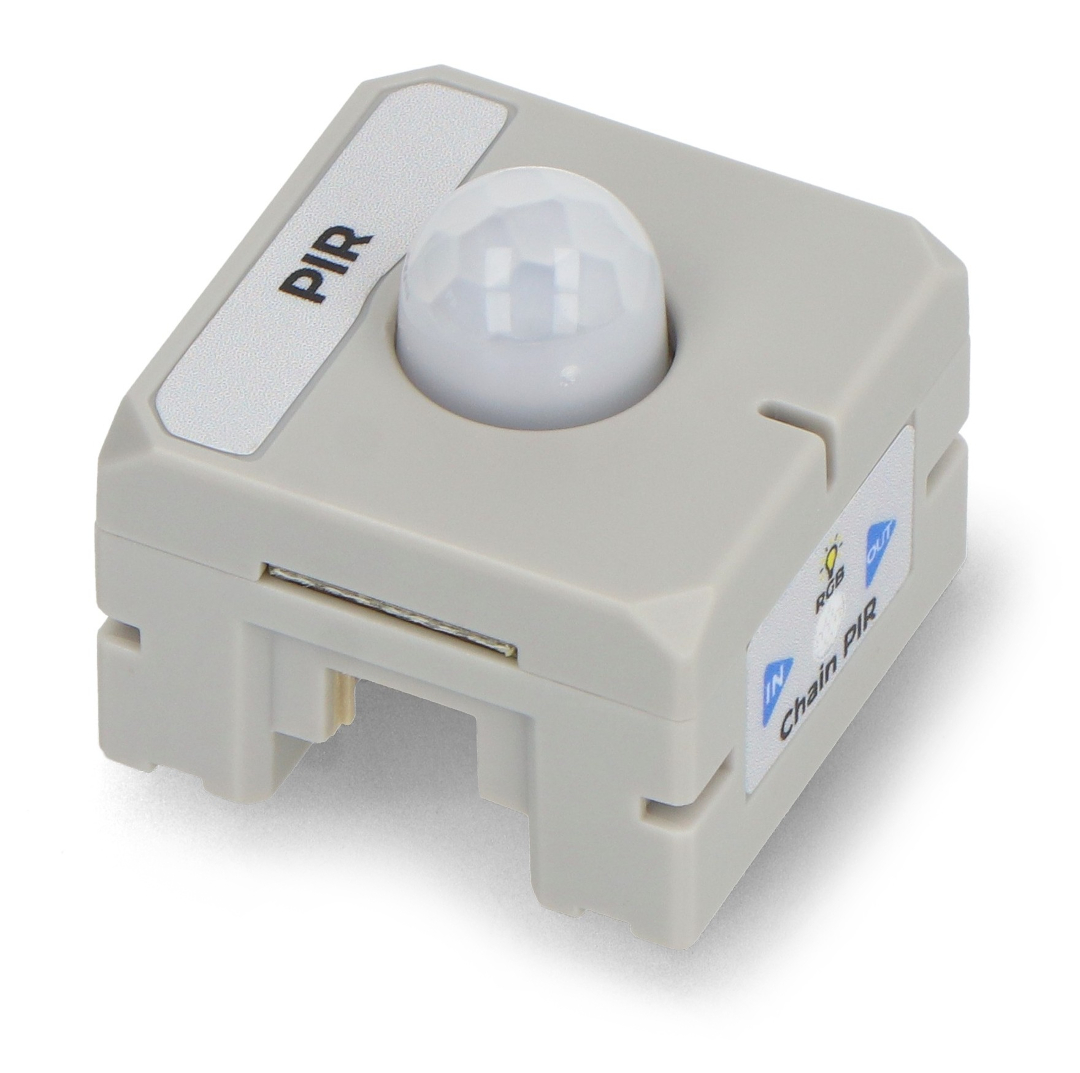

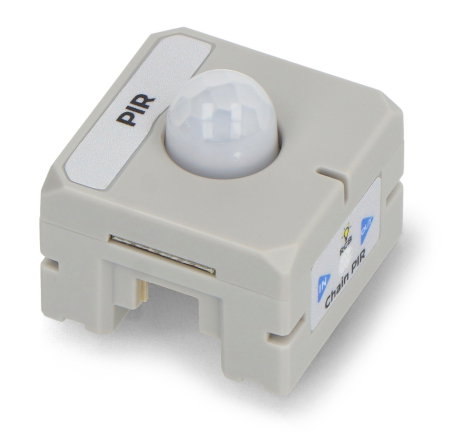

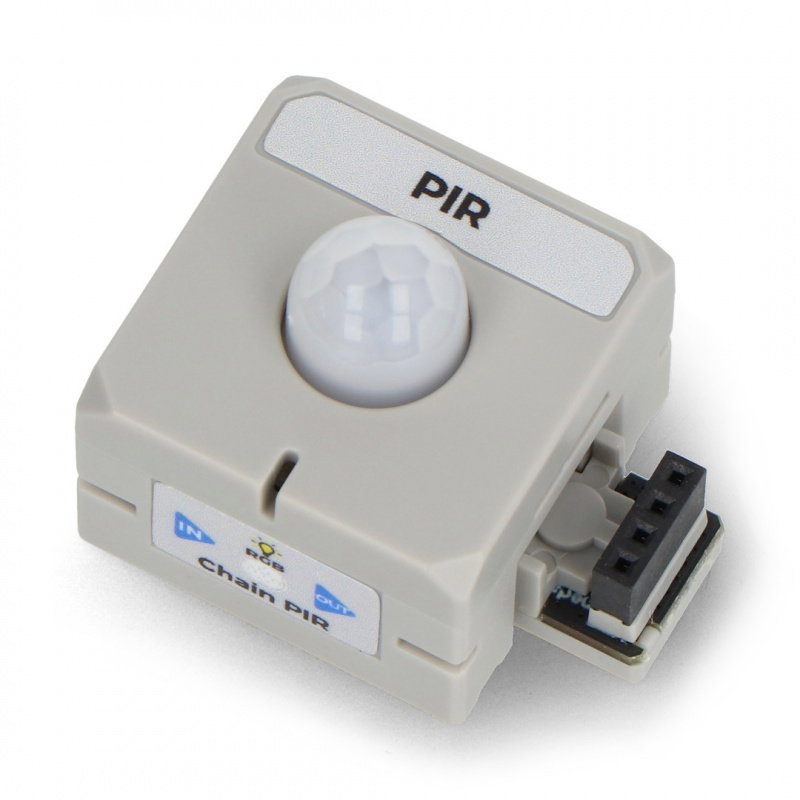

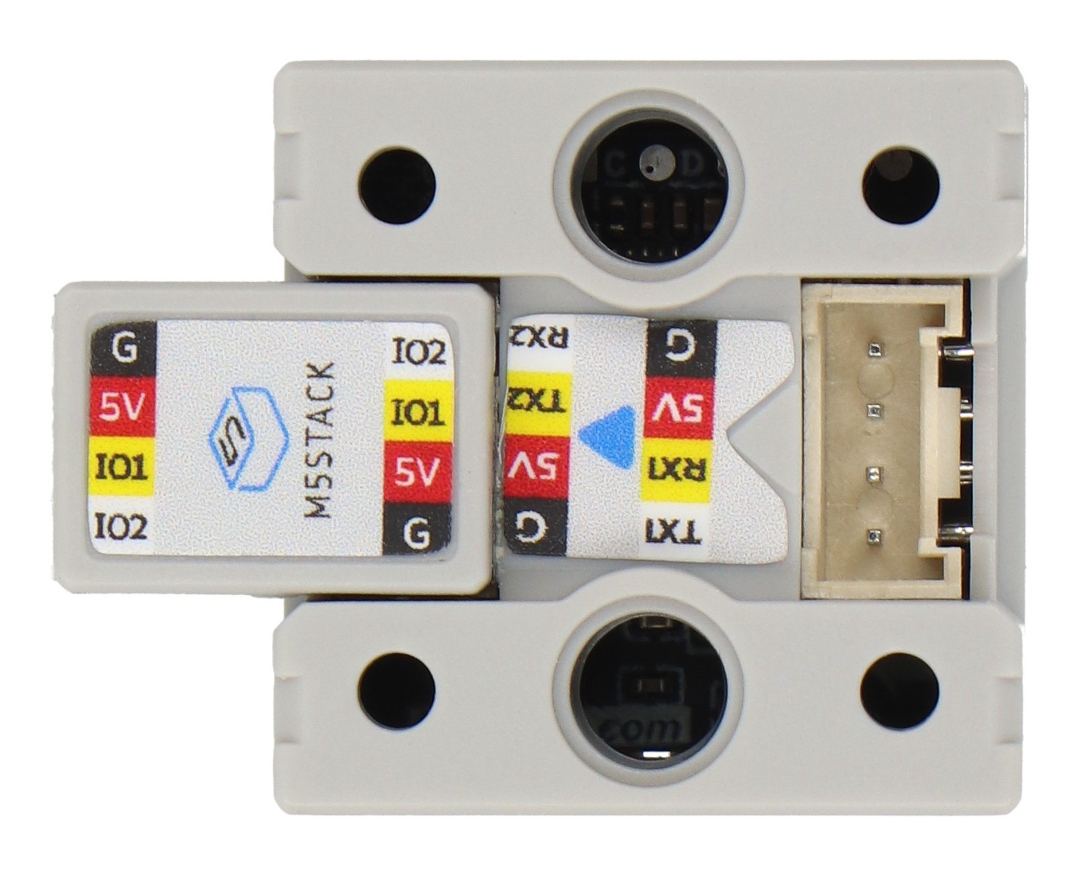

The M5Stack Chain PIR is an input module used to detect motion and human activity based on changes in infrared radiation. It utilizes the AS312 pyroelectric sensor , offering a detection range of up to 2.4 m and a detection angle of -60° to 60° . An integrated programmable WS2812C RGB LED can additionally provide information about device status or motion detection. Data processing is handled by an STM32G031G8U6 microcontroller , and communication with the controller is via UART at 115,200 bps. Two HY2.0-4P ports allow the module to be connected to other M5Stack Chain devices.

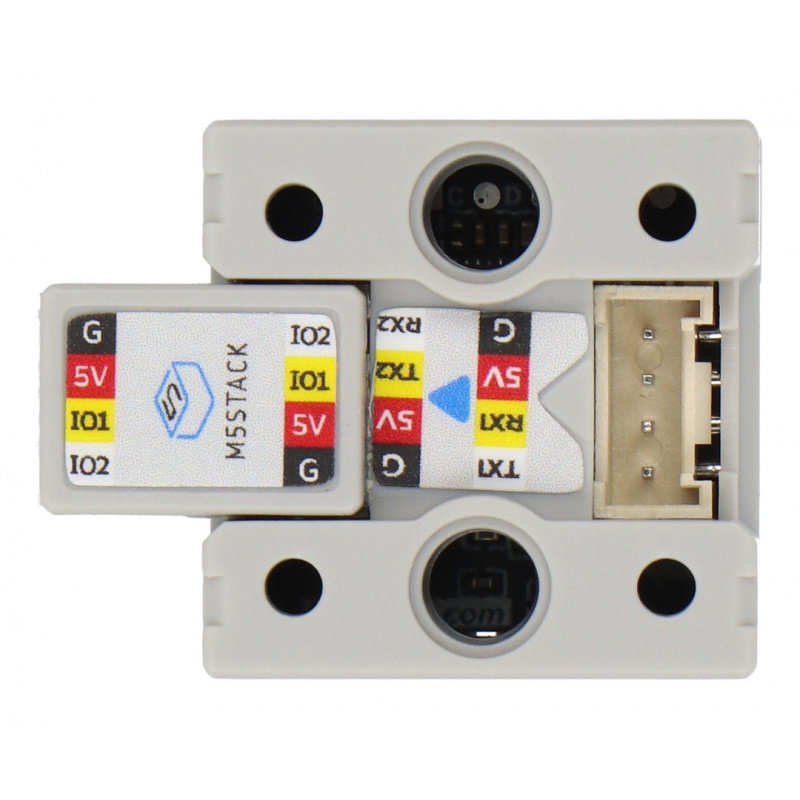

Chain PIR - PIR motion sensor - STM32G031- M5Stack U225.
M5Stack Chain PIR is suitable for projects requiring automatic motion detection and response to the appearance of a person in the monitored area.
Main features of the Chain PIR module

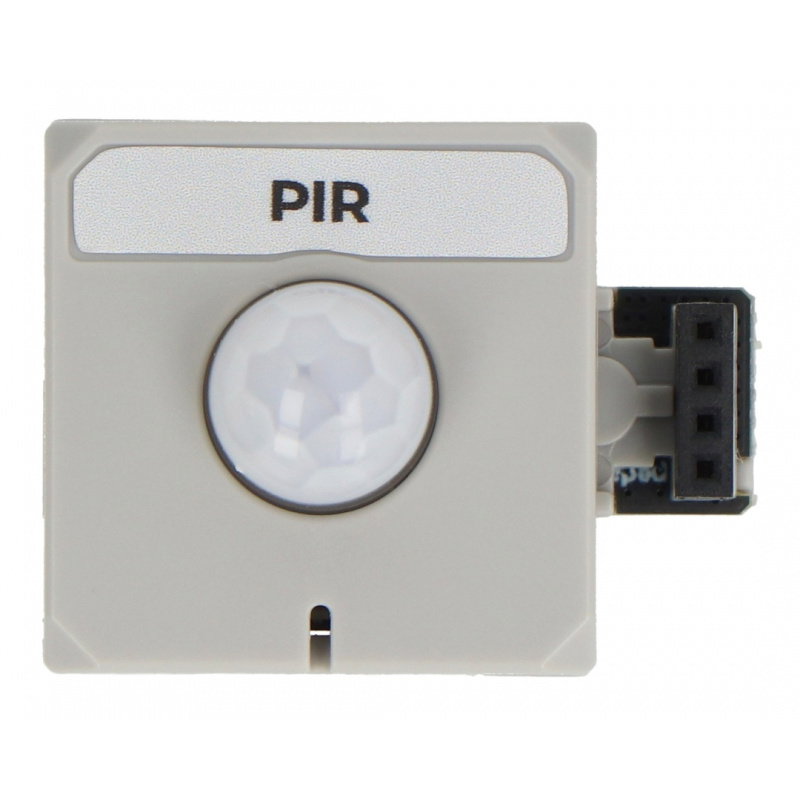

- AS312 pyroelectric PIR sensor : detects the movement of people and other objects emitting infrared radiation
- Detection range up to 2.4 m : allows monitoring of small rooms, stations and zones near the device
- Detection angle from -60° to 60° : provides a wide field of motion detection
- Programmable RGB diode : WS2812C chip enables visual indication of the sensor status
- STM32G031G8U6 microcontroller : responsible for processing data from the sensor and handling communication
- UART communication : data transmission is at a speed of 115200 bps in 8N1 configuration
- Two operating modes : the module can automatically report a change in PIR status or respond to controller queries
- Daisy chain connection : two HY2.0-4P connectors allow you to connect additional M5Stack Chain devices
- Arduino and UIFlow2 support : the manufacturer provides a library, sample programs and programming documentation
- Low power consumption : during operation, the module consumes approximately 10.74 mA at a voltage of 5 V
M5Stack U225 Technical Specifications
- Microcontroller: STM32G031G8U6
- Sensor: AS312 - pyroelectric infrared sensor
- Supply voltage: 5 V DC
- Communication: UART
- UART parameters: 115200 bps, 8N1
- Interface: 2 x HY2.0-4P
- RGB diode: 1 x WS2812C
- Maximum detection range: 2.4 m
- Detection angle: -60° to 60°
- Detection interval / trigger hold time: 2 s
- Current consumption during operation: 10.74 mA at 5 V
- Operating modes: automatic reporting, query mode
- RGB diode pinout: PA8
- PIR sensor pinout: PB0
- UART1: PB6 - TXD1, PB7 - RXD1
- UART2: PA2 - TXD2, PA3 - RXD2
- Dimensions: 23.9 x 23.9 x 22.3 mm
- Weight: 6.8 g
Contents of the set
- 1 x M5Stack Chain PIR
- 1 x Chain Bridge
The set includes a Chain Bridge that allows you to easily connect adjacent components.
