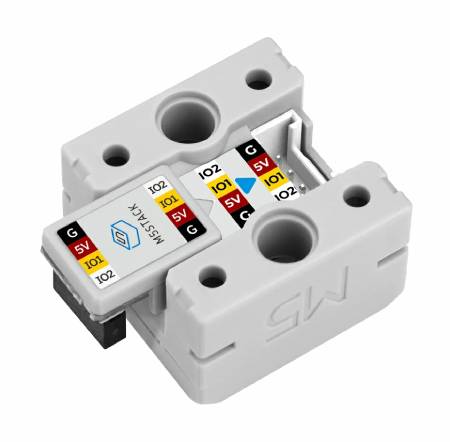

Chain Blank - prototype board for the M5Stack Chain - M5Stack U210
Chain Blank is a versatile prototyping board designed for building custom extensions for the M5Stack Chain ecosystem. Featuring an 18x18mm pad , two HY2.0-4P connectors, and pre-wired communication lines, it can be directly connected to the Chain bus. It's ideal for building custom electronics and prototyping.
We could not load the price.
The promotional price does not combine with quantity discounts.
Product description: Chain Blank - prototyping board for M5Stack Chain - M5Stack U210

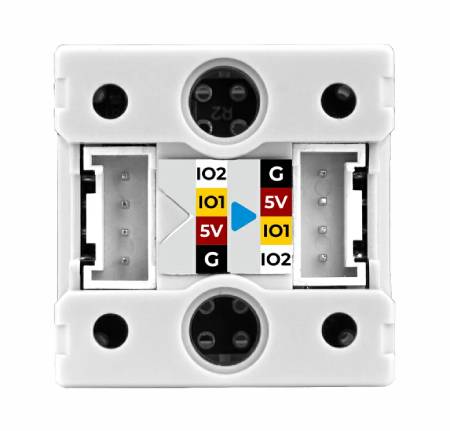

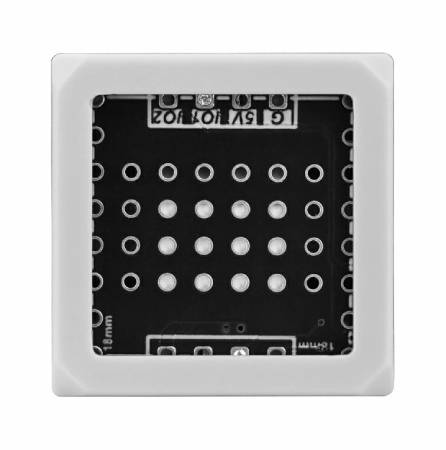

Chain Blank is an expansion module from the M5Stack Chain series, designed for users who want to create their own electronics. The front panel features a universal 18 x 18 mm prototyping pad with a 2.54 mm pitch, enabling convenient soldering of through-hole components and the construction of custom circuits. Inside the module are two pre-wired HY2.0-4P connectors , allowing the board to be directly connected to a chain of M5Stack Chain devices without affecting the operation of other modules. When creating your own expansions , you can remove the two 0 Ω resistors responsible for connecting the R1 and R2 communication lines. This allows signals to be output to your own circuits via wires or solder joints, expanding your design options.
Chain Blank - prototyping board for M5Stack Chain - M5Stack U210.
Botland is an official distributor of the M5Stack module family in Poland. We have extended this system of stackable functional devices with accessories from our range and numerous blog guides. All M5Stack products presented here are original.
The module enables the construction of dedicated interfaces, simple electronic circuits, adapters and custom communication modules.
Main features of the prototyping board
- Universal prototyping board 18 x 18 mm : allows you to build your own electronic systems
- 2.54 mm pitch : compatible with popular through-hole components
- M5Stack Chain Compatibility : Easy integration with Chain ecosystem modules
- Two HY2.0-4P connectors : enable serial connection of additional modules
- Factory-connected communication lines : maintaining full Chain bus functionality
- Possibility of modifying connections : removing the 0 Ω resistors allows you to use the communication lines in your own projects
- Compact design : small dimensions facilitate integration with existing devices
Technical specifications of the module
- Module type: prototyping board
- Prototype area: 18 x 18 mm
- Hole pitch: 2.54 mm
- Compatibility: M5Stack Chain
- Connectors: 2x HY2.0-4P
- Possibility of modification: removing the 0 Ω resistors allows you to use the R1 and R2 lines in your own systems
- Dimensions: 23.9 x 23.9 x 16 mm
- Weight: 7.4 g
Contents of the set
- 1x Chain Blank Proto
- 1x Chain Bridge
Chain Blank Proto with Chain Bridge is perfect as a base for creating your own extensions for the M5Stack Chain system.
Useful links
| Name | Value |
|---|---|
| Width | 14 cm |
| Height | 8.5 cm |
| Depth | 0.1 cm |
| Weight | 0.008 kg |
