Product description: xTool S1 - laser cutter and engraver - 20 W - basic set
The xTool S1 is a high-performance laser cutter and engraver equipped with a 20-watt diode module that cuts up to 10 mm of wood or 8 mm of black acrylic in a single pass. Its 0.08 x 0.06 mm spot size guarantees exceptionally detailed engraving results, even on the smallest items, such as pens or key rings. Its large 498 x 330 mm working area makes it ideal for a variety of applications. The modern Pin-point™ positioning system allows for quick and precise setting of work points, without the need for cameras or templates. Built-in safety features, such as 5-way flame detection, an emergency button, a lid lock, and a Class 1 enclosure , make the xTool S1 safe even in home and educational environments. It works with free xTool Creative Space (XCS) software, offering over 1,000 ready-made projects and automatic features such as autofocus and AI-drawing. Advanced users can take advantage of LightBurn , known for its flexibility and extensive editing features. Support for Wi-Fi, USB, Windows, macOS, and mobile devices (Android and iOS) makes setup quick and operation incredibly intuitive.

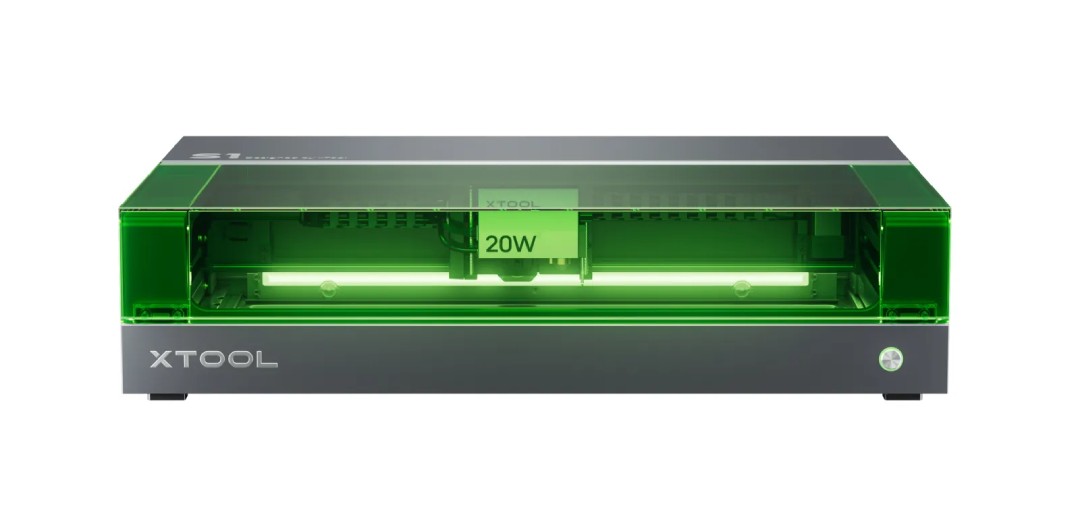

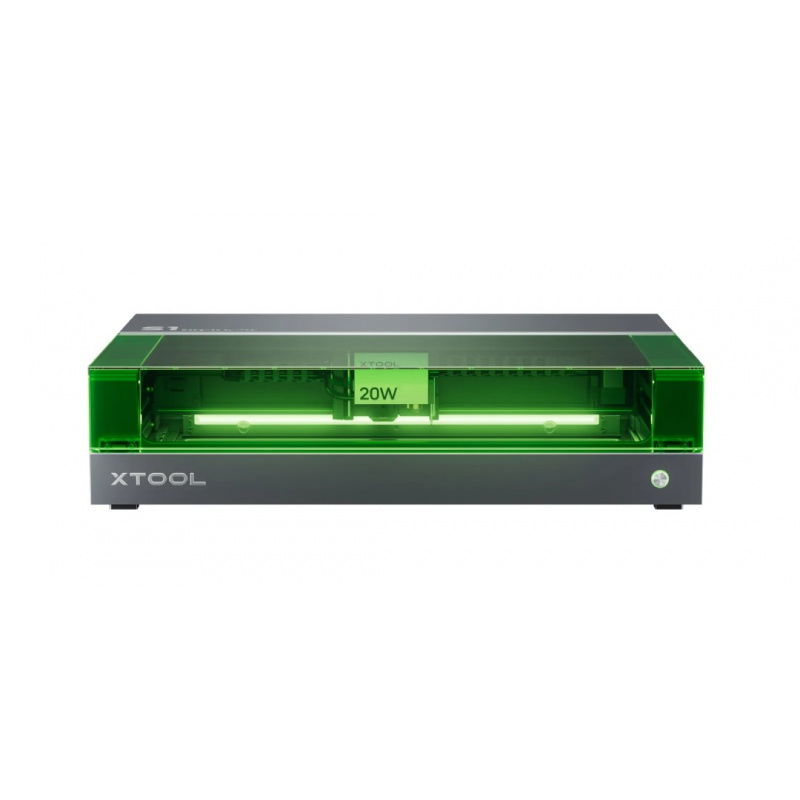

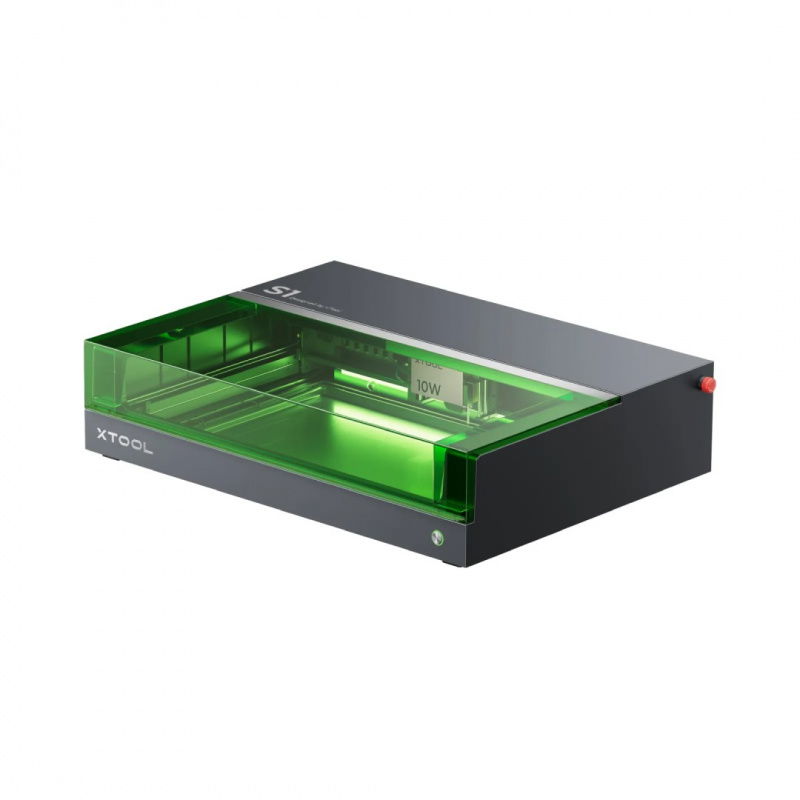

xTool S1 - laser cutter and engraver - 20 W - basic set.
Thanks to advanced safety features, an intelligent positioning system and automatic focusing, the device provides unparalleled quality and comfort of work for both hobbyists and professionals.
Advanced 20W diode laser technology
The xTool S1 utilizes a state-of-the-art 20W laser module , comprised of eight 5.5W diodes connected using beam compression technology. This configuration delivers power comparable to industrial plotters, allowing it to cut up to 10mm of wood and 8mm of black acrylic in a single pass. Furthermore, its extremely precise 0.08 x 0.06mm spot size ensures exceptional engraving quality, even on very small items like pens, cases, and nameplates.
Spacious work area and support for batch work
The S1 model offers a workspace of 498 x 330 mm , making it one of the largest machines in its class. It also offers the ability to expand the workspace to 470 x 3000 mm with an optional conveyor belt – ideal for automatic material feeding. This configuration is particularly useful for batch production, marking multiple items at once, or completing large projects without the need for frequent material repositioning.
Pin-point™ positioning system - even more precise project positioning
Thanks to Pin-point™ technology, you can choose the positioning method best suited to the material's shape : single-point or multi-point, circular or polygonal. This system allows for quick and accurate positioning of work points without the need for cameras or templates , eliminating errors and significantly reducing setup time. This solution offers greater accuracy than camera-based systems, especially when dealing with objects with unusual shapes or uneven surfaces.
Full user protection
The xTool S1 meets IEC/EN 60825 Class 1 standards. The housing is made of green acrylic to filter laser light , and the cover is equipped with a sensor that automatically stops the laser when opened . Additionally, the xTool S1 is equipped with five-way flame detection, an emergency stop button, and a key lock , making it safe for use in home, educational, or office environments.

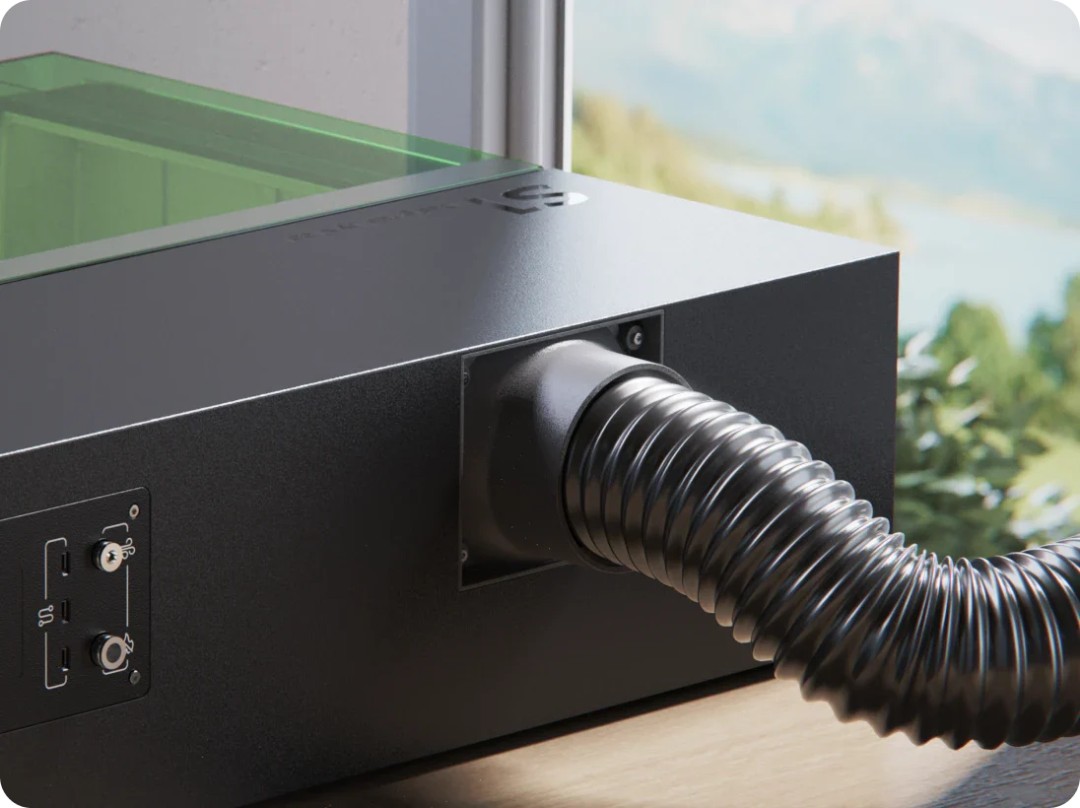

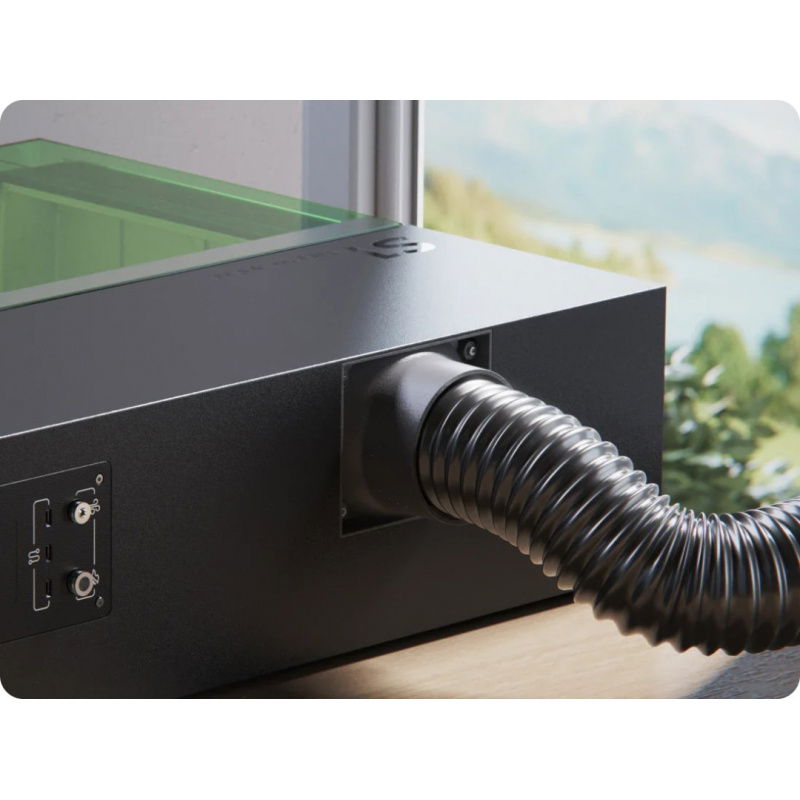

The exhaust pipe removes dust, smoke and other pollutants to the outside.

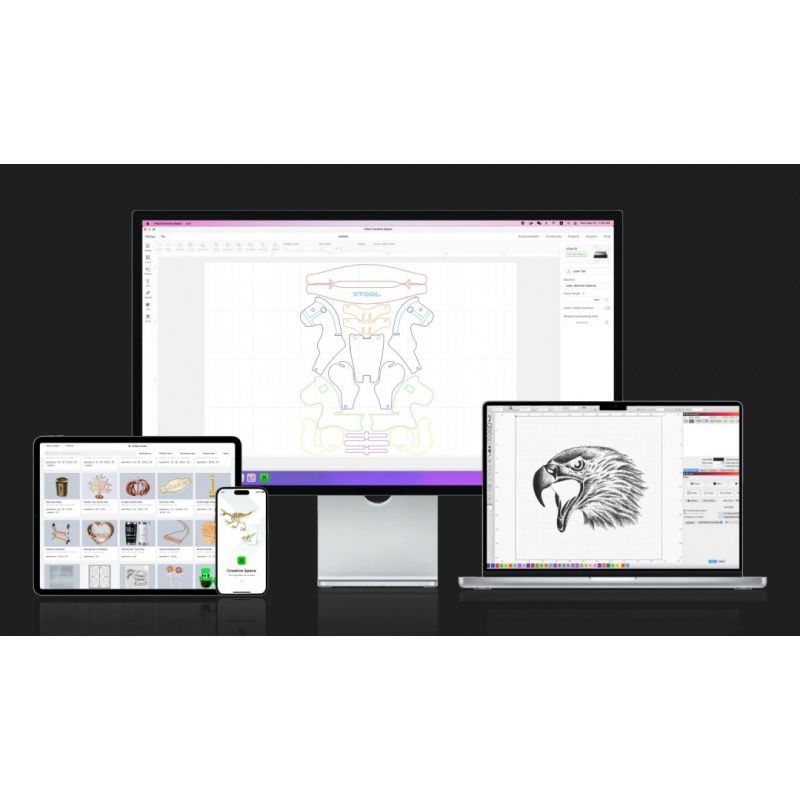

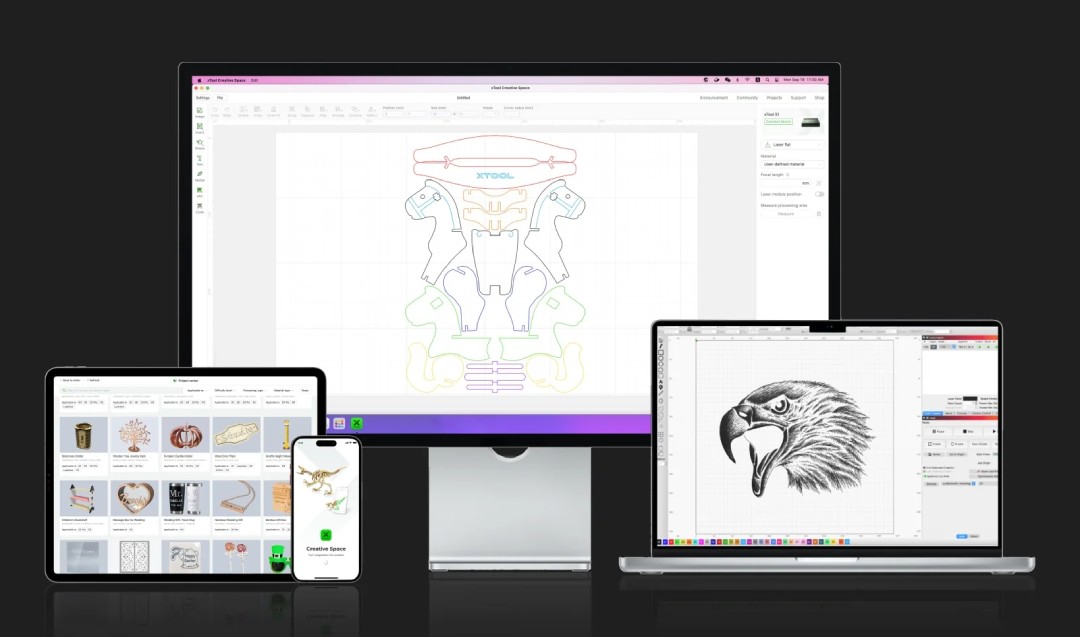

xTool S1 works with xTool Creative Space (XCS) and LightBurn software.
Efficient cooling and air filtration
A built-in air cooling system and smoke extraction ensure stable laser operation even during extended engraving or cutting sessions. An optimized ventilation system effectively removes dust, smoke, and other contaminants generated during material processing, resulting in better-quality results and longer optical component life. The device can also be paired with an optional external air purifier , significantly improving comfort and safety of use in enclosed spaces.
Intuitive software and wide compatibility - work without limits
The xTool S1 works with the free xTool Creative Space (XCS) software , which offers over 1,000 pre-made designs, a shape library, and intelligent features such as autofocus and pattern-to-material matching. Advanced users can use the popular LightBurn software, which allows full control over cutting and engraving parameters. The device supports the most popular file formats (SVG, DXF, JPG, PNG, BMP, TIF) and is compatible with Windows, macOS, Android, and iOS , enabling convenient work from a computer, tablet, or smartphone.
Contents of the set
- 1x xTool S1 20W
- 1x Air Assist 2.0
- 1x Honeycomb Panel
- 1x Distance sensor
- 1x Screwdriver
- 2x Dongle
- 1x Power cord + power supply
- 1x USB cable
- 11x Screw M3 x 8
- 1x Grease
- 1x Extraction pipe
- 1x Parts container
- 1x User Manual
- 1x Starter Materials Pack
- 1x Product brochure
Elements included in the set.
| xTool S1 Technical Specifications | |
|---|---|
| Laser type | 20 W diode laser |
| Work area | 498 x 330 mm |
| Spot size | 0.08 x 0.06 mm |
| Working speed | up to 600 mm/s |
| Cutting | wood up to 10 mm, black acrylic up to 8 mm |
| Supported materials | wood, MDF, leather, paper, acrylic, painted metal, stainless steel, ceramics and others |
| Supported formats | SVG, DXF, JPG, PNG, BMP, TIF |
| Connection | WiFi, USB |
| Software | xTool Creative Space, LightBurn |
| Systems | Windows 10+, macOS, Android, iOS |
| Power supply | 24V / 8A |
| Dimensions | 765 x 561 x 183 mm (without stand), 765 x 561 x 268 mm (with stand) |
| Mass | 20 kg |
