High-voltage insulation resistance meter - Benetech GM3123
Benetech GM3123 is an insulation strength tester designed to perform high voltage tests.
We could not load the price.
The promotional price does not combine with quantity discounts.
Description of high voltage insulation resistance tester - Benetech GM3123
BenetechGM3123 is an insulation resistance tester, designed to perform high voltage tests. The test is performed between the elements of electrical circuits and insulating elements such as cable insulations, covers or bodies of appliances, power tools, housings, switch boxes, etc. The aim is to eliminate devices and sensitive elements, which directly or during operation may cause weakening of the insulation and electric shock.

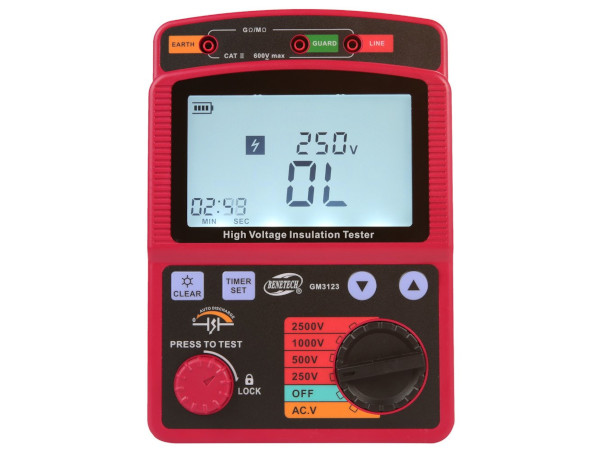

High voltage insulation resistance meter - Benetech GM3123.

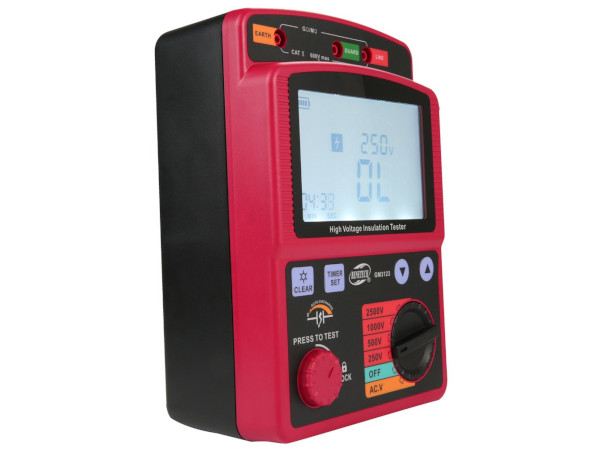

The meter is powered by 12 V (8x 1.5 V LR14 batteries).
Specification of High Voltage Insulation Resistance Meter - Benetech GM3123
- Display: up to 999 characters (above e.g. 1000 indicates as 1T)
- Overload indicators:
- OL - appears when the insulation range is overloaded
- LO - appears when the voltage range is exceeded
- Auto - range:
- range shift to upper range: 1000
- range shift to lower range: 95 (only in the insulation resistance range)
- Sampling rate: 0.5 to 10 times/sec
- Maximum altitude: less than 2000 m (for indoor use)
- Operating conditions:
- temperature from 0°C to 40°C
- humidity ≤ 85%
- Storage conditions:
- temperature from -20°C to 60°C
- humidity ≤ 90%
- Overload protection:
- insulation resistance: AC 1200 V / 10 s
- voltage : AC 720 V / 10 s
- Voltage resistance: AC8320 (50/60 Hz) / 5 seconds (between electrical circuit and enclosure)
- Insulation resistance: 1000 m or more / DC 1000 V (between electrical circuit and housing)
- Power supply: 12 V (8 x 1.5 V LR14 batteries)
- Battery operating time: approx. 15 hours
- Dimensions: 153 x 96 x 220 mm
- Weight: 1032 g (without batteries and test leads)
Additional meter features:
- Auto-discharge function to ensure safe operation
- LCD screen backlight
- Digital readout display
- Real-time warning symbols with sound
- Auto shutdown (after 10 minutes without any operation)
- Timing function
- Low battery indicator
- Compatible for 12 V DC adapter (12 V / 1 A)
Set contains
- 1 x High voltage insulation tester
- 1 x Red test lead
- 1 x Green test lead
- 1 x Black test lead
- 3 x Crocodile clamp
- 1 x Operating instructions in Polish
- 8 x Alkaline battery 1.5 V LR14
- 1 x Screwdriver
- 1 x Bag (cover)

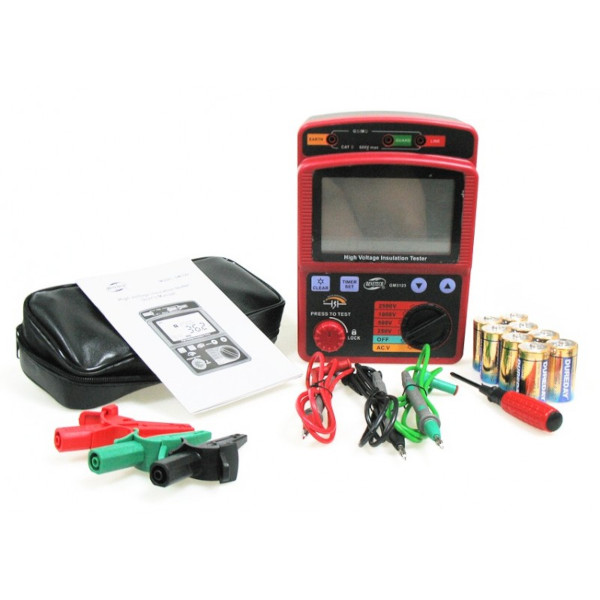

The picture shows the composition of the set.
