Product description: Signal generator 0 - 24 V / 0 - 24 mA - FNIRSI SG-003A
The FNIRSI SG-003A is a portable signal generator and simulator designed for industrial automation maintenance, PLC diagnostics, transducer testing, and measurement device calibration. It allows for the generation and measurement of current, voltage, and frequency signals , as well as their linear conversion between various physical values. The generator supports active and passive current signals from 0 mA to 24 mA, voltages from 0 V to 24 V, PWM signals, and frequencies up to 9999 Hz . Real-time waveform display allows you to monitor changes in input and output signals on the TFT screen . Its compact design, measuring 112 x 82 x 27 mm and weighing 165 g, makes the generator ideal for field use.

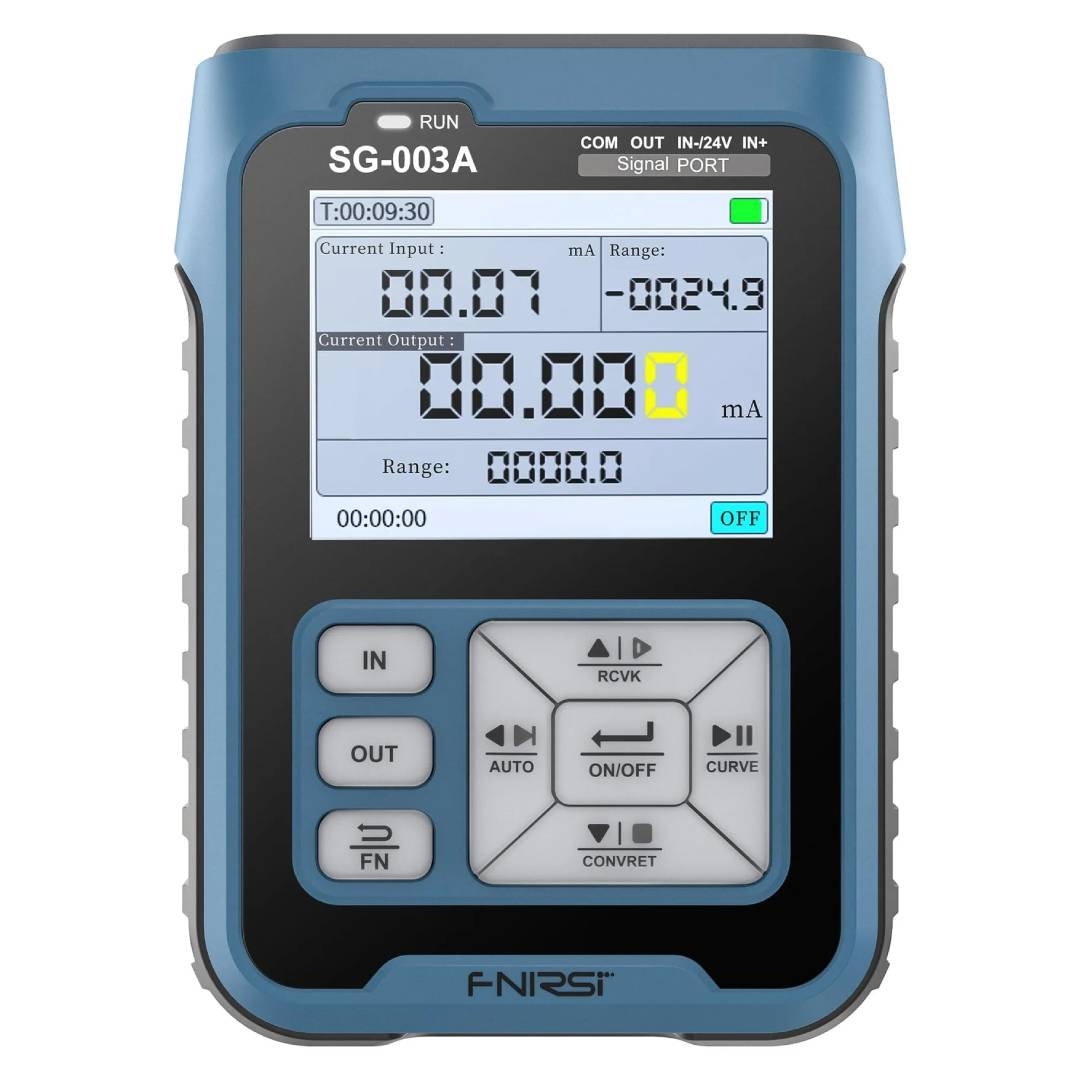

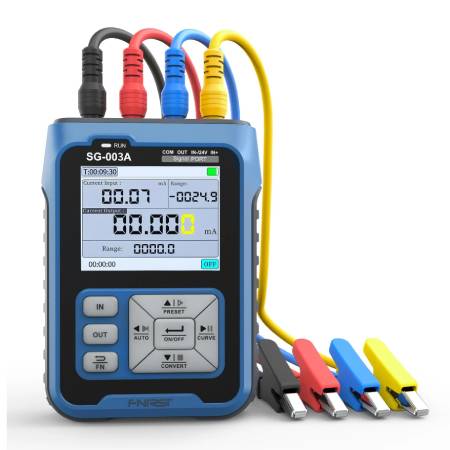

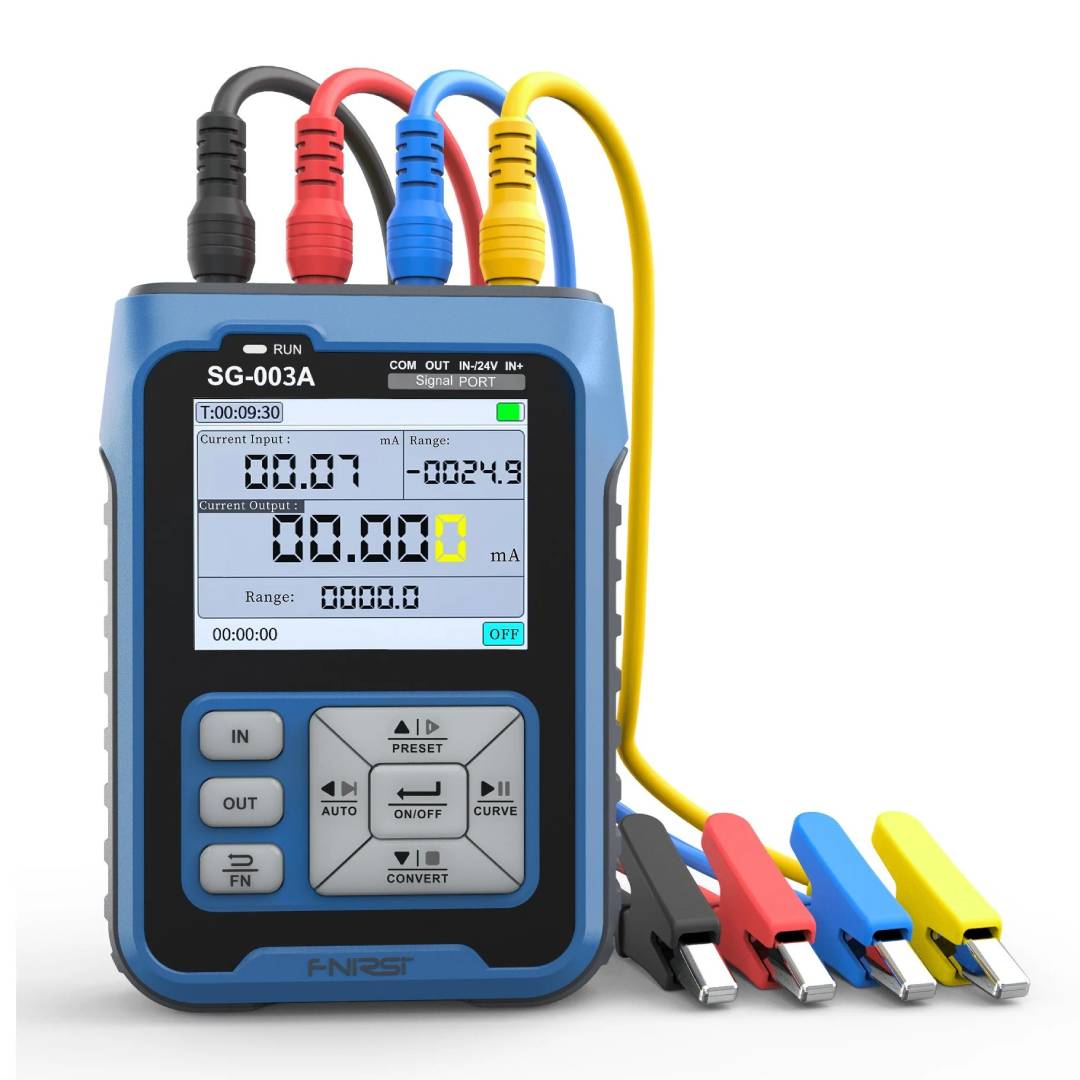

Signal generator 0 - 24 V / 0 - 24 mA - FNIRSI SG-003A.
The compact housing and weight of only 165 g make the FNIRSI SG-003A perfect for field work.
Main features of the FNIRSI SG-003A generator
- Multifunctional signal handling : generation and measurement of current, voltage and PWM signals
- Wide operating range : supports signals from 0 mA to 24 mA, 0 V to 24 V and 0 Hz to 9999 Hz
- High precision : measurement accuracy of ±(0.1% + 0.005)
- 2.4'' TFT color display : clear screen with a resolution of 240 x 320 px
- Real-time waveform preview : analysis of input and output signal changes
- Signal conversion : linearly converting signals between different physical values
- 4 programmable presets : quick recall of saved configurations
- Modbus RS485 communication : cooperation with PLC controllers and automation systems
- 3000 mAh battery : long operating time and charging via USB Type-C
- Compact design : small dimensions 112 x 82 x 27 mm and weight 165 g
- Adjustable button illumination : convenient operation day and night
Kit contents
- FNIRSI SG-003A Signal Generator
- 4 measuring leads with crocodile clips
- USB Type-C cable
- USB power supply

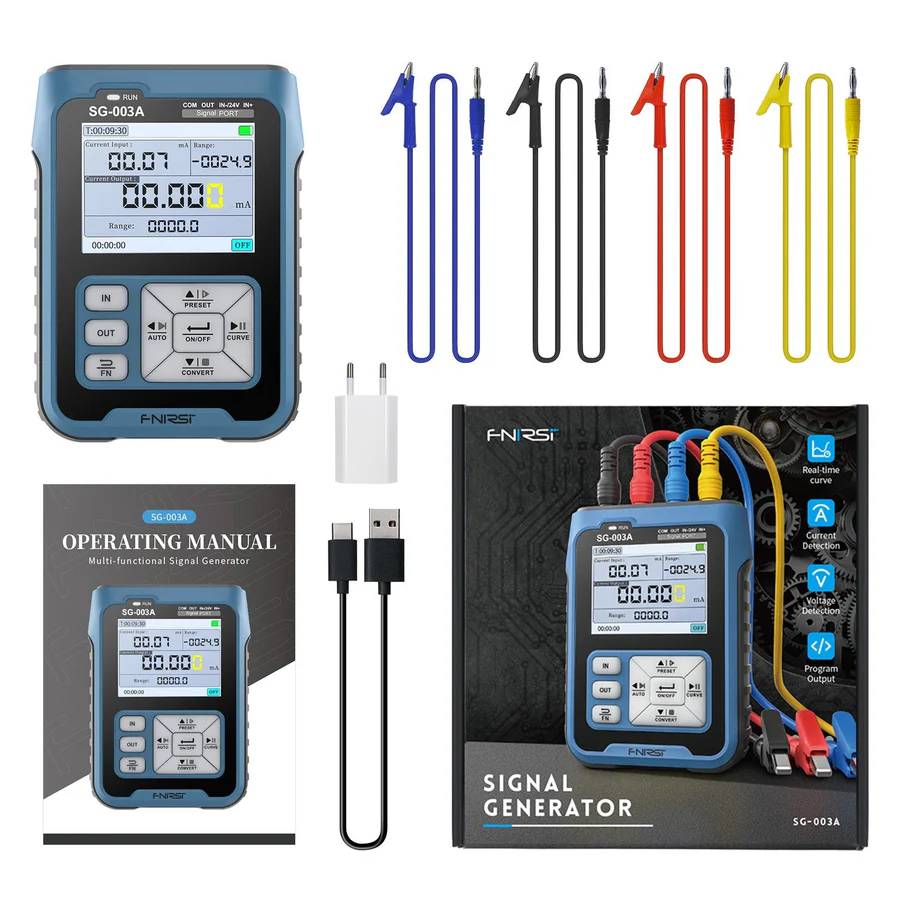

Elements included in the set.
| Technical specifications and measurement parameters of FNIRSI SG-003A | |||||
|---|---|---|---|---|---|
| Signal type | Range | Resolution | Accuracy | Max load | External power supply |
| Active current output | from 0 mA to 24 mA | 0.01 mA | ±(0.1% + 0.005) | 750 Ohms | - |
| Passive current output | from 0 mA to 24 mA | 0.01 mA | ±(0.1% + 0.005) | - | from 0 V to 30 V |
| Voltage output | from 0 V to 24 V | 0.01V | ±(0.1% + 0.005) | - | - |
| 24V loop | from 0 mA to 24 mA | 0.01 mA | ±(0.1% + 0.005) | - | - |
| Frequency/PWM output | from 0 Hz to 9999 Hz | 5 digits | ±2% | - | - |
| Current input | from 0 mA to 24 mA | 0.01 mA | ±(0.1% + 0.005) | - | - |
| Voltage input | from 0 V to 30 V | 0.01V | ±(0.1% + 0.005) | - | - |
| Display | TFT LCD 2.4'' / 240 x 320 px | ||||
| Communication interface | RS485 Modbus Slave | ||||
| Battery | lithium 3.7V / 3000mAh | ||||
| Landing | USB Type-C 5V | ||||
| Charging time | from 4 to 6 hours | ||||
| Working time | from 8 h to 10 h with continuous output of 20 mA | ||||
| Standby time | up to 24 hours | ||||
| Additional functions | automatic signal change, preset saving, linear signal conversion, waveform preview, firmware update via USB | ||||
| Dimensions | 112 x 82 x 27 mm | ||||
| Mass | 165 g | ||||
