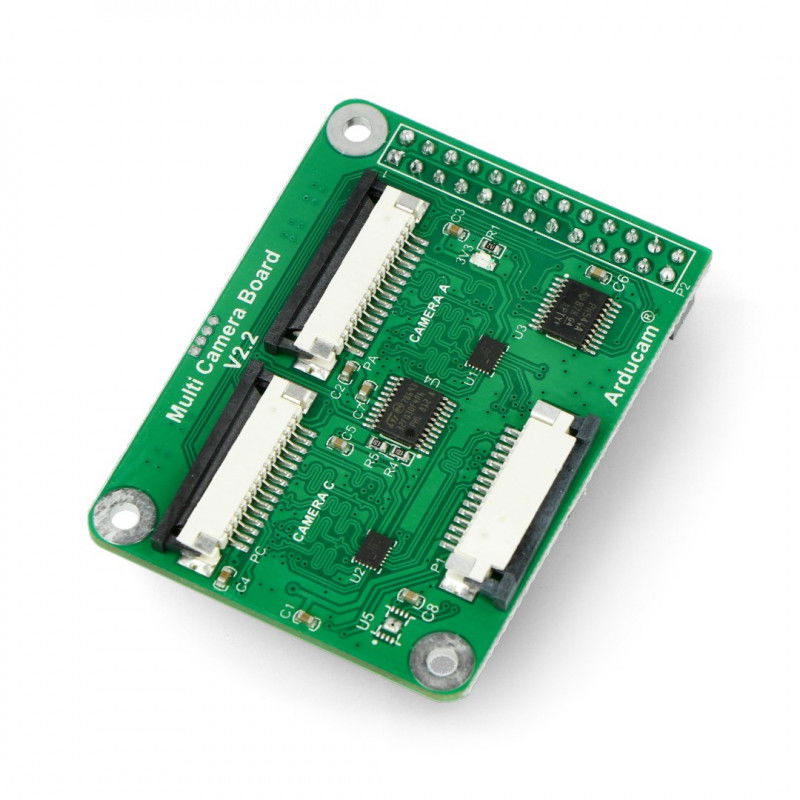

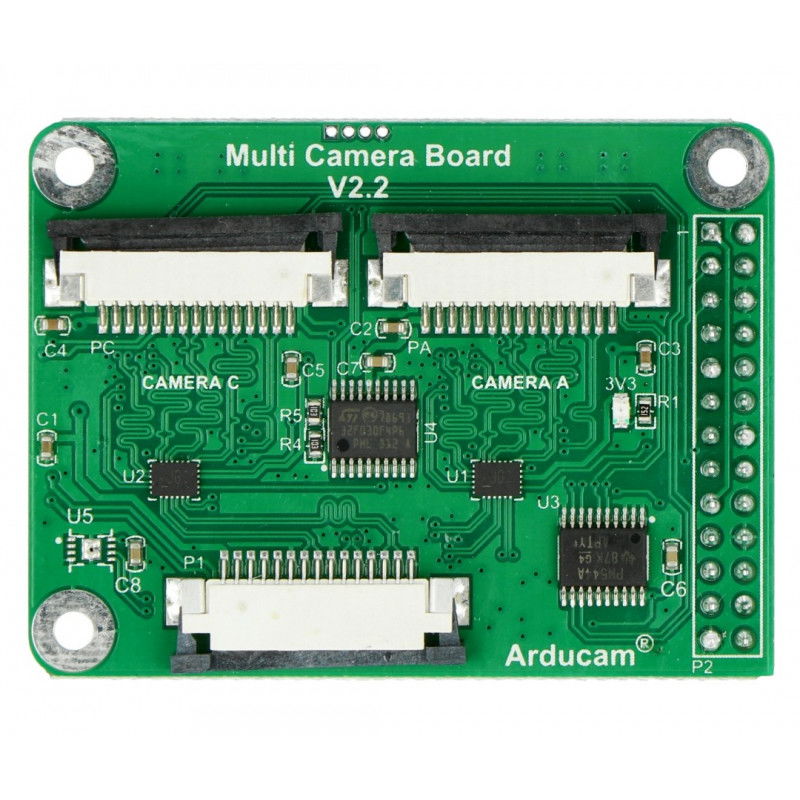

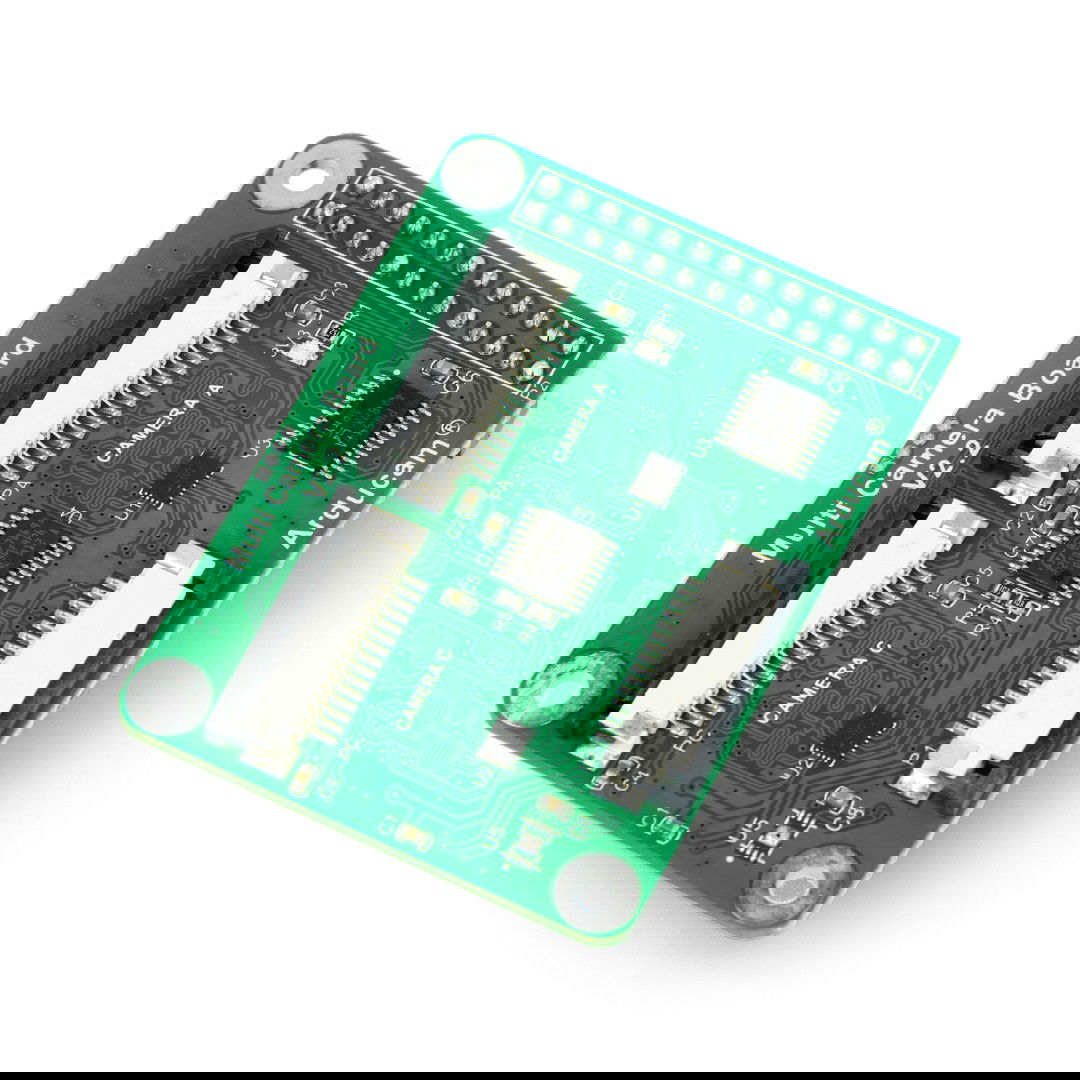

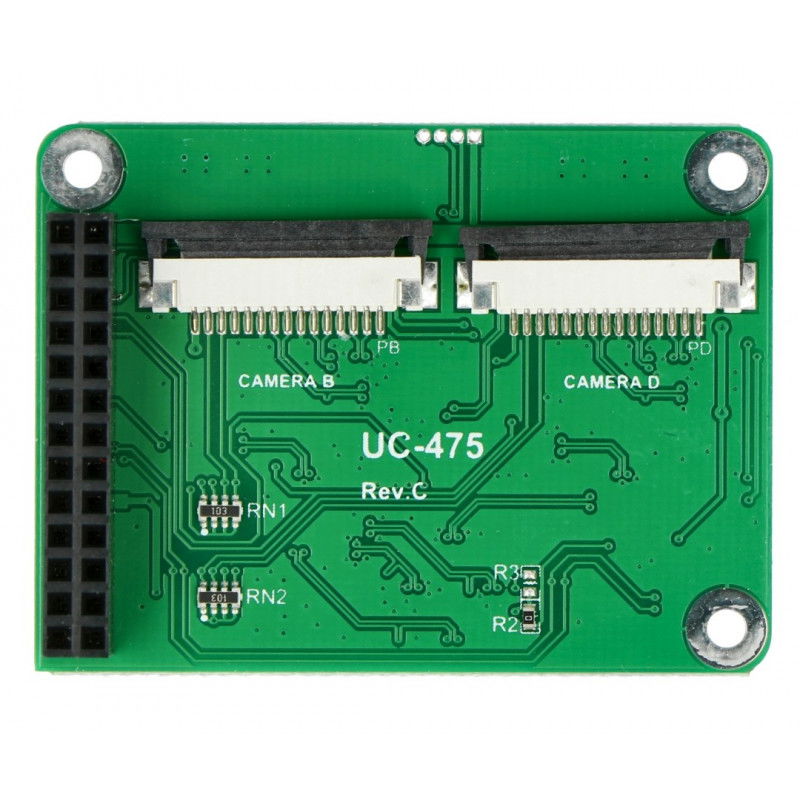

Product description: Multi camera adapter module v2.2 - camera hub for Raspberry Pi A / B / B+ / 2 / 3B / 3B+ / 4B / 5
Adapter designed to connect 4 cameras – 5 MP OV5647, 8 MP IMX219, 12 MP IMX477 or Raspberry Pi Camera V3 (12 MP IMX708) – to a single CSI connector on Raspberry Pi. Cameras connected to the adapter operate sequentially (they do not work simultaneously). The module is compatible with Raspberry Pi A / B / B+ / 2 / 3B / 3B+ / 4B / 5. The board dimensions are 56 mm x 42 mm.

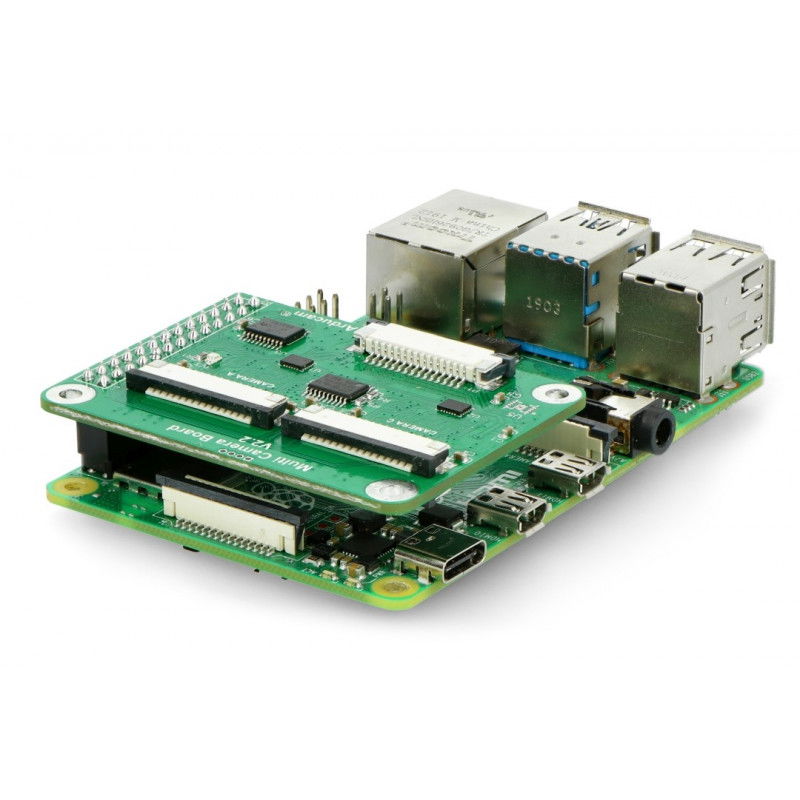

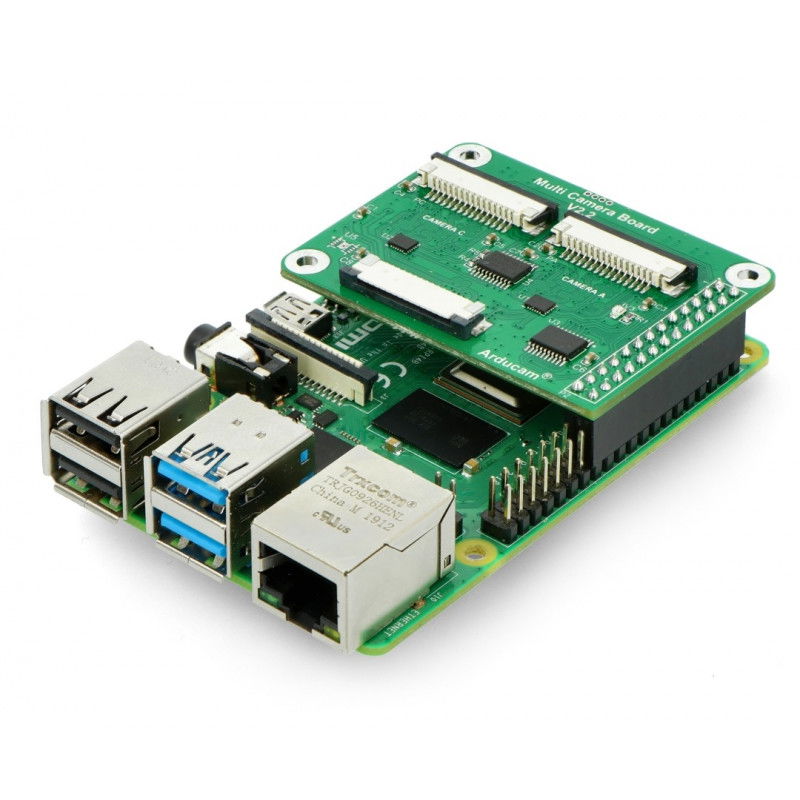

Example of connecting cameras using the adapter.
Connecting the Multi camera adapter module v2.2 - camera hub for Raspberry Pi
The manufacturer provides a user guide along with a sample program that allows you to use the module.
| The manufacturer provides a user guide explaining how to connect and use the adapter. |
Specification of Multi camera adapter module v2.2 - camera hub for Raspberry Pi A / B / B+ / 2 / 3B / 3B+ / 4B / 5
- Allows connection of 4 Raspberry Pi cameras
- Communicates via CSI connector (ribbon cable included) and GPIO of the single-board computer
- Ability to connect 4 cameras:
- 5 MP OV5647
- 8 MP IMX219
- 12 MP IMX477 (HQ Camera)
- 12 MP IMX708 (Camera Module 3)
- Cameras operate sequentially
- Dimensions: 56 mm x 42 mm x 11 mm
- Weight: 13.5 g
Mixing different camera models in one set is not possible. Cameras operate alternately (sequentially), not simultaneously, which should be considered when designing the project.
Multi camera adapter module v2.2 - camera hub for Raspberry Pi A / B / B+ / 2 / 3B / 3B+ / 4B / 5

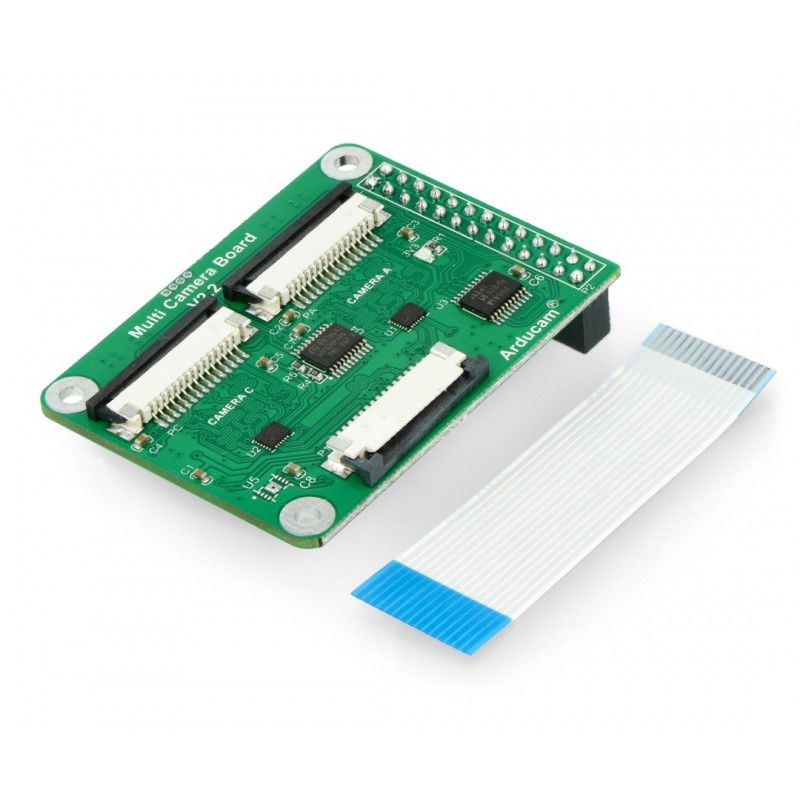

A hub enabling Raspberry Pi to connect to four cameras simultaneously. Compared to the previous version, the new adapter supports not only 5 MP camera modules, but also 8 MP and 12 MP cameras. Up to four cameras can be connected to the hub at the same time. The hub connects to the CSI connector on the Raspberry Pi board. Version V2.2 supports 360° cameras, macro photography cameras and cameras for IoT applications. Cameras connected to the V2.2 hub operate sequentially, meaning only one camera image can be displayed at a time. The hub is compatible with Pi A / B / B+ / 2 / 3B / 3B+ / 4B / 5. The set includes the hub and a multi-core ribbon cable terminated with a CSI connector.
Possible applications of the camera signal splitter for Raspberry Pi
The Multi camera adapter module v2.2 hub can support up to four cameras. In addition to most Raspberry Pi models available on the market, the hub can also cooperate with Arduino UNO R3, Arduino MEGA 2560 R3, Beagle Bone Black Rev. C, as well as other embedded platforms equipped with SPI and I2C communication interfaces. The Multi camera adapter module v2.2 can be used, among others, to build a small image monitoring system on construction sites or for detailed recording of natural phenomena.
