Product description: Aeotec Home Energy Meter 8 - three-phase Z-Wave energy meter - 60 A
The Aeotec Home Energy Meter 8 is a modern solution for intelligent energy management in your home or business. It utilizes three current transformers , enabling accurate energy measurement in three-phase installations . With a high measurement accuracy of 99% , you receive precise data on energy consumption and production. The meter works with Smart Home systems via Z-Wave 800 , offering stable and secure communication and remote data monitoring. The meter is designed with durability in mind – its IP44-rated housing allows for indoor and outdoor installation, ensuring resistance to moisture and low temperatures.
For proper operation, the meter requires a compatible Z-Wave gateway - it is fully compatible with, among others, the Aeotec Smart Home Hub, Fibaro Home Center 3, Fibaro Home Center 3 Lite, Homey Bridge and Homey Pro.

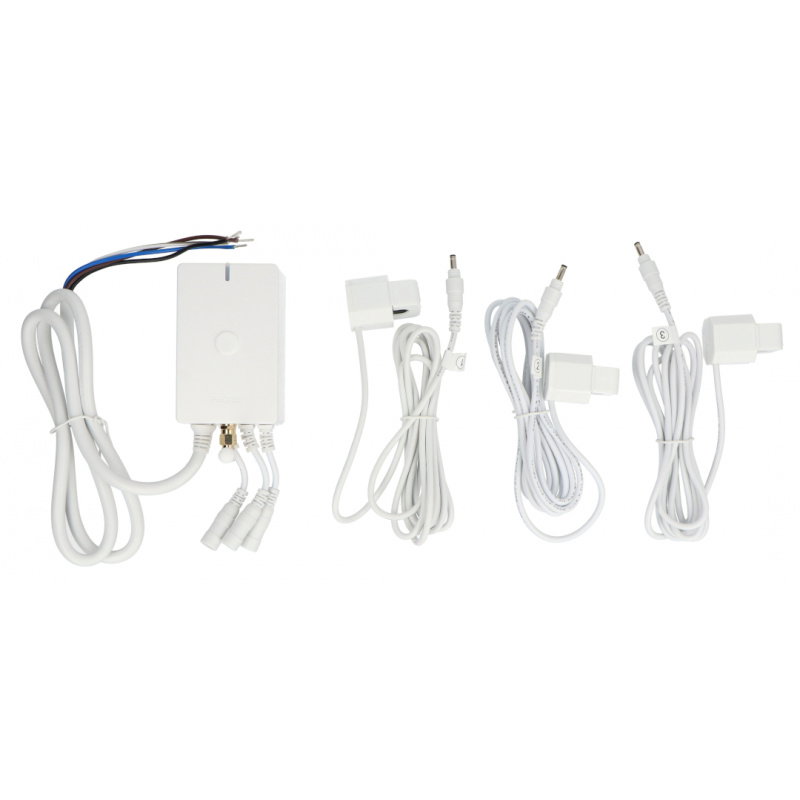

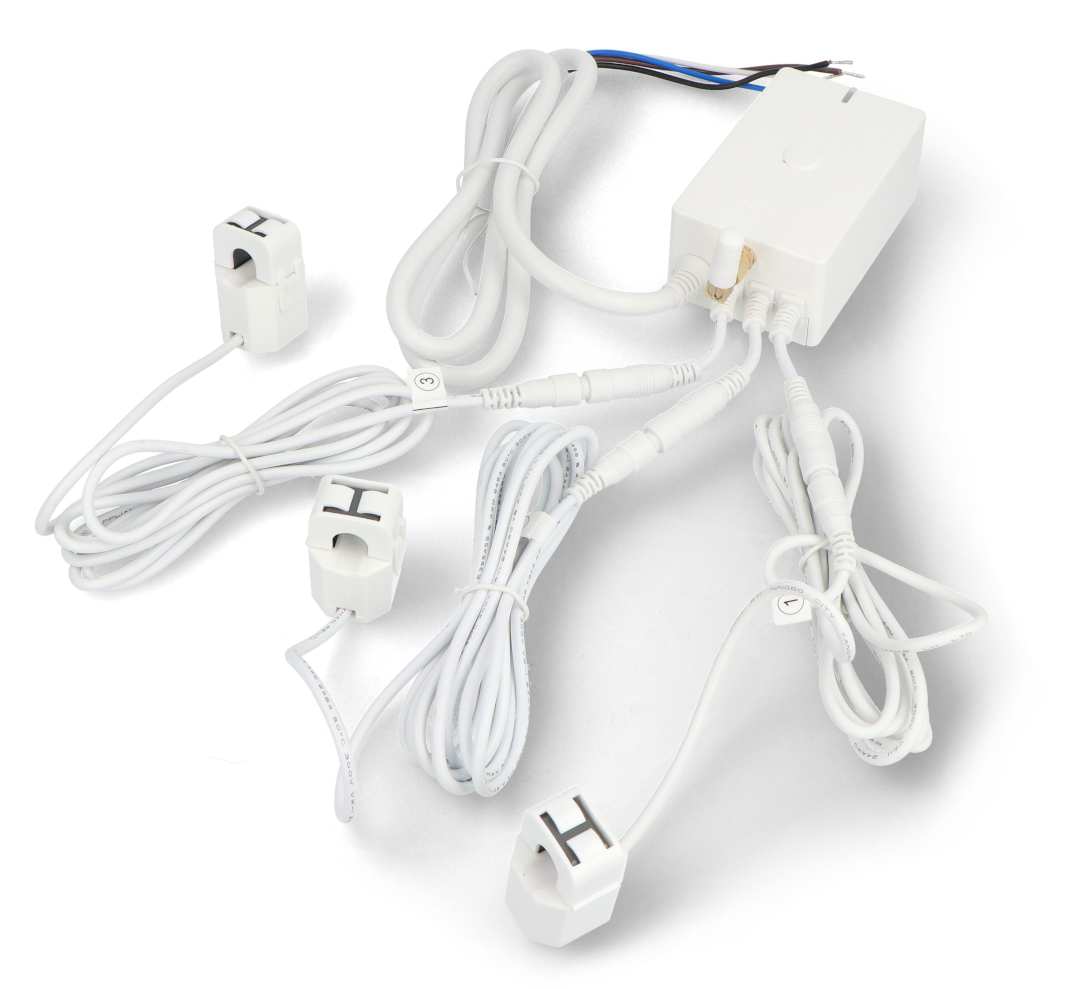

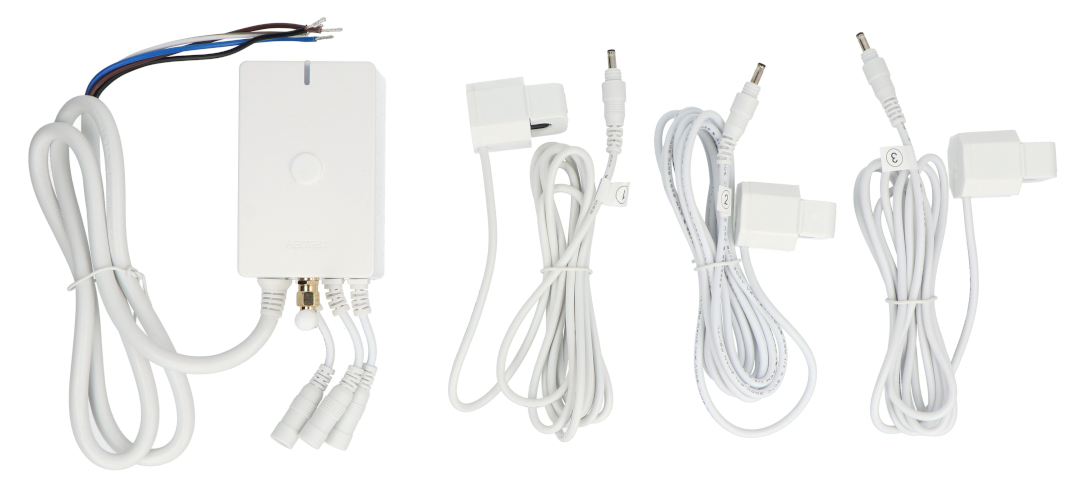

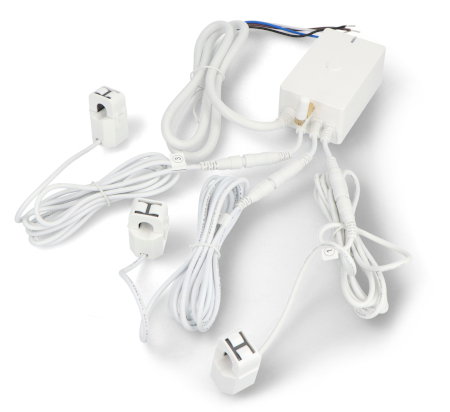

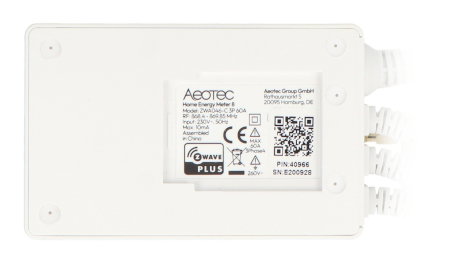

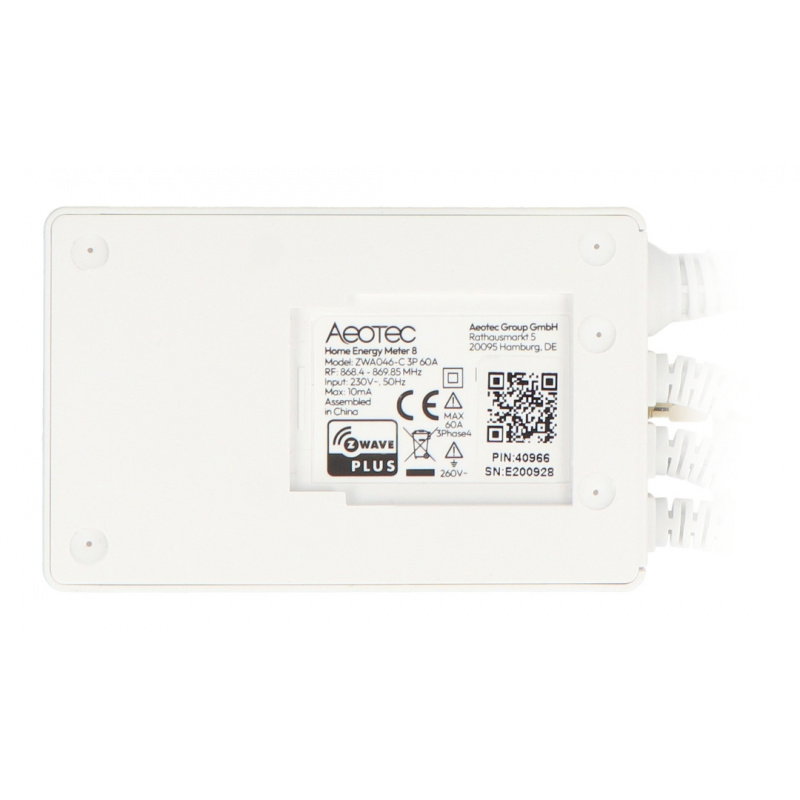

Aeotec Home Energy Meter 8 - three-phase Z-Wave energy meter - 60 A.
Aeotec Home Energy Meter 8 is a smart energy meter for monitoring electricity consumption and production in real time.
Main features of the energy meter
- Real-time energy measurement : enables ongoing monitoring of electricity consumption and production (e.g. from photovoltaics), which allows for quick analysis and optimization of energy costs
- Support for three-phase installations : equipped with 3 current transformers supporting up to 60 A each, which allows for accurate energy measurement in modern 3-phase installations
- High precision : ensures measurement accuracy of 99%, guaranteeing reliable data necessary for the analysis and management of energy consumption
- Wireless communication : uses the modern Z-Wave 800 (868 MHz) standard, offering a stable connection and a large communication range even in extensive Smart Home installations
- Smart Home Integration : Compatible with popular systems like SmartThings, allowing easy integration with existing home automation
- Data security : the AES-128 encryption used ensures a high level of data transmission protection against unauthorized access
- Environmental resistance : IP44 housing guarantees resistance to moisture, dust and more difficult installation conditions
- Remote access : allows you to monitor your energy consumption from anywhere in the world using the Smart Home app, giving you full control over your installation
Z-Wave 800 - modern Smart Home communication
The latest Z-Wave 800 standard makes the Aeotec Home Energy Meter 8 a long-term investment. The new EFR32ZG23 chip offers not only a greater indoor range (up to 100m), but also significantly lower power consumption and improved resistance to radio interference. The device is fully backward compatible , meaning it works seamlessly with older Z-Wave Plus modules. Thanks to Z-Wave Long Range (LR) support, Direct connection to the gateway is possible over vast distances, making this model an ideal choice for monitoring meters located far from the central unit, e.g. in detached garages or external connections.
The meter works with Z-Wave-based Smart Home systems, including SmartThings and Home Assistant.

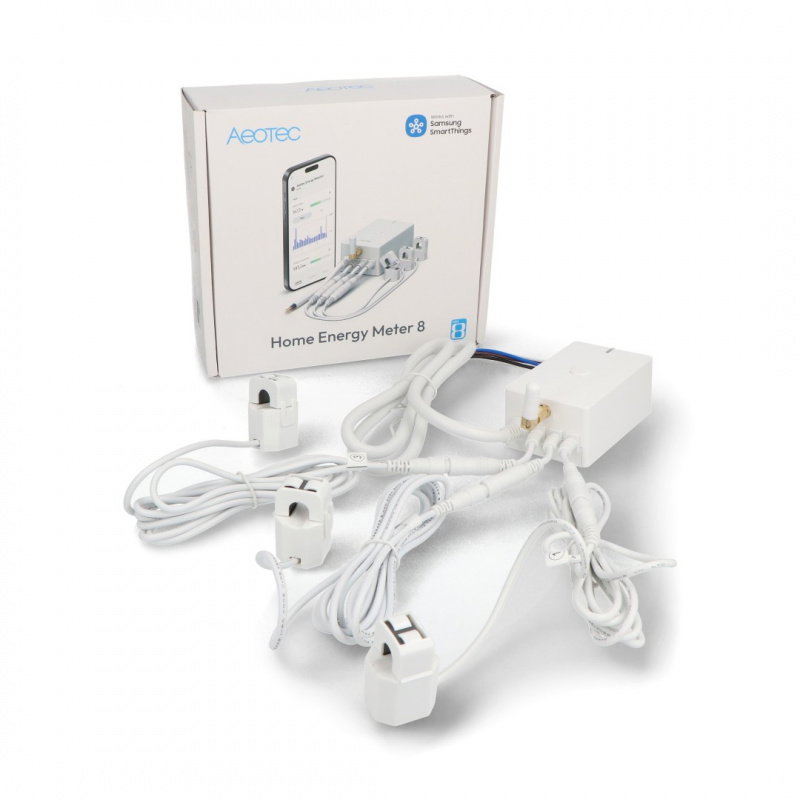

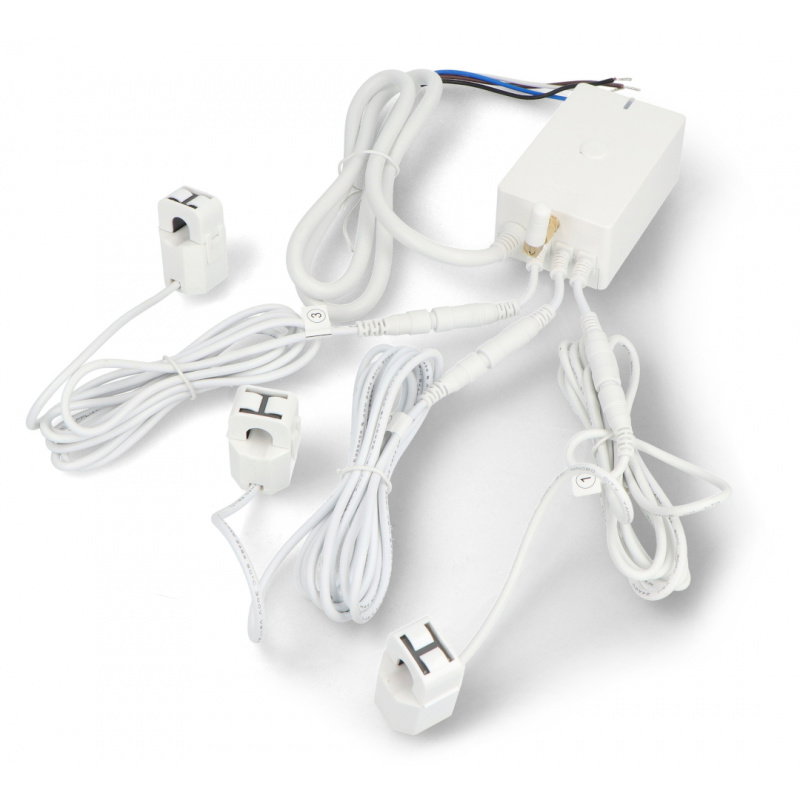

Elements included in the set.

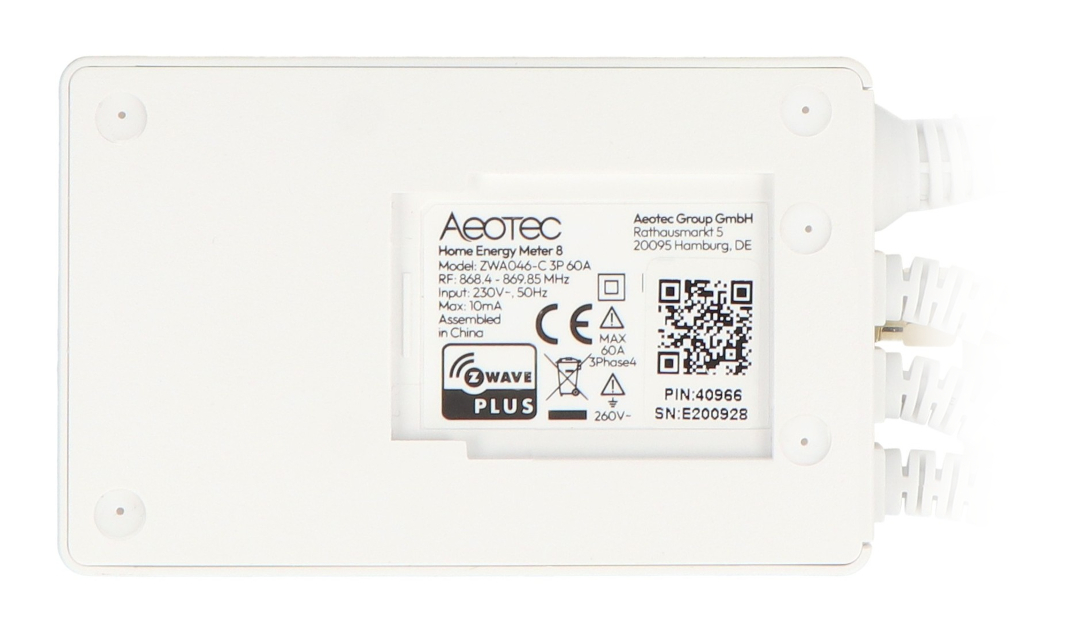

Technical Specifications of the Aeotec Home Energy Meter 8
- Input voltage: 230 V, 50 Hz, 10 mA
- Voltage measurement range: 180 V to 260 V
- Current measurement range: 0 A to 60 A
- Number of transformers: 3
- Communication: Z-Wave 800 (868 MHz)
- Wireless range: up to 300 m (in open areas), up to 100 m (indoors)
- Encryption: AES-128 (Security S2)
- Protection class: IP44
- Dimensions: 53 x 60 x 41 mm
- Weight: 433 g

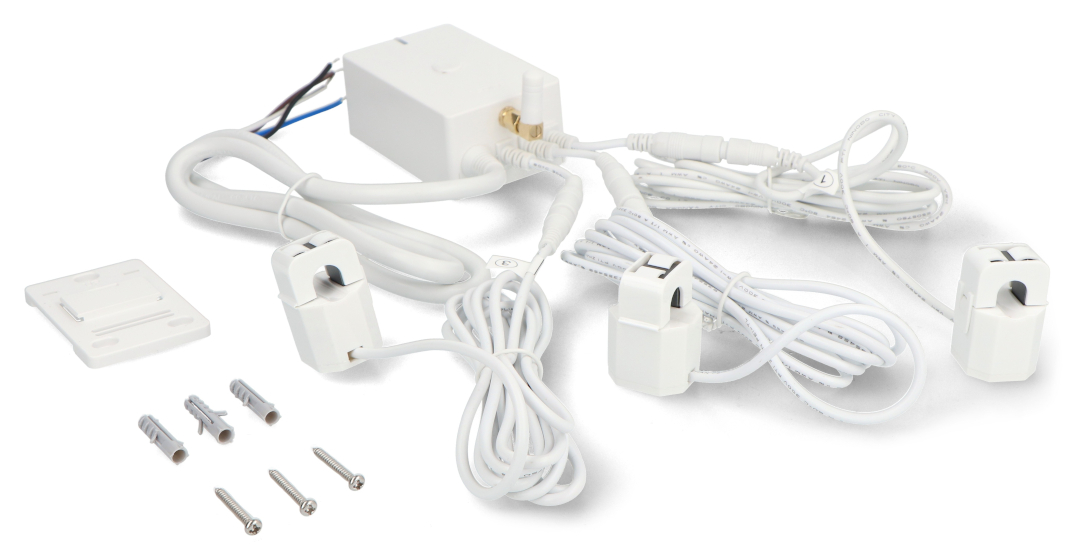

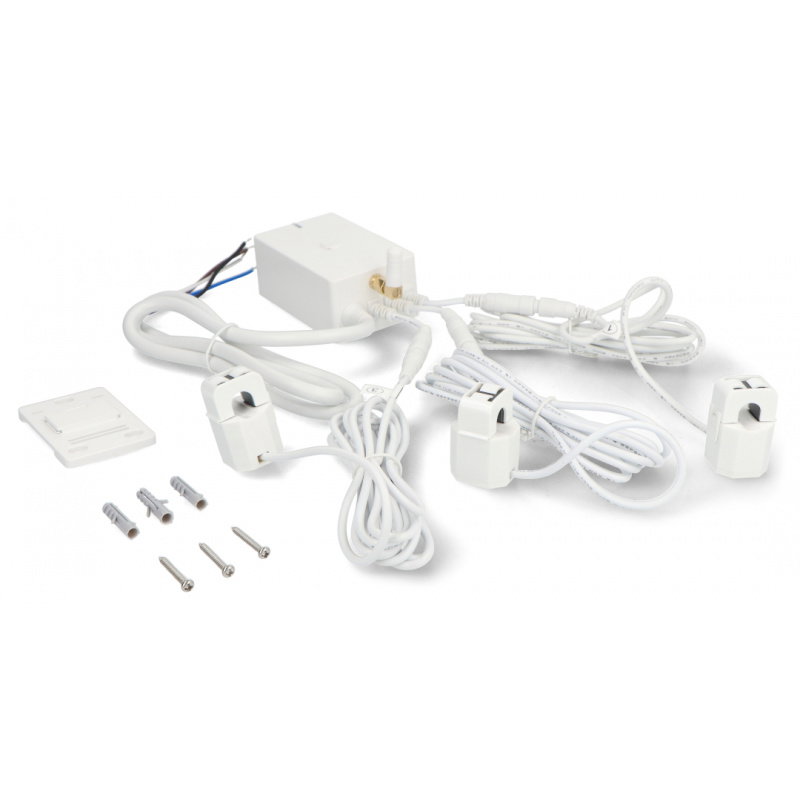

Contents of the set
- Aeotec Home Energy Meter 8
- 3 current transformers 60 A
- Mounting accessories
