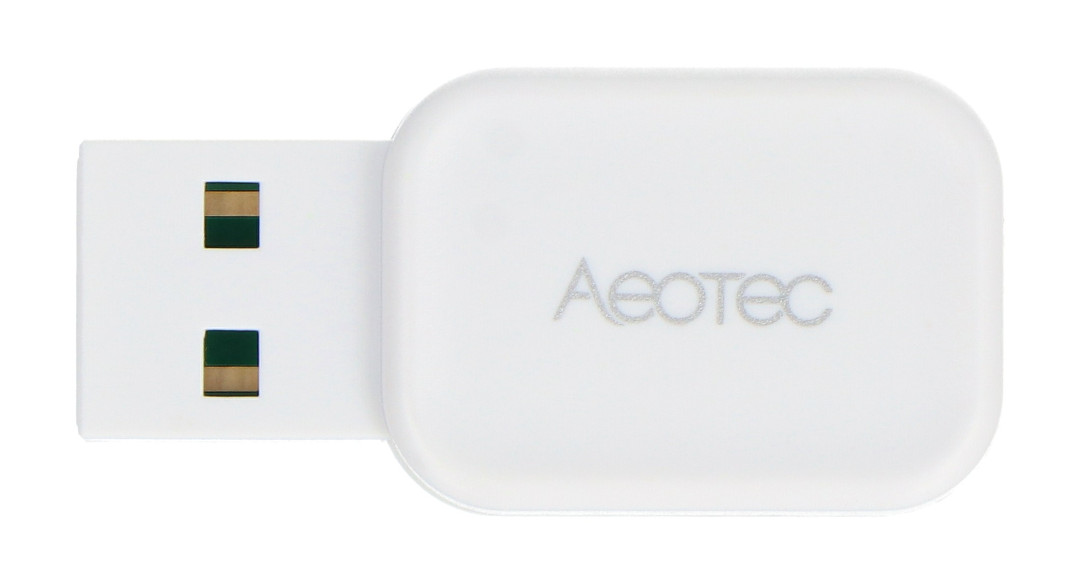

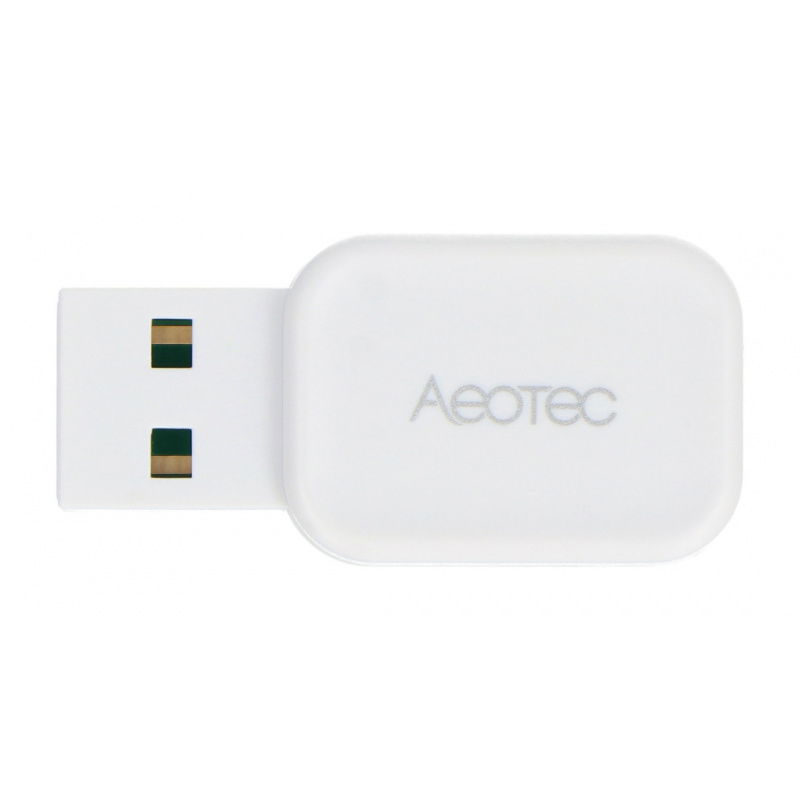

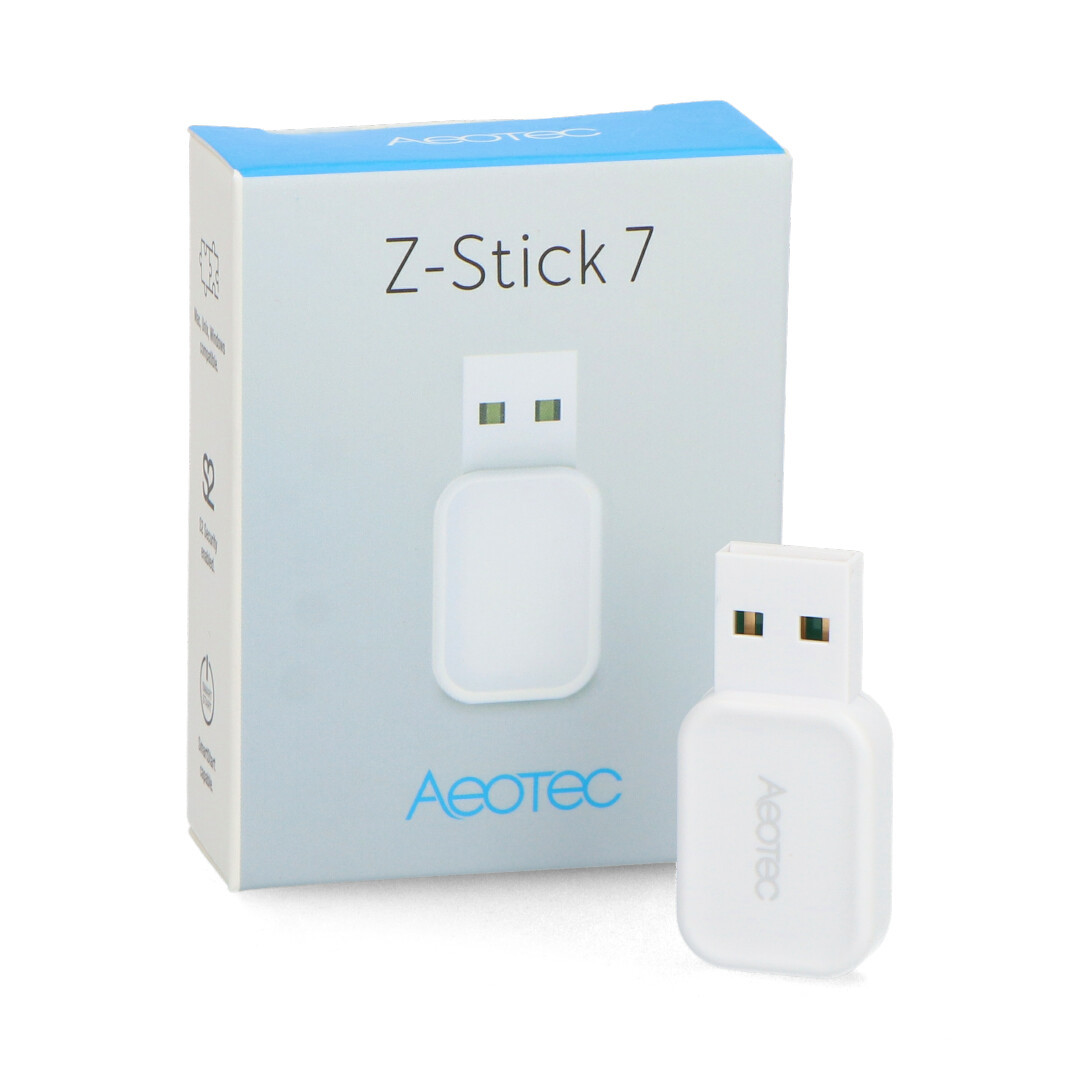

Product description: Aeotec Z-Stick 7 - USB module - Z-Wave
The Aeotec Z-Stick 7 is an advanced Z-Wave controller in a compact USB adapter , enabling the creation of a reliable and scalable Smart Home network. The module allows you to build your own, locally hosted gateway . Based on the modern Z-Wave 700 chip, it offers greater range, lower power consumption, and improved device management. Support for S2 Security and SmartStart makes configuration simpler and more secure than ever before. The Z-Stick 7 works with popular platforms such as Home Assistant, openHAB, Domoticz, and Z-Wave JS. The Aeotec Z-Stick 7 does not have a built-in battery, but its small size, improved range, and advanced network management make the module an excellent tool for creating larger configurations. It is an ideal choice for both beginners and advanced users.

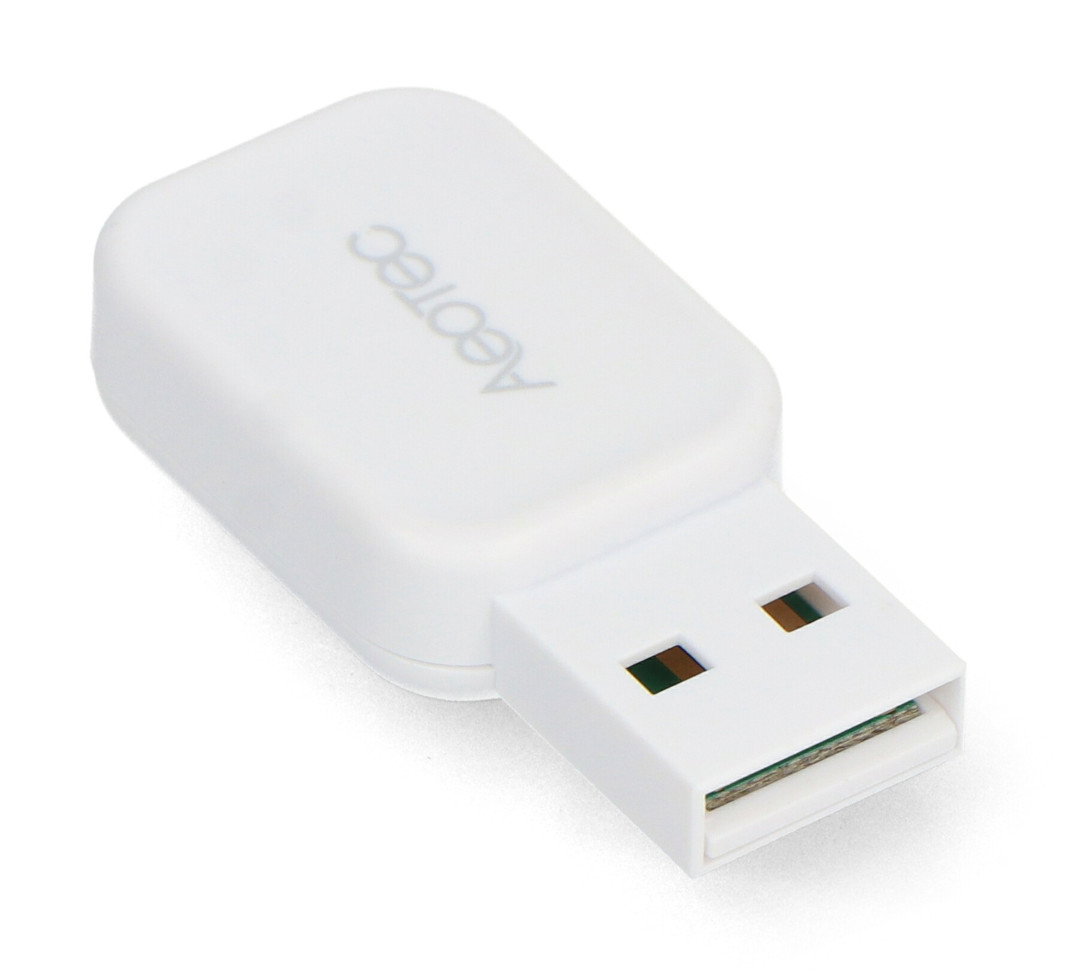

Aeotec Z-Stick 7 - USB module - Z-Wave.
Aeotec Z-Stick 7 works with all certified Z-Wave devices.
Main features of the Aeotec Z-Stick 7
- Z-Wave 700 support : modern chipset ensures greater range, faster communication and lower energy consumption.
- Compatibility with up to 232 devices : the module supports a large number of network elements, making it an ideal choice for creating large, more advanced configurations.
- Support for S2 Security and SmartStart : central optimization results in increased transmission security and simplified device configuration.
- System versatility : Aeotec Z-Stick 7 is fully compatible with Home Assistant, Domoticz, openHAB, Z-Wave JS and other systems
- Powered from the USB port : the module does not require an additional power supply.
- Compact dimensions and lightweight design : Z-Stick 7 is the perfect choice for both beginners and advanced users.
Z-Stick 7 Configuration
Installing the Z-Stick 7 is simple and intuitive, allowing you to quickly get your smart home up and running. The main steps include:
- Connecting to a Device: Insert the Aeotec Z-Stick 7 into the USB port of a compatible device such as a Raspberry Pi, Windows PC, Linux computer, or miniPC. The adapter will automatically be recognized as a serial port (USB CDC).
- Platform Selection: Choose the right platform to manage your smart home, such as Raspberry Pi , Windows, Linux, etc.
- Software Selection: Choose the appropriate software for your Z-Stick 7, such as Home Assistant, Domoticz or HomeSeer, to provide an interface for configuring and managing Z-Wave connections.
- Device Scanning: Once the software has launched and the USB adapter has been successfully detected, you can proceed to scan for available Z-Wave devices in your area. Make sure that they are in pairing mode (inclusion mode).
- Adding and configuring devices: Once scanning is complete, add selected devices to your Z-Wave network and configure them according to your preferences, e.g. by setting schedules, creating scenarios, or remotely controlling devices.
The device configuration process is described in detail in the manufacturer's user manual .
Z-Stick 7 is compatible with many systems, both free and commercial.
The module is an ideal choice for both beginners and advanced users.
The new Z-Wave Plus standard
Z-Wave Plus 700 is the latest generation of the wireless communication protocol for smart homes, introducing a number of advanced improvements in range, energy efficiency, and security. Compared to older versions, Z-Wave 700 provides up to 250% greater signal range (up to 100 m in open space) and improved receiver sensitivity, enabling stable communication between devices even in large homes or multi-story buildings. Thanks to the new SiLabs 700 chipset, the Aeotec Z-Stick 7 offers very low power consumption (standby from just 30 µA), which translates to reduced system load and longer operation of battery-powered devices. The standard also supports SmartStart technology , enabling automatic device pairing without the need for manual configuration. S2 Security guarantees a high level of data protection and effective network security against unauthorized access, providing better protection against hacker attacks and secure communication between devices. This makes adding devices to the network quick, safe, and convenient. Additionally, Z-Wave 700 is fully compatible with earlier versions of Z-Wave, ensuring seamless integration with existing home automation infrastructure.
Aeotec Z-Stick 7 Module Specifications

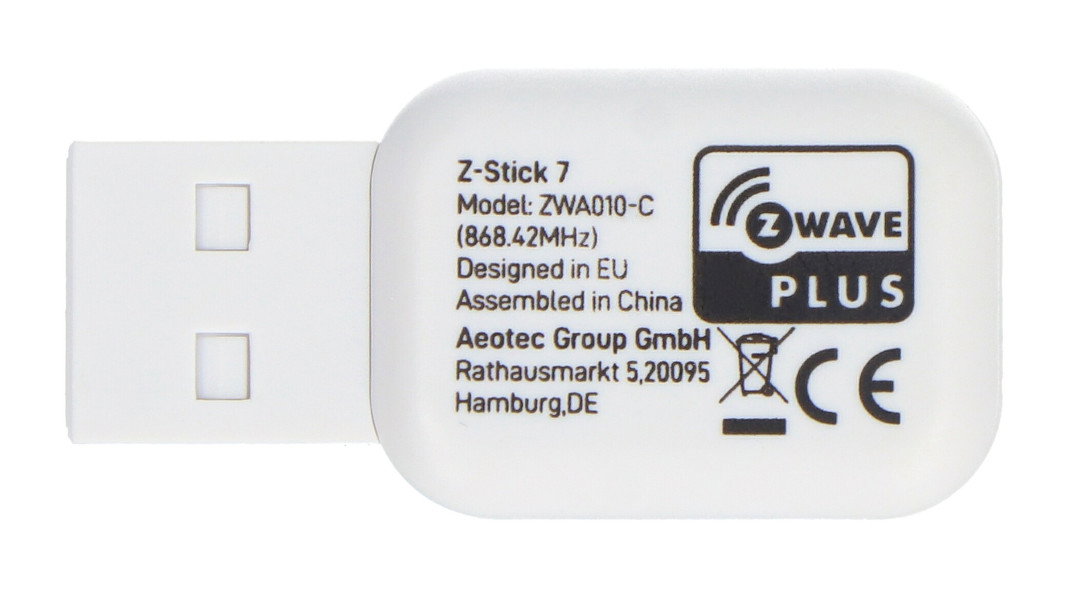

- Model: Z-Stick 7
- Device type: USB Z-Wave controller
- Communication: Z-Wave RF 868.42 MHz
- Standard: Z-Wave Plus 700
- USB DC Power: 4.75V to 5.25V
- Built-in lithium battery: none
- Maximum standby current: 30uA
- Maximum operating current: 98 mA in PA mode or 40 mA in normal mode
- RF Receiver Sensitivity: 9.6 kbps at -90 dBm and 100 kbps at -90 dBm
- Z-Wave Plus certified: yes
- Compatible with Raspberry Pi 4, Windows, Linux, MacOS
- Software version: V1.02
- SmartStart: yes
- SDK Version: V6.81.06
- Backup compatible: yes
- Compatibility with free systems, e.g.:
- Home Assistant
- openHAB
- Domoticz
- Other systems, e.g.:
- HomeSeer
- Axial Control
- Indigo domotics
- Operating temperature: 0°C to 40°C
- Product dimensions: 37 x 17 x 8.5 mm
- Weight: 7 g
Thanks to the USB power supply option, the Aeotec Z-Stick 7 does not require an additional power supply.
