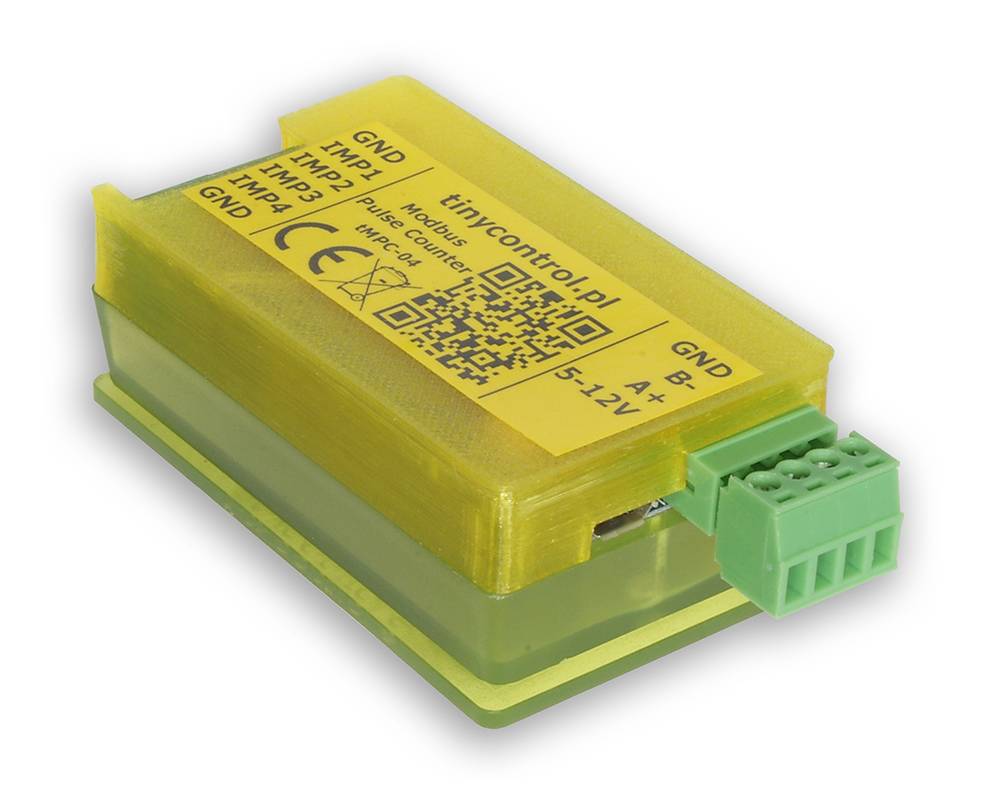

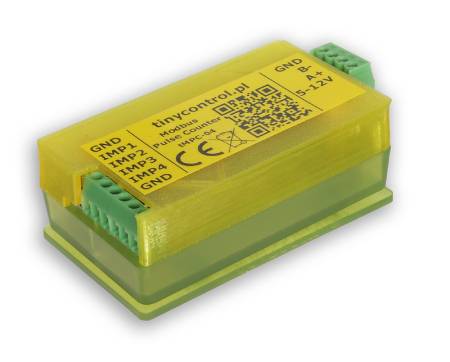

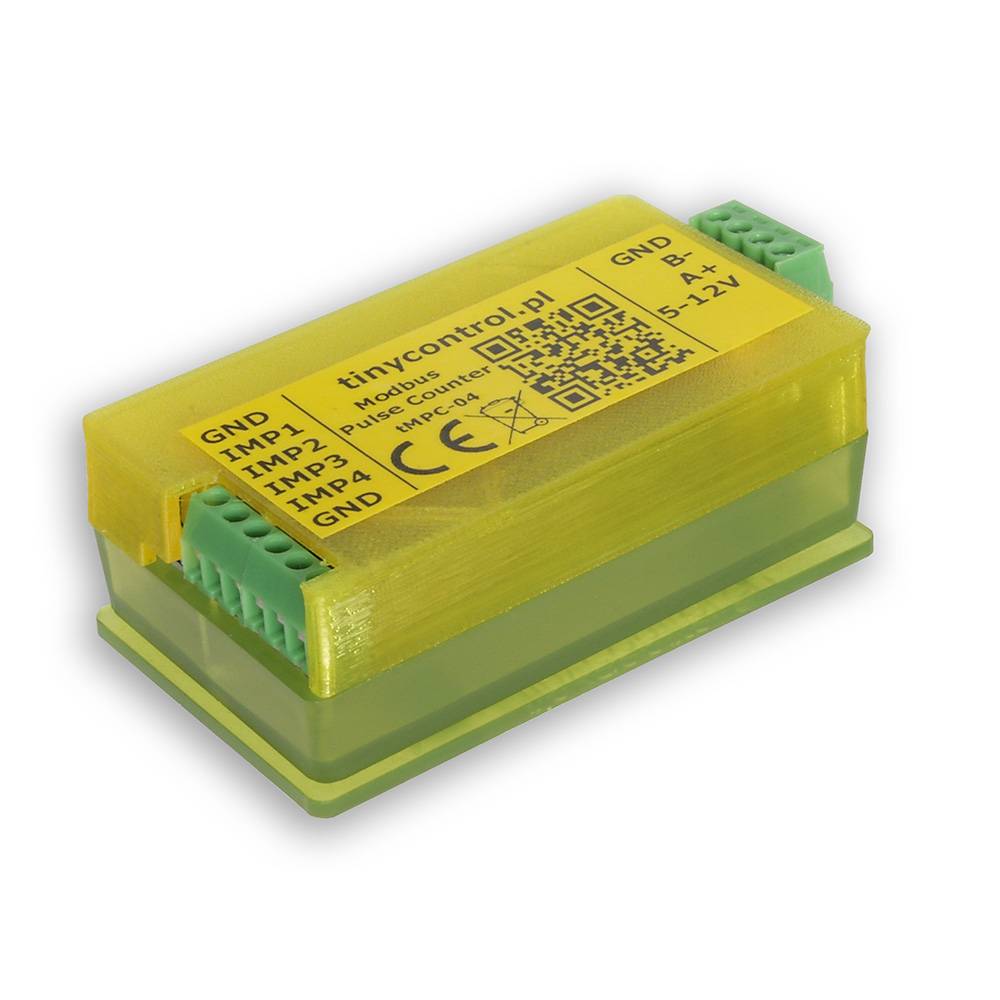

Product description: Tinycontrol tMPC-04 - 4-channel Modbus RTU pulse counter
The tMPC-04 is a compact module enabling the integration of pulse meters with automation and monitoring systems based on the Modbus RTU protocol. Four independent pulse inputs allow for simultaneous monitoring of multiple meters, and measurement results are provided as pulse count, calculated consumption, and estimated power. The default configuration allows for immediate start-up without additional settings , while advanced parameters can be conveniently configured via the USB port. The module works with Tinycontrol LK3.5+ and LK4 controllers and other devices supporting Modbus RTU communication via the RS485 bus .

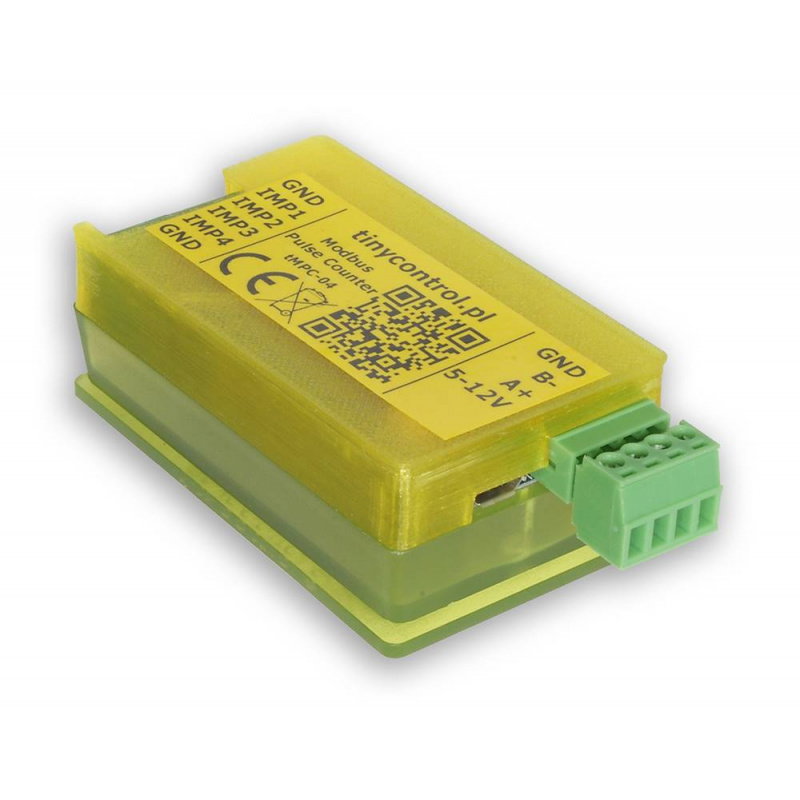

Tinycontrol tMPC-04 - 4-channel Modbus RTU pulse counter.

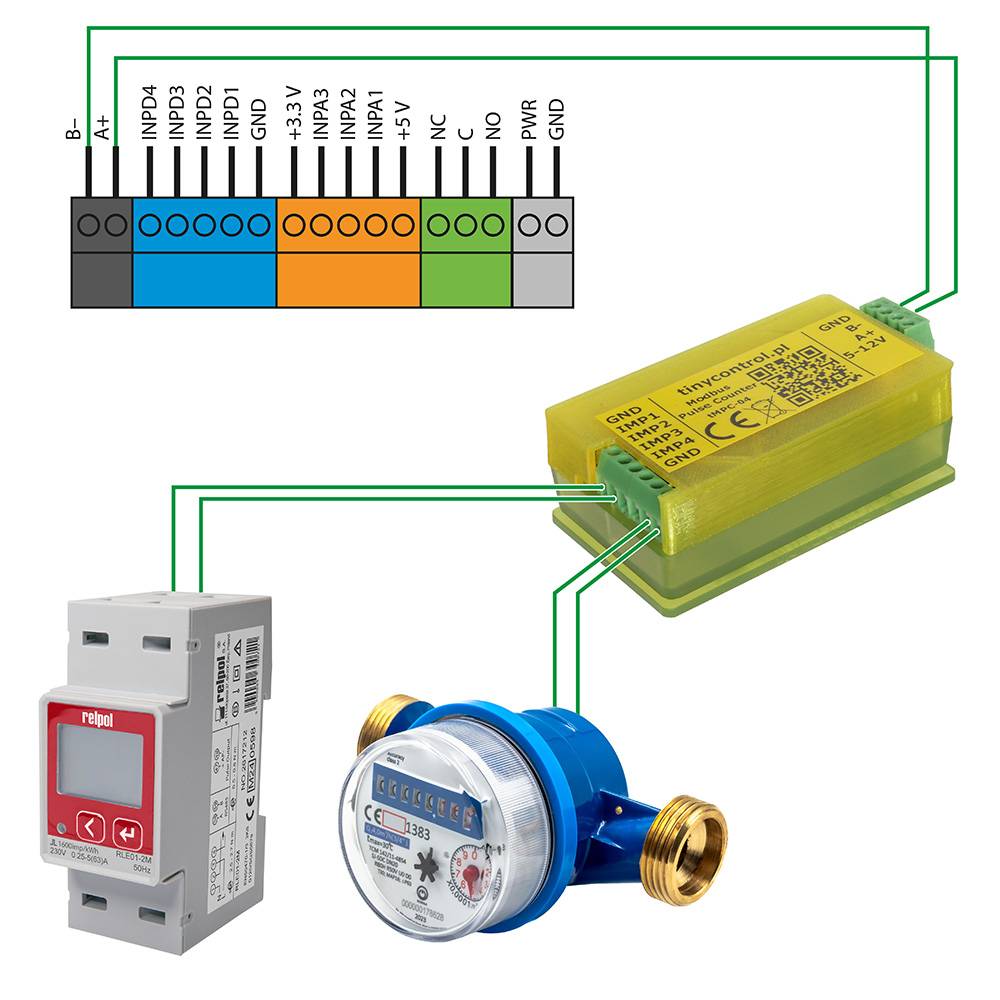

Connection diagram.
Main features of the pulse counter
- 4 independent pulse inputs : enable simultaneous monitoring of four pulse counters
- Modbus RTU communication : data transmission via RS485 interface compliant with the popular industrial standard
- Multi-media support : works with electricity, water, gas meters and other devices with pulse output
- Pulse, energy and power measurement : provides pulse count, calculated consumption and estimated power
- Individual conversion factors : each input can be configured independently
- High counting frequency : approximately 2000 Hz with power estimation or up to approximately 4000 Hz when power estimation is disabled
- Configuration via USB : quick setting changes via serial terminal
- Firmware update : convenient upload of new software in bootloader mode
- Ready to work : factory configuration allows you to start measuring immediately
Technical specifications of the module
- Power supply: 5V to 12V DC (connector) or 5V via USB
- Communication interface: Modbus RTU (RS485)
- Additional interface: USB (serial port 115200 Bd)
- Number of pulse inputs: 4
- LOW input level: 0 V to 1 V
- HIGH input level: 1.3 V to 25 V
- Maximum counting frequency: approximately 2000 Hz
- Maximum counting frequency without power estimation: approximately 4000 Hz
- Default conversion factor: 1000 pulses per unit
- Default Modbus address (Slave ID): 1
- Firmware update: via USB in bootloader mode
- Dimensions: 74 x 40 x 23 mm (without DIN holder)
- Weight: 42 g
Kit contents
- tMPC-04 pulse counter module
tMPC-04 will work wherever remote monitoring of pulse meters is required.
