Product description: Desktop Creality Falcon Smoke Purifier YW45 - air purifier for Creality Falcon laser plotters
The Creality Falcon Smoke Purifier YW45 is a desktop air purifier designed for laser cutters , particularly the Creality Falcon A1 and A1 Pro series. The device effectively removes smoke and fine particles generated during laser operation, improving user comfort and safety. Equipped with an efficient motor and three-speed control , it allows you to adjust the filtration intensity to current working conditions. The compact metal construction ensures stability and durability, while support for dual-diameter exhaust pipes increases versatility. This solution is ideal for laser users at home, in a modeling studio, or in a small workshop who want to reduce smoke, dust, and odors without an extensive ventilation system.

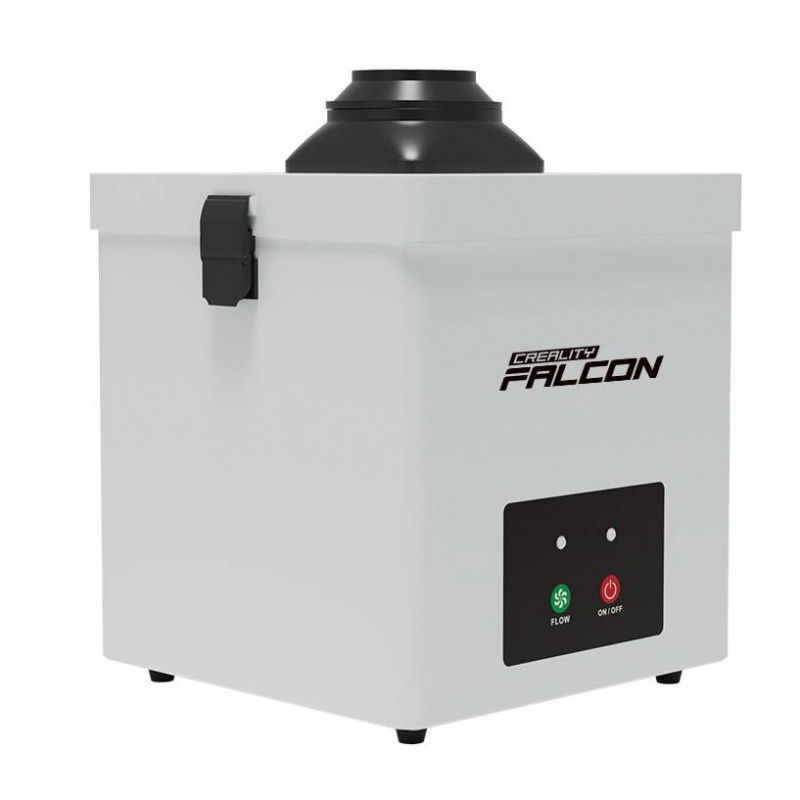

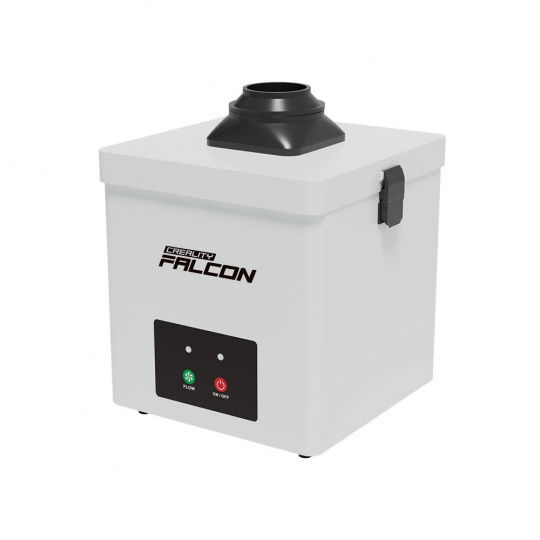

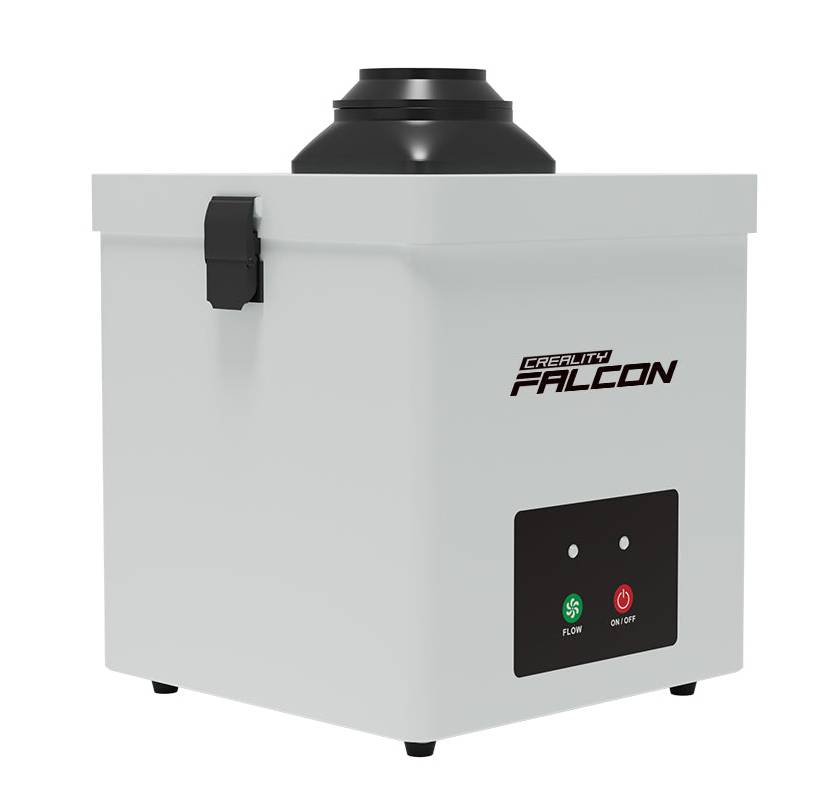

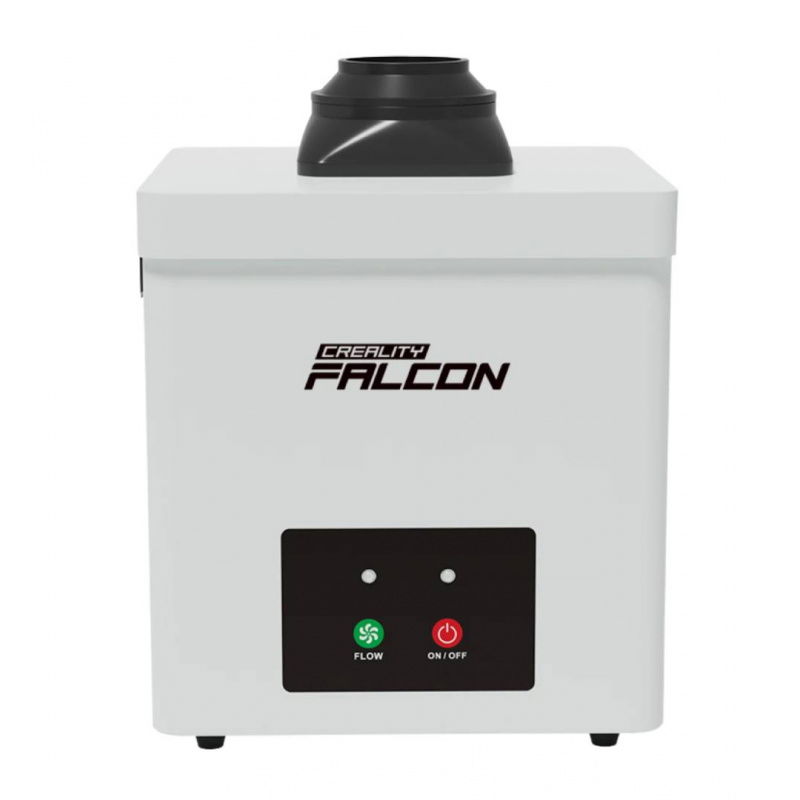

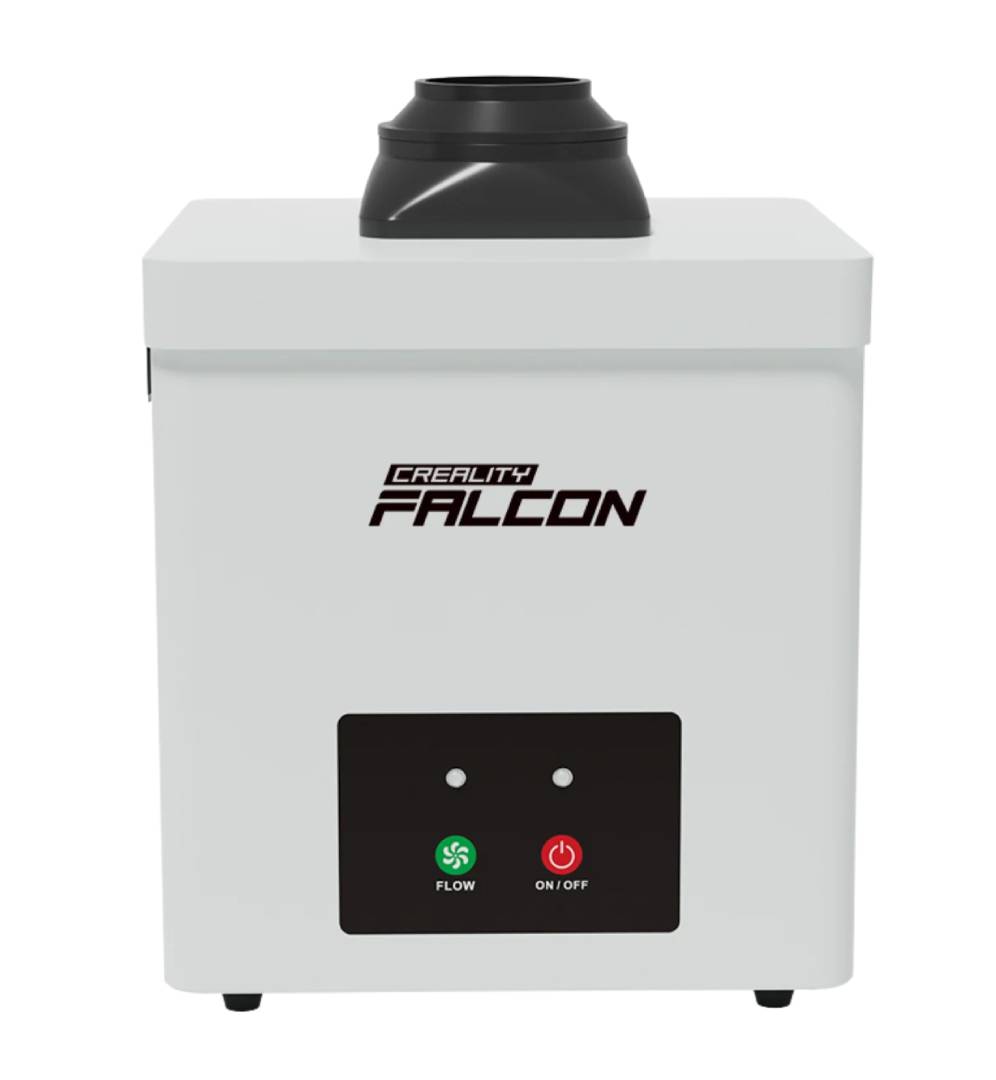

Desktop Creality Falcon Smoke Purifier YW45 - air purifier for Creality Falcon laser plotters.
Three levels of speed regulation allow you to adjust the filtration intensity to the current operating conditions.
Key Features of the Creality YW45 Air Purifier
- Compatibility with Creality Falcon A1 and A1 Pro : ensures safe laser operation at home
- Double-layer air filtration : effectively removes smoke, dust and unpleasant odors
- Capacity up to 115 m³/h : effective air purification during engraving and cutting
- 3 levels of speed regulation : the ability to adjust the intensity of work to your needs
- Quiet operation below 68 dB : comfortable use even in small rooms
- Support for two exhaust pipe diameters : compatible with 63 mm and 76 mm systems
- Compact design : 185 x 185 x 205 mm dimensions make it easy to place on a desk
- Solid 1mm metal housing : stability and vibration resistance
Creality Falcon's Dual-Layer Smoke Filtration
The Creality Falcon YW45 smoke purifier utilizes a two-layer filtration system that works in stages to enhance air purification efficiency during laser work. The first stage is a pre-filter that traps larger particles, such as dust, dirt, and visible debris generated during cutting, while also protecting the main cartridge from rapid wear. The second stage is a honeycomb activated carbon filter that absorbs 99.97% of finer particles (0.3 µm) and reduces gases and unpleasant odors . This creates a cleaner workspace, allowing the user to comfortably engrave and cut materials such as wood, acrylic, leather, and plastic. The filter cartridge is replaceable, which helps maintain consistent device performance and low operating costs with regular use.

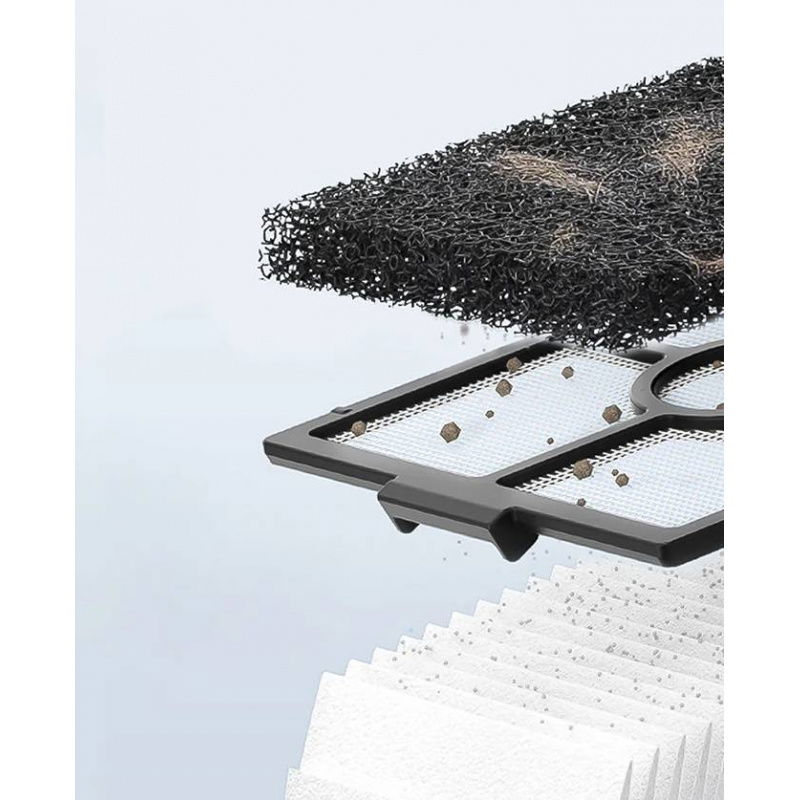

The double-layer filtration system captures 99.97% of pollutant particles.

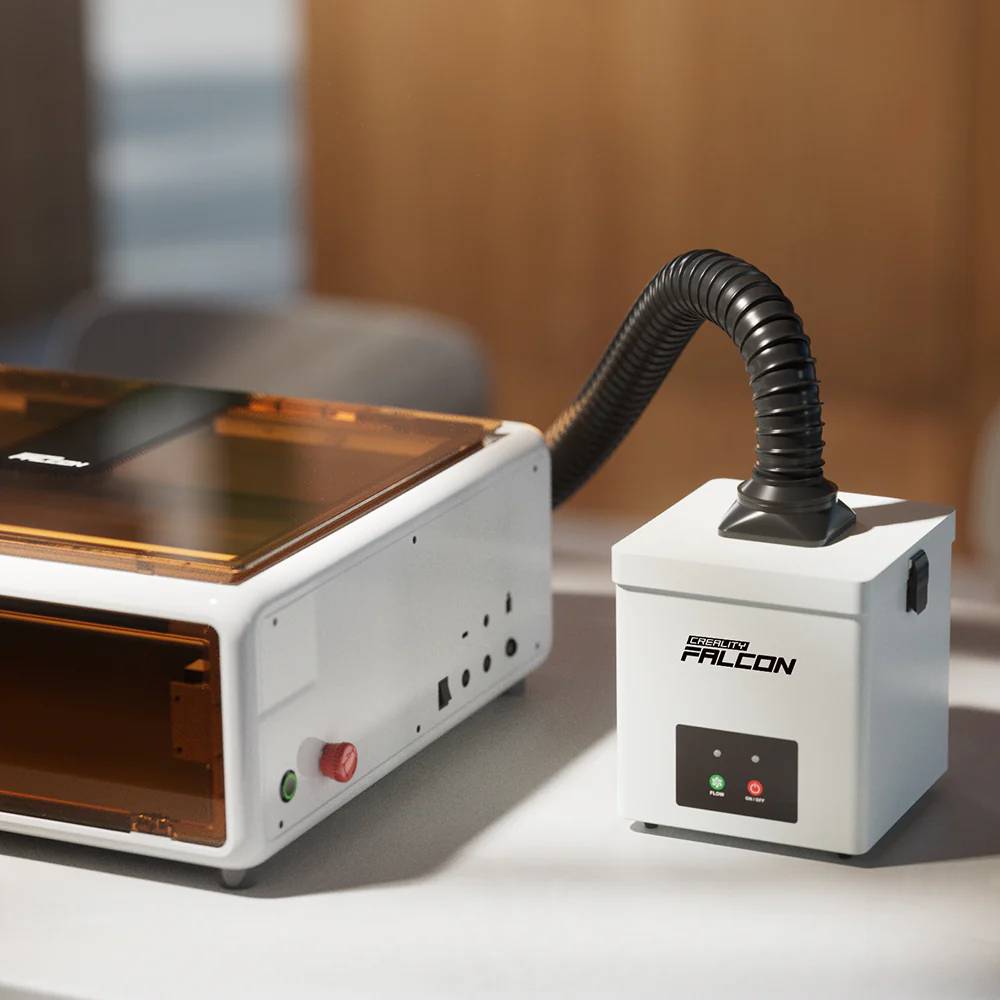

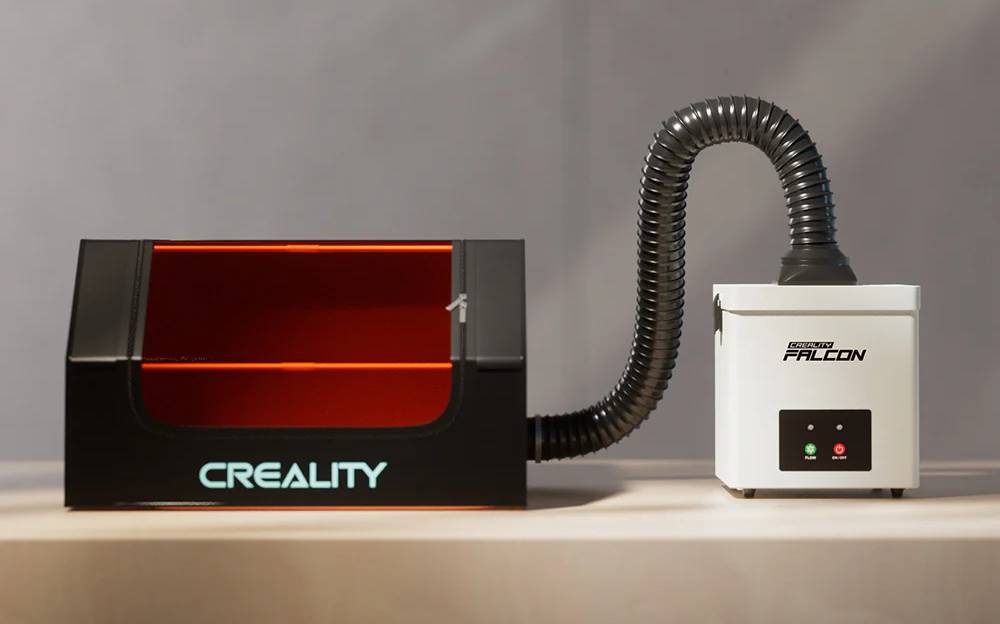

Provides full compatibility with Falcon A1, other Creality Falcon series devices and dedicated protective covers.
Compatibility with Creality Falcon laser cutters
The Creality Falcon Smoke Purifier YW45 is designed to work with Falcon A1 and A1 Pro laser cutters . With two exhaust pipe diameters available – 63mm and 76mm – it can also be used with other Creality Falcon models and Protect series protective enclosures. A universal inlet interface with a 55mm diameter flange allows for quick and secure connection of the smoke exhaust pipe. This solution increases the flexibility of your workstation setup, whether at home or in a small workshop.
Technical Specifications of the Desktop Creality Falcon Smoke Purifier YW45
- Power supply: 100V to 240V AC
- Power: 45 W
- Air flow capacity: 115 m³/h
- Noise level: less than 68 dB
- Filtration efficiency: 99.97% for 0.3 µm particles
- Air intake interface: 55mm flange
- Supported exhaust pipe diameters: 63 mm and 76 mm
- Dimensions: 185 x 185 x 205 mm
- Weight: 3.77 kg
Contents of the set
- Creality Falcon YW45 Smoke Purifier
- Filter insert
- User manual

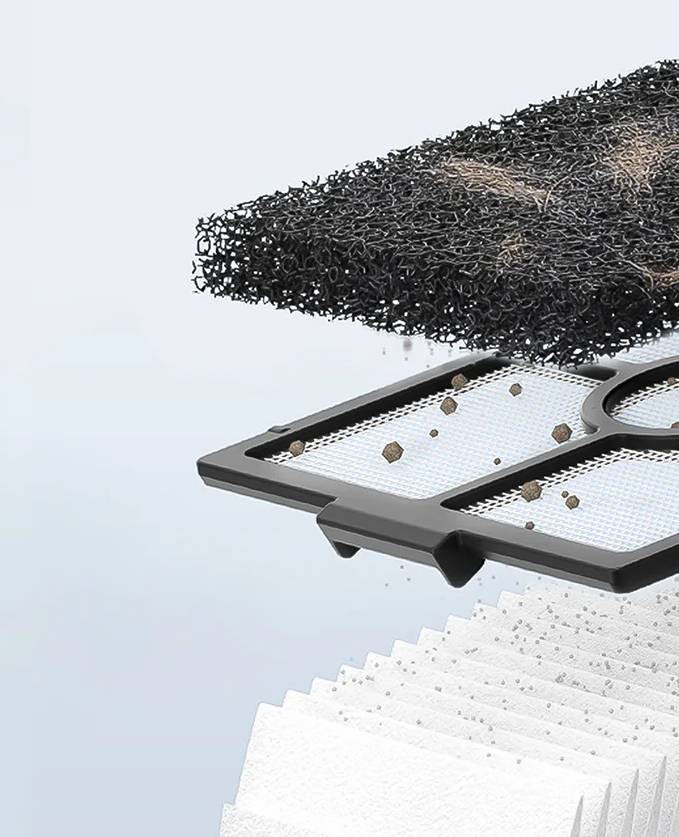

The pre-filter captures larger pollutant particles, while the activated carbon filter effectively absorbs harmful gases and unpleasant fumes.
