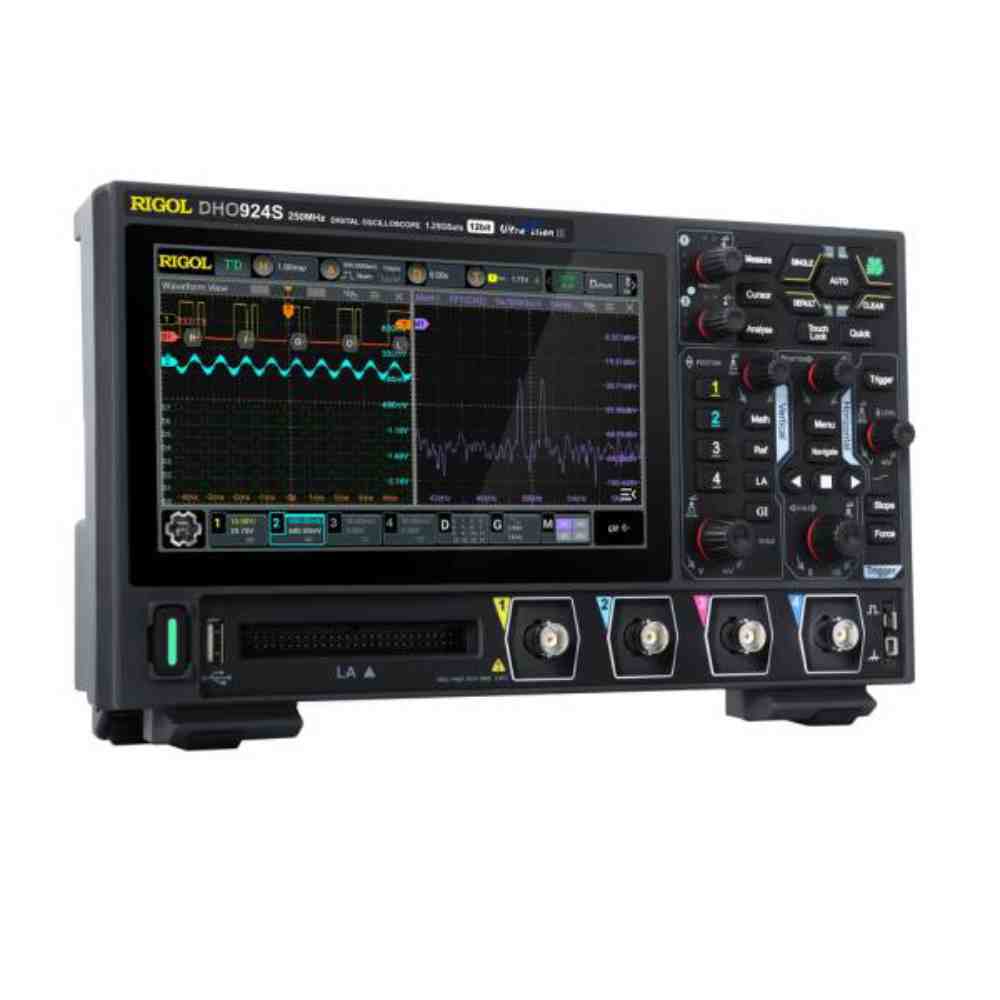

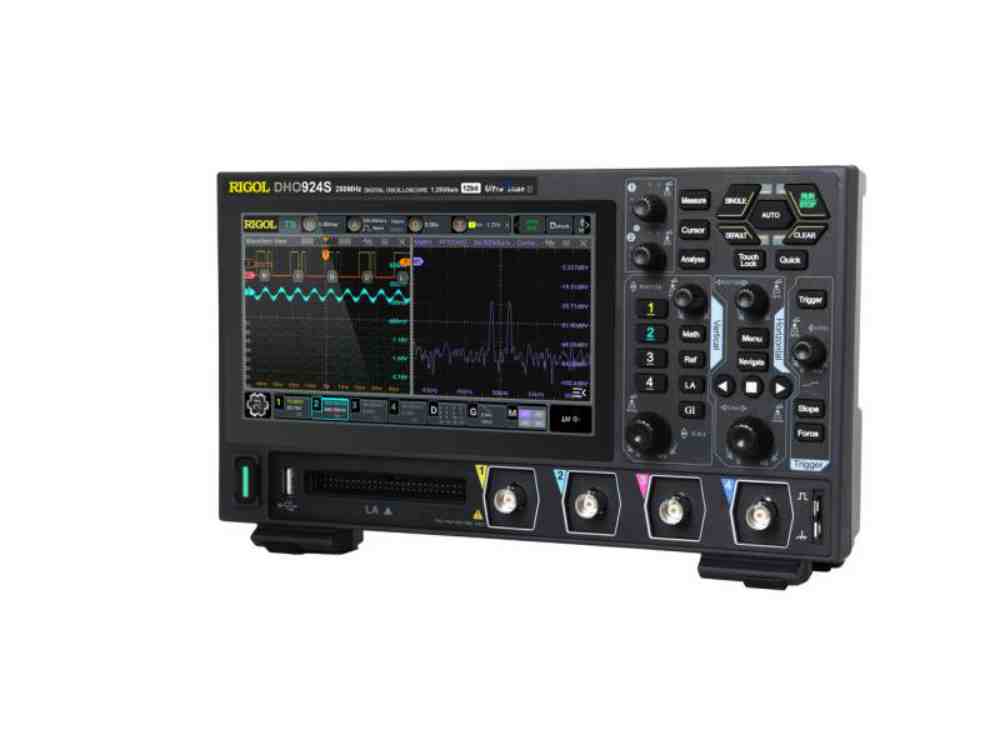

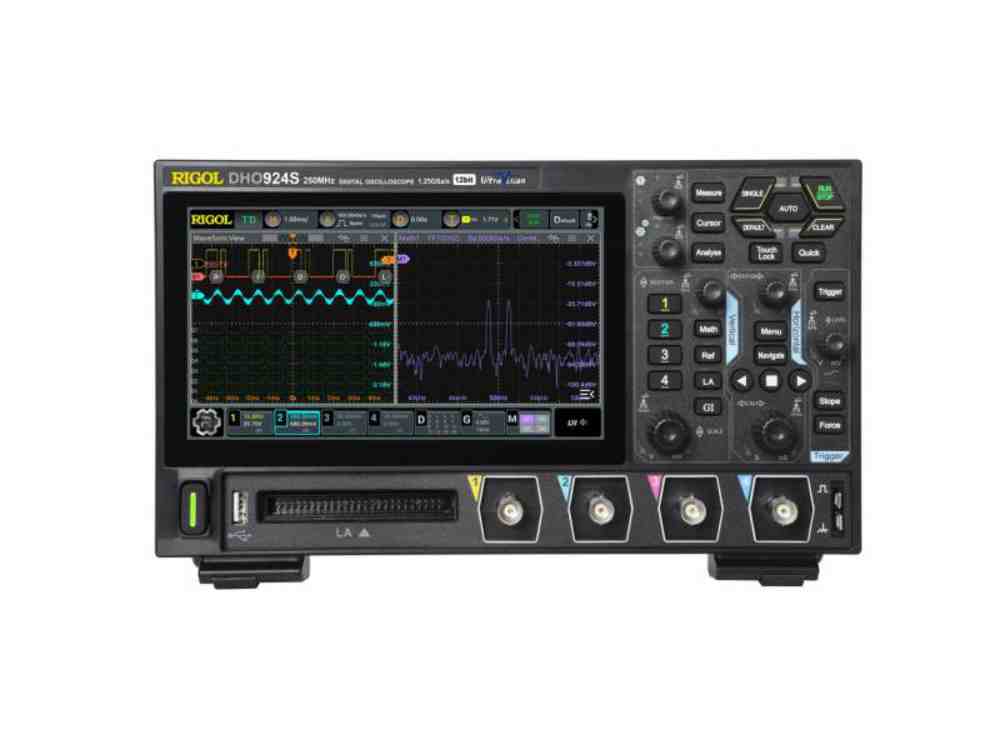

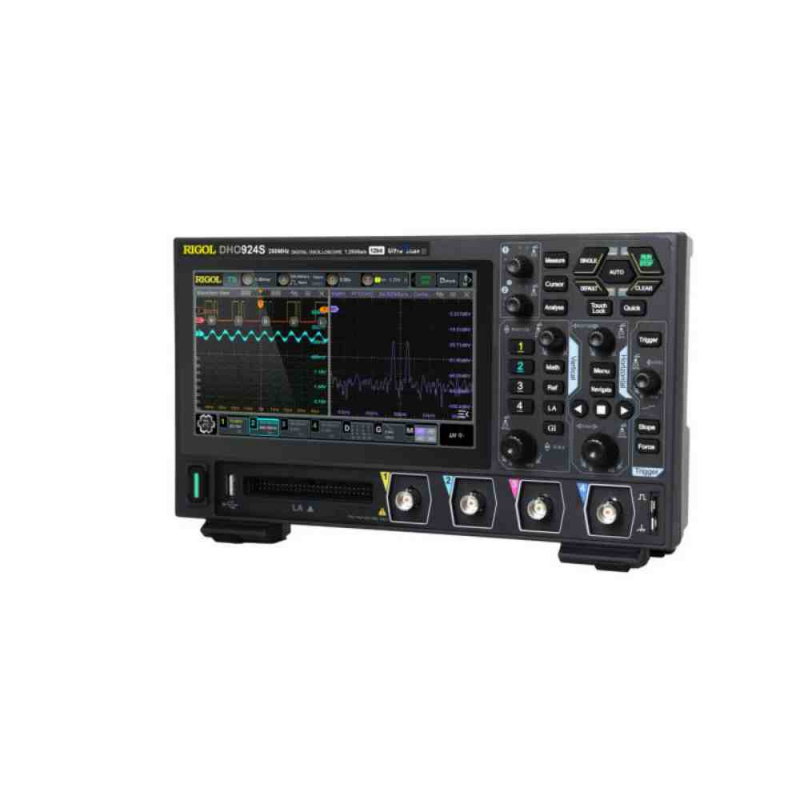

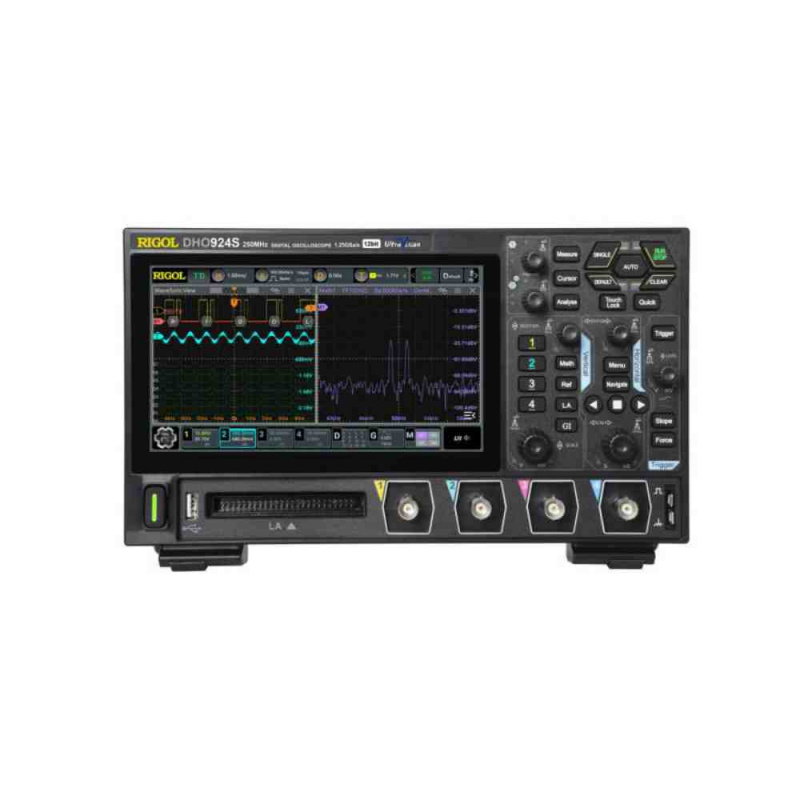

Product description: RIGOL DHO924S digital oscilloscope - 4 channels, 250 MHz, 1.25 GSa/s, 12 bits, AWG 25 MHz
The Rigol DHO924S DHO900 series oscilloscope is a modern measurement device designed for laboratories, electronics repair shops, R&D departments, technical education, and embedded system testing. Its 12-bit vertical resolution with 4096 quantization levels allows for more convenient observation of small signals and subtle waveform changes than traditional 8-bit oscilloscopes. Its 250 MHz bandwidth, 4 analog channels, and sampling rate of up to 1.25 GSa/s provide extensive diagnostic capabilities for everyday electronics work.

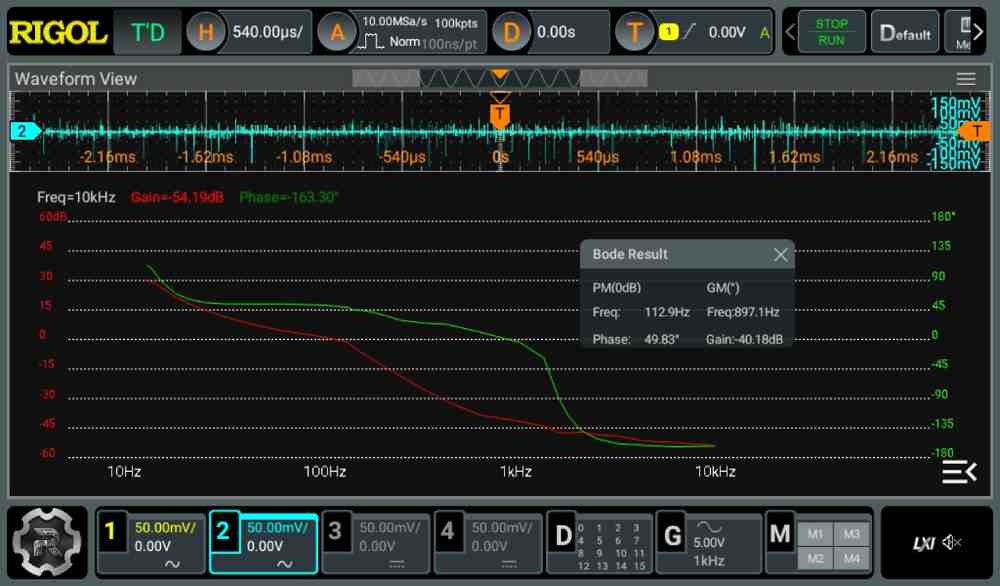

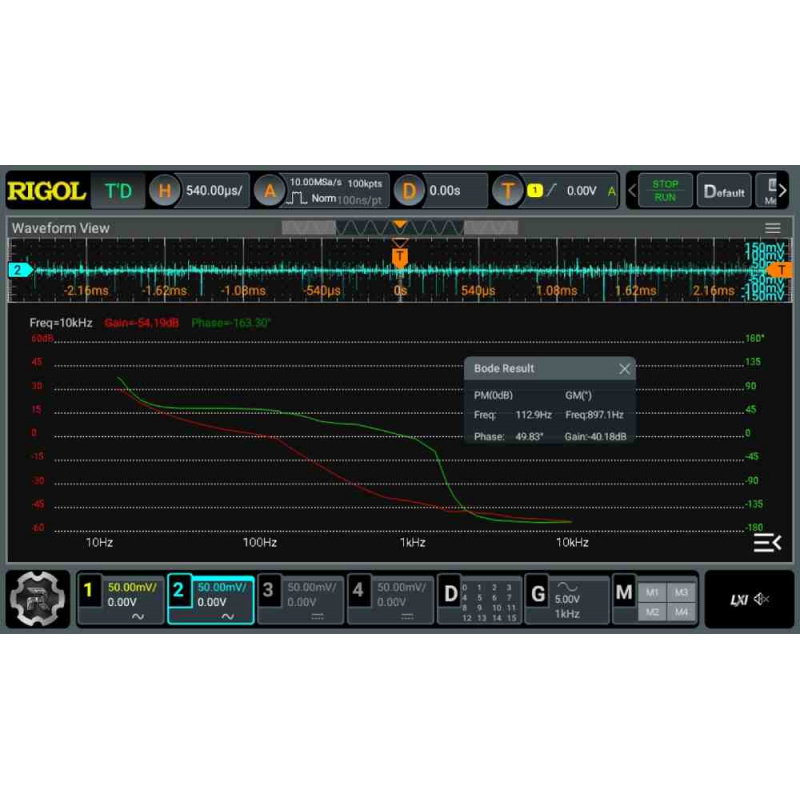

The DHO924S model has a built-in 1-channel AWG 25 MHz function generator , Bode plot analysis function, decoding of popular serial buses and 16 digital channels available after using the PLA2216 logic probe . A 7" touch screen with a resolution of 1024 x 600 px , menu in Polish, USB, LAN and HDMI interfaces and the possibility of powering via the USB Type-C port increase the convenience of work both on the desk and in the field.
RIGOL DHO924S digital oscilloscope - 4 channels, 250 MHz, 1.25 GSa/s, 12 bits, AWG 25 MHz. The Rigol DHO924S oscilloscope from the DHO900 series is a modern measurement device designed for laboratories, electronics services, R&D departments, technical education and embedded systems testing.Special features
- 12-bit vertical resolution: 4096 levels of quantization make it easier to analyze small signals and observe waveform details more precisely
- 250 MHz bandwidth: the oscilloscope allows you to analyze high-speed analog signals in service, educational and design applications
- 4 analog channels: the ability to simultaneously observe several measurement points in the tested system
- Up to 1.25 GSa/s sampling: High sampling rate supports more accurate waveform capture
- Up to 50 Mpts memory: high memory depth allows you to record longer signal fragments in great detail
- 25MHz AWG Generator: Built-in 1-channel waveform generator makes it easy to test circuits without additional equipment
- Bus Decoding: Support for RS232/UART, I2C, SPI, CAN, and LIN speeds up digital communication analysis
- 16 digital channels: the ability to analyze digital signals after purchasing the PLA2216 logic probe
- Fast capture: up to 1,000,000 wfms/s in UltraAcquire mode
- 7" touchscreen: capacitive screen 1024 x 600 px ensures comfortable operation and clear presentation of waveforms
- Polish menu: easier operation for educational, service and laboratory users
- Communication interfaces : USB Device, USB Host, LAN and HDMI as standard
- Powered via USB Type-C: allows you to power your device from a compatible power supply or power bank
Practical applications
The RIGOL DHO924S is suitable for electronic circuit diagnostics, analog and digital signal analysis, device servicing, embedded circuit design, and communication system testing. Thanks to bus decoding and the ability to work with a logic probe, the device is suitable for analyzing microcontrollers, communication interfaces, control systems and automation systems.
The oscilloscope is also a good choice for classrooms, academic labs, and research and development departments. The built-in AWG generator, Bode analysis, histogram, waveform search, and advanced triggering functions allow you to use a single compact device for a variety of measurement tasks.
The DHO924S has a built-in 1-channel 25 MHz AWG function generator, Bode plot analysis, decoding of popular serial buses, and 16 digital channels available using the PLA2216 logic probe.
A 7" touchscreen with a resolution of 1024 x 600 px, a menu in Polish, USB, LAN and HDMI interfaces and the possibility of powering via a USB Type-C port increase the convenience of work both on the desk and in the field.Technical specifications
- Model: DHO924S
- Series: DHO900
- Device type: digital oscilloscope
- Vertical resolution: 12 bits
- Number of analog channels: 4
- Analog bandwidth: 250 MHz
- Maximum sampling rate: 1.25 GSa/s for one channel
- Sampling rate for two channels: 625 MSa/s
- Sampling rate for all channels: 312.5 MSa/s
- Maximum memory depth: 50 Mpts for one channel
- Memory for two channels: 25 Mpts
- Memory for all channels: 10 Mpts
- AWG Generator: 1-channel, 25 MHz
- Digital channels: 16, requires PLA2216 logic probe
- Vertical sensitivity range: 200 µV/div to 10 V/div
- Maximum capture rate: 1,000,000 wfms/s in UltraAcquire mode
- Vector capture rate: 30,000 wfms/s
- Display: 7" capacitive touchscreen
- Screen resolution: 1024 x 600 px
- Intensity Rating: 256 levels
- Bus decoding: RS232/UART, I2C, SPI, CAN, LIN
- Additional functions: Bode plot analysis, histogram, digital signal analysis, waveform search and navigation
- Interfaces: USB Device, USB Host, LAN, HDMI
- Power supply: USB Type-C port
- Menu: Polish language
- Dimensions: 265.35 x 161.75 x 77.38 mm
- Weight: 1.78 kg
Contents of the set
- RIGOL DHO924S oscilloscope - 1 pc
- Power supply - 1 pc
- Cable with banana plug for grounding - 1 pc
- PVP2350 350 MHz passive probe - 4 pcs
