Product description: NULA Mini ESP32-C6 - WiFi / Bluetooth / Thread / ZigBee development board - without connectors - Soldered 333356
The NULA Mini ESP32-C6 is designed for modern IoT projects requiring energy-efficient wireless communication and a small footprint. At the heart of the board is the ESP32 -C6-MINI-1-N4 module, equipped with a single-core RISC-V processor clocked at up to 160 MHz, 512 KB of SRAM, and 4 MB of Flash memory . The module supports simultaneous WiFi 6, Bluetooth LE, and Thread/ZigBee communication compliant with IEEE 802.15.4, making it ideal for smart home systems, IoT sensors, and Matter-compatible devices. Its small , breadboard- compatible form factor and Qwiic connector enable rapid prototyping without the need for soldering additional wires.

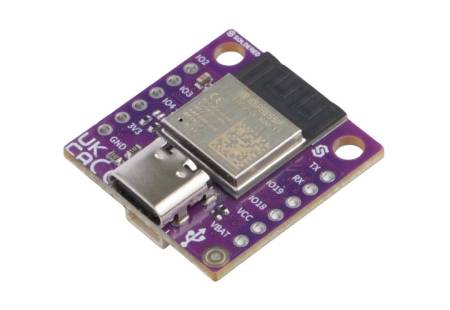

NULA Mini ESP32-C6 - WiFi / Bluetooth / Thread / ZigBee development board - without connectors - Soldered 333356.
The NULA Mini ESP32-C6 is perfect for smart home projects, wearable devices, and energy-efficient IoT systems.
Main Features of the NULA Mini ESP32-C6
- ESP32-C6-MINI-1-N4 : a high-performance RISC-V microcontroller clocked at up to 160 MHz
- WiFi 6 and Bluetooth 5.3 LE : modern and energy-efficient wireless communication
- Thread and ZigBee support : compatible with Matter and Smart Home systems
- 512 kB SRAM and 4 MB Flash : memory suitable for complex IoT projects
- Qwiic / STEMMA QT connector : quick connection of I2C modules and sensors
- Battery power supply : built-in charger and JST connector for 3.7 V Li-Ion batteries
- Ultra low power consumption : deep-sleep mode draws about 7 µA
- USB Type-C : Programming and powering with a single cable
- Compact dimensions : design dimensions 25.33 x 25.33 mm
- Open-source hardware : open documentation and the ability to fully modify the project
Pinout and connectivity of the NULA Mini ESP32-C6
The NULA Mini ESP32-C6 board features a versatile GPIO pinout for supporting a wide range of communication interfaces and peripherals. Pins IO2, IO3, IO4, IO5, IO18, and IO19 can function as digital inputs and outputs, PWM, SPI, and UART , allowing for easy connection of sensors, displays, and actuators. A Qwiic / STEMMA QT connector is also included for quick, solderless I2C device connection. The board supports WiFi 6, Bluetooth 5.3 LE, and Thread / ZigBee, making it a central communication hub for modern IoT and building automation projects.

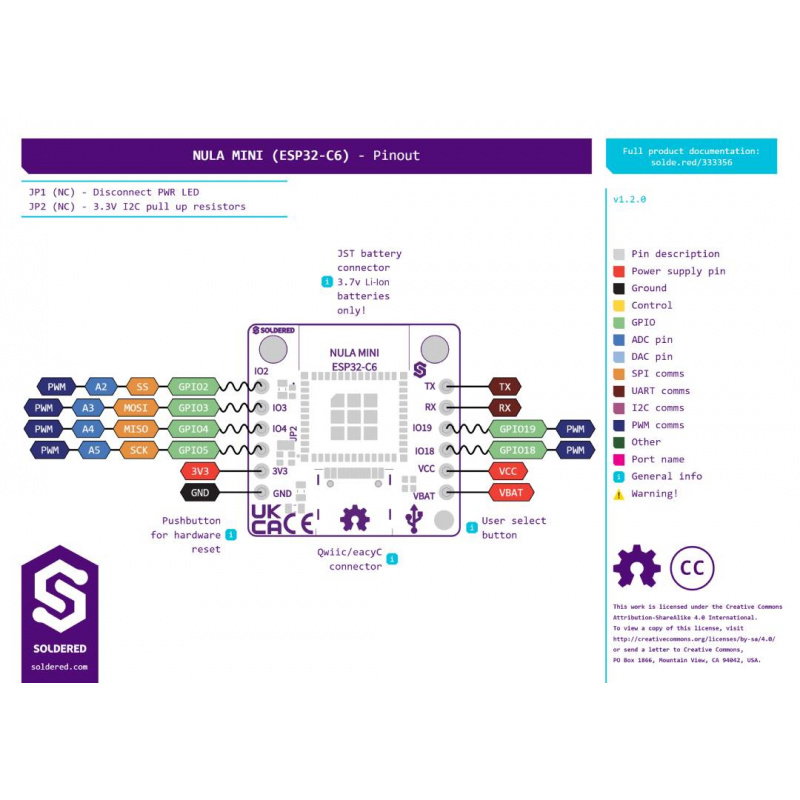

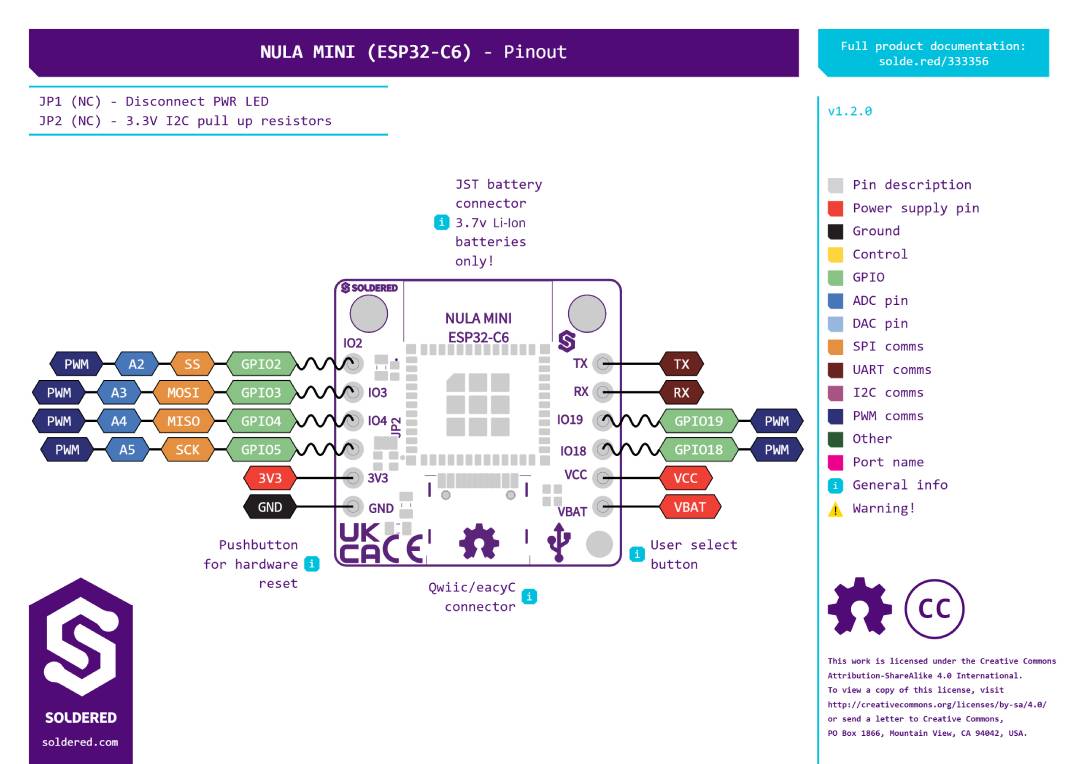

Pinout diagram.

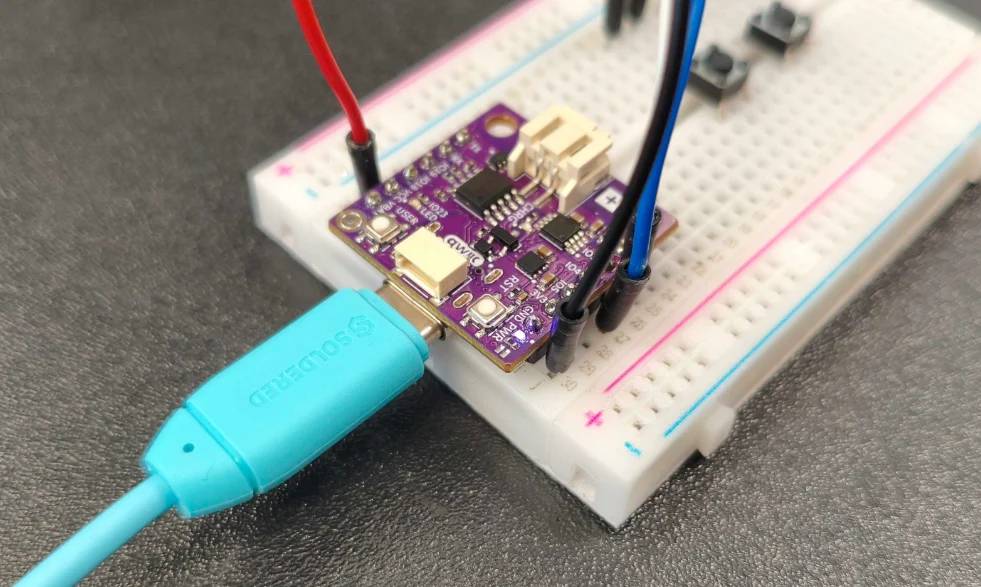

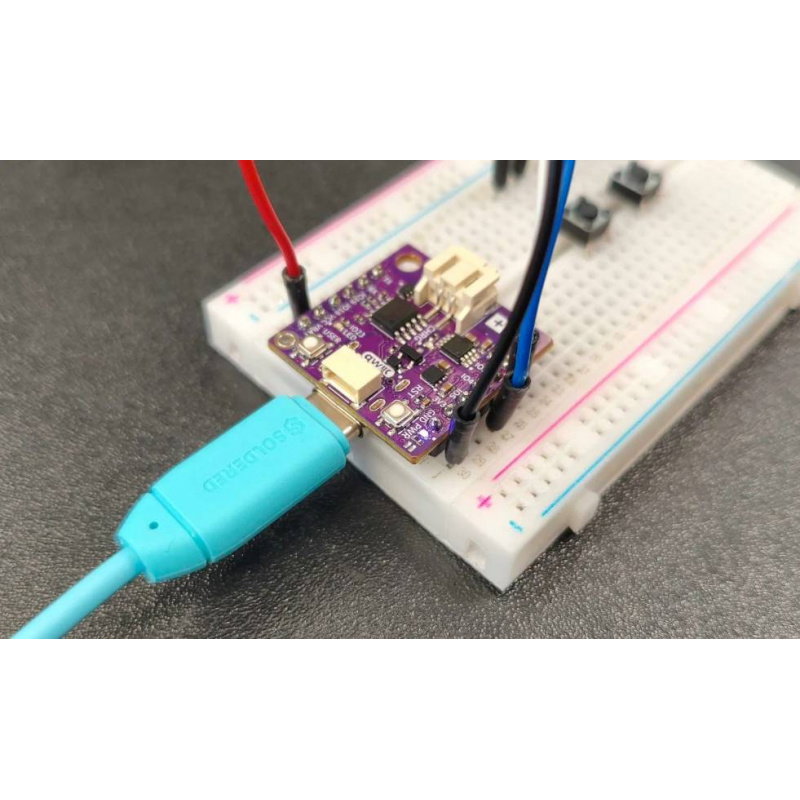

Recommended mounting orientation for the NULA Mini ESP32-C6 on a breadboard.
Programming and compatibility
The NULA Mini ESP32-C6 supports the most popular development environments used in embedded and IoT projects. The board can be programmed using the Arduino IDE, MicroPython, and the official ESP-IDF framework from Espressif. This allows both beginners and advanced developers to quickly start developing their own applications. The manufacturer ensures full compatibility with the official ESP32 package for Arduino IDE. Programming is performed via the USB Type-C connector , which also powers the device. Support for popular libraries and extensive documentation make the board ideal for educational applications, prototyping, and commercial deployments.
NULA Mini ESP32-C6 Technical Specifications
- Microcontroller: ESP32-C6-MINI-1-N4
- Architecture: 32-bit RISC-V
- Processor clock speed: up to 160 MHz
- ROM memory: 320 kB
- SRAM memory: 512 kB
- Flash memory: 4 MB
- WiFi Connectivity: WiFi 6, 802.11ax, 2.4 GHz
- Bluetooth: Bluetooth 5.3 LE, Bluetooth Mesh
- Thread / ZigBee: IEEE 802.15.4-2015, Thread 1.3, ZigBee 3.0
- Interfaces: SPI, I2C, UART, I2S, PWM
- ADC: 12-bit
- Connectors: USB Type-C, Qwiic / STEMMA QT, JST for battery
- Power supply: 5V via USB Type-C or 3.7V Li-Ion battery
- Deep sleep mode: about 7 µA
- Compatibility: Arduino IDE, MicroPython, ESP-IDF
- Mounting holes: compatible with M3 screws
- Dimensions: 25.33 x 25.33 x 10 mm
Contents of the set
- NULA Mini ESP32-C6 Development Board
- USB Type-C cable
Low power consumption and battery power capability make the board an excellent solution for mobile electronics projects.
