Product description: Module with RJ45 Ethernet connector - PiHut

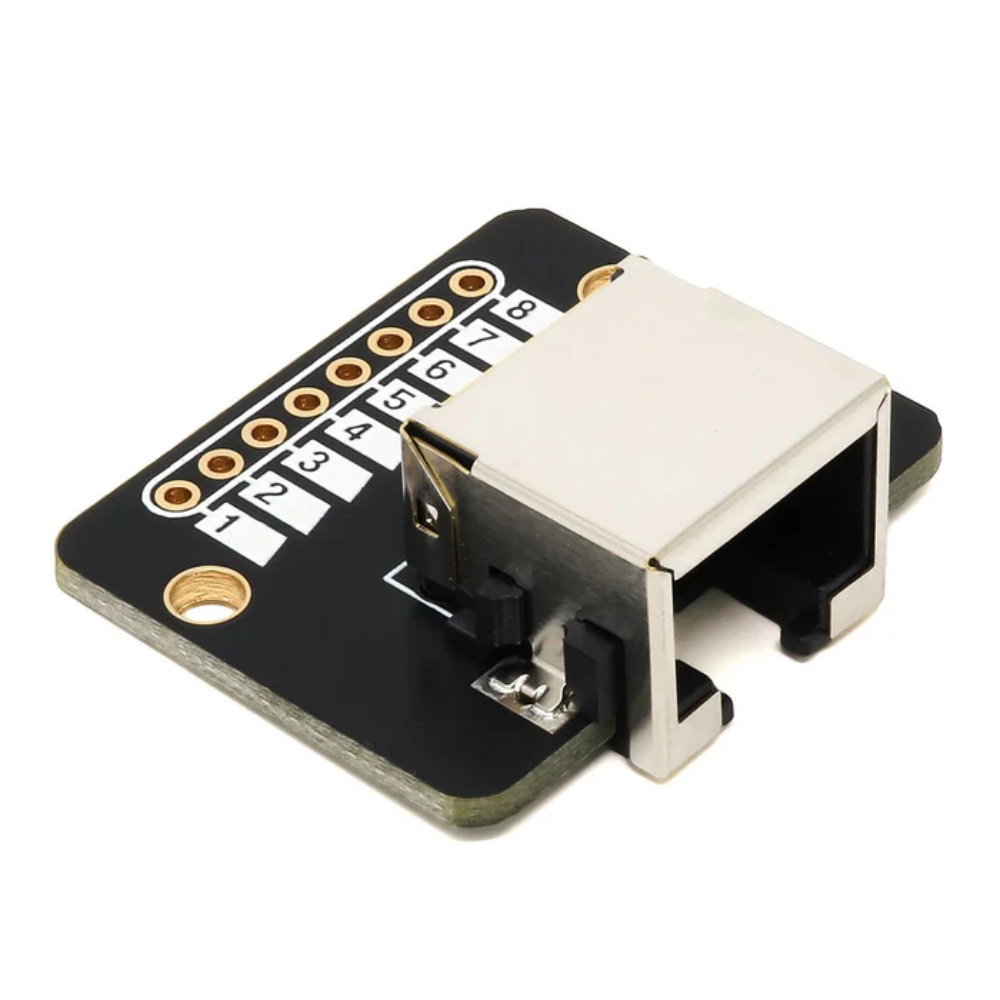

An ultra-compact module that conveniently connects all eight lines of a standard RJ45 Ethernet connector to 2.54 mm pitch solder pads. Designed for electronics projects, embedded devices, and prototyping systems that use network cables for signal and data transmission, each RJ45 connector pin is routed to clearly marked solder pads , allowing for easy connection of wires, goldpin headers, screw terminals, and breadboards . Additional solder pads on the underside of the PCB significantly simplify soldering wires and subsequent connection modifications.
Technical specifications
- Connector type: RJ45 Ethernet
- Connector orientation: horizontal
- Number of pins: 8
- Solder pad pitch: 2.54 mm
- Connector mounting type: SMT
- Additional soldering pads: yes
- Mounting holes: M2.5
- PCB coating: gold-plated
- Plate dimensions: 30 x 24 mm
Kit contents
- RJ45 module
- 8-pin goldpin strip 2.54 mm
