Raspberry Pi Compute Module 5 Programming Jig - a production station for programming CM5 modules

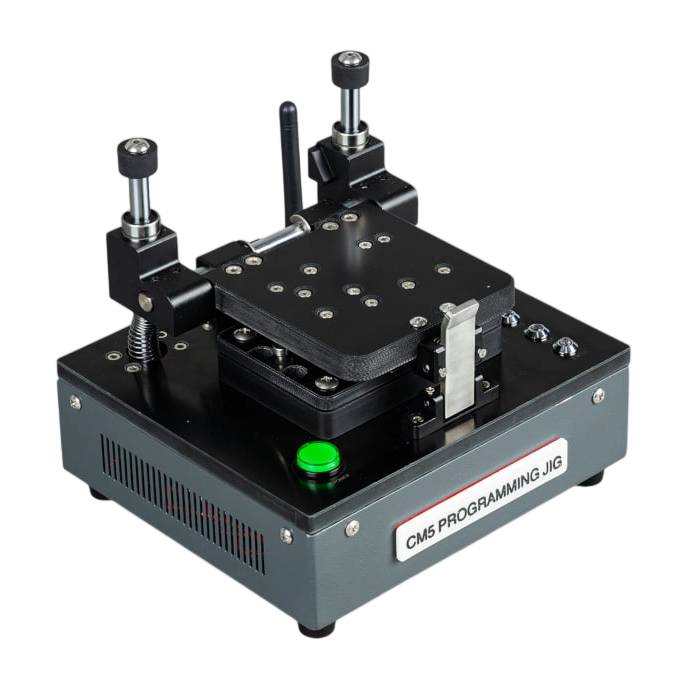

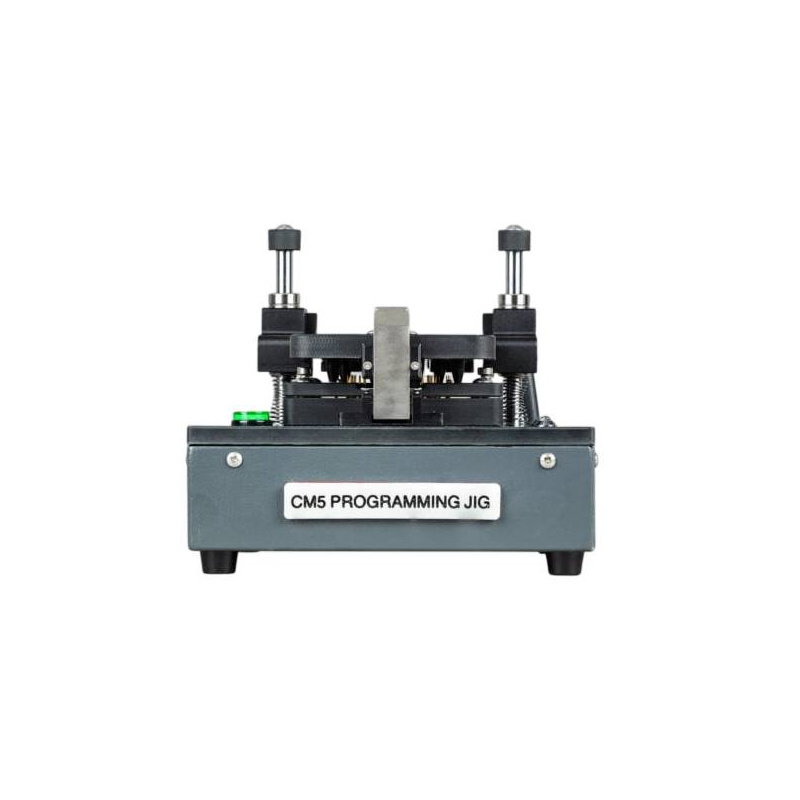

The Raspberry Pi Compute Module 5 Programming Jig is a single-head system for automatically programming CM5 modules . The device installs the operating system and configures security features without the need for an additional baseboard. A mechanical clamp, pogo pin interface, LED indicators, and two Ethernet interfaces streamline the preparation of Raspberry Pi CM5 modules for deployment in mass-produced devices.
We could not load the price.
The promotional price does not combine with quantity discounts.
Product description: Raspberry Pi Compute Module 5 Programming Jig - a production station for programming CM5 modules
The Raspberry Pi Compute Module 5 Programming Jig was designed for OEMs, integrators, and companies using CM5 modules in industrial devices. The system allows direct connection to the module using spring-loaded pogo pins , eliminating the need for a separate I/O board during programming. A clamping mechanism ensures the module's stability, compressing the pins and automatically starting the provisioning process . The device can install the operating system, create encryption keys, and configure secure boot . The JIG ETH interface or WiFi connection is used to communicate with the management network, while a separate DUT ETH interface speeds up image transfer to the CM5 module being programmed. Typical installation time for a 2.6 GB image in unsecured mode is approximately 1.5 minutes , with actual time depending on memory type, image size, and network performance.

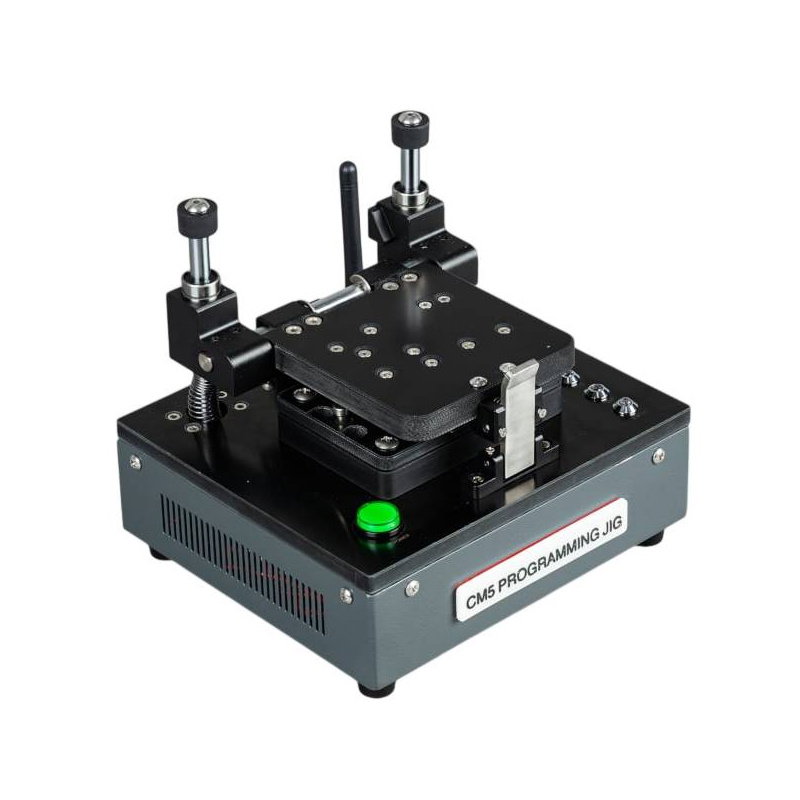

R aspberry Pi Compute Module 5 Programming Jig - a production station for programming CM5 modules.
Botland is an official distributor of Raspberry Pi single-board computers in Poland. Buying from us guarantees an original computer together with high quality accessories. You also support the Raspberry Pi Foundation, which helps develop the next version of this popular board.
The programmer communicates directly with the Compute Module 5, eliminating the need for a separate IO board.
Main features of the CM5 programmer
- Compute Module 5 Compatibility : The device is designed exclusively for programming Raspberry Pi CM5 modules.
- Automatic provisioning : operating system installation and security configuration can start automatically after closing the terminal
- One programming head : the system prepares one Compute Module 5 in a single cycle

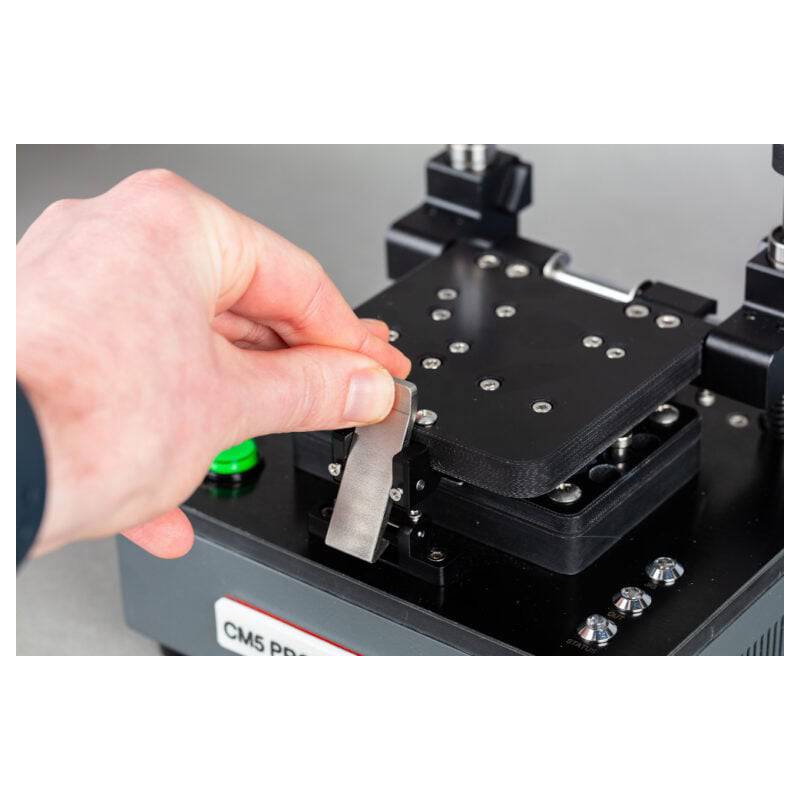

- Mechanical clamp : holds the module securely while installing the system and saving the configuration

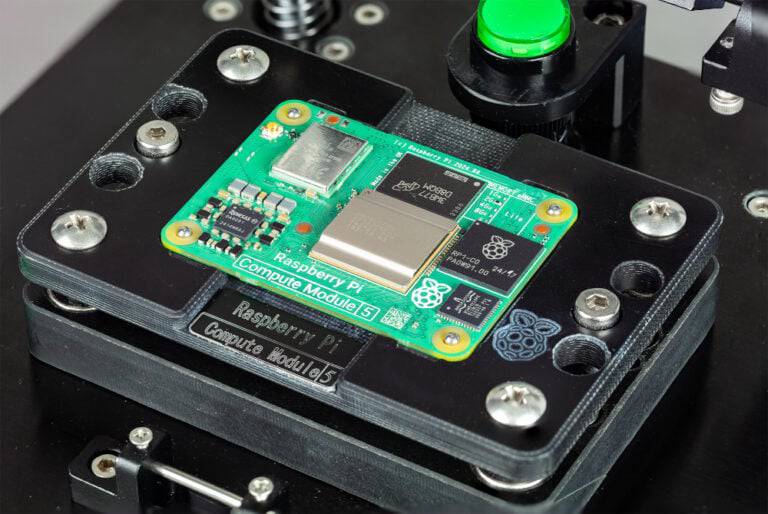

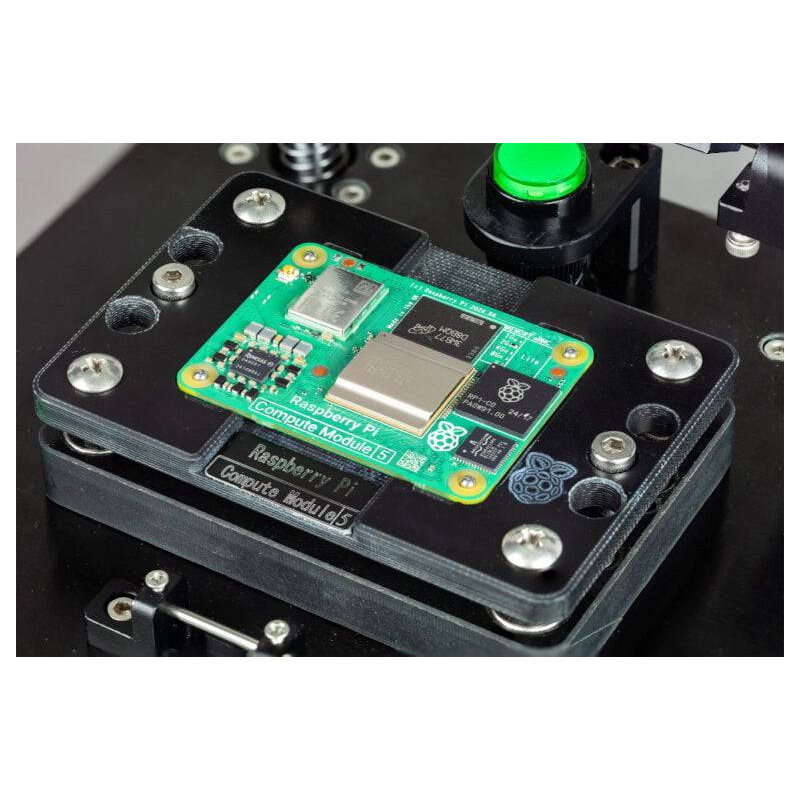

- Pogo pin interface : provides direct connection to CM5 contact points without using a baseplate
- Secure Boot : Secure Boot support restricts unauthorized software from running.
- Full-disk encryption : Full-disk encryption helps protect your system and stored data
- Three configuration modes : configure your device with secure boot and encryption, encryption only, or no additional security
- Two Ethernet interfaces : JIG ETH handles programmer communication and DUT ETH enables fast data transfer to the module
- WiFi connectivity : wireless network connection can replace the JIG ETH interface
- LED indication : JIG, DUT and STATUS indicators provide information about power, communication and the current programming stage
- Programming the programmer via USB : the USB Type-C port allows you to install the device's system using the rpiboot tool
- Possibility of scaling the station: using several programmers in parallel allows for increasing the efficiency of the production process
Automatic programming of Compute Module 5

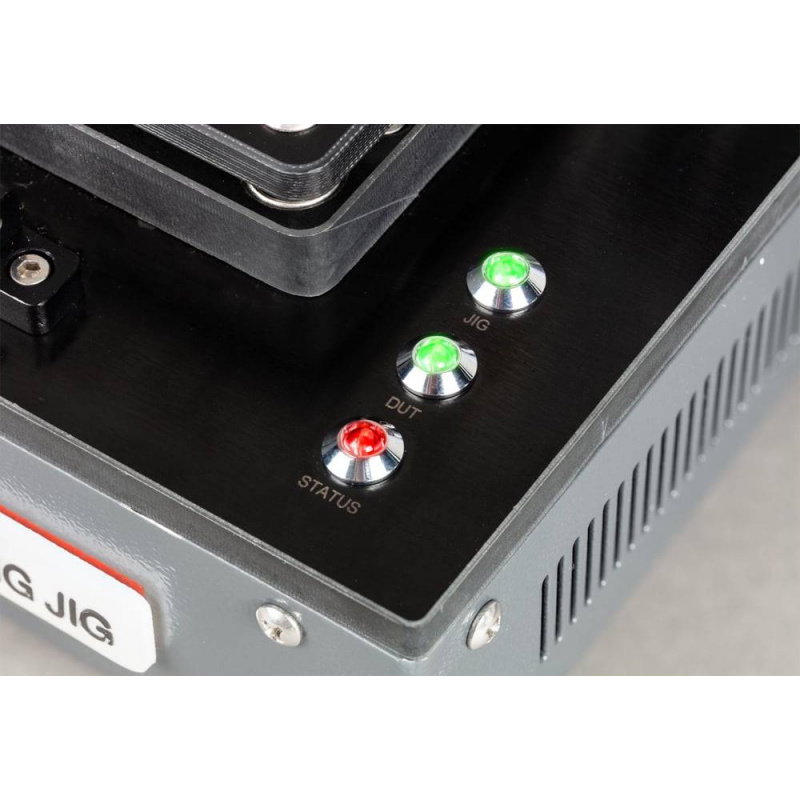

The programming process begins after the CM5 module is properly inserted into the bay and the mechanical clamp is closed. In the first stage , the programmer detects the module, launches a temporary Linux environment, and selects the service appropriate for the configured security level . In secure boot mode, a hash of the signing key can be permanently saved in the module's OTP memory. The system then formats the memory, creates encryption keys, and installs a prepared operating system image . The rpi-sb-provisioner software supports secure-boot mode, fde-only mode with memory encryption, and naked mode, designed for installing the system without secure boot or encryption. This allows for customization of the configuration for prototyping, industrial deployments, or production of devices requiring a higher level of security. The STATUS LED lights orange while the module is being detected and prepared, and red during system installation and security configuration. A green light indicates that the entire process is complete and the CM5 can be safely removed . The module should not be disconnected while the orange or red STATUS LED is lit, as interrupting the operation may result in incorrect memory writes.

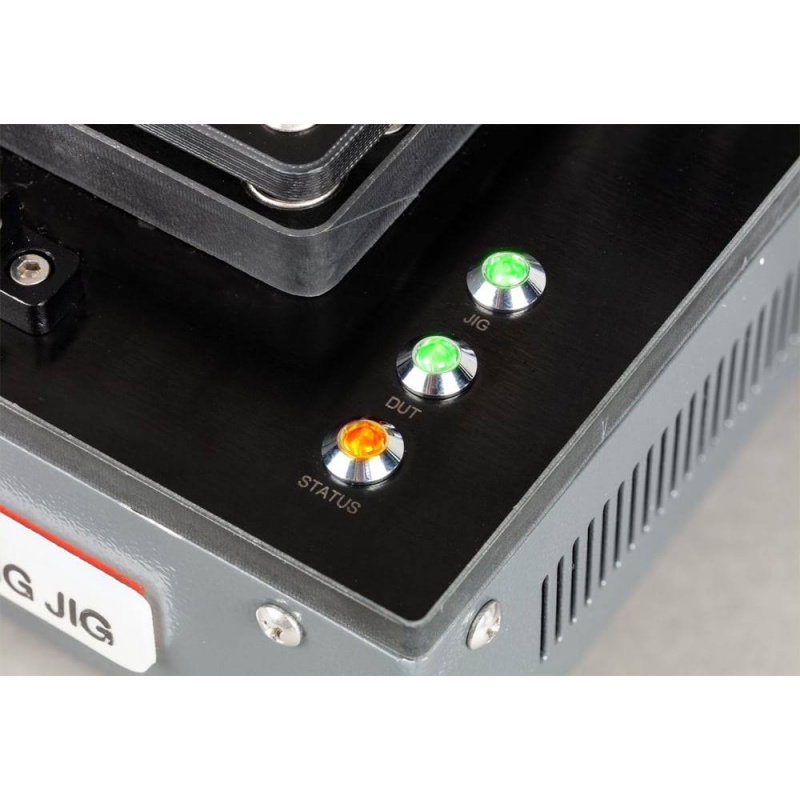

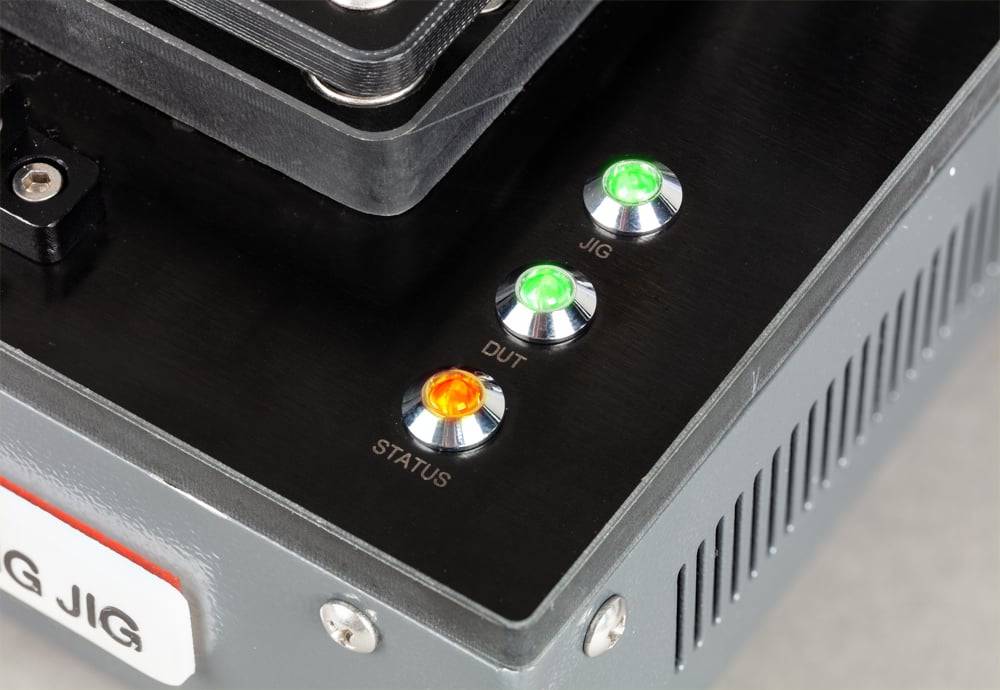

LED indicators inform about the current operating status.

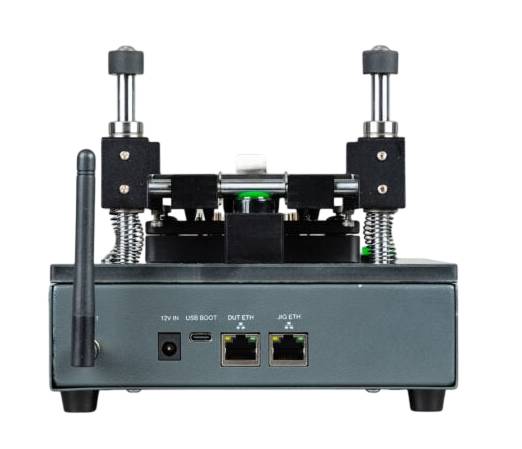

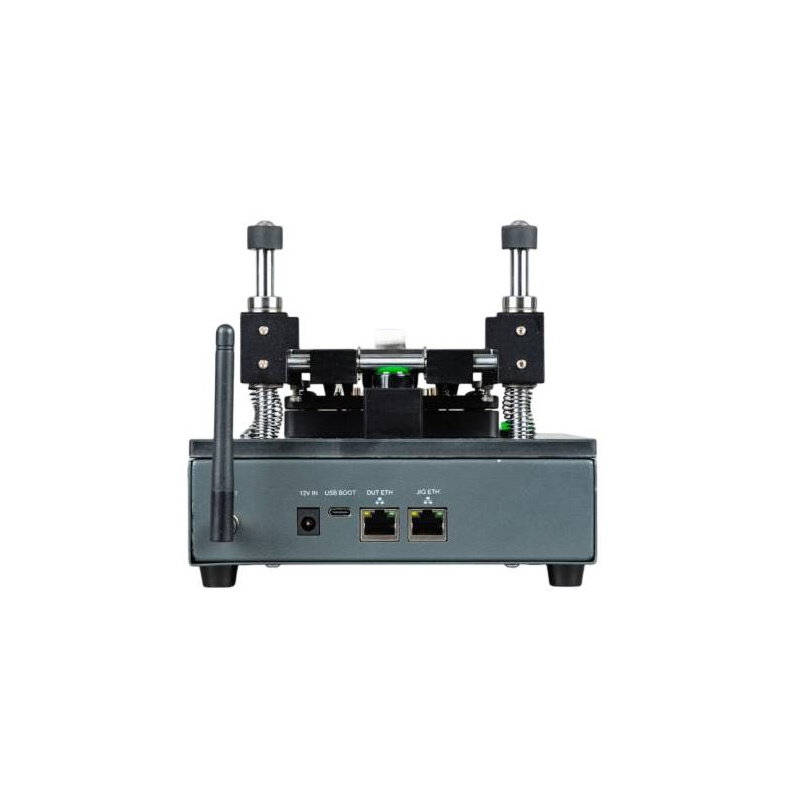

The rear of the panel houses the WiFi antenna and a 12V power connector, USB Type-C, DUT Ethernet and JIG Ethernet.
Technical specifications of the programmer
- Compatible modules: Raspberry Pi Compute Module 5
- Number of programming heads: 1
- Connection method with the module: spring-loaded pogo pin contacts
- Module mounting: mechanical clamp
- Supported features: OS installation, secure boot, full-disk encryption
- Provisioning software: rpi-sb-provisioner
- Provisioning modes: secure-boot, fde-only, naked
- JIG ETH: Ethernet 10/100/1000 Mbps
- DUT ETH: Ethernet 10/100/1000 Mbps
- Wireless connectivity: WiFi 2.4 GHz and 5 GHz, IEEE 802.11 b/g/n/ac
- USB Boot Interface: USB Type-C
- LED indicators: JIG, DUT, STATUS
- Power supply: 12V/2A
- Power supply: 24 W
- Dimensions: 172 x 188 x 154 mm
- Weight: 1796 g
