Product description: MagnetoPot - contactless magnetic linear potentiometer - 50 mm - Sparkfun SEN-27312

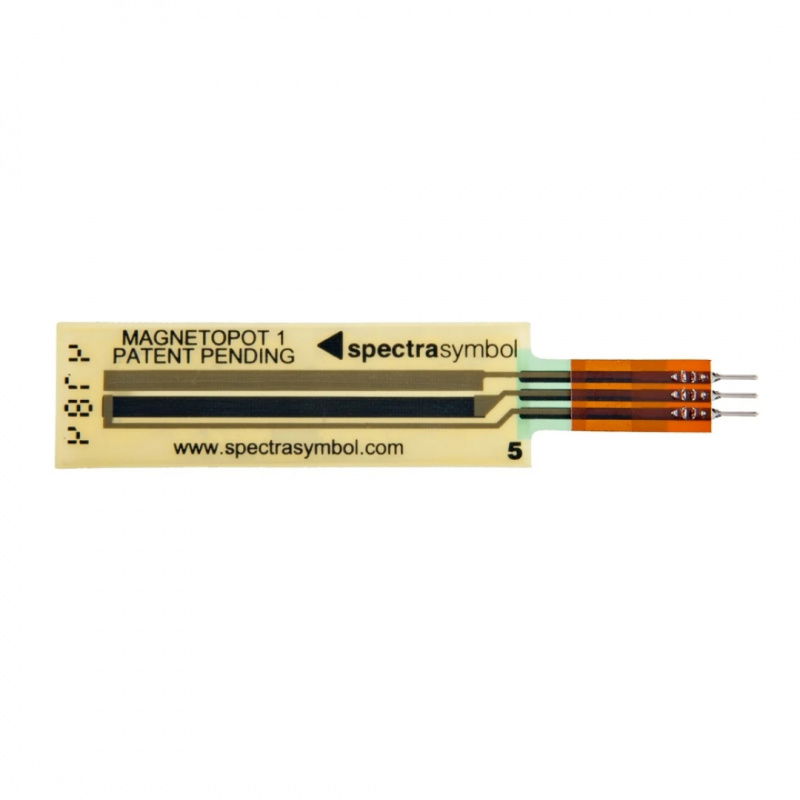

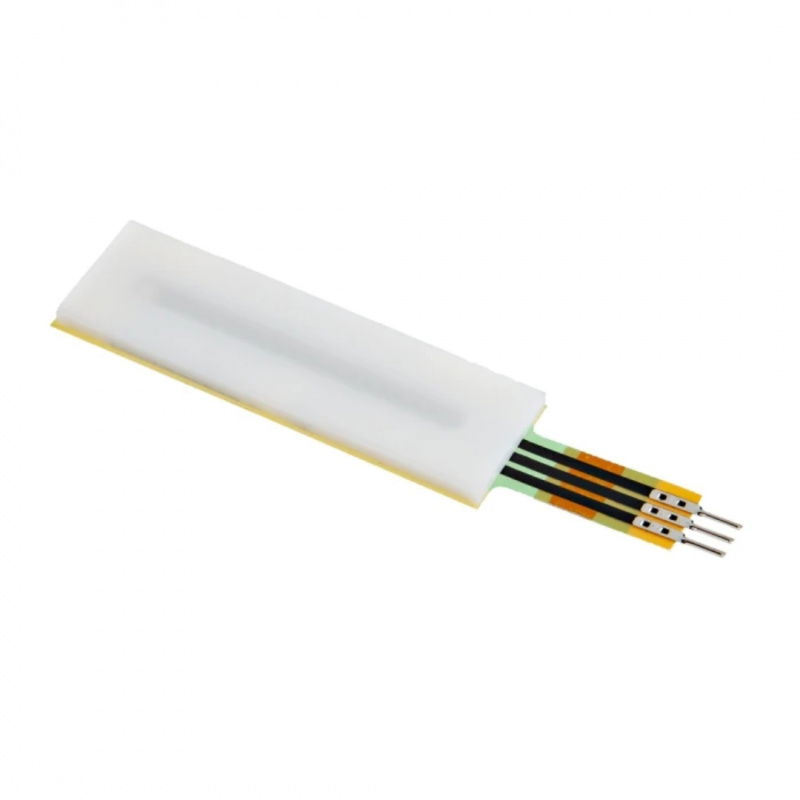

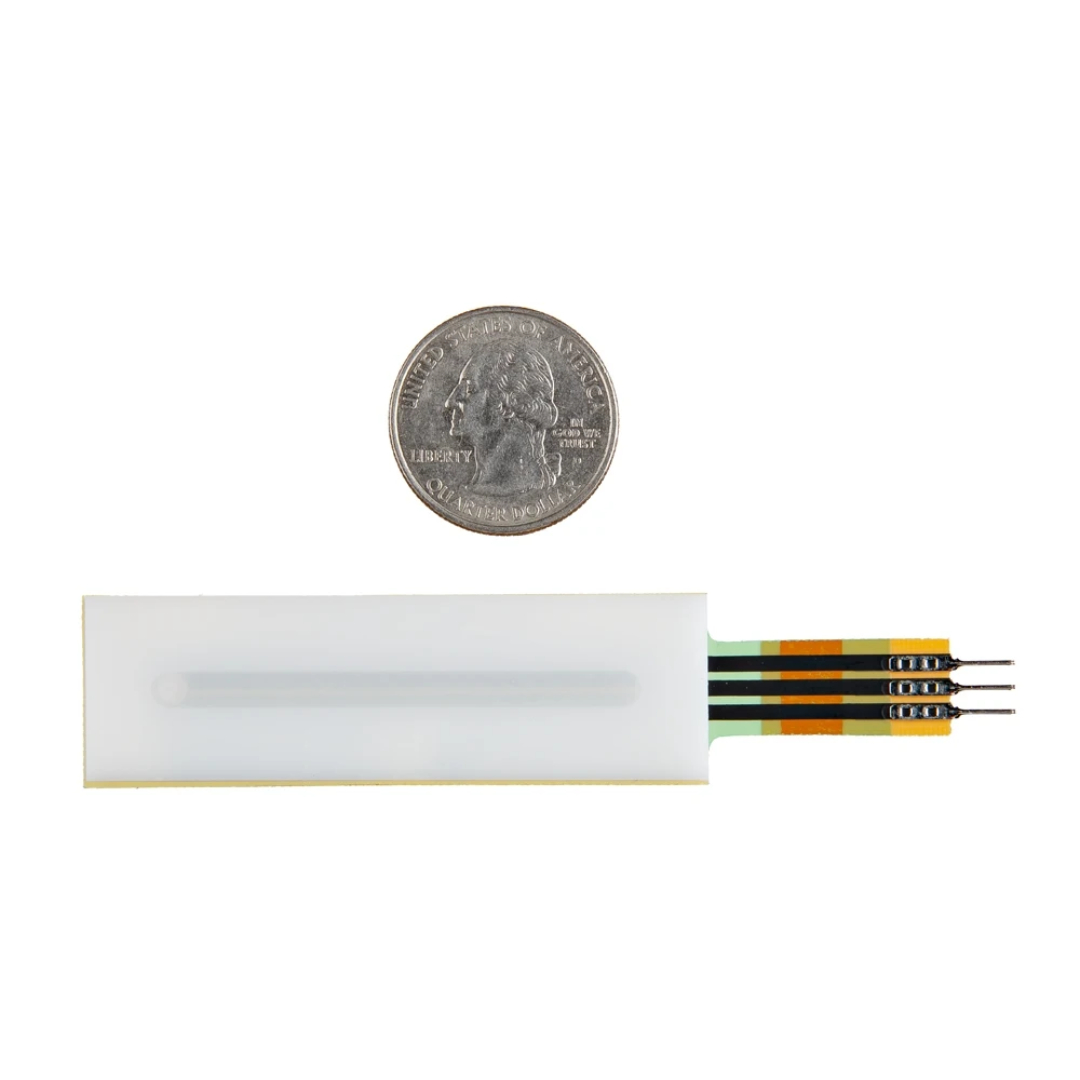

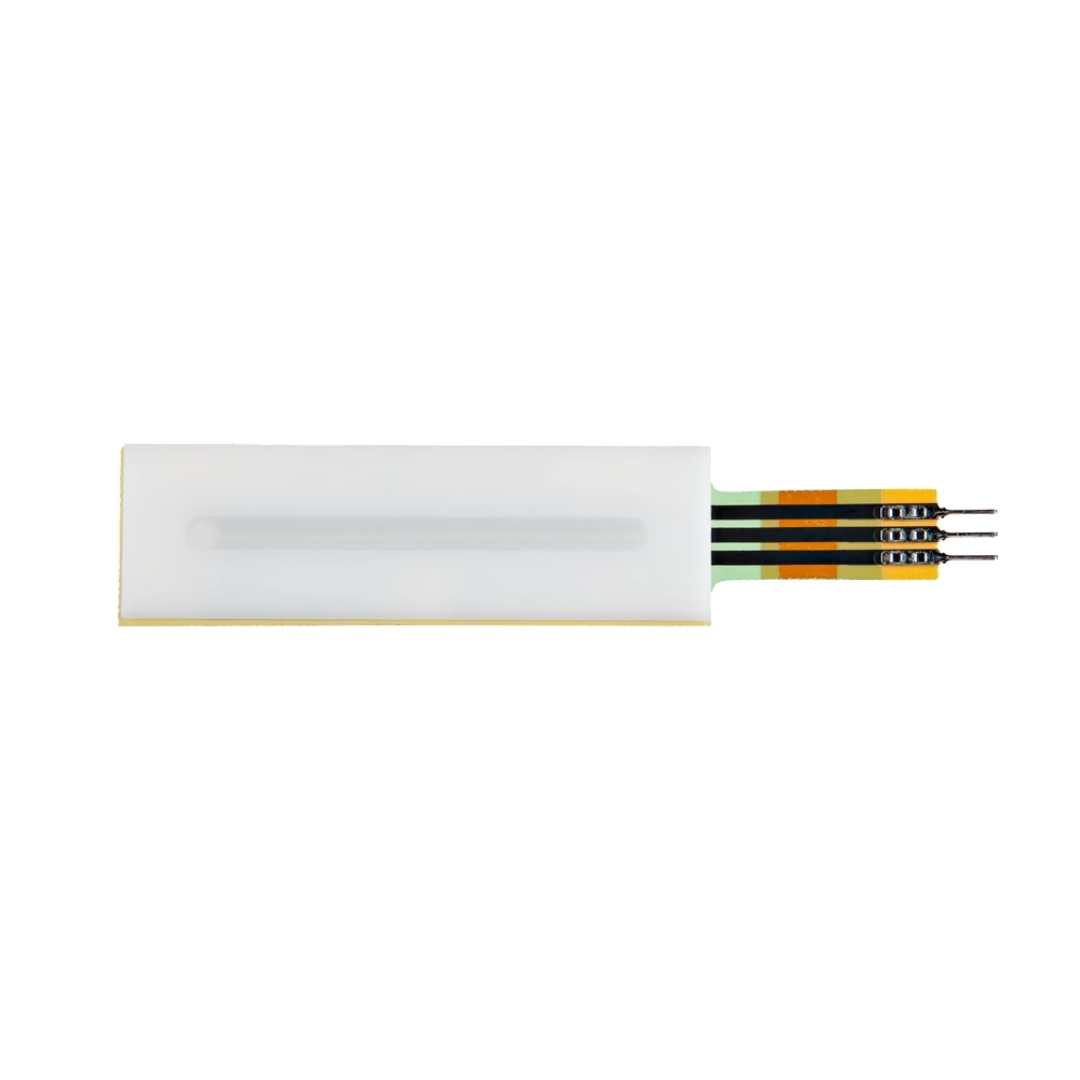

MagnetoPot is a unique, sealed linear potentiometer operating on the principle of magnetic interaction, without the traditional mechanical slider . Instead of physically moving the contact across a resistor , the position is determined by an external magnet that attracts the internal ferromagnetic element and generates a linear output signal. The 50 mm active length model has a male pin connector and offers a nominal resistance of 10 kΩ . MagnetoPot is resistant to contamination, moisture and abrasion, making it ideal for applications in harsh environments such as measuring liquid levels or the position of hydraulic and pneumatic pistons . Unlike traditional contract switches, MagnetoPot provides full position information, not just an "open" or "closed" signal.
MagnetoPot - non-contact magnetic linear potentiometer - 50 mm - Sparkfun SEN-27312.
MagnetoPot is a unique, sealed linear potentiometer operating on the principle of magnetic interaction, without a traditional mechanical slider.Special Features
- Non-contact measurement: uses a magnetic field to operate, which eliminates mechanical wear of components
- Closed and sealed construction: protects against moisture and contamination, allowing for installation outside liquid tanks
- 50mm electrical movement range: allows for accurate measurement of movement within this range, ensuring precise position detection
- High precision signal linearity: standard independent linearity is ±5%
- Exceptional durability: provides over a million operating cycles without degradation of parameters
- Low force required for operation: an external magnet with an attractive force of 0.09 lbs to 0.11 lbs is sufficient
Practical applications
MagnetoPot is ideal for monitoring the movement of hydraulic and pneumatic actuators, where precise information about the piston position is required. It is perfect for measuring the level of liquids in tanks, mounted on their external side, eliminating the risk of damage or leaks. It is also useful in industrial automation, robotics and wherever reliable, linear position measurement is required without mechanical contact and exposure to environmental factors.
Technical specification of the potentiometer
- Resistance: 10kΩ
- Resistance tolerance: ±20%
- Active electrical length: 50 mm
- Measurement resolution: depends on the strength and distance of the external magnet
- Rated power: 0.5 W continuous, 1 W peak
- Dielectric Strength: 500V AC for 1 minute
- Independent linearity: ±5%
- Hysteresis: about 3 mm (depending on magnet size and distance)
- Force of action: 0.09 lbs to 0.11 lbs of pull
- Protection class: IP64
- Lifespan: over 1,000,000 cycles
- Connector type: male pins
- Operating temperature: up to 85°C
Instead of physically moving the contact across a resistor, the position is determined by an external magnet that attracts an internal ferromagnet and generates a linear output signal. Useful links |
