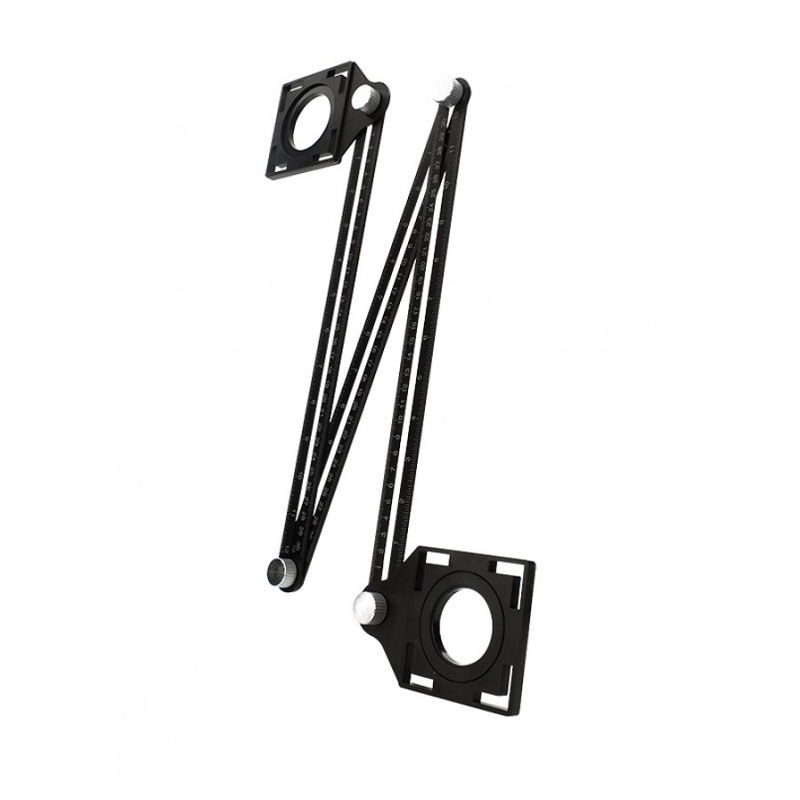

Product description: Universal construction ruler with a template for marking holes in tiles and panels - Webski FlatPro2
Webski FlatPro2 is a modern construction ruler and hole template that allows for quick and accurate mapping of the location of wires, boxes, pipes and sockets . Thanks to adjustable arms and measuring heads, it eliminates the need for tedious measurements and manual sketching on the material. This measure is an ideal tool for tilers, carpenters, fitters and DIY enthusiasts looking for precise and repeatable results.
Universal construction ruler with a template for marking holes in tiles and panels - Webski FlatPro2.

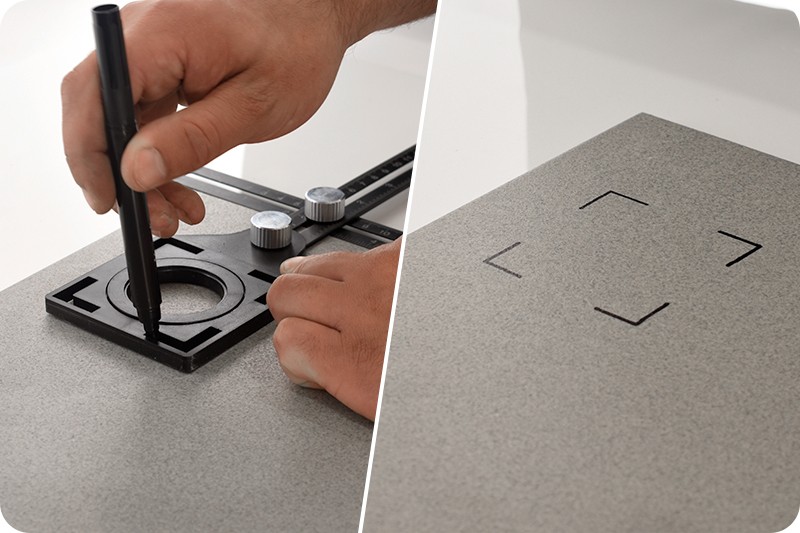

The hole marking head has cutouts that allow you to trace square shapes.
Main features of the construction ruler
- Universal use: for tiles, panels, GK boards and flat surfaces
- Adjustable heads: three interchangeable rings for marking holes with diameters of 25 mm, 41 mm and 46 mm
- Metric and imperial graduations: permanent printing in millimeters, centimeters and inches
- Solid construction: aluminum arms and screws with non-slip surface

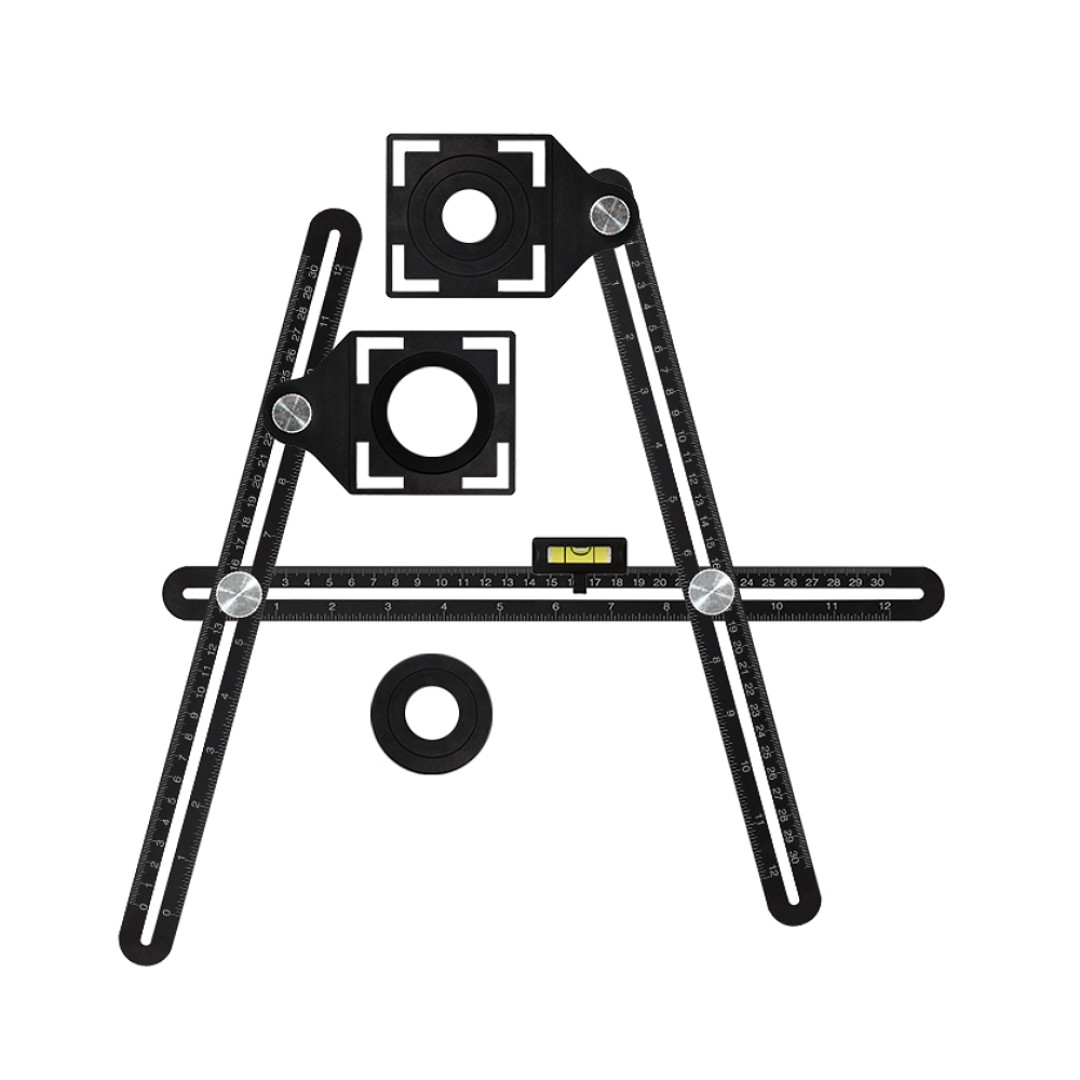

- Spirit level included: increases the accuracy of positioning relative to the edge
How to use the FlatPro2 Tracing Template
The Webski FlatPro2 construction ruler has been designed for quick and intuitive use.

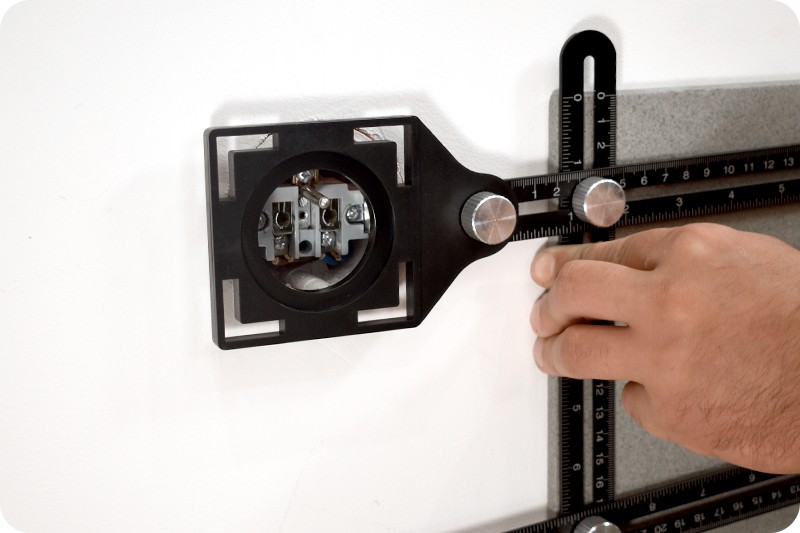

- Place the ruler on a reference plate, e.g. the upper left edge with mounted components
- Loosen the screws, set the routing heads in the right places and tighten the locks
- Transfer the ruler to the new tile, aligning it with the lower left edge
- Mark the holes and make the cuts, keeping in mind the thickness of the joint

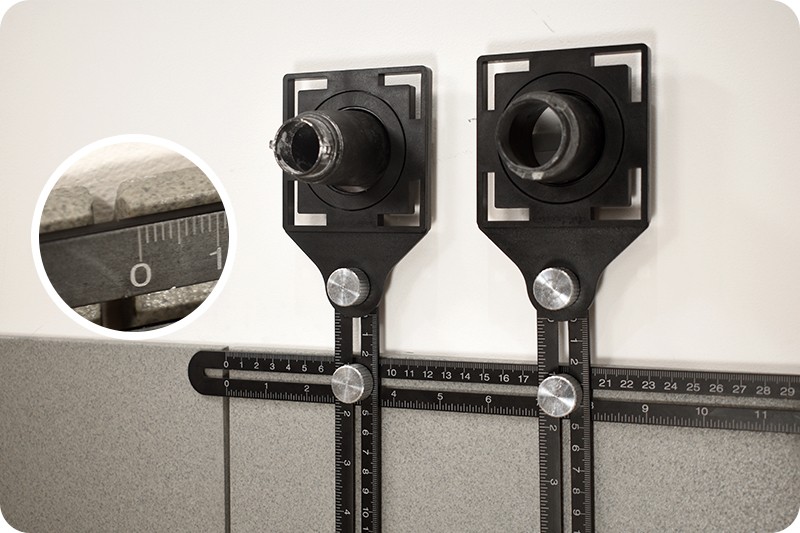

The diameter of the round holes is adjustable.
The rulers have indelible graduations in millimeters, centimeters and inches.
Practical applications
- Tiling and tile installation - marking holes for boxes and sockets
- Sanitary installations - precise mapping of places for pipes and cables
- Carpentry - marking hinges, transferring angles and mounting points
- Installation of mirrors and decorative panels - perfect fit of holes without the risk of damage
Technical specification of the FlatPro2 ruler
- Model: FlatPro.2 Ruler
- Diameters of marking holes: 25 mm, 41 mm, 46 mm
- Adjustment: full, locking arms
- Single segment length: 355 mm
- Total length: 1220 mm
- Weight: 200 g

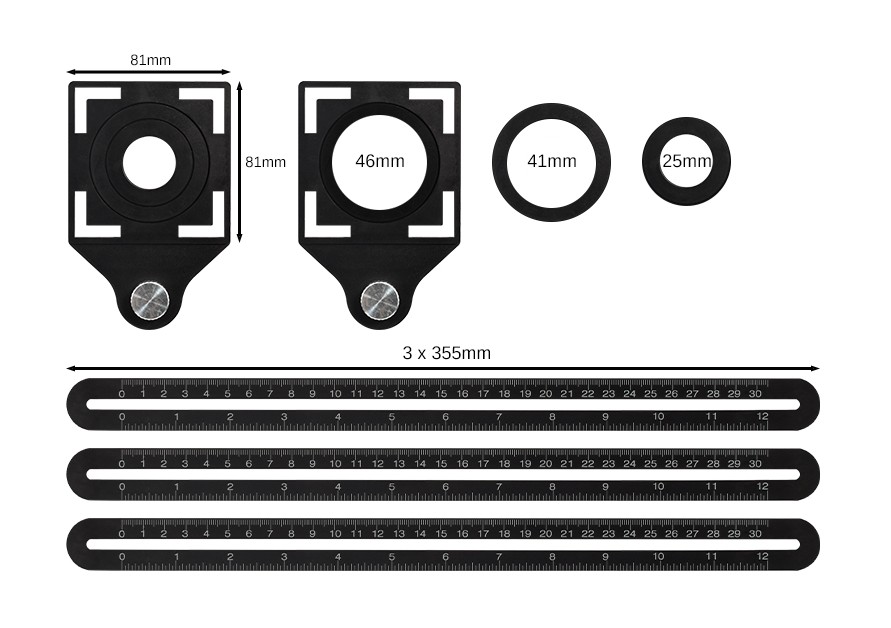

Kit Contents
- 1x Webski FlatPro2 ruler - 3 segments 355 mm long
- 2x Marking head
- 3x Ring - 46mm, 41mm, 25mm
- 1x Spirit level mounted to the ruler
- 4x Aluminum screw
Items included in the set.
