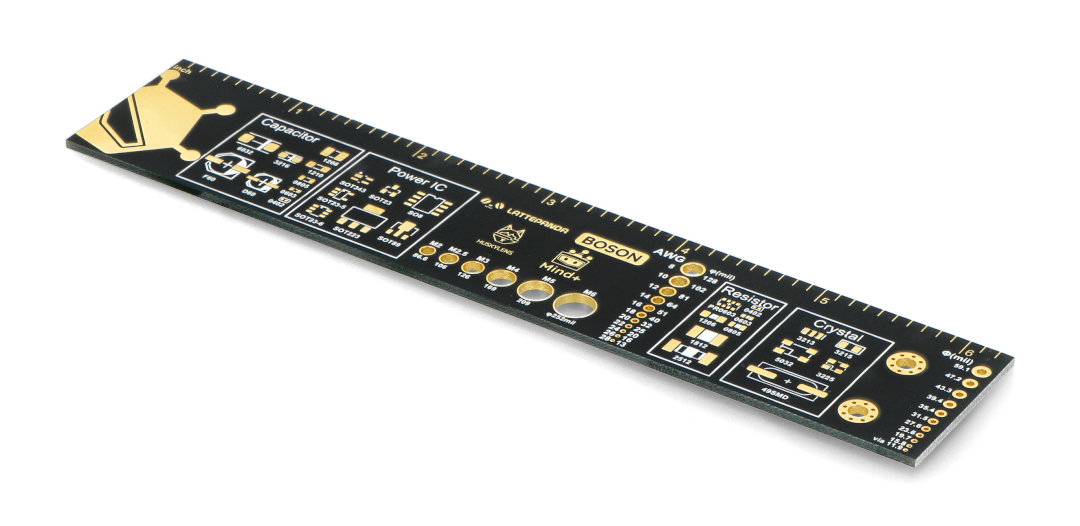

PCB Engineering Ruler - 16cm - DFRobot DWG0014-M
Ruler used in PCB design. In addition to the standard scale for distance measurement, there are AWG wire gauges and the most common screw thread sizes. It also features an imprint of popular IC enclosures and electronic components with captions. The product is made of durable plastic. The engineering ruler is scaled in centimeters and inches. Its length is respectively: 16 cm / 6,3''.
We could not load the price.
The promotional price does not combine with quantity discounts.
Description: PCB ruler - 16 cm - DFRobot DWG0014-M
Ruler used in the design of PCB. In addition to the standard scale to measure the distance, there is a pattern of AWG wire cross sections and the most common thread sizes of screws. It also features an imprint of popular IC enclosures and electronic components with captions. The product is made of durable plastic. The engineering ruler is scaled in centimeters and inches. Its length is respectively: 16 cm / 6,3''.
PCB rulerwith templates and symbols.
Botland is an official distributor of DFRobot open-source hardware. Every roboticist and practitioner of emerging technology has heard at least once of DFRobot solutions, built above all around Arduino. Our range holds original DFRobot products only.
PCB ruler- 16 cm - DFRobot DWG0014-M.

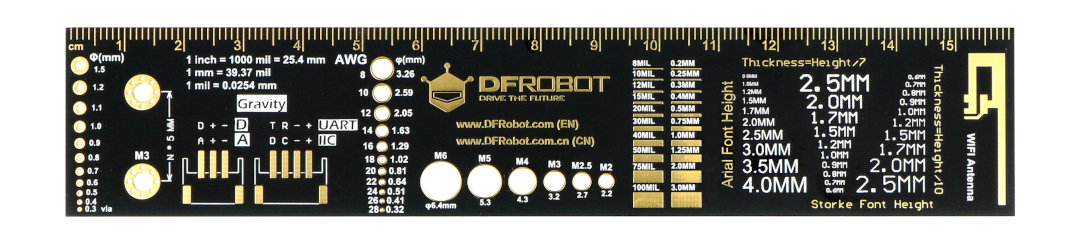

Description of the elements placed on the ruler
- AWG wire diameter standard: 8 / 10 / 12 / 14 / 16 / 18 / 20 / 22 / 24 /26 / 28
- MM-Formula: 0,3 / 0,4 / 0,5 / 0,6 / 0,7 / 0,8 / 0,9 / 1,0 / 1,1 / 1,2 / 1,5
- Thread pattern: M2 / M2.5 / M3 / M4 / M5 / M6
- Housing symbols for SMD resistors: 0402 / 0603 / 0805 / 1206 / PR0603 / 1812 / 2512
- Capacitor housing symbols: 0402 / 0603 / 0805 / 1206 / 1210 / 3216 / 6032 / D60 / F60
- Power ICs symbols: SOT343 / SOT23 / SOT23-5 / SOT23-6 / SO8 / SOT89 / SOT223
- Crystal symbols: 3213 / 3215 / 5032 / 3225 / 49SMD
- Actual size ruler
Technical specification of the ruler
- Type: PCB ruler
- Application: identification of electronic components
- Length of ruler in cm: 16
- Ruler length in inches: 6,3
| Name | Value |
|---|---|
| Width | 16.5 cm |
| Height | 0.3 cm |
| Depth | 4 cm |
| Weight | 0.02 kg |
