Product description: TLA-2 2000 N 9 mm/s 12 V tubular actuator with limit switches - stroke 35 cm
The TLA-2 tubular actuator by Elektrobim is an electric linear actuator designed to automate precise linear movements. It provides a lifting capacity of 2000 N , a stroke speed of 9 mm/s and a stroke of 350 mm . It is equipped with mechanical limit switches that ensure safe stopping of movement in any direction. The 36 mm diameter housing made in IP66 tightness class allows for use in difficult weather conditions. The actuator is ideal for industrial automation, breeding, and DIY.
Our store offers a wide selection of other models of linear actuators - check them out!

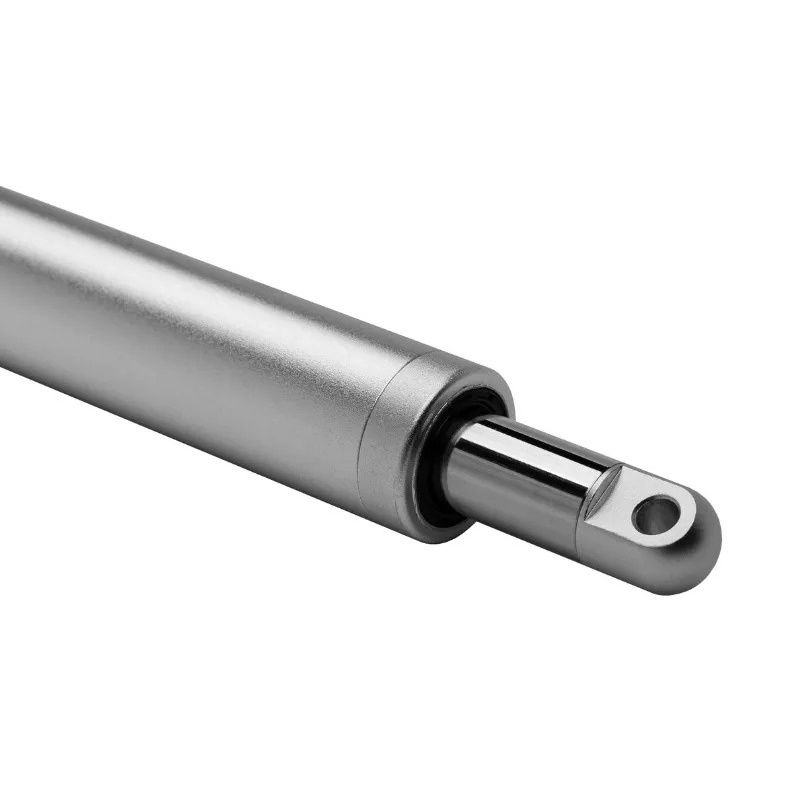

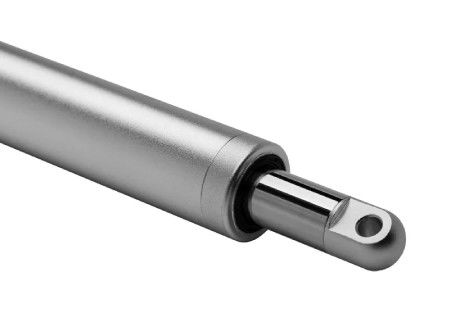

Tubular actuator TLA-2 2000 N 9 mm/s 12 V with limit switches - stroke 35 cm.

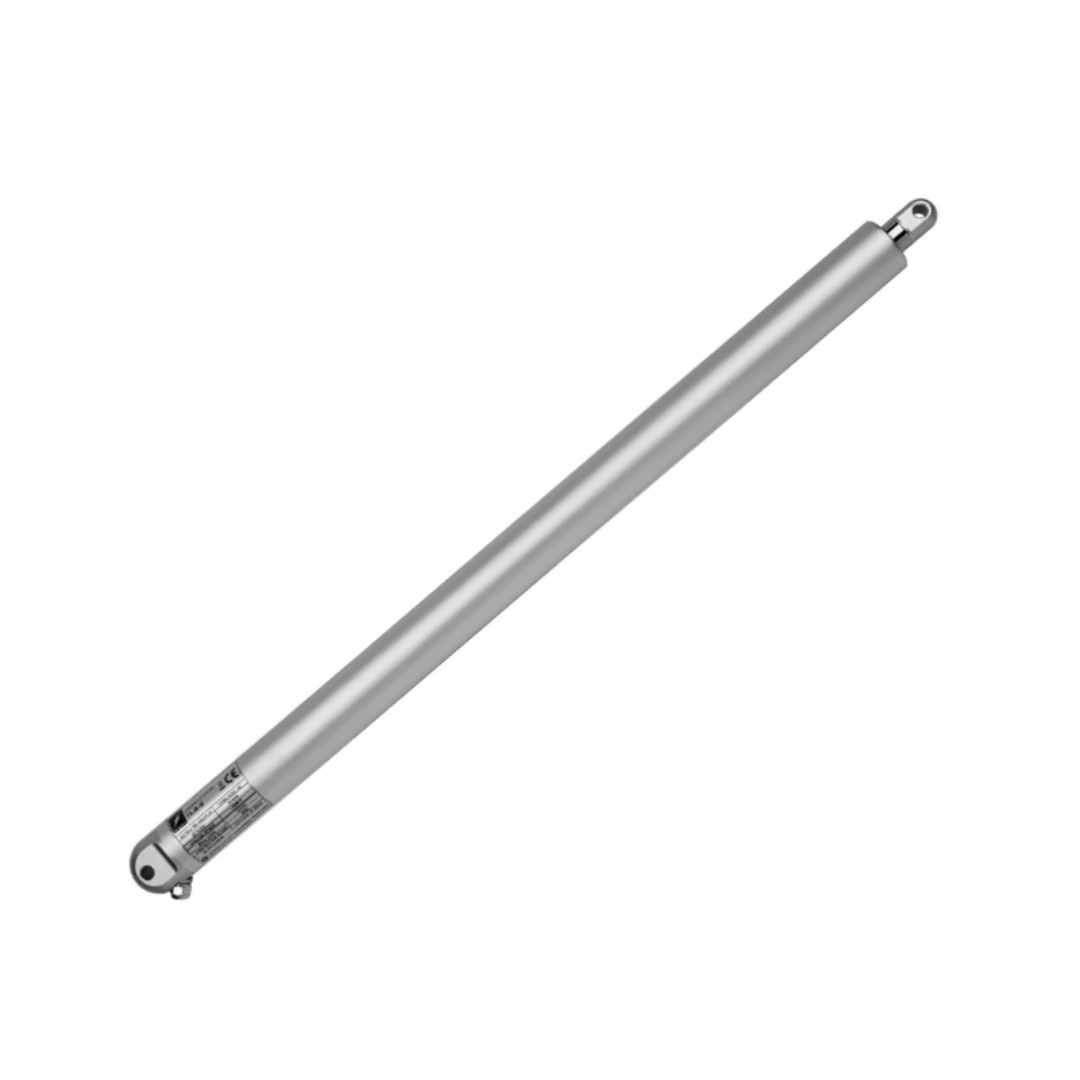

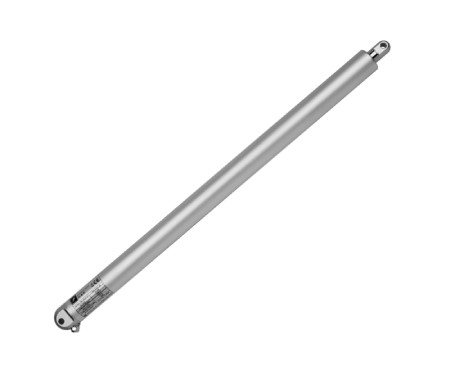

The 36mm diameter design is suitable for many applications.
Main features of the TLA-2 actuator
- High lifting force : up to 2000 N, ideal for more demanding applications
- Limit switches : mechanical, ensure safe stopping of movement
- Universal stroke of 350 mm : wide range of applications in automation and DIY
- Duty cycle 10% : maximum 2 minutes of continuous operation
- IP66 protection class : resistant to dust and water jets
- Low noise emission : noise level ≤ 56 dB
- Wide operating temperature range : from -25°C to 65°C
Connecting and controlling the actuator
The TLA-2 actuator is powered by 12 V DC . The direction of piston rod movement depends on the voltage polarity . Built-in mechanical limit switches stop movement when the maximum extension or retraction is reached. For connection, use cables with a minimum cross-section of 2 x 0.75 mm² . The actuator can be controlled manually or using relay controllers. Installation is carried out using mounting holes with a diameter of 8 mm.

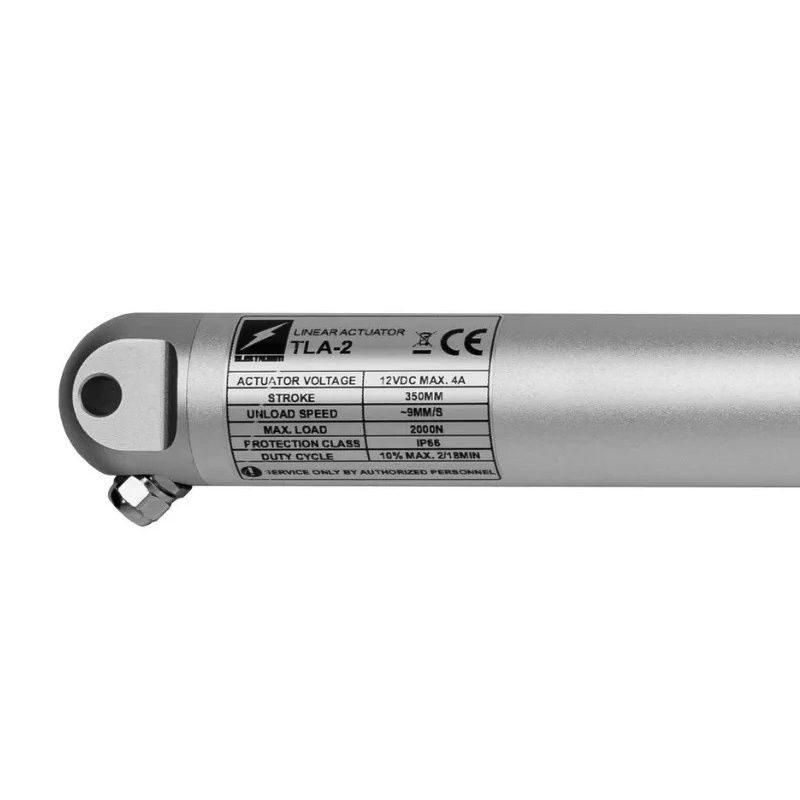

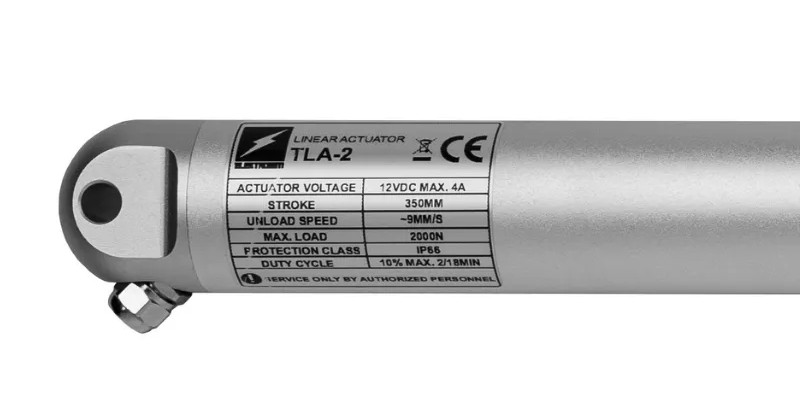

The tubular drive has a load capacity of 2000 N, and the built-in limit switches automatically stop the actuator.

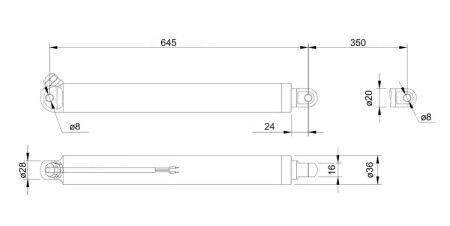

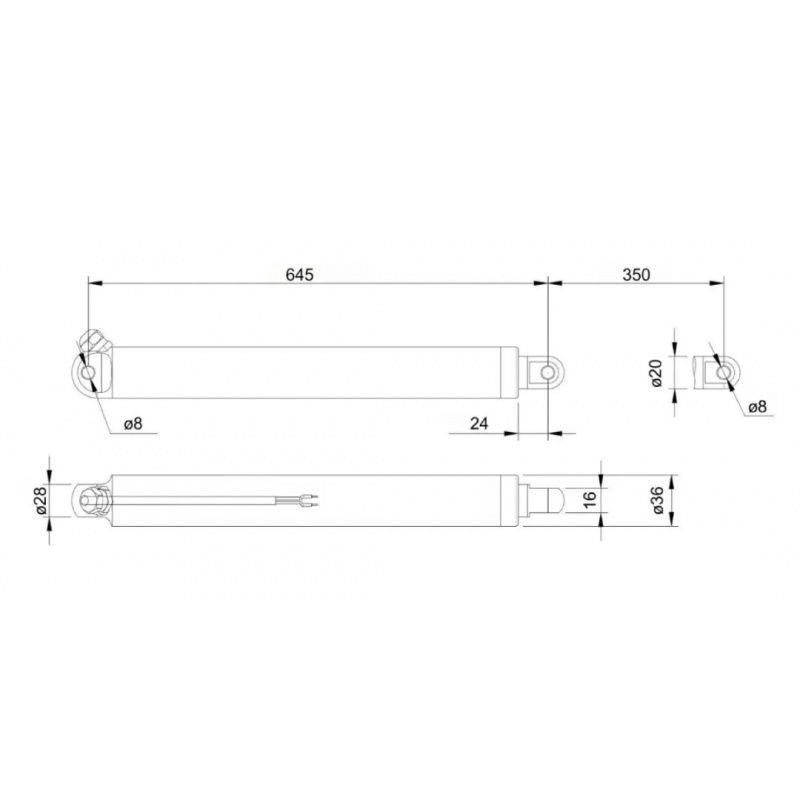

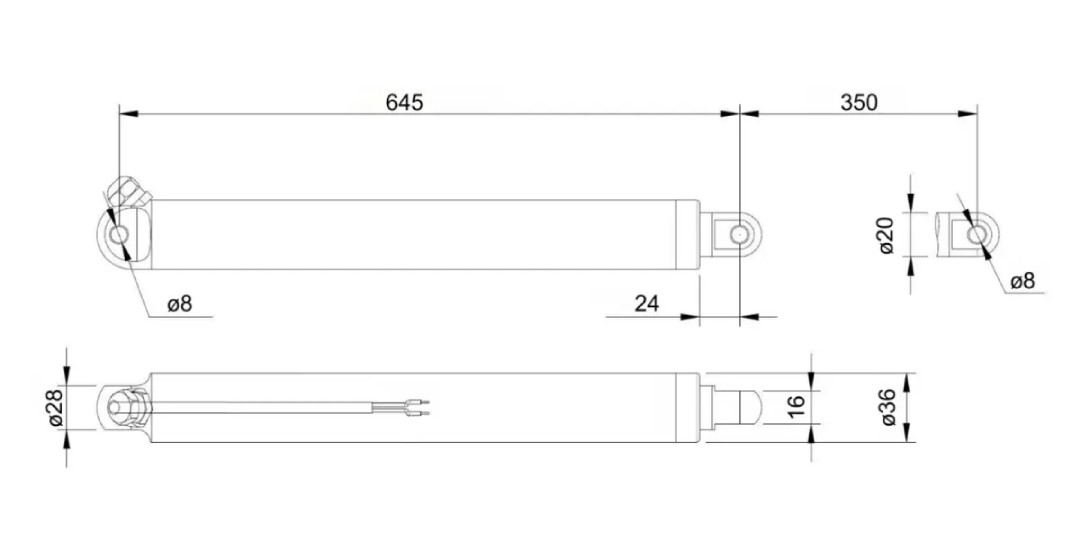

The actuator dimensions in the diagram are given in mm.
Practical applications
The TLA-2 actuator can be used in many areas - from furniture, window and flap automation , through breeding systems, to industry and DIY projects . Due to its aesthetic appearance and compact dimensions, it can also be used in spaces where the visibility of the element is of visual importance.
| Technical specification of the TLA-2 tubular actuator | |
|---|---|
| Supply voltage | 12V DC |
| Power | 48 W |
| Rated current | 4 A |
| Dynamic load capacity | 2000 N |
| Piston rod stroke | 350mm |
| Feed speed (no load) | 9mm/sec |
| Tightness class | IP66 |
| Work cycle | 10% (max. 2 min of continuous operation) |
| Noise level | ≤ 56dB |
| Operating temperature | from -25°C to 65°C |
| Feedback | lack |
| Security | limit switches (non-adjustable) |
| Total length when folded | 645mm |
| Housing diameter | 36mm |
