Product description: Aeotec TriSensor 8 - motion, temperature and light sensor - Z-Wave ZWA045-C
The Aeotec TriSensor 8 is an advanced Z-Wave 800 motion, temperature, and light sensor designed for smart home systems. It integrates three key functions in one compact housing, providing complete control over comfort, security, and energy consumption. Featuring Z-Wave 800 technology with S2 Security support, it offers greater range, improved energy efficiency, and a higher level of communication security compared to older generations. The sensor can operate in a traditional network up to 200 meters outdoors . The compact design allows for installation on a wall, ceiling, shelf, or in a dedicated Aeotec Recessor flush-mounted box.

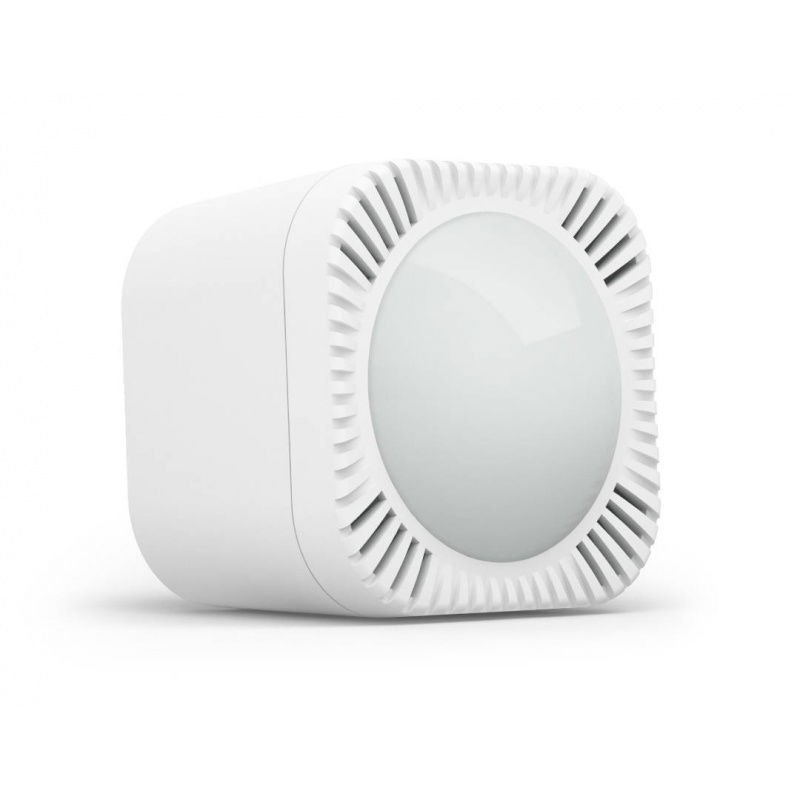

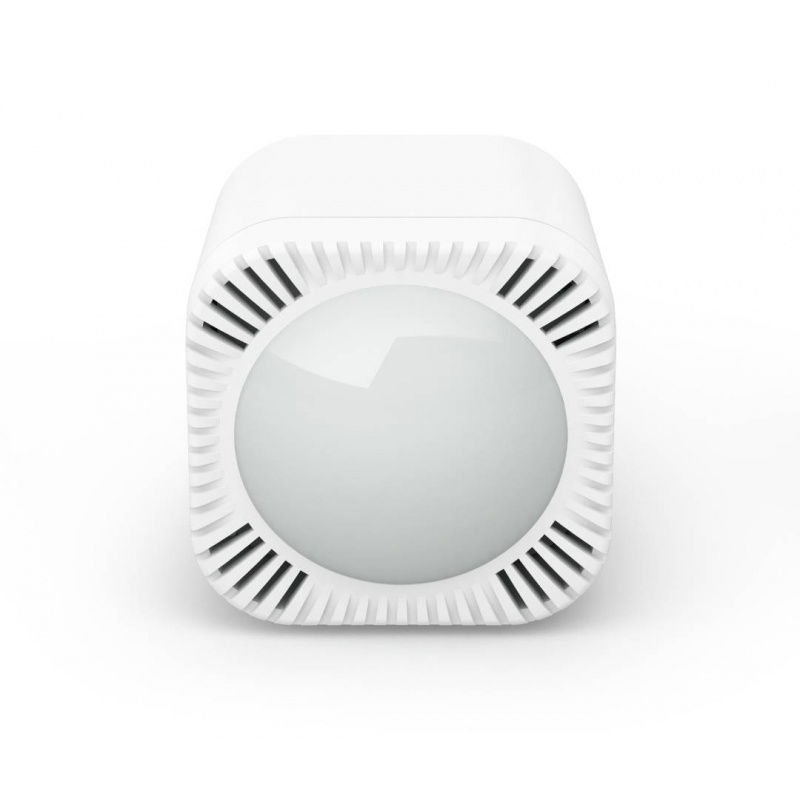

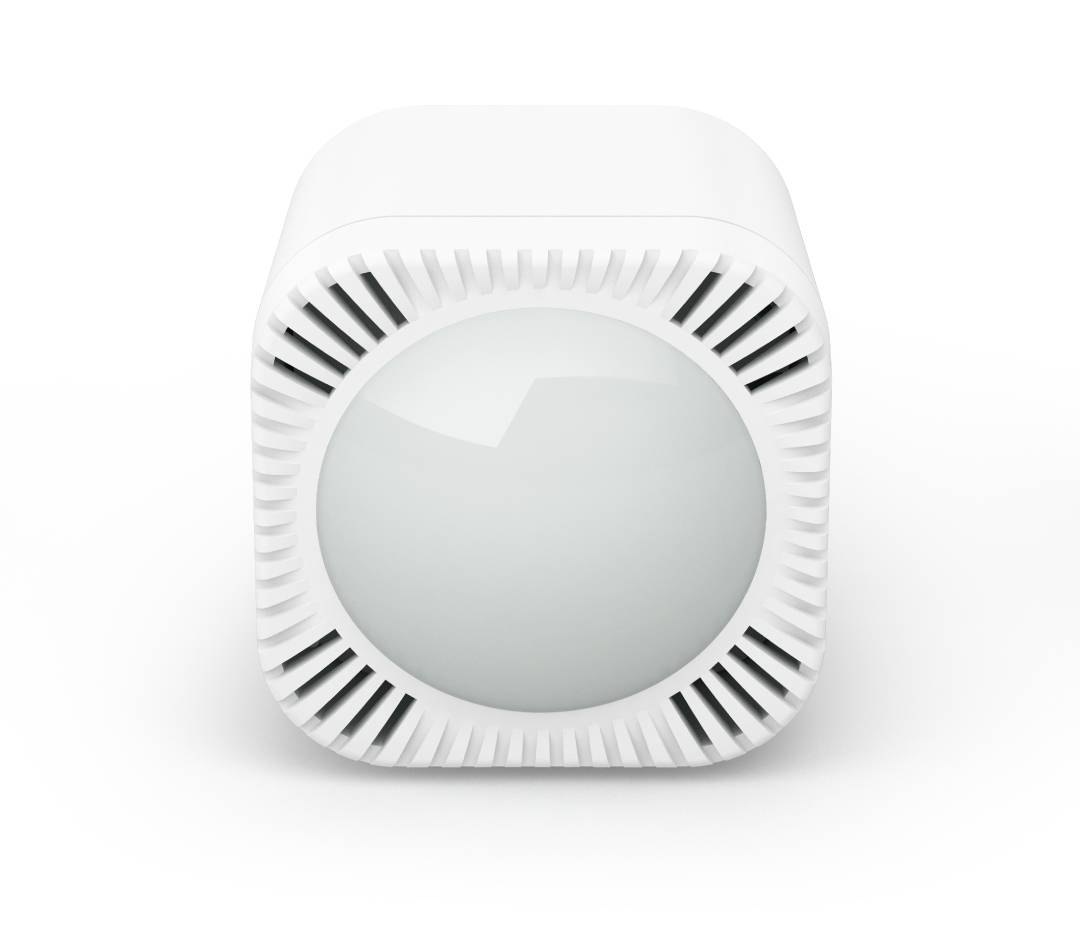

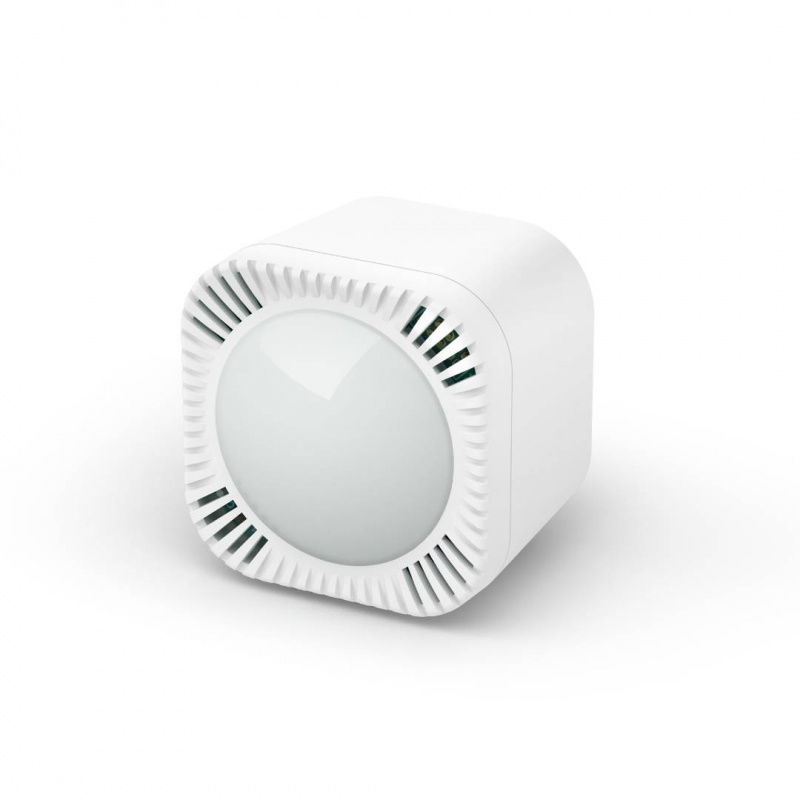

Aeotec TriSensor 8 - motion, temperature and light sensor - Z-Wave ZWA045-C.

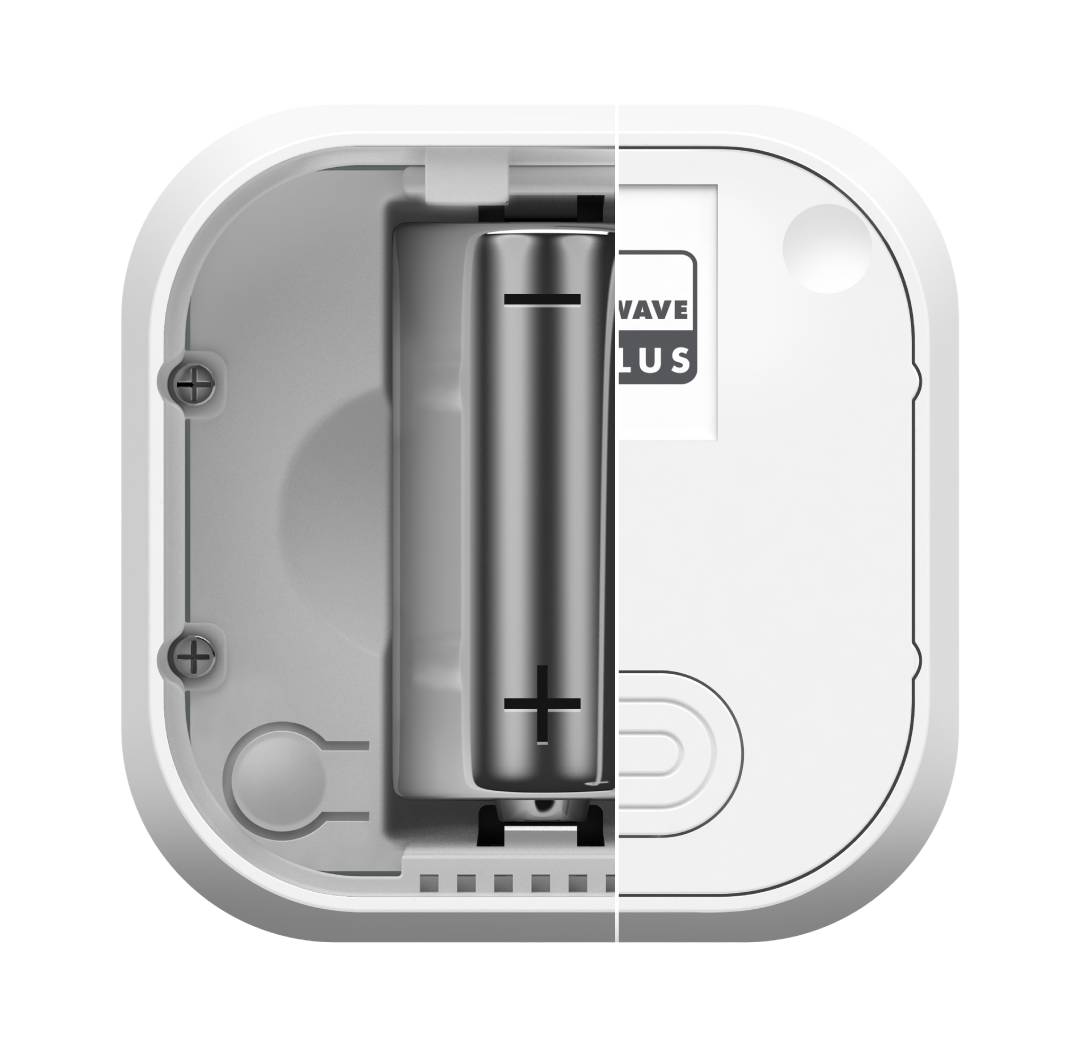

The sensor operates for up to 2.5 years on a CR123A battery.
Main features of the sensor
- Three sensors in one : integrated motion, temperature and light intensity sensor
- Z-Wave 800 Series : technology for greater range, faster performance and lower power consumption
- Impressive detection range : detects motion up to 10 m
- Precise measurements : improved temperature sensor accuracy (±1°C) and light sensor accuracy (from 0 lux to 30,000 lux)
- Long battery life : up to 2.5 years of operation on one CR123A battery

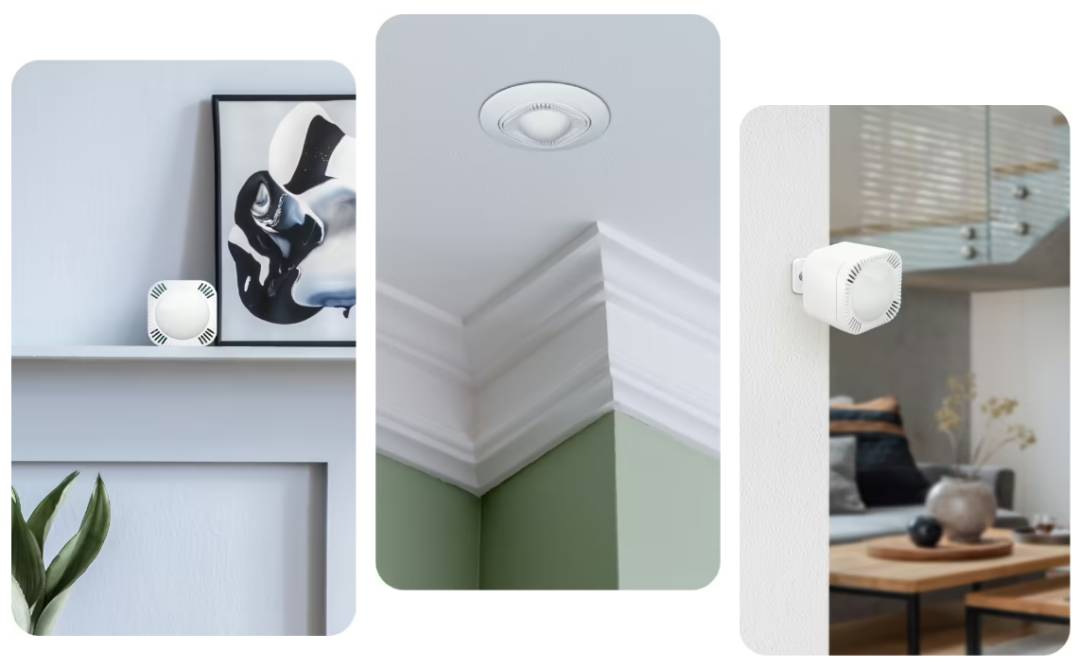

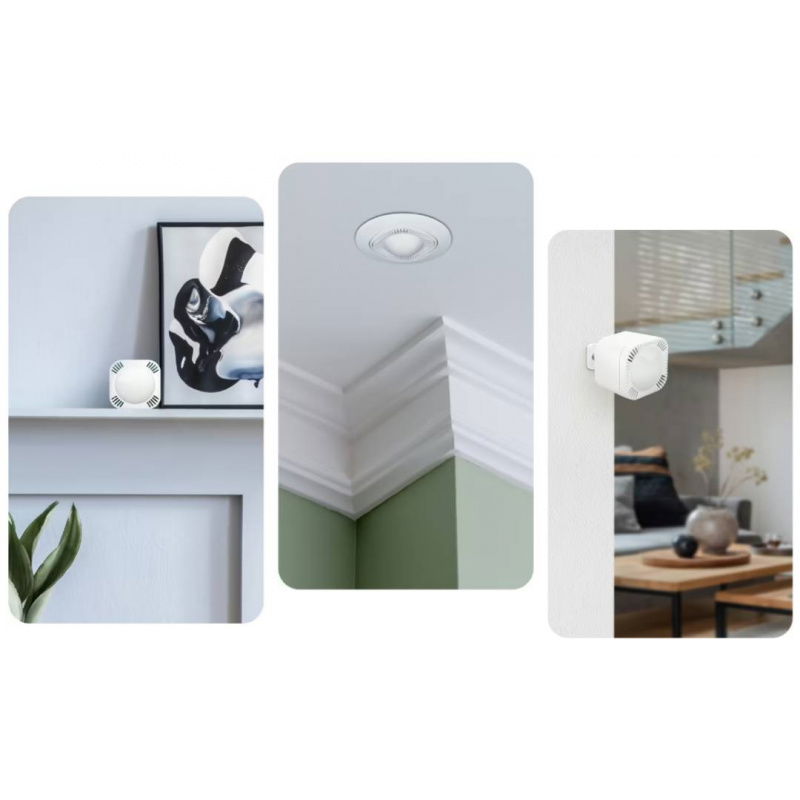

- Versatile installation : shelf-standing, wall or ceiling mounting, or recessed installation (with Recessor accessory)
Motion sensor
The integrated PIR sensor detects motion within a range of up to 10 meters , enabling automatic control of lighting, heating, or the alarm system. It offers a wide 120° detection angle , allowing for effective monitoring of even large rooms. Its rapid response instantly triggers scenes and automations. Presence detection helps increase building security and reduce energy consumption by turning on devices only when needed.
TriSensor 8 is a key element of security systems and lighting automation, reacting intelligently to the presence of household members.
Temperature sensor
The TriSensor 8 measures temperature from -10°C to 50°C with an accuracy of ±1°C . This allows for precise control of heating and air conditioning systems. Automation based on real-time temperature measurement increases user comfort and optimizes energy costs.
Light intensity sensor
The built-in light sensor measures light intensity from 0 lux to 30,000 lux with an accuracy of ±3% . It enables intelligent control of blinds, shutters, and lighting. The system can automatically adjust lamp brightness based on daylight levels, increasing comfort and energy efficiency.
Aeotec TriSensor 8 Technical Specifications
- Model: ZWA045-C
- Communication protocol: Z-Wave 800 Series
- Z-Wave S2 Security: Yes
- Power supply: 1x CR123A 3V 1500mAh battery
- Maximum movement range: 10 m
- Temperature range: -10°C to 50°C ±1°C
- Light intensity range: 0 lux to 30000 lux ±3%
- Communication range: up to 200 m in open space
- Degree of protection: IP20
- Dimensions: 45 x 45 x 40 mm
- Weight: 22 g

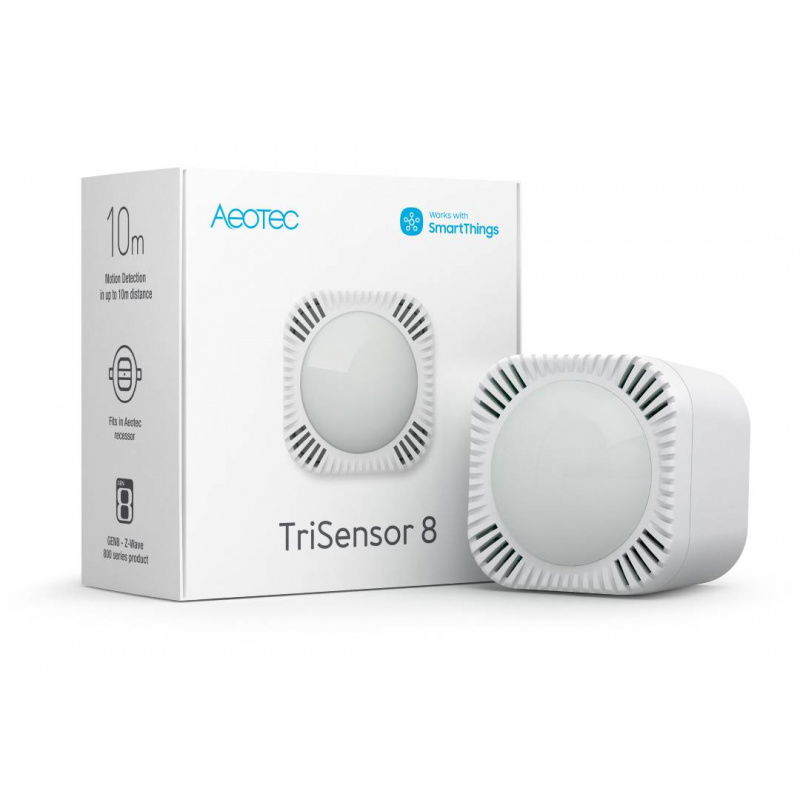

Contents of the set
- 1x Aeotec TriSensor 8
TriSensor 8 allows for versatile installation, making it suitable for apartments, single-family houses, and office installations.
