reTerminal E10-1 - PoE/UPS, Gigabit Ethernet, LTE/4G/5G/LoRaWAN, RS485/232, CAN, SATA expansion - Seeedstudio 103060001
The reTerminal E10-1 extension to the reTerminal allows for mobile device power, wireless communication and industrial data transmission with audio support. The module is equipped with a gigabit Ethernet connector , LTE / 4G / 5G / LoRaWAN wireless communication system (not included), RS485, RS232 and CAN Bus interfaces, as well as a M.2 key B drive slot, two microphones and a loudspeaker, and PoE functions and UPS through the possibility of using 18650 batteries.
We could not load the price.
The promotional price does not combine with quantity discounts.
Product description: reTerminal E10-1 - PoE / UPS extension, Gigabit Ethernet, LTE / 4G / 5G / LoRaWAN, RS485 / 232, CAN, SATA - Seeedstudio 103060001

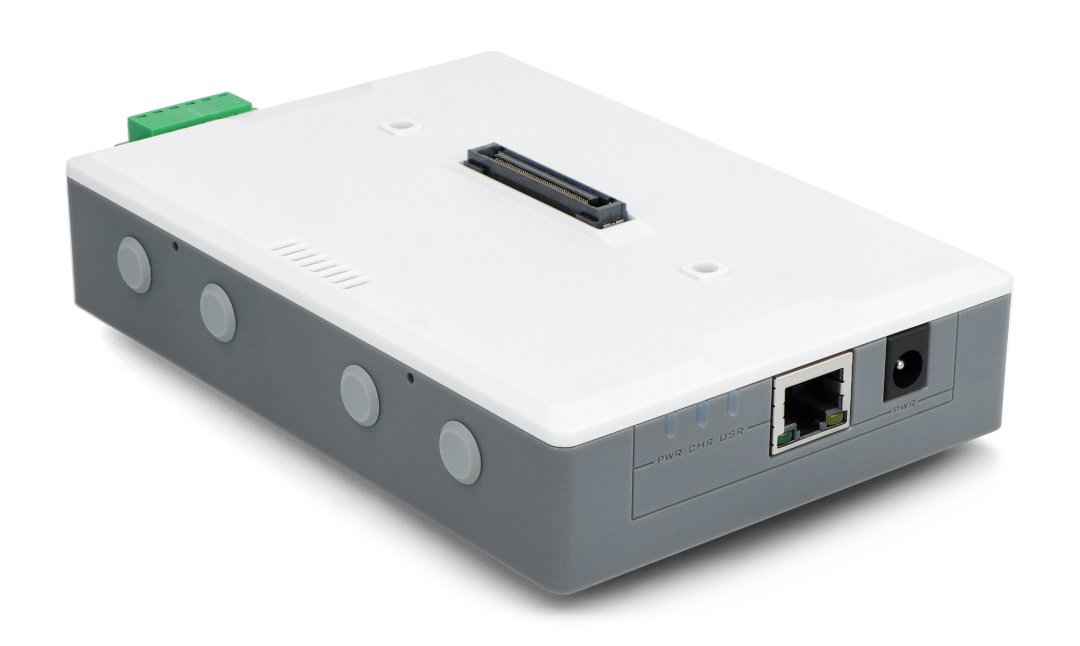

The reTerminal E10-1 extension to the reTerminal allows for mobile device power, wireless communication and industrial data transmission with audio support. The module is equipped with a gigabit Ethernet connector , LTE / 4G / 5G / LoRaWAN wireless communication system (not included), RS485, RS232 and CAN Bus interfaces, as well as a M.2 key B drive slot, two microphones and a loudspeaker, and PoE functions and UPS through the use of 18650 batteries. The ReTerminal E10-1 is an expansion card that can be easily connected to the reTerminal via a high-speed industrial signal connector. The module enables power supply via a Li-Ion 18650 battery (not included) or a DC socket. The board uses the Power over Ethernet (PoE) module, thanks to which the reTerminal E10-1 can also be charged via the Gigabit Ethernet RJ45 connector.
The device for LTE / 4G / 5G / LoRaWAN communication requires an additional Mini PCIe module - not included.

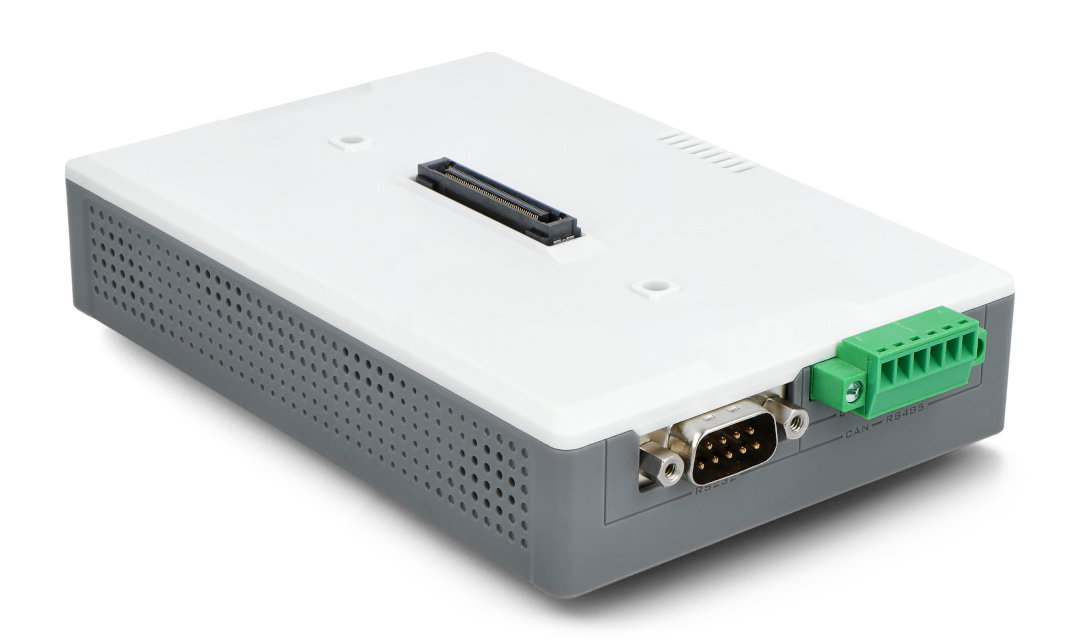

ReTerminal E10-1 equipped with e.g. with RS232, RS485 and CAN interface.
Botland is an official distributor of electronics and robotics solutions from Seeedstudio. Hundreds of ready to use devices, components and modules are available from stock or to order. Our team guarantees that all Seeedstudio products presented here are original.

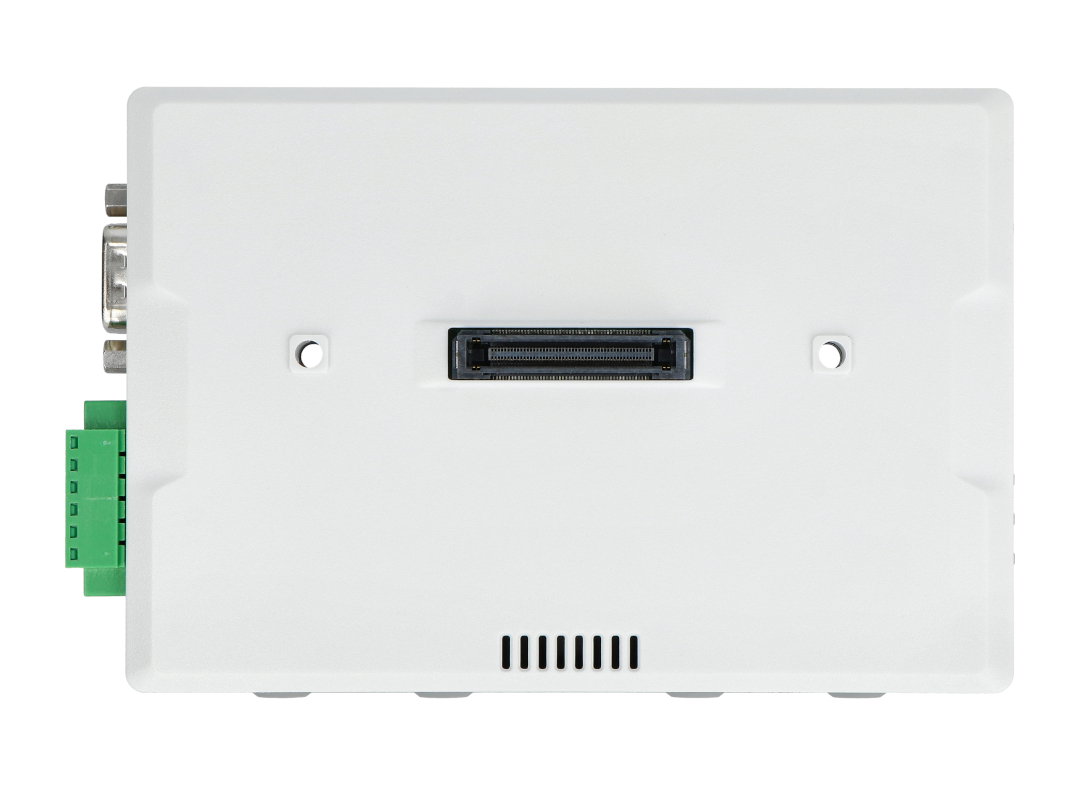

The device is equipped with a 100-pin connector for connection to reTerminal.
Main features of reTerminal E10-1
- Alternative power modes : two Li-Ion 18650 batteries (not included), DC socket and PoE function
- Wireless communication : LoRaWAN / LTE / 4G / 5G (using an additional module - not included)
- Industrial interfaces : RS485, RS232 and CAN Bus
- Storage : M.2 key B, SATA 2.0 SSD support
- Integrated audio : two microphones and a speaker allow you to extend the possibilities of artificial intelligence (AI)
Application of the module
- Industry: machine monitoring, security alarm, industrial level data transfer and storage
- Agriculture: crop monitoring, LoRa / LTE / 5G wireless communication
- Home: home monitoring, security alarm
- Individual: human-machine interaction computer
Kit contents
- reTerminal E10-1 - extension PoE/UPS, Gigabit Ethernet, LTE/4G/5G/LoRaWAN, RS485/232, CAN, SATA - Seeedstudio 103060001
- Screwdriver
- A set of mounting screws

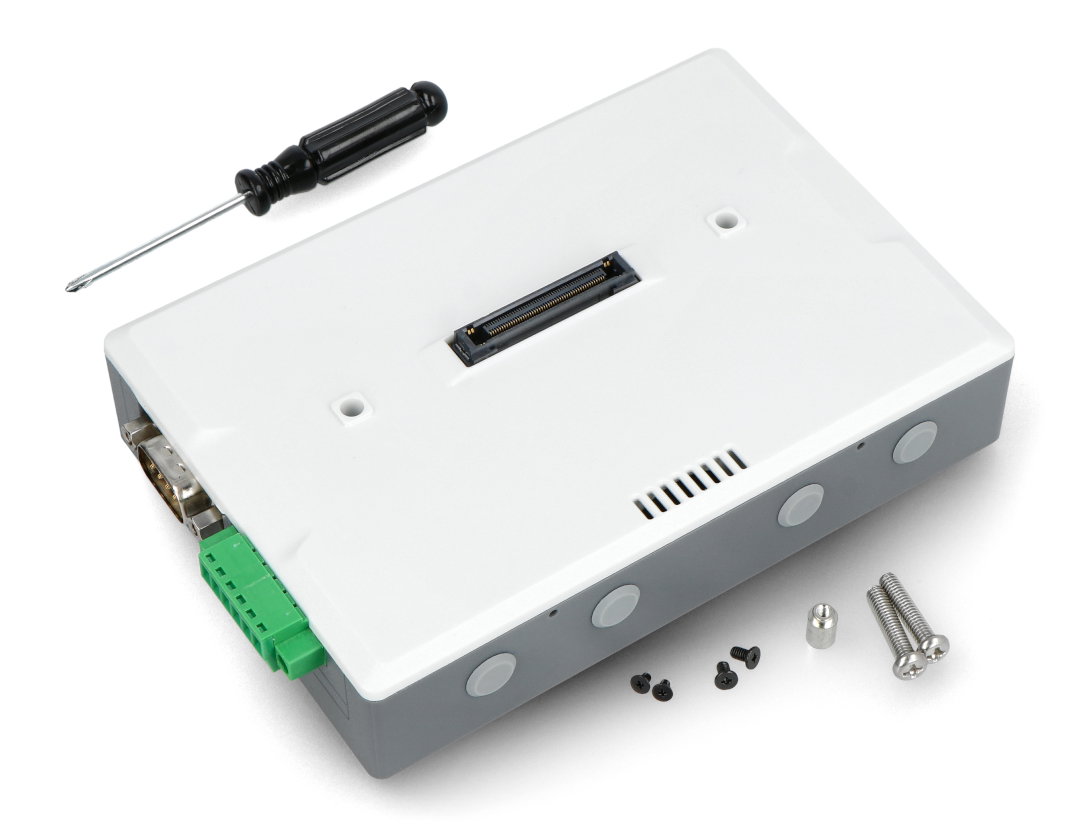

reTerminal E10-1 - extension PoE / UPS, Gigabit Ethernet, LTE / 4G / 5G / LoRaWAN, RS485 / 232, CAN, SATA - Seeedstudio 103060001.
Kit contents.
ReTerminal E10-1 specification
- Power:
- DC: 12 V / 4 A (has overvoltage protection, above 15.6 V)
- PoE: RJ45, maximum 25W
- UPS: 2x Li-Ion 18650 batteries (with overheating protection)
- Maximum data transfer speed:
- RS485 interface: 256000 baud
- RS232 interface: 256000 baud
- CAN interface: 500 kB/s (in common mode), 8 Mb/s (in FD mode)
- Number of antennas: 4
- Ethernet chip: LAN7800 with PoE support
- Communication interface with reTerminal: 100-pin
- Drive interface: M.2 key B, USB 3.0 Gen1 and SATA 2.0
- Mini PCIe interface: UART, USB 2.0, I2C, SPI
- SIM card slot: LTE / 4G / 5G
- Microphone: 2x analog microphone
- Speaker: 8Ω / 1W
- Fan: 3-pin connector
- Wireless communication:
- M.2 interface: support 4G / 5G
- Mini PCIe: support LTE / 4G / LoRaWAN
- LED1: DC power status indicator
- LED2: battery status indicator, flashes during startup and stops flashing when the battery controller is finished charging. If the battery is charging, the LED will be on constantly, otherwise it will be off
- LED3: User LED
- Dimensions: 140x95x30mm
Useful links
| Name | Value |
|---|---|
| Width | 19 cm |
| Height | 15 cm |
| Depth | 4.5 cm |
| Weight | 0.34 kg |
