Product description: xTool SafetyPro AP2 Max - air purifier with SuperCyclone system for xTool devices
The xTool SafetyPro AP2 Max is designed for intensive use with cutting machines, laser engravers , and industrial equipment . Airflow of up to 700 m³/h combined with 72 SuperCyclones allows for rapid capture of contaminants generated during material processing. The multi-stage system reduces PM2.5 dust, fine particles, smoke, VOCs, and unpleasant odors , while an additional filter reduces formaldehyde . Intelligent control allows for synchronization with compatible xTool devices, automatic startup, and filter usage monitoring.
xTool SafetyPro AP2 Max - air purifier with SuperCyclone system for xTool devices.
xTool SafetyPro AP2 Max is suitable for laser workshops, production plants, personalization centers and other places where processing generates large amounts of dust, smoke and odors.
Main features of the xTool SafetyPro AP2 Max purifier
- Efficient airflow : up to 700 m³/h enables the handling of demanding cutting, engraving and laser processing processes

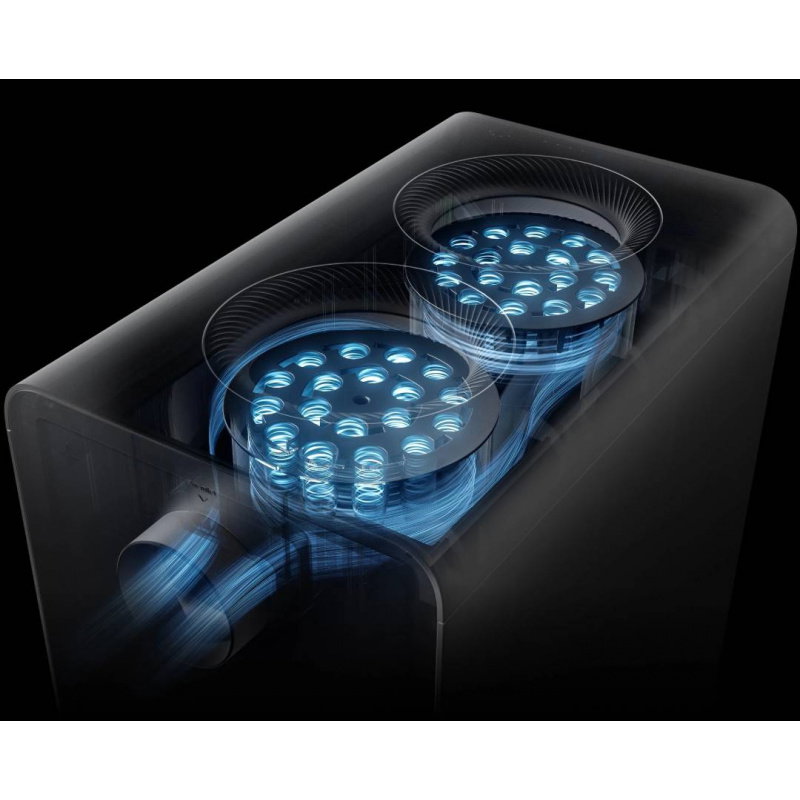

- SuperCyclone Technology : 72 cyclones use centrifugal force to separate large particles before the actual filtration system
- Filter protection against clogging : cyclonic separation can extend the life of the pre-filter by up to 10 times
- 7-stage filtration : the system is designed to reduce dust, fine particles, gases, VOCs, odors and formaldehyde
- High filtration efficiency : the final filter retains 99.97% of particles as small as 0.3 μm
- PM2.5 Filtration : SGS tests show 99.99% PM2.5 removal efficiency
- Extensive Carbon Filtration : Activated carbon layer and Ultra-Dense Carbon Mesh help adsorb harmful fumes, VOCs and unpleasant odors
- Formaldehyde filter : a dedicated cartridge in the AP2 Max version captures and breaks down formaldehyde
- Precise regulation : the ability to set the efficiency in the range from 1% to 100%
- Intelligent control : compatible xTool devices can automatically start and stop the cleaner and adjust the settings to the material
- Filter monitoring : the system monitors the use of cartridges and helps determine the right time to replace them
- Easy to use : modular design and slide-out inserts make cleaning and replacing filters easy
- Noise level : the device generates approximately 65 dB during operation

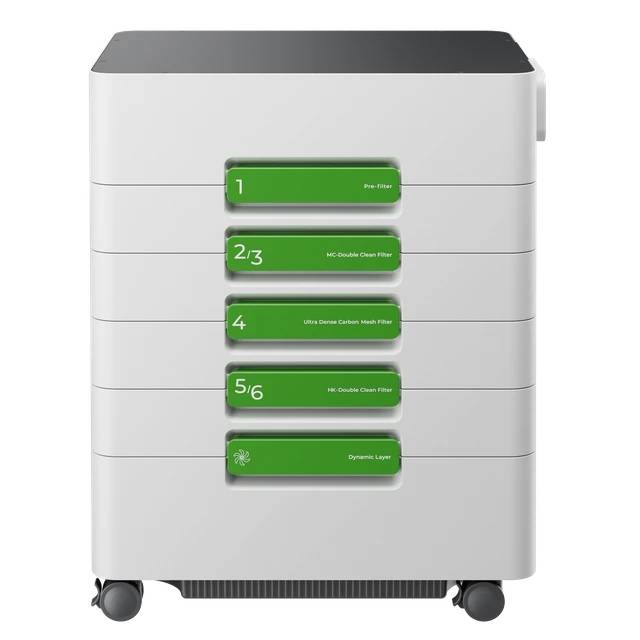

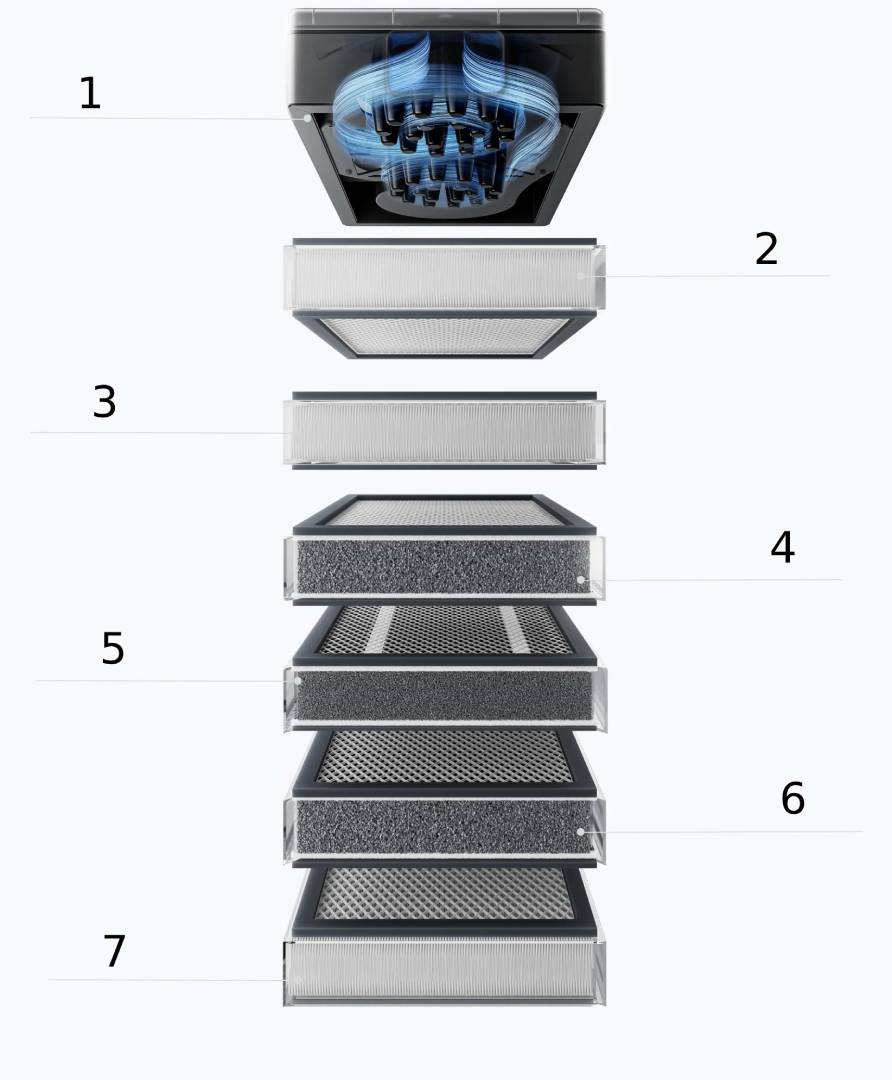

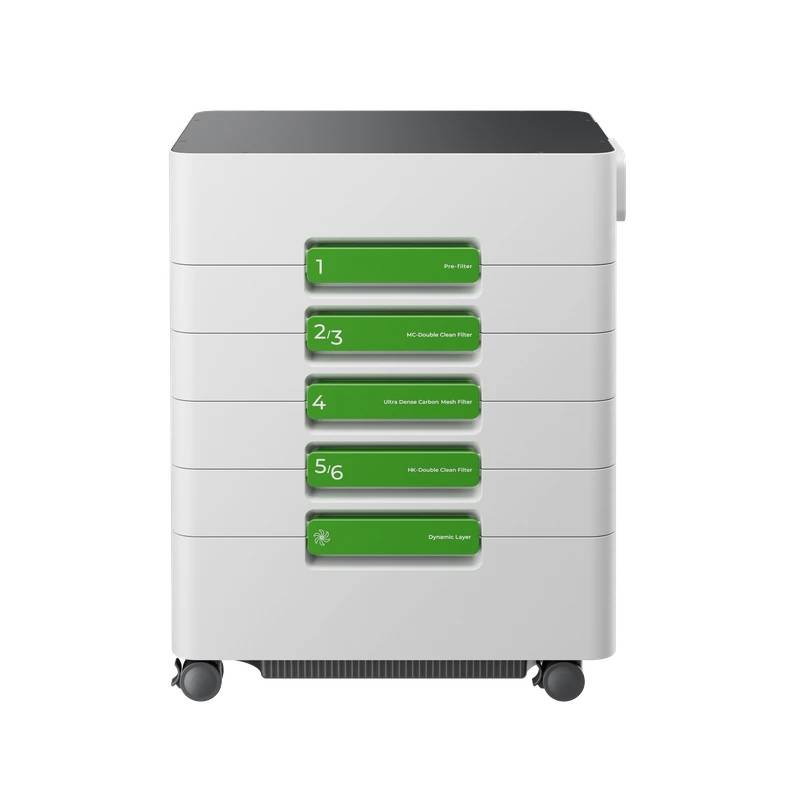

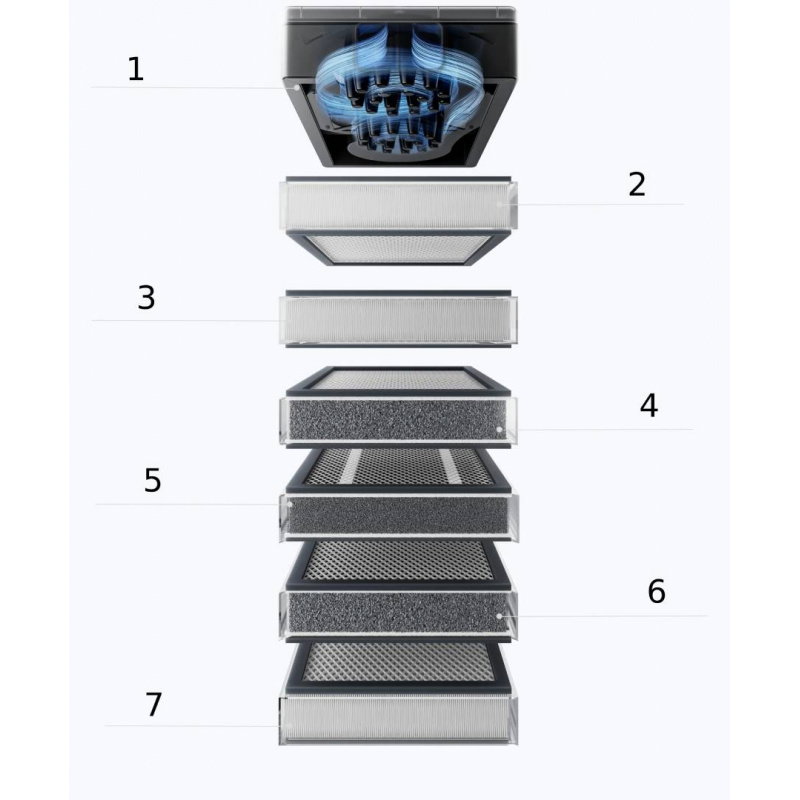

7-stage smoke, dust and VOC filtration system
The xTool SafetyPro AP2 Max utilizes an extensive air purification system that separates larger contaminants as well as filters fine dust and gaseous substances . The subsequent stages are arranged so that to gradually reduce the load on subsequent filters and maintain high efficiency of the entire system. A distinctive feature of the Max version is additional formaldehyde filtration and an extensive carbon filter system designed to absorb vapors and odors.
- SuperCyclone : 72 cyclones capture up to 99% of large particles and reduce clogging of subsequent filter elements
- Pre-filter : retains larger visible contaminants such as dust, fibers and residues generated during processing
- Medium efficiency filter : removes finer dust, including PM2.5, preparing the air for subsequent purification stages
- Activated carbon layer : absorbs some of the harmful fumes and gases generated during material processing
- Ultra-Dense Carbon Mesh : Ultra-dense carbon mesh helps adsorb VOCs and strong odors
- Formaldehyde filter : is responsible for capturing and decomposing formaldehyde, according to the manufacturer, transforming it into water and CO2
- HEPA filter : final stage captures 99.97% of particles as small as 0.3 μm
The 7-stage filtration system includes a pre-filter, a medium-efficiency filter, an activated carbon filter, a carbon mesh, a KM filter for formaldehyde removal and a HEPA filter.
| Comparison of xTool SafetyPro AP2 and AP2 Max | ||
|---|---|---|
| Parameter | xTool SafetyPro AP2 | xTool SafetyPro AP2 Max |
| Destiny | desktop laser devices and textile printers | industrial laser cutters, welding equipment and demanding production stations |
| Air flow | 150 m³/h | 700 m³/h |
| Filtration system | 6-step | 7-step |
| Formaldehyde filter | NO | Yes |
| Number of cyclones | 36 | 72 |
| Capacity of the filtration system | standard | up to 4 times greater |
| Performance regulation | 4 levels | from 1% to 100% |
| Noise level | about 55 dB | about 65 dB |
| Power | 220 W | 900 W |
| Compatibility | Manual and automatic mode: F2, F1 Ultra, F2 Ultra (both versions), F2 Ultra UV, M1 Ultra, P2S, S1, xTool OS1 Manual mode only: F1, F1 Lite, M1, P2, D-series | Manual and automatic mode: MetalFab, P3, P2S, F2, F1 Ultra, F2 Ultra (both versions), F2 Ultra UV, S1, M1 Ultra Manual mode only: F1, F1 Lite, M1, P2, D-series |
| Dimensions | 290 x 491 x 542 mm | 662 x 452 x 845 mm |
The purifier can be used with, among others, xTool P3, MetalFab, P2S, P2, S1, M1 Ultra, F1 Ultra, F2 Ultra, M1 and F1, with the range of intelligent functions depending on the communication support of the device.
Technical specifications of the xTool SafetyPro AP2 Max
- Model: MXA-S400-P00
- Power supply: 100V to 240V AC
- Power frequency: 50/60 Hz
- Rated power: 900 W
- Maximum air flow: 700 m³/h
- Filtration system: 7-step
- Number of cyclones: 72
- Air flow adjustment: 1% to 100%
- Noise level: 65 dB
- Compatibility: xTool P3, MetalFab and other xTool laser devices
- Dimensions: 662 x 452 x 845 mm
Contents of the set
- xTool SafetyPro AP2 Max Air Purifier
- Remote control
- Remote control charging cable
- Power cord
- Bluetooth module
- Air intake connector
- Pipe connector 1
- Pipe connector 2
- Smoke exhaust pipe
- Pipe clamp
- NFC stand
- Quick Start Guide
- Safety instructions
