Product description: xTool SafetyPro IF2 V2.0 - smoke extraction for xTool laser plotters
The xTool SafetyPro IF2 Hyper Flow is a groundbreaking ventilation system designed for maximum efficiency and minimal space. With two fans operating at up to 14,000 RPM each , it generates an airflow of 238 m³/h . Its compact design (only 182 x 125 x 129 mm) allows the device to fit in any workspace, while also offering automatic control, a delayed shut-off function , and Bluetooth connectivity . The xTool SafetyPro IF2 duct fan is ideal for professional and amateur laser workshops. Highly compatible, it effectively eliminates smoke and odors, ensuring a clean and safe workspace. Its quiet operation and automation also make it ideal for home use.

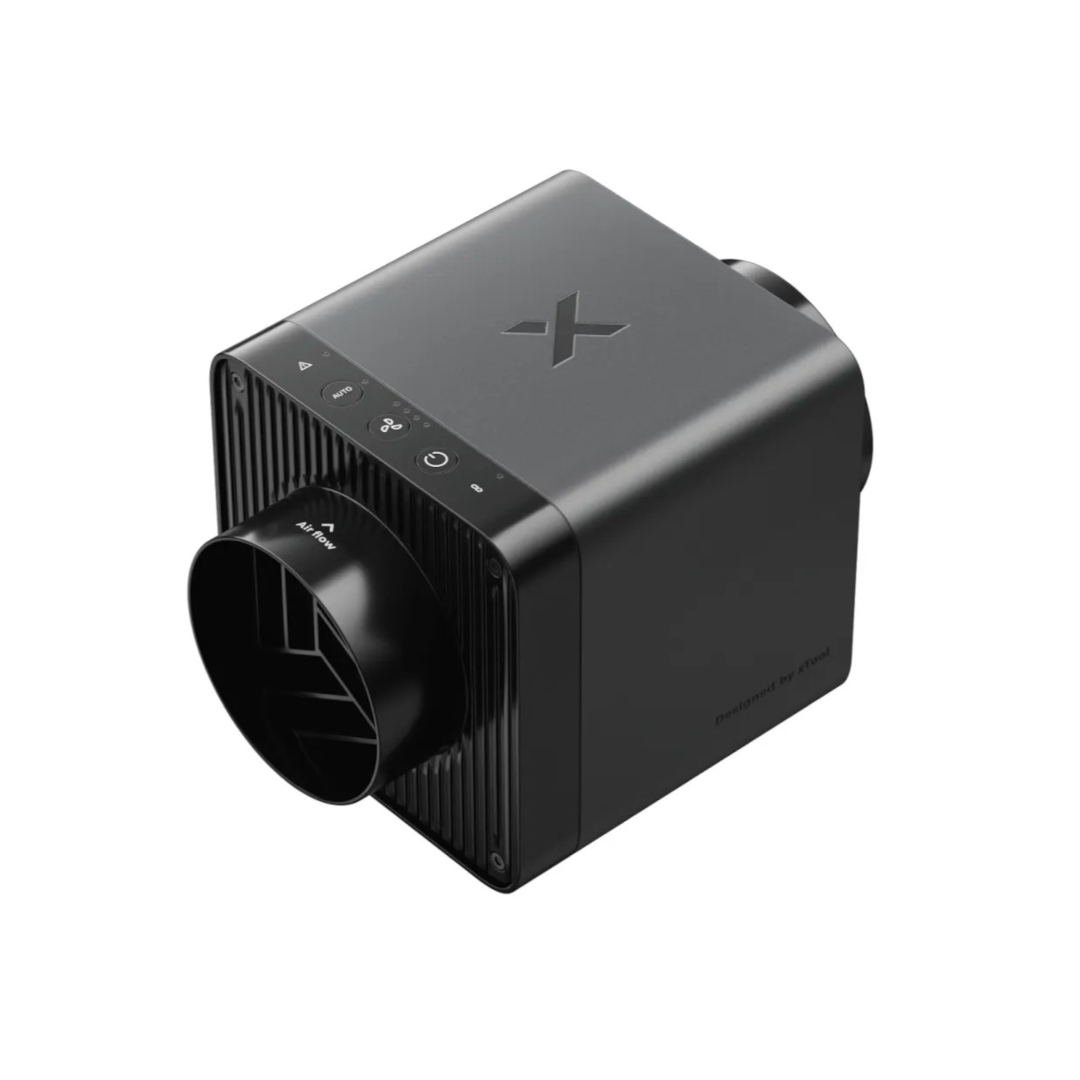

xTool SafetyPro IF2 V2.0 - smoke extraction for xTool laser plotters.
A duct fan is ideal for exhausting smoke to the outside.
Main features of the smoke extraction system
- Dual TurboBoost Fan : Two 14,000 rpm impellers generate powerful airflow of up to 238 m³/h
- Efficient motor : provides powerful suction power in a compact design
- Intelligent control : automatic adjustment of the fan operating mode to the selected material
- Automatic start/stop : the fan starts and stops automatically with the laser
- Bluetooth and touch button operation : 4 speed levels and full control via the XCS app
- Quiet operation : the use of soundproofing mats reduces operating noise
- Waterproof : can be cleaned under running water without risk of damage
- Flexible cable with a length of 2.3 m : allows for any positioning of the device without the limitations of the window location
Double TurboBoost Power - Extreme Smoke Extraction Performance

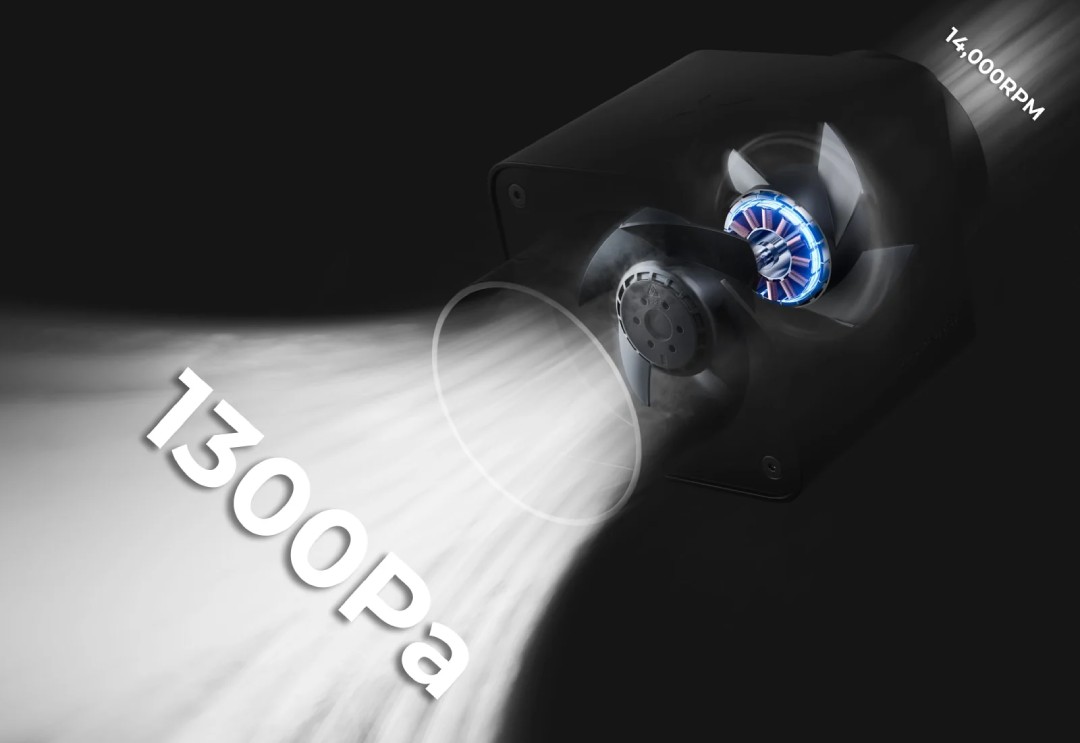

Thanks to the use of two fans, each running at a speed of up to 14,000 rpm , the xTool SafetyPro IF2 provides impressive smoke and fume extraction efficiency. The TurboBoost system enables rapid cleaning of the workspace, significantly improving the comfort and quality of work with the laser. An airflow rate of 238 m³/h guarantees effective ventilation even during intensive use.
Compact design - maximum space saving

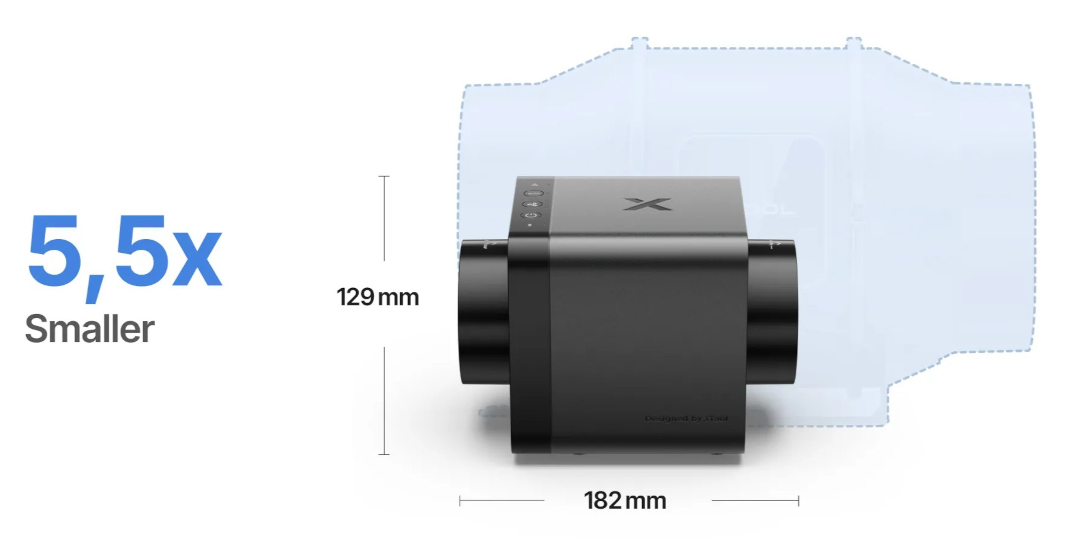

The xTool SafetyPro IF2 was designed with ergonomics and space-saving features in mind. Its housing measures just 182 x 125 x 129 mm , making it up to six times smaller than competing models or older generations. Such compact dimensions allow for installation even in small home studios or desktop workstations. An additional advantage is the flexible 2.3-meter cable , which can be arranged freely, without the constraints of window or ventilation duct location.

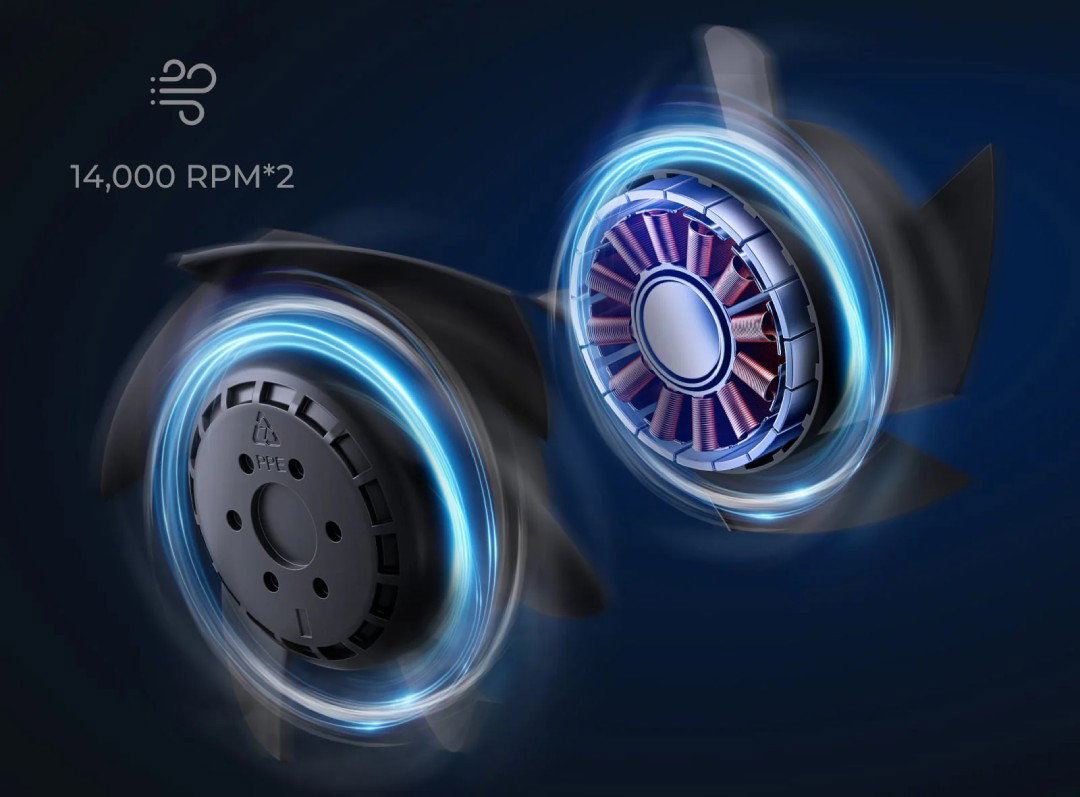

Two fans running at 14,000 rpm each provide strong airflow.

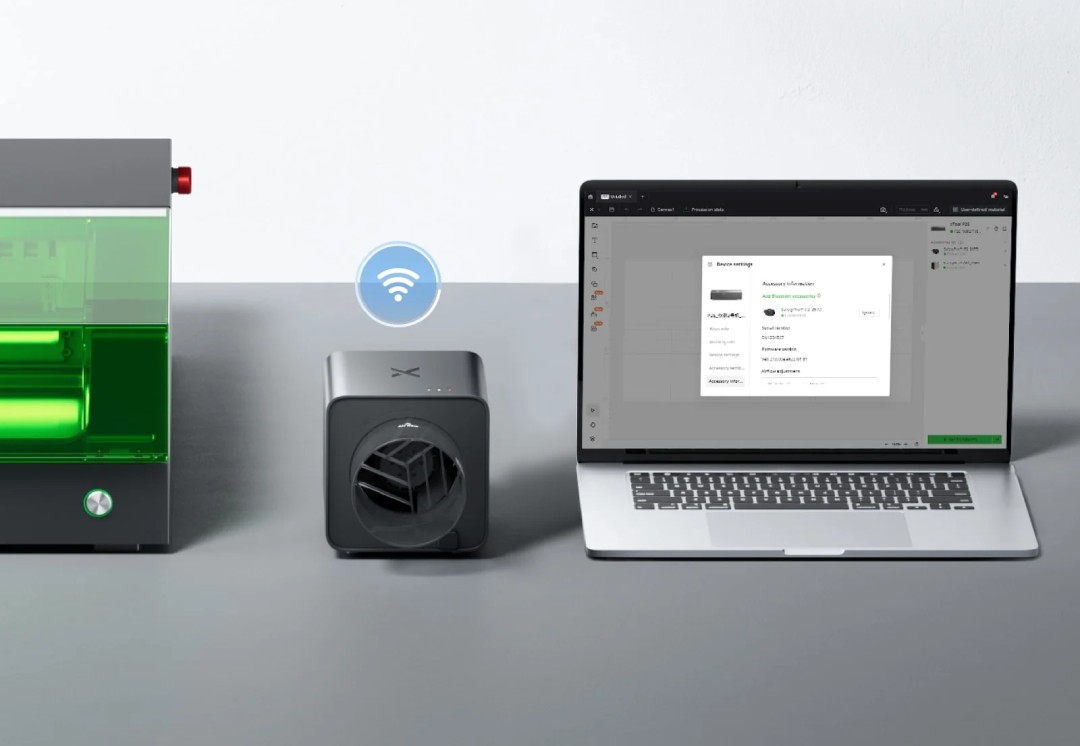

The extraction system automatically starts and stops with the laser and selects the ventilation mode based on the selected material.
Intelligent control - full automation of work
The xTool IF2 fan is equipped with intelligent features that improve user comfort and save time. The exhaust automatically starts when the laser starts and can also be turned off with a delay , allowing for effective removal of residual smoke after work. Furthermore, the system automatically selects the optimal operating mode depending on the material selected in the xTool Creative Space app. Control is via touch buttons or Bluetooth.
Easy maintenance and waterproof - trouble-free use
Maintaining the xTool SafetyPro IF2 fan has been simplified to the max thanks to its modular, easily disassembled design . In just a few moments, you can disassemble the device and clean its interior of accumulated dirt. An additional advantage is its waterproof nature – the fan can be safely cleaned under running water without risk of damaging the electronics. This solution significantly facilitates maintaining the device in excellent condition for a long time.
Technical specifications of the xTool SafetyPro IF2 V2.0 extraction system
- Model: xTool SafetyPro IF2
- Compatibility:
- Manual and auto mode: P3, P2S, F2, F1 Ultra, F2 Ultra, F2 Ultra UV, S1, M1 Ultra, xTool OS1
- Manual mode only: F1, F1 Lite, M1, P2, D Series
- Fan speed: up to 14,000 rpm
- Power: 55 W
- Air flow rate: 238 m³/h
- Efficiency: 1300 Pa
- Fan speed adjustment: four-stage adjustment
- Cable diameter: 3 inches
- Control type: touch buttons + Bluetooth + XCS app
- Power supply: external power supply
- Operating modes: 4 levels of adjustment
- Automatic start/stop: yes
- Delayed shut-off function: yes
- Dimensions: 182 x 125 x 129 mm
- Weight: 1.15 kg
Contents of the set
- Smoke extraction with controller
- Plastic expansion plugs
- Set of mounting screws
- Bluetooth adapter
- Wall mounting bracket
- Smoke exhaust pipe
- Pipe connector 1 (for xTool S1 and F1 Ultra)
- Pipe Connector 2 (for xTool M1 Ultra, M1, F1, P2, P2S, D1, D1 Pro)
- Pipe clamp
- Allen key
- Quick Start Guide
- Safety instructions
The reduced design allows for maximum use of internal space.
