Product description: Smoke Purifier - air purifier for TOOCAA L2 laser engravers
The TOOCAA Smoke Purifier is designed specifically for TOOCAA L2 laser engravers. It effectively removes smoke, dust and fumes generated during laser cutting and engraving. Its three-stage filtration system (pre-filter, medium-efficiency filter and high-efficiency activated carbon filter) ensures clean and safe air in the workspace. The compact housing with handles and transport wheels makes it easy to move, while the sealed construction prevents smoke leakage, ensuring highly efficient operation.

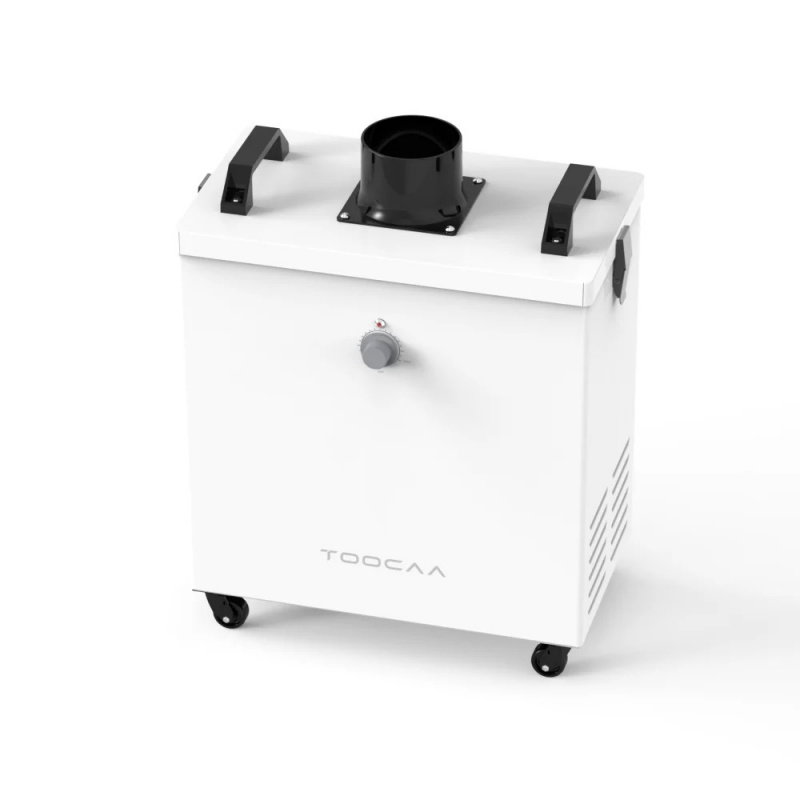

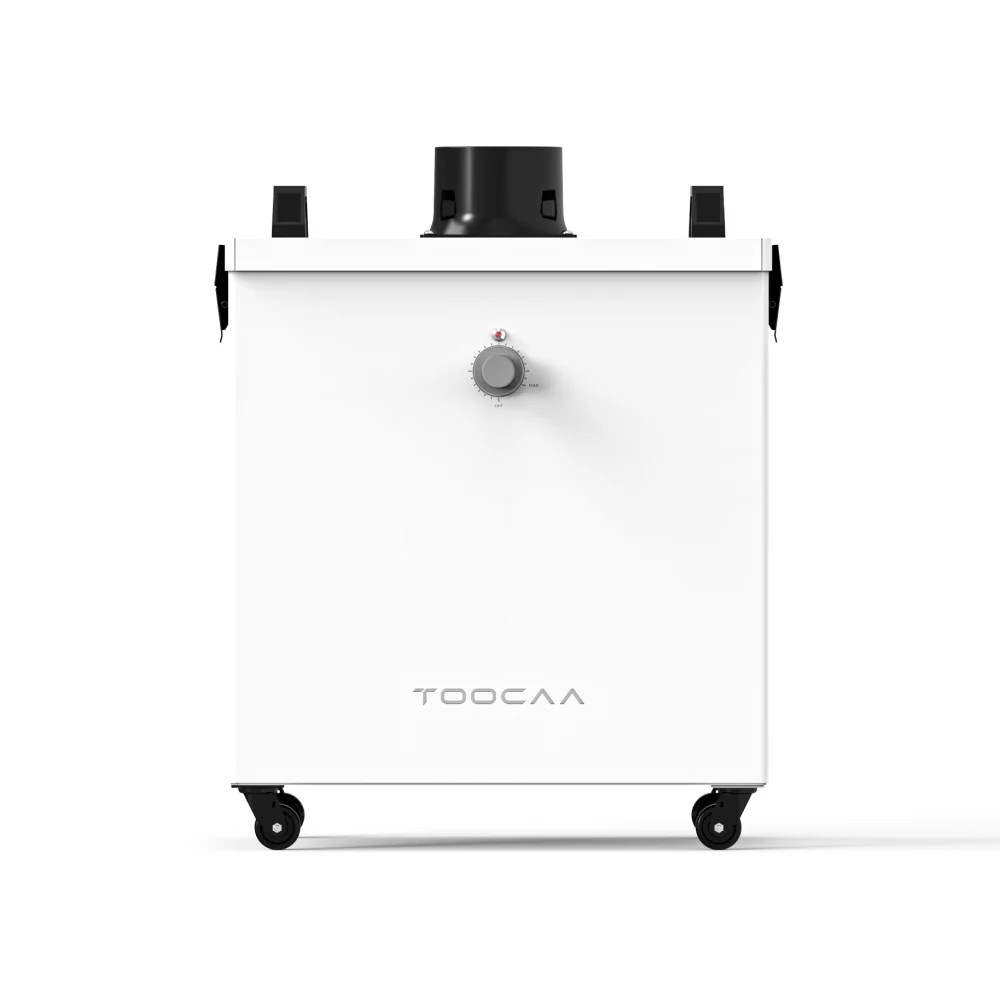

Smoke Purifier - air purifier for TOOCAA L2 laser engravers.

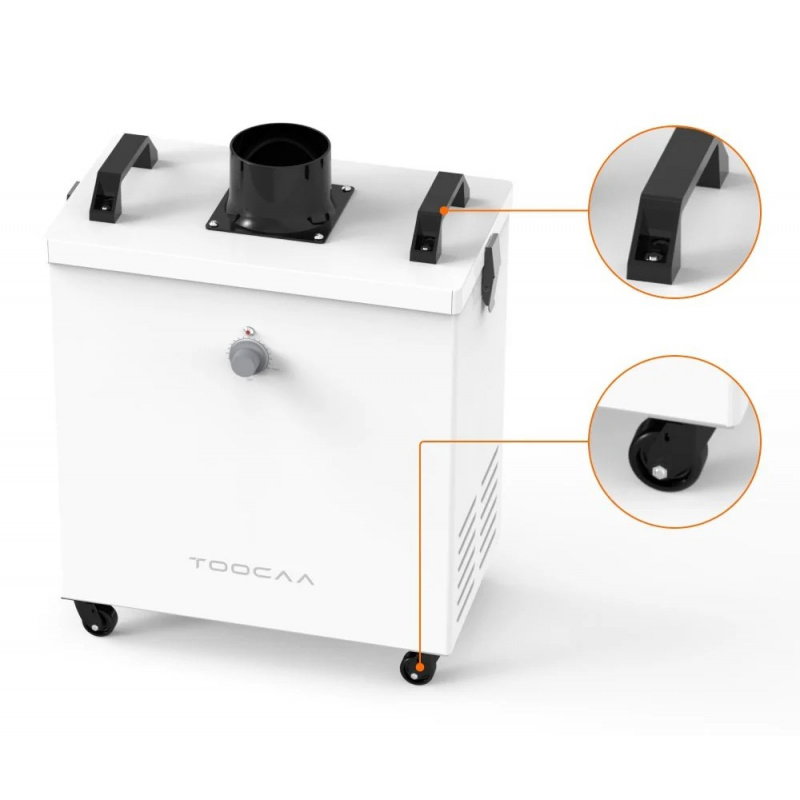

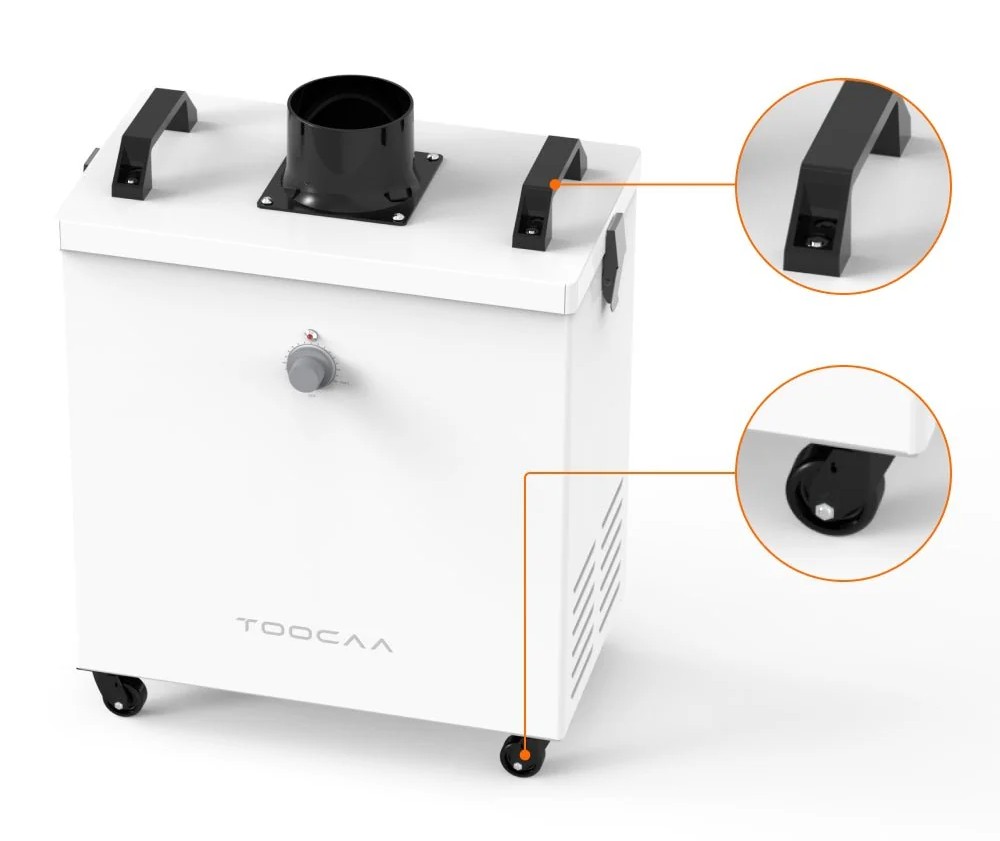

The compact design with wheels and handles allows for easy movement.
Main features
- Quiet operation < 55 db : comfortable use in small and larger studios
- Three-stage filtration : pre-filter, medium-efficiency filter, high-efficiency filter with activated carbon
- Efficiency 99.97% at 0.3 μm : reduction of fine dust and aerosols
- Efficiency 330 m³/h : efficient air purification during long sessions
- Easy to use : intuitive controls and quick filter replacement
- Mobility : handles and transport wheels make it easy to move
- Seals : design to limit smoke losses and leaks
Three-stage filtration system
The smoke purifier uses an advanced three-filter system that removes dust, smoke, and harmful gases. The first layer is a pre-filter (low-efficiency filter cotton) , which traps larger particulates and protects the subsequent stages. Next, the air passes through a medium-efficiency filter (honeycomb filter cotton) , which captures up to 99.97% of particles as small as 0.3 μm . The final stage is a high-efficiency filter (activated carbon filter cotton) , which neutralizes volatile organic compounds and unpleasant odors.

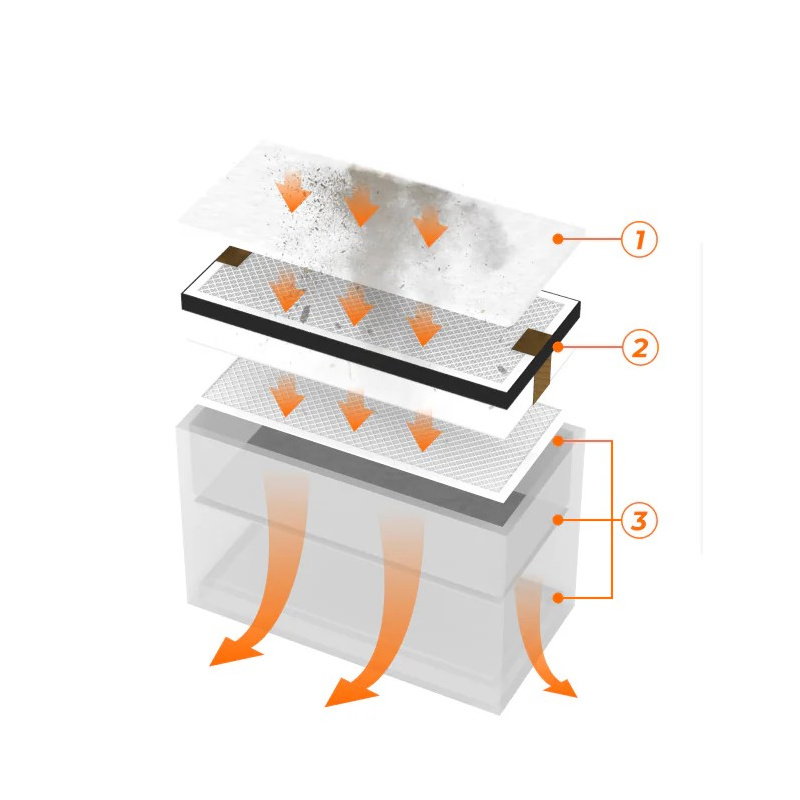

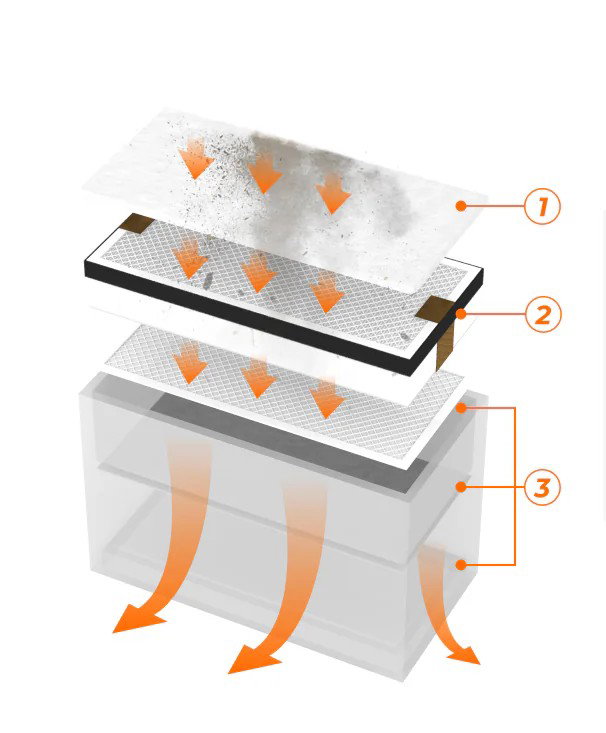

1. Pre-filter, 2. Medium efficiency filter, 3. High efficiency filter.

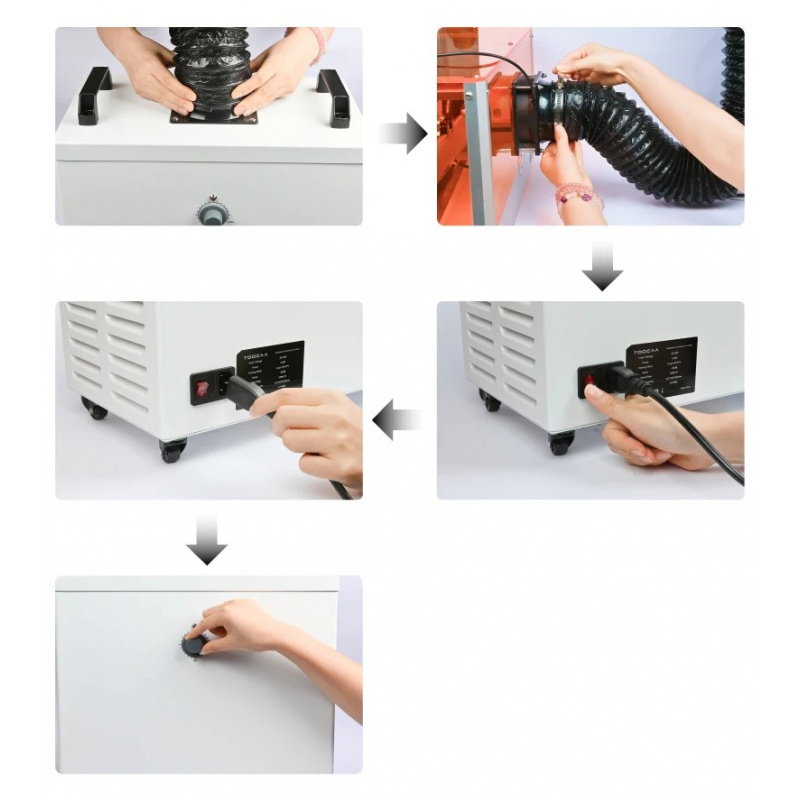

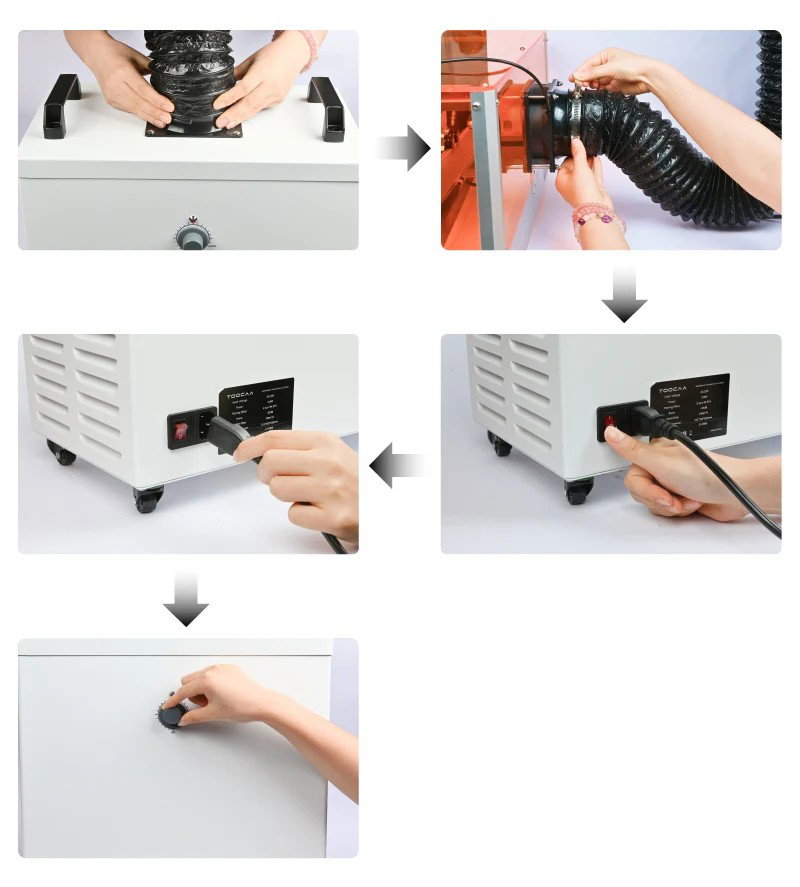

Connecting the purifier to the plotter is easy and intuitive.

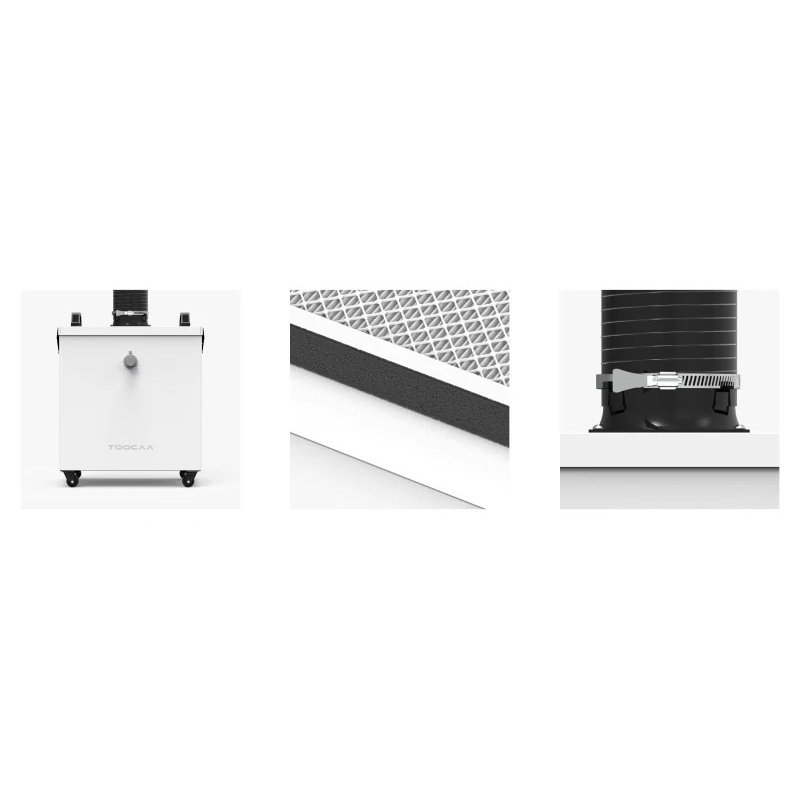

Sealed construction and secure connection
The unit's design minimizes the risk of leaks and performance losses. Unidirectional ventilation at the inlets and outlets stabilizes flow, Foam seals limit smoke leakage outside the filtration chamber, and metal clamps ensure a secure and tight fit of the exhaust pipe. This ensures that the entire purification process takes place inside the device, increasing efficiency and safety.
Air purifier technical specifications
- Power supply voltage: 220 V AC
- Power: 210 W
- Filtration efficiency: 99.97% for 0.3 μm particles
- Noise level: <55 db="" li="">
- Air flow: 330 m³/h
- Dimensions: 511 x 330 x 635 mm
- Weight: 17.45 kg
Contents of the set
- 1x TOOCAA Smoke Purifier
- 5x Pre-filter
- 1x Medium Efficiency Filter
- 1x High-efficiency activated carbon filter
- 1x Smoke exhaust pipe (pipe)
- 1x mounting ring (clamp)
- 1x Power cord
- 1x User Manual

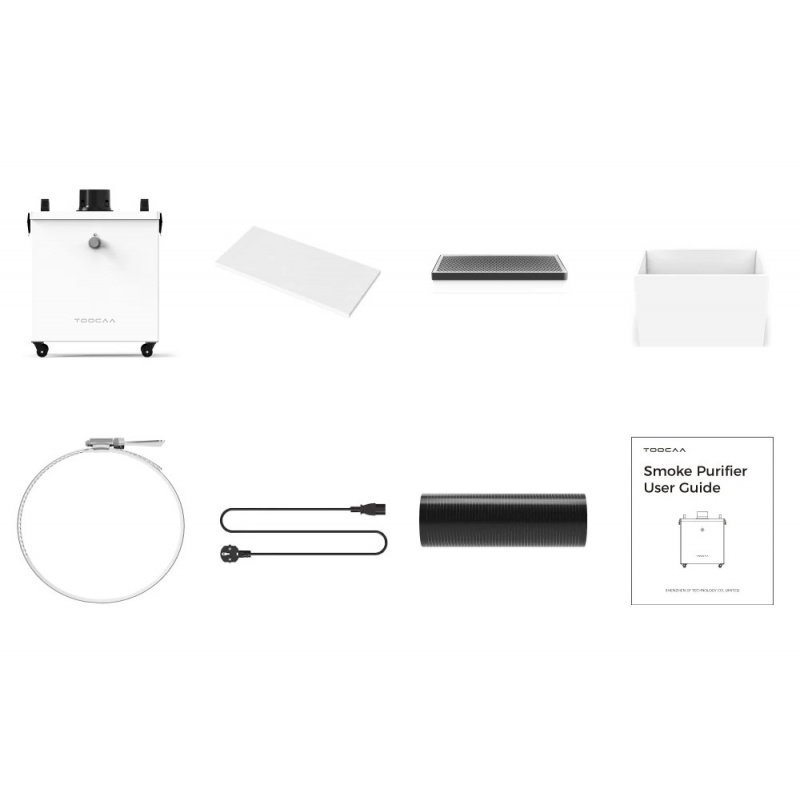

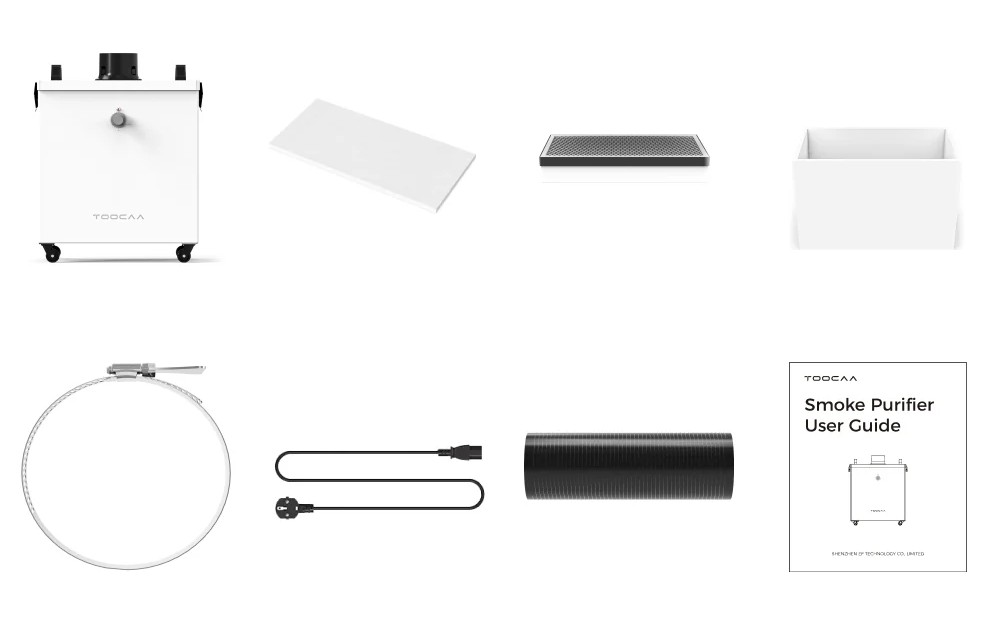

Elements included in the set.
