Product description: Mintion V1 - air purifier for 3D printers
The Mintion V1 is designed to reduce contaminants generated during closed-chamber 3D printer operation . A three-stage filtration system captures larger contaminants and fine particles and helps reduce odors and VOCs, including those found during processing of ABS , ASA , and PA . The centrifugal fan provides a flow rate of up to 60 m³/h and an exhaust air velocity of up to 10 m/s . A standard 100 mm inner diameter tubing makes it easy to adapt the system to various printers and enclosures. Interchangeable filter modules simplify maintenance and allow you to customize your setup to your filament.

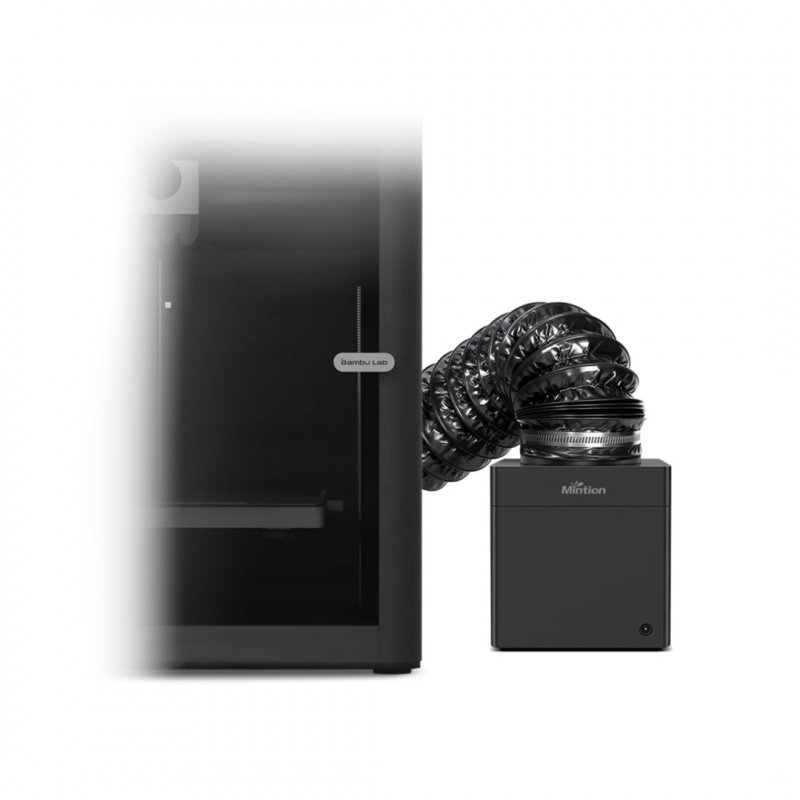

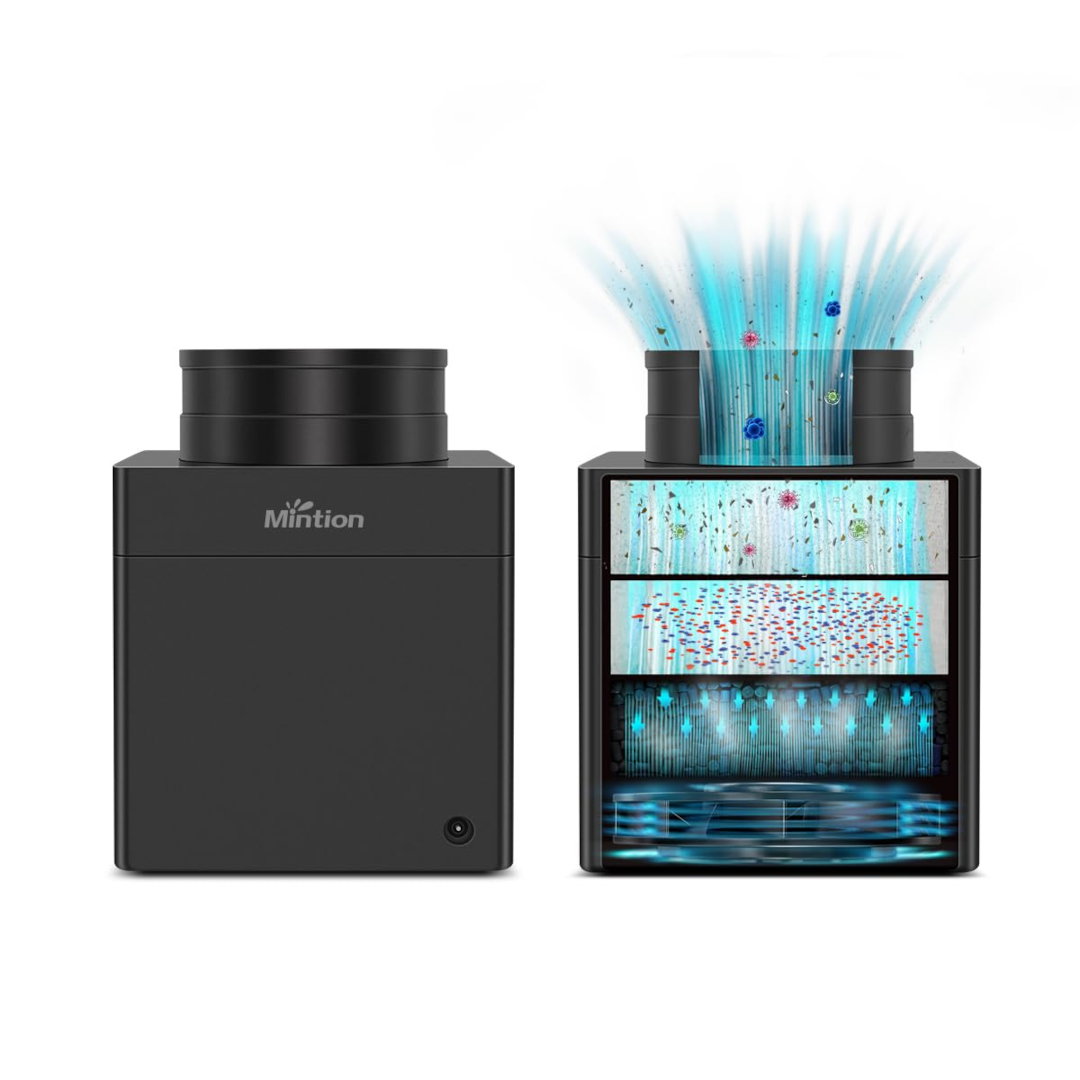

Mintion V1 - air purifier for 3D printers.

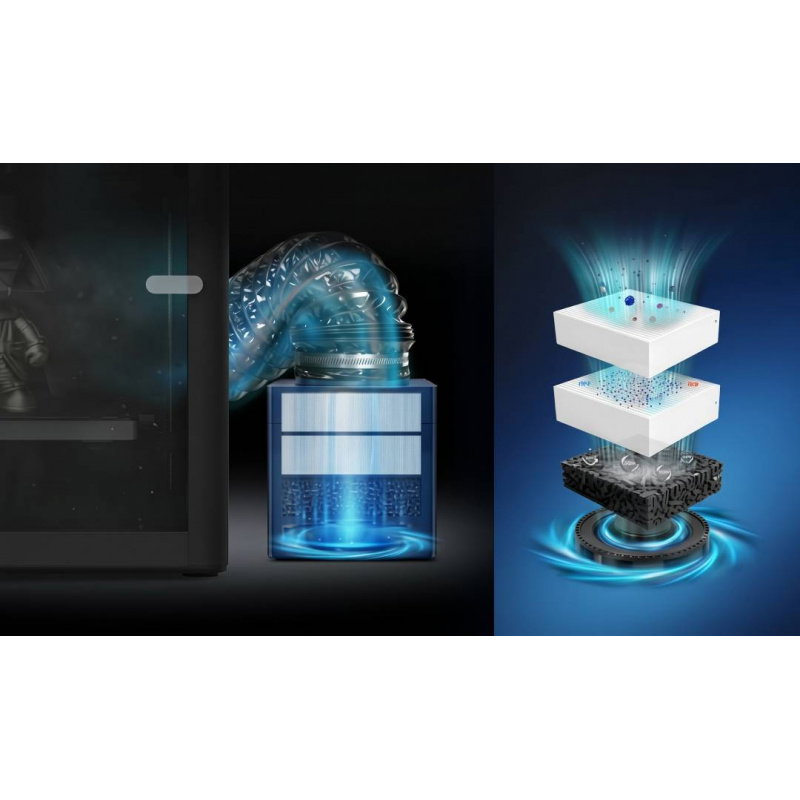

The three-stage filtration system traps larger pollutants and fine particles while reducing unpleasant odors and the presence of volatile organic compounds (VOCs).
Key Features of the Mintion V1 Air Filtration System
- Three-stage filtration system : the combination of a pre-filter, HEPA H13 filter, and activated carbon cartridge helps reduce various types of pollutants generated during 3D printing
- HEPA H13 filter : captures fine and ultra-fine particles generated during filament processing
- Activated carbon : adsorbs volatile organic compounds and helps reduce characteristic odors associated with ABS, ASA and PA, among others
- Pre-filter : traps dust, fibers and larger contaminants, supporting longer operation of subsequent filtration stages
- Efficient centrifugal fan : ensures stable pressure and uniform air flow through all filter layers
- Airflow up to 60 m³/h : enables efficient air removal and filtration from the closed printer chamber
- Air speed up to 10 m/s : allows for maintaining an efficient flow at the system outlet
- Standard 100mm cable : facilitates the use of the system with various printers equipped with the appropriate outlet adapter
- Wide filament support : the system is designed to work with PLA, PETG, TPU, ABS, ASA and PA, among others

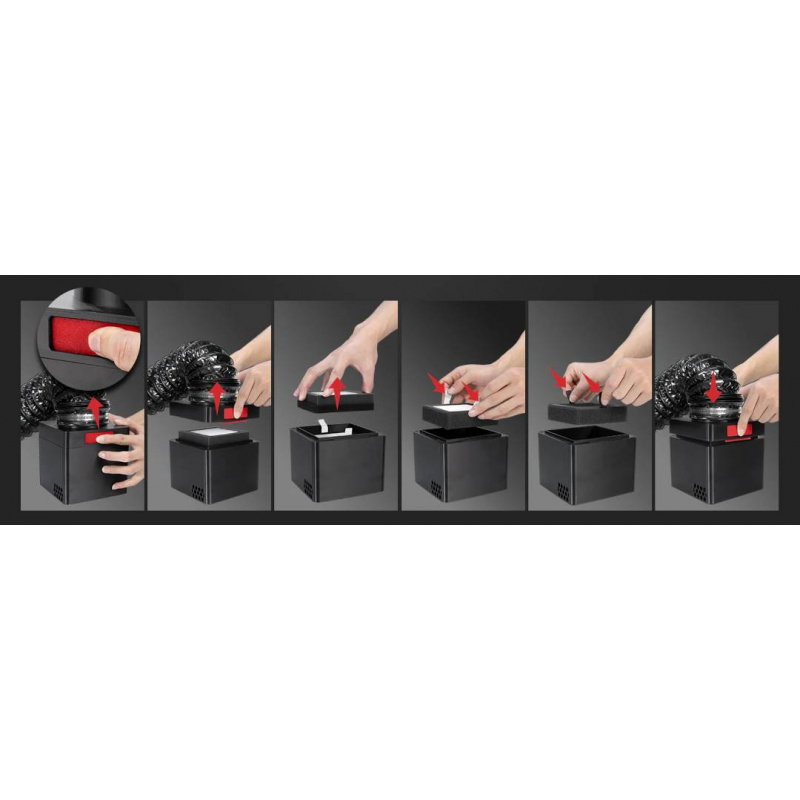

- Easy filter replacement : modular design allows you to quickly replace worn cartridges and adapt the filtration system to the type of material

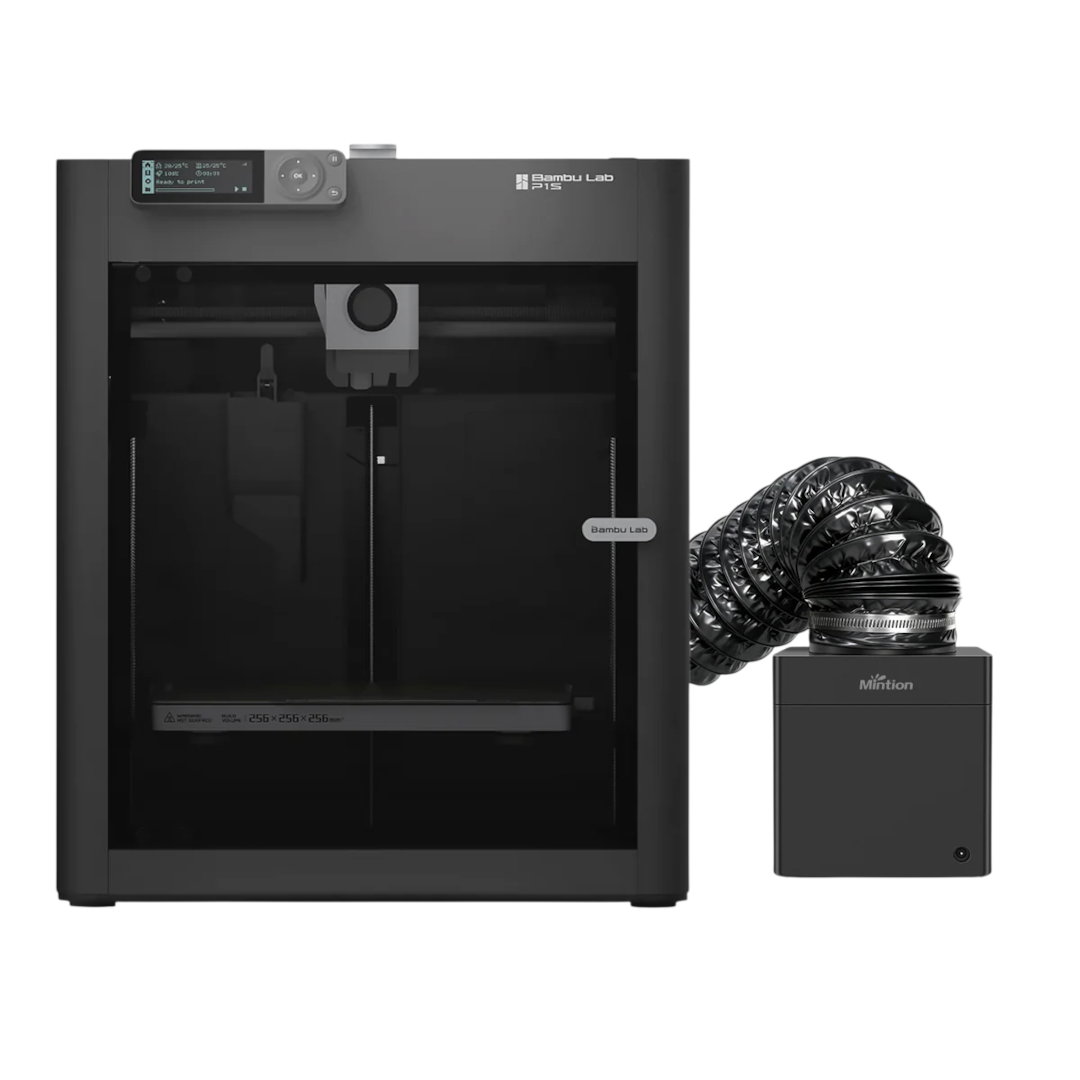

- Connector for Bambu Lab P1S and X1C : a standard adapter for these models is supplied with the device

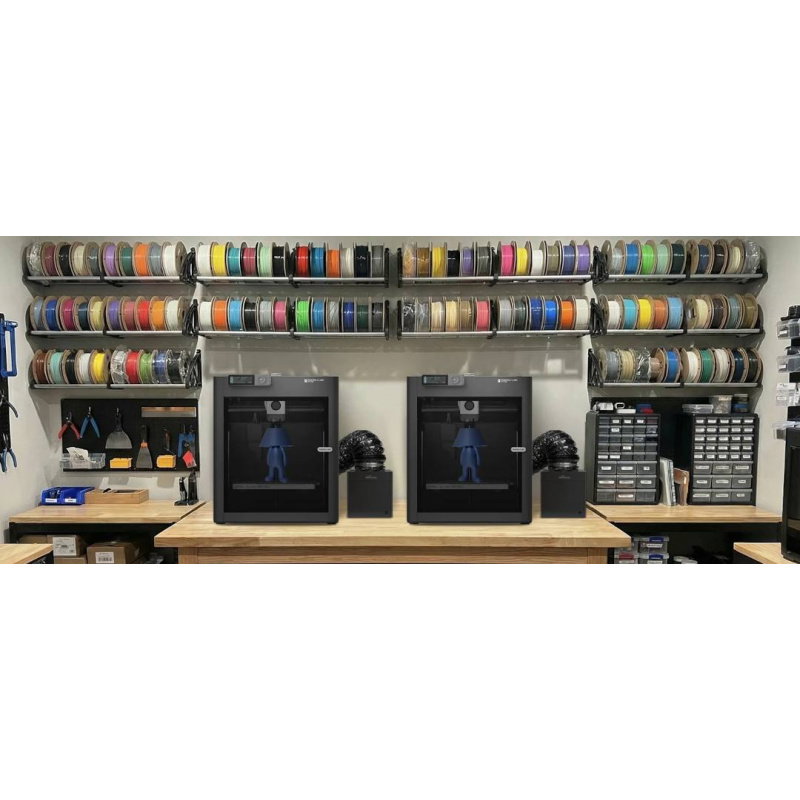

- Compact design : the system can be placed next to the printer or integrated with the air exhaust system from the housing
Mintion V1 Printer and Case Compatibility

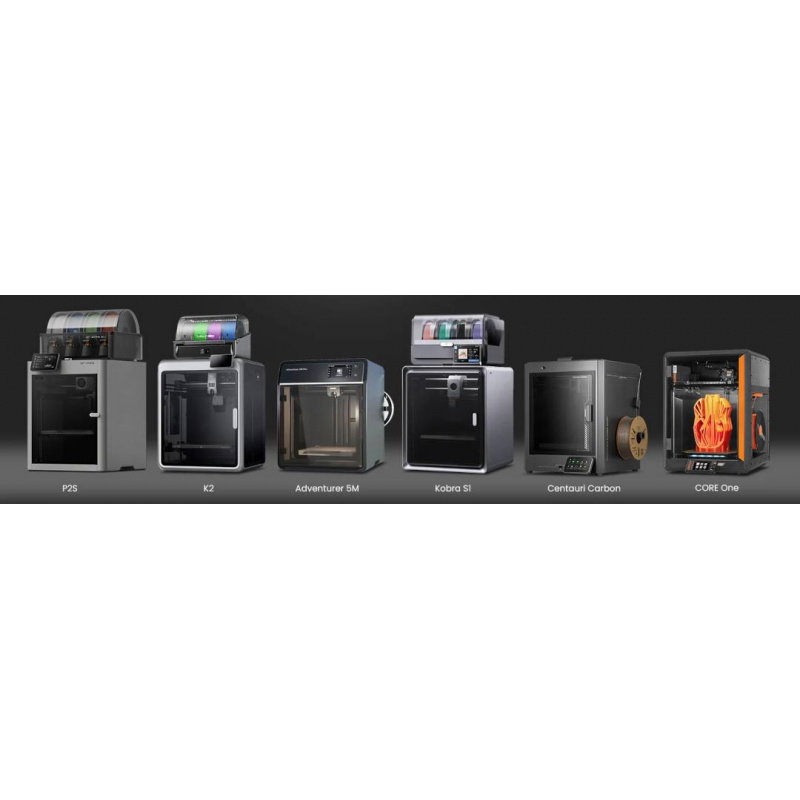

Mintion V1 is designed primarily for closed chamber 3D printers . The kit includes a standard connector for use with the Bambu Lab P1S and X1C models, while the Bambu Lab P2S , H2D, H2S, and H2C require an appropriate adapter . The manufacturer also offers solutions for the Prusa Enclosure , Creality K1 and K2 , Flashforge 5M Pro , and select Elegoo , Anycubic , and EufyMake devices, among others. The system uses a 100mm internal diameter hose , so it can also be adapted to other enclosed printers, provided a suitable exhaust port is available. For open-top printers, the manufacturer does not recommend using the Mintion V1 without an additional enclosure, as this significantly impedes flow control and effectively directs contaminated air through the filters.

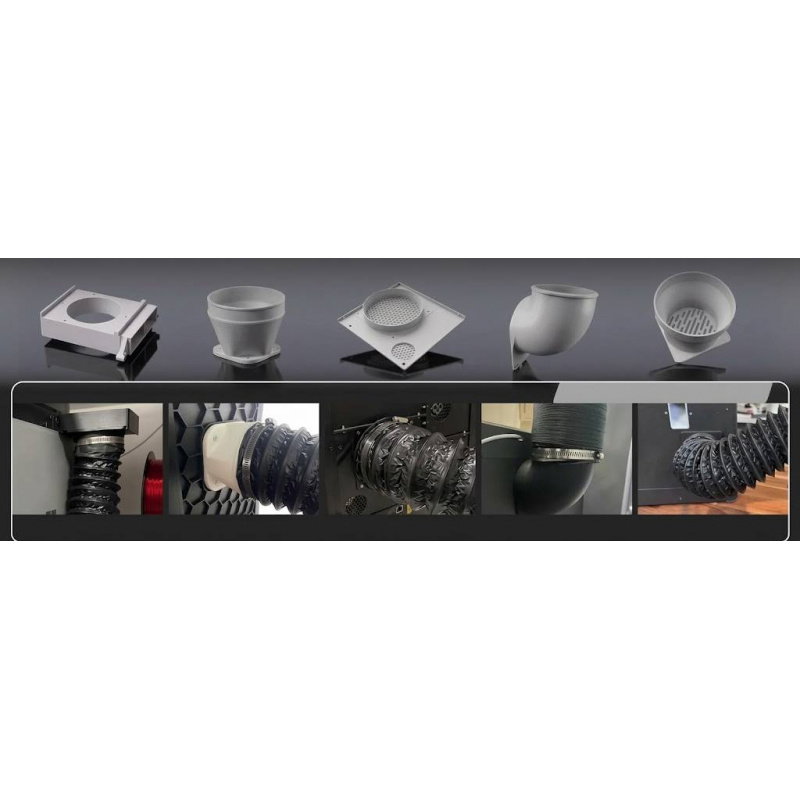

With the appropriate, printable adapter, the Mintion V1 can be used with Bambu Lab P2S, H2D, H2S, H2C, Prusa Enclosure, Creality K1 and K2, Flashforge 5M Pro, and select Elegoo, Anycubic, and EufyMake printers.

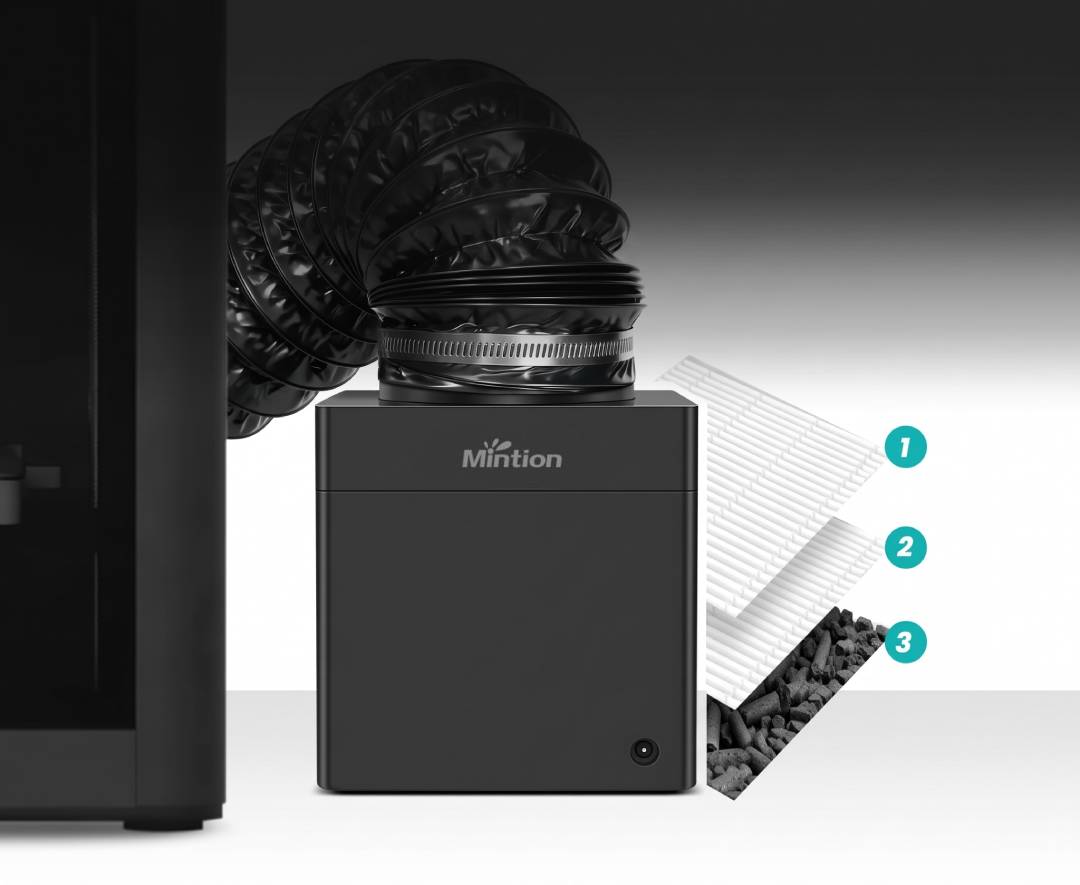

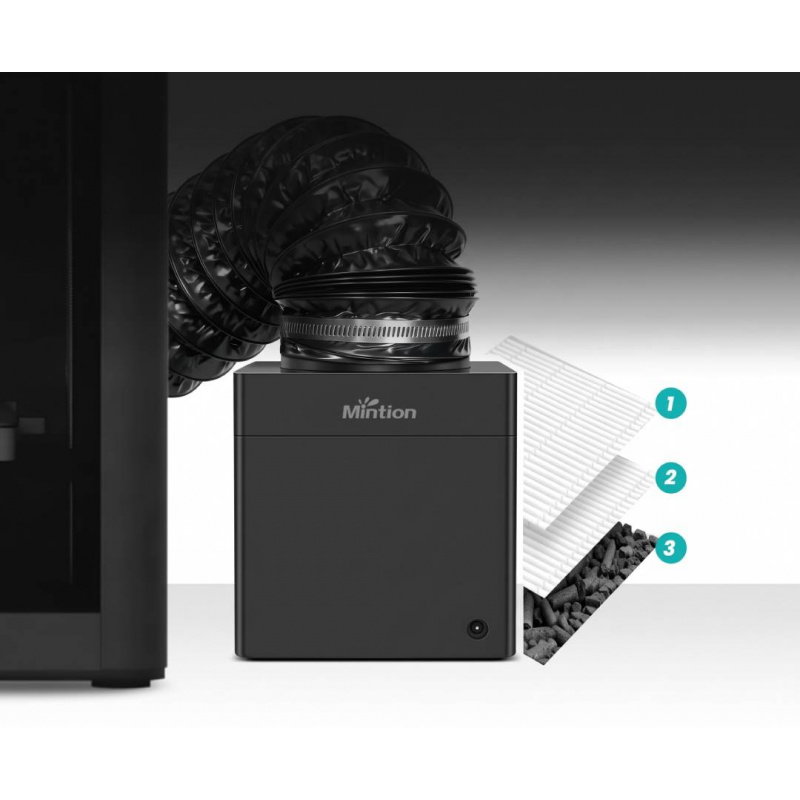

The Mintion V1 system consists of a pre-filter (1), a HEPA H13 filter (2) and an activated carbon filter (3).

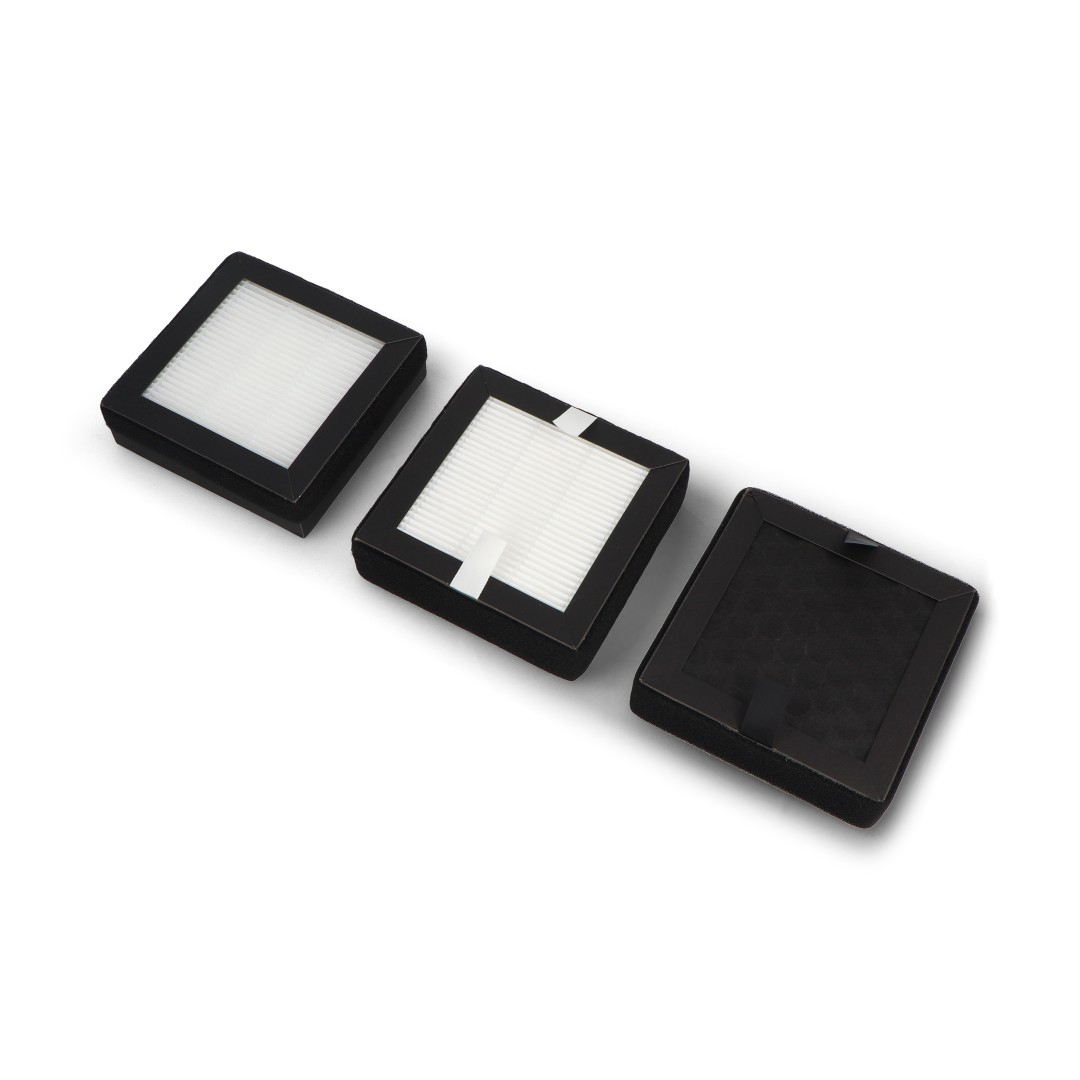

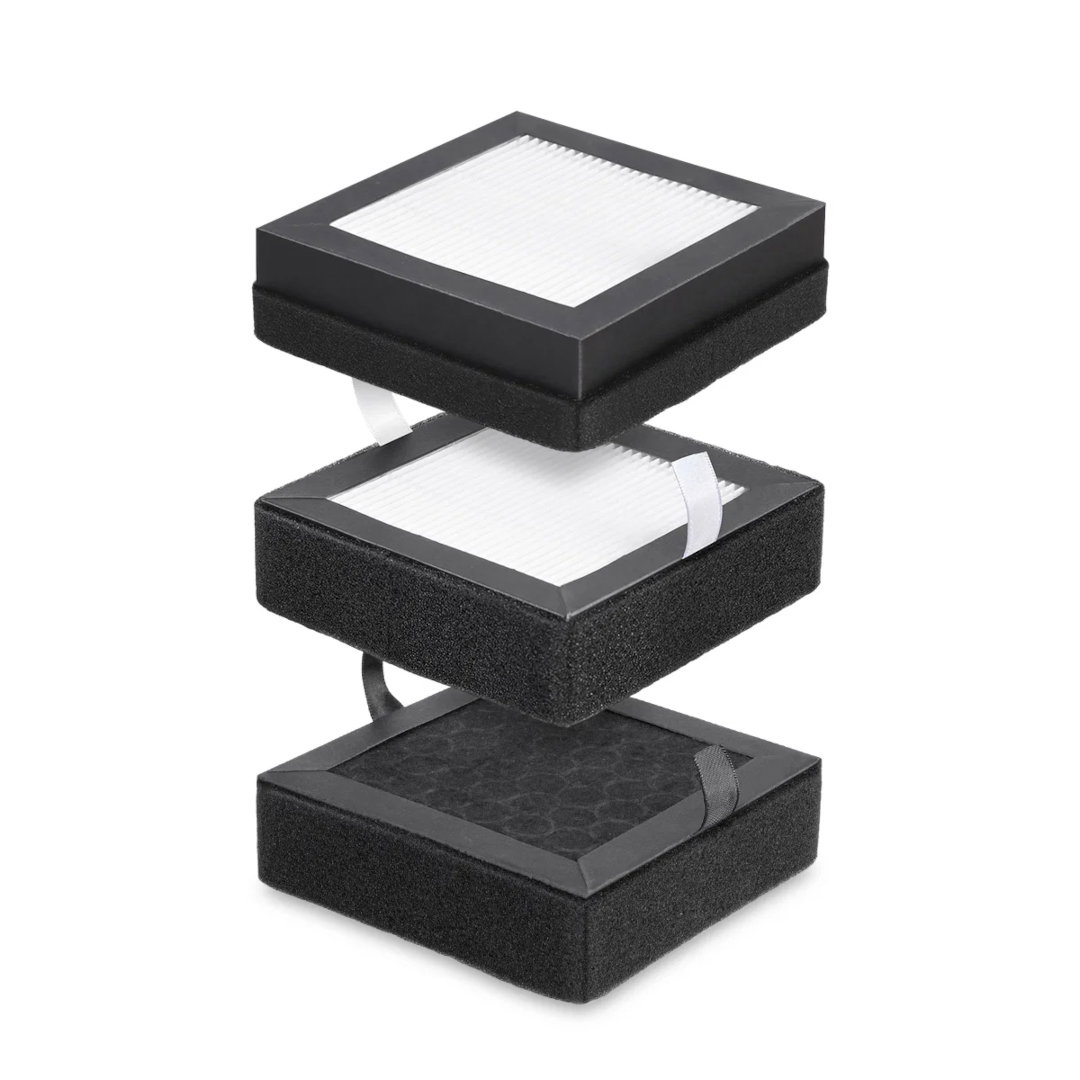

Three layers of HEPA H13 filter and activated carbon
The standard Mintion V1 system consists of a pre- filter, a HEPA H13 filter , and an activated carbon filter . The first stage traps larger contaminants such as dust, fibers, and fine material debris, reducing the load on subsequent filters. The HEPA H13 filter is responsible for capturing fine particles present in the air during printing. The final stage uses activated carbon to adsorb VOCs and odor-causing compounds , including styrene associated with printing with ABS and ASA, and caprolactam occurring during PA processing. For intensive ABS and ASA printing, the manufacturer also allows a HEPA H13 activated carbon configuration, which increases the proportion of the layer intended for adsorption of gaseous contaminants. The cartridge lifespan depends on the filament type, operating time, chamber cleanliness, and the airflow setting.
Mintion V1 Technical Specifications
- Device type: air filtration system for built-in 3D printers
- Number of standard filtration stages: 3
- First stage: pre-filter
- Second stage: HEPA H13 filter
- Third stage: activated carbon filter
- Fan type: centrifugal
- Maximum air flow: up to 60 m³/h
- Maximum air speed at outlet: up to 10 m/s
- Internal diameter of the cable: 100 mm
- Supported materials: PLA, PETG, TPU, ABS, ASA, PA/Nylon
- Standard filter configuration: pre-filter - HEPA H13 - activated carbon
- Alternative configuration for ABS / ASA: HEPA H13 - Activated Carbon - Activated Carbon
- Default Compatibility: Bambu Lab P1S / X1C
- Compatibility via additional adapters: Bambu Lab P2S, H2D, H2S, H2C, Prusa Enclosure, Creality K1/K2, Flashforge 5M Pro and selected Elegoo, Anycubic and EufyMake models
- Recommended replacement period for the standard filter set: approximately 3 months when printing approximately 8 hours a day, depending on the material, chamber cleanliness and fan speed
Contents of the set
- Mintion V1 Filtration System
- Pre-filter
- HEPA H13 filter
- Activated carbon filter
- Default connector for Bambu Lab P1S / X1C printers
When printing with PLA, PETG or TPU, the system helps reduce the emission of fine particles, while with ABS, ASA and PA it additionally supports the reduction of odors and volatile organic compounds.
