Product description: BIQU RGB Upgrade Kit - intelligent LED backlight for Bambu Lab H2D / H2S 3D printers
The RGB Upgrade Kit is an extensive LED lighting kit designed for Bambu Lab H2D and H2S 3D printer users who want to give their build a modern look and enhance the functionality of their workstation. At the heart of the kit is the Panda RGB Controller, equipped with an ESP32 -C3-MINI module, enabling wireless lighting control via an intuitive web interface . The controller supports two RGB strips , brightness, animation speed, and color settings, as well as synchronization of lighting effects with printer status. The system can signal errors, temperature, or device status using dynamic LED effects.
Technical specifications of the set
- Compatibility: Bambu Lab H2D, H2S
- Controller: Panda RGB Controller
- Microcontroller: ESP32-C3-MINI
- Communication: WiFi
- Control: Web interface via browser
- LED strip support: up to 2 RGB strips
- Supply voltage: 24 V DC
- Power connector: DC 5.5 x 2.1 mm
- Logic voltage: 3.3 V
- RGB Output 5V PH2.0 3P: 5V 1.5A peak
- RGB 5V Output XH2.54 3P: 5V 2A peak
- 24V RGB Outputs: 2 x XH2.54 4P - 24V 2A peak
- 24V Output: XH2.54 2P - 24V 1.5A peak
- OTA support: yes
- Lighting effect modes: static, dynamic, strobe
- Possibility of synchronization with a printer: yes
- Controller dimensions: 100 x 25 mm

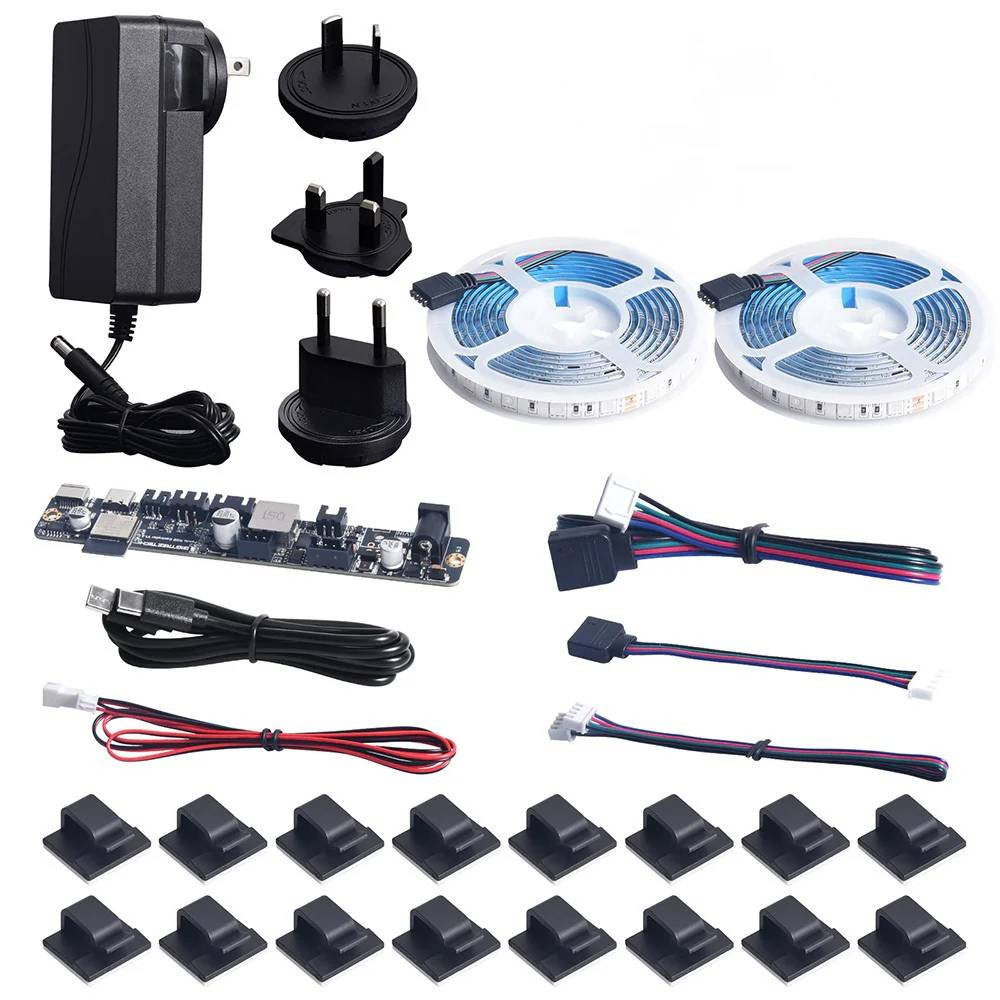

Contents of the set
- 1x Panda RGB Controller
- 2x RGB LED strip
- 1x AC adapter
- 3x Power Plug Adapters
- 4x Connection cables
- 1x USB cable
- 1x Set of mounting hardware
