Product Description: Creality Falcon AP1 Air Purifier for Laser Engravers
The Creality Falcon AP1 air purifier is designed to capture smoke, dust, fine particles, and odors generated during laser cutting and engraving. Its design utilizes 360° airflow to direct pollutants through an extensive filtration system .
The maximum flow rate is 250 m³/h , and the declared suction power is 1700 Pa. This allows smoke and fumes to be captured directly near their source. The AP1 is also equipped with a display for real-time monitoring of PM2.5 levels and a filter wear monitoring system.

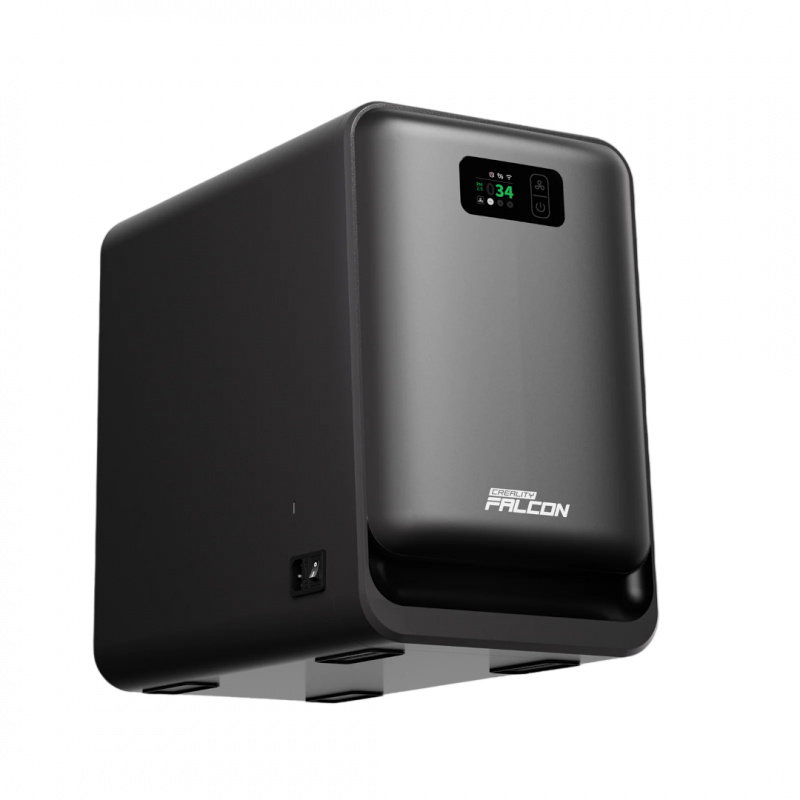

Creality Falcon AP1 air purifier for laser engravers.
The Creality Falcon AP1 smoke purifier is designed to capture smoke, dust, fine particles and odors generated during laser cutting and engraving.Special features
- Air flow up to 250 m³/h - enables quick removal of smoke and pollutants
- 1700 Pa suction power - supports smoke capture directly at the source
- 360° air flow - ensures even use of the filter surface
- HEPA H13 filter - retains fine particles as small as 0.3 µm
- Activated carbon - helps absorb odors and gaseous pollutants
- V-Fold filter - increases the filtration surface and the use of activated carbon
- PM2.5 monitoring - allows you to control air quality in real time
- Filter monitoring - informs about the degree of their use
- WiFi control - allows remote operation of the device
- Automatic synchronization - allows cooperation with compatible Falcon lasers
- Delayed shutdown - allows for continued air purification after the laser has finished operating
- Long filter life - up to 1000 hours for the filter and up to 1500 hours for the V-Fold filter
Practical applications
The Creality Falcon AP1 can be used anywhere laser processing generates smoke, dust, or intense odors. It's ideal for home studios, workshops, prototyping labs, and small businesses using laser engravers and plotters.
The purifier can be used for engraving and cutting wood, plywood, wood-based materials, and acrylic , provided the material is approved for laser processing. Thanks to the inlet adapter, the device can be connected to various machines equipped with a suitable smoke extraction system.
Multi-stage filtration system
The Falcon AP1 utilizes an extensive filtration system designed to trap both larger particles and fine dust, as well as some gaseous pollutants. The manufacturer claims air purification efficiency of up to 99% and filter surface utilization of 98%.
The system includes a G4 pre-filter, a large-surface HEPA H13 filter and activated carbon layers. According to the manufacturer, the HEPA filter can retain up to 99.97% of fine particles as small as 0.3 µm . The dense activated carbon layer and V-Fold filter are designed to absorb odors and some harmful vapors generated during material processing.
WiFi control and automatic operation
The Creality Falcon AP1 can communicate via WiFi and work with compatible Falcon series lasers. The manufacturer has designed the purifier to automatically turn on and off in sync with the laser device.
Remote control, delayed shutdown, air quality monitoring, and filter life monitoring are also available. The purifier can automatically select the filtration mode depending on the cutting or engraving process being performed.
The design utilizes 360° airflow that directs contaminants through an extensive filtration system.
The maximum flow is 250 m³/h and the declared suction power is 1700 Pa.Technical specifications
- Product type: smoke purifier for laser engraving machines
- Maximum air flow: 250 m³/h
- Air flow speed: up to 20 m/s
- Suction power: 1700 Pa
- Maximum power: 150 W
- Input voltage: 110 V to 230 V AC
- Input voltage frequency: 50 Hz to 60 Hz
- Output voltage: 24V DC
- Noise level during operation: up to 62 dB
- Operating temperature range: -20°C to 50°C
- Inlet pipe diameter: 65 mm
- Air quality monitoring: PM2.5
- Connectivity: WiFi
- Main filter: High-efficiency HEPA composite filter
- HEPA filter class: H13
- Additional filter: activated carbon filter
- Activated carbon weight: 1.4 kg
- Declared filter life: up to 1000 hours
- Declared V-Fold filter life: up to 1500 hours
- Certificates: CE, RoHS, FCC
- Dimensions: 460 x 270 x 430 mm
- Weight: 10 kg
