Product description: xTool MetalFab - laser welding and CNC cutting machine - 1200 W
The xTool MetalFab 1200 W is an advanced, integrated system for comprehensive metalworking that combines laser welding, manual and CNC cutting, surface cleaning, and engraving in a single ecosystem. The device is based on a 1200 W fiber laser with a wavelength of 1080 ± 10 nm , ensuring high beam stability, deep material penetration, and minimal heat-affected zone. MetalFab allows for both manual and fully automated operation thanks to a dedicated CNC platform, making it a universal tool for single-unit, batch, and prototyping production.

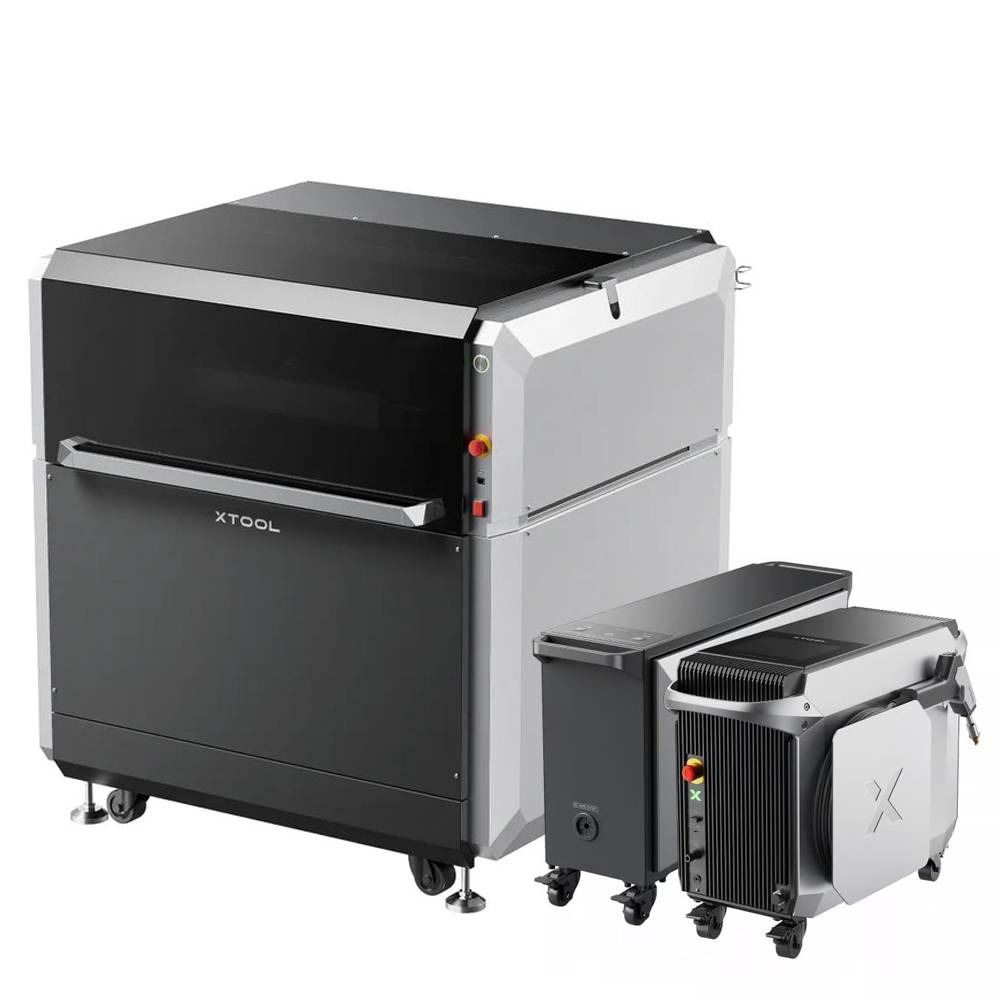

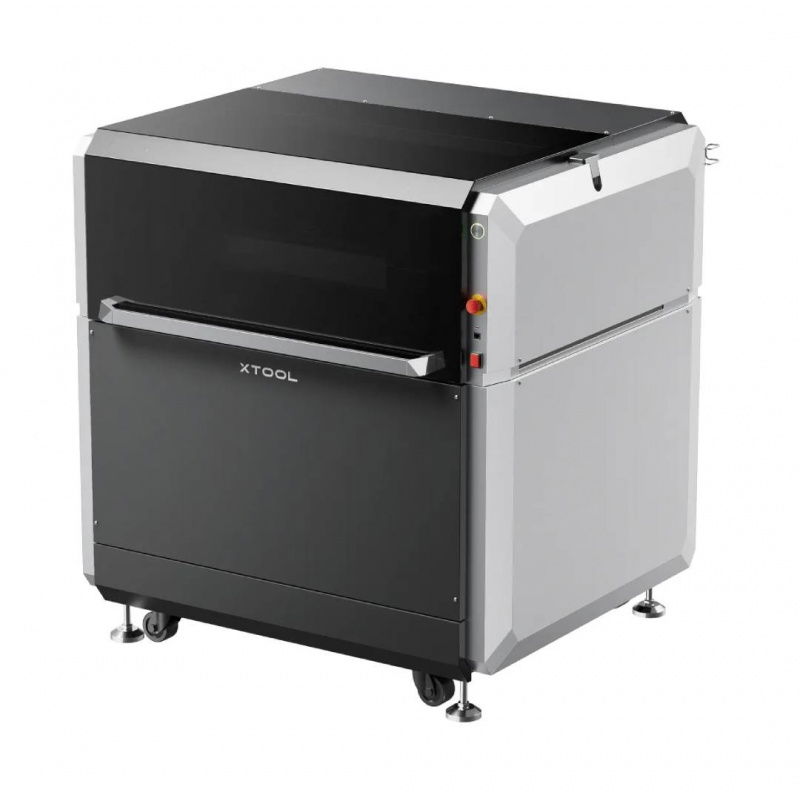

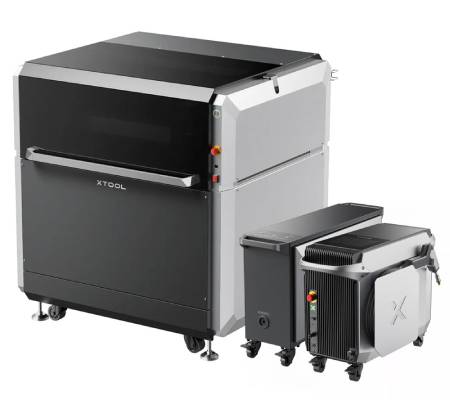

xTool MetalFab - laser welder and CNC cutter - 1200 W.
MetalFab uses a 1200 W laser beam with a wavelength of 1080 nm, which allows for precise cutting and welding.

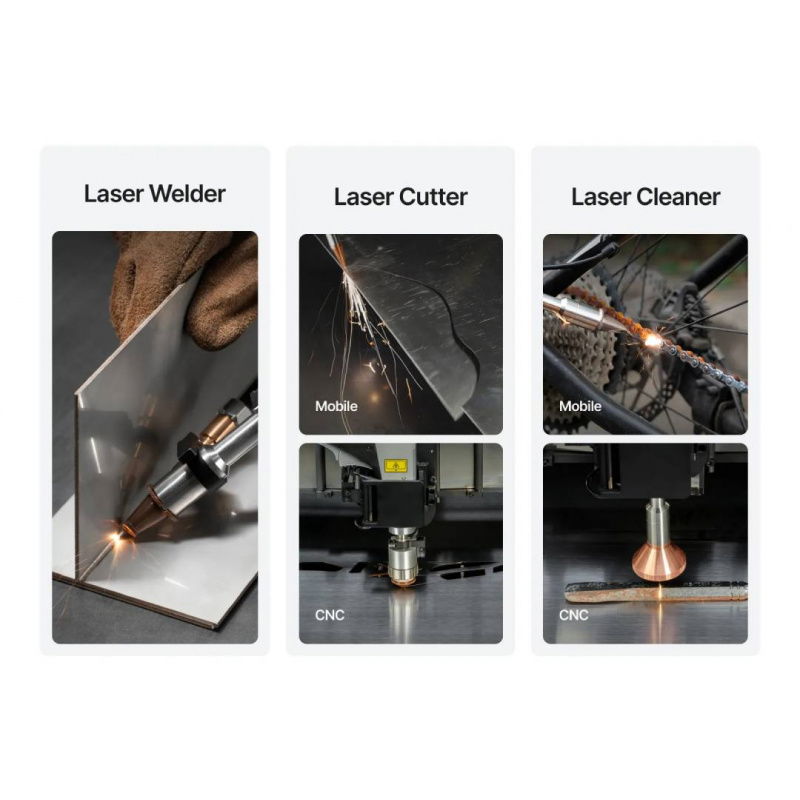

Integrated All-in-One System - How it all works
The xTool MetalFab 1200 W operates as a cohesive system, logically integrating all metalworking processes into a single work environment. A component can be precisely cut on a CNC platform, then welded manually or automatically, and finally cleaned or engraved— all without changing the machine or configuration . The software manages the entire workflow, minimizing downtime and eliminating errors resulting from manual parameter setting. This significantly shortens the production process and provides complete control over every step.

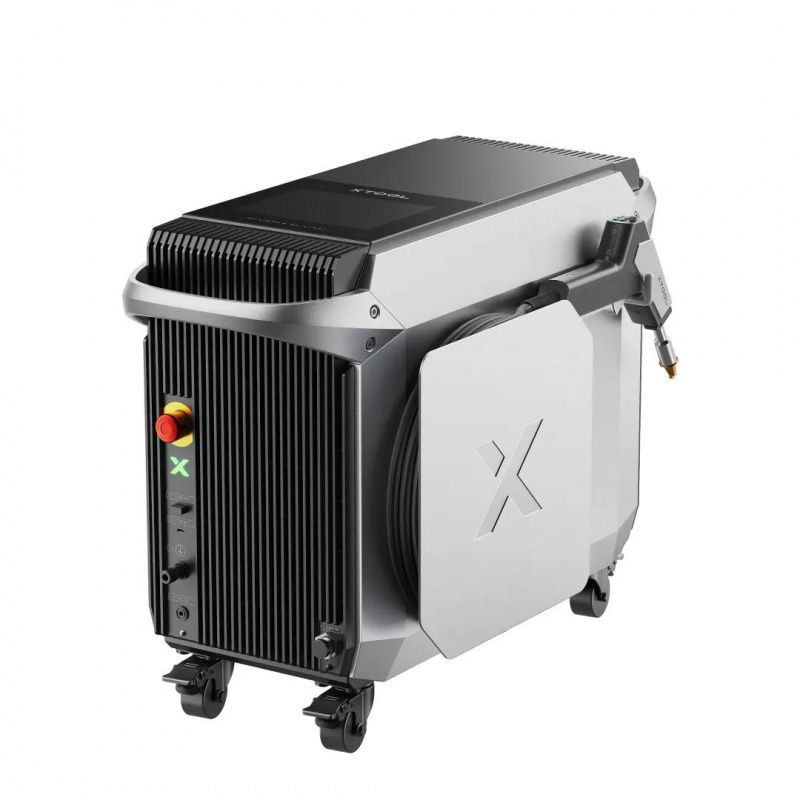

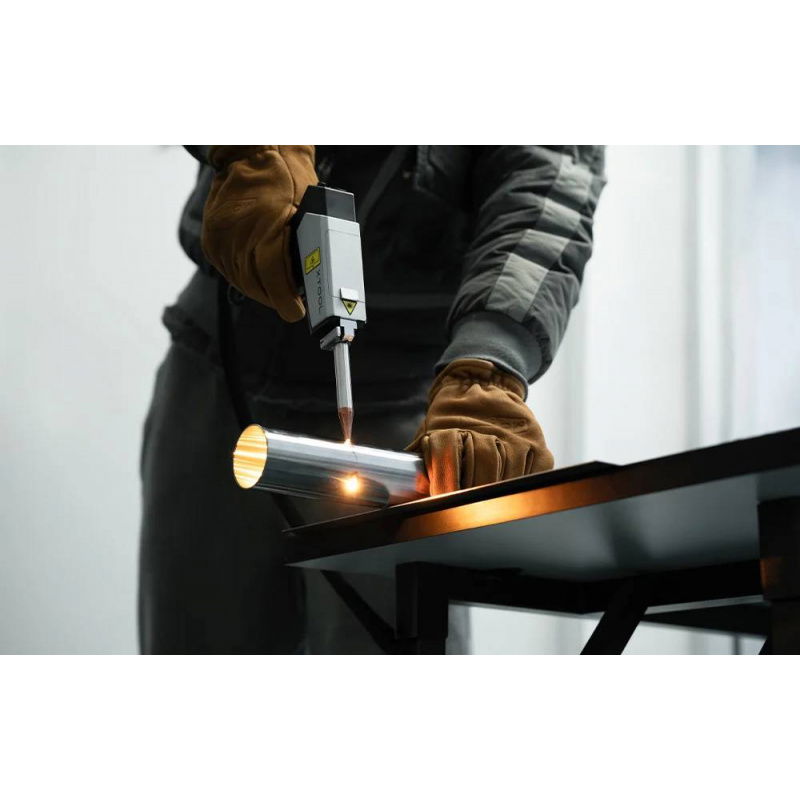

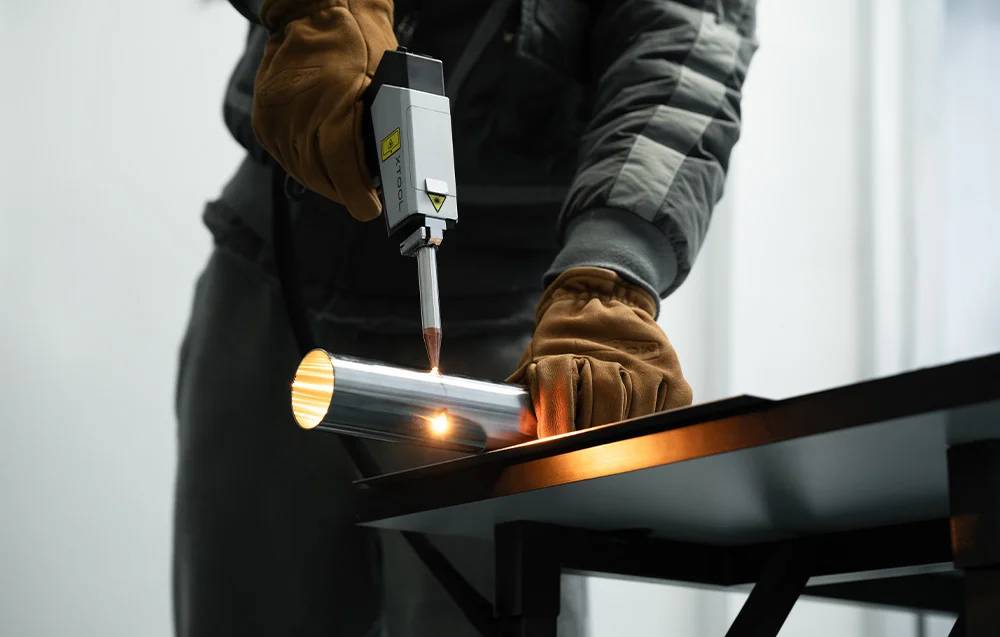

1200 W Laser Welder - Precision Metal Welding

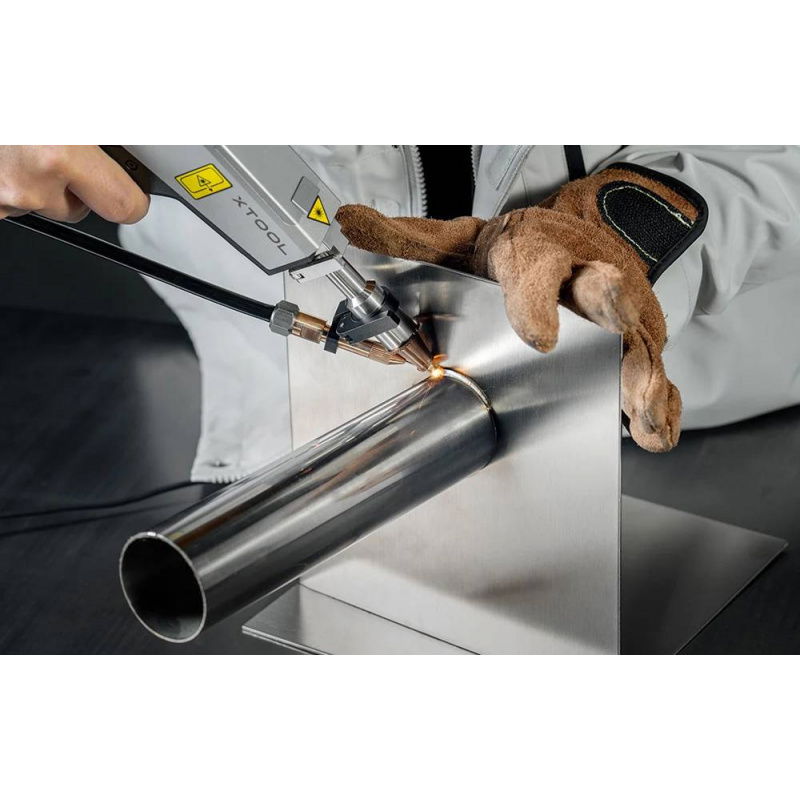

The laser welding module enables continuous, spot, and pulse welding of metals from 0.2 mm to 5 mm thick. The fiber laser ensures a narrow and deep weld, minimal heat-affected zone, and very low risk of distortion . The device supports stainless steel, carbon steel, aluminum, brass, titanium, and special alloys , offering weld quality confirmed by SGS tests. The lightweight, integrated welding head enables comfortable operation even during long cycles.
Fiber laser technology minimizes heat-affected zones to ≤ 0.05 mm.

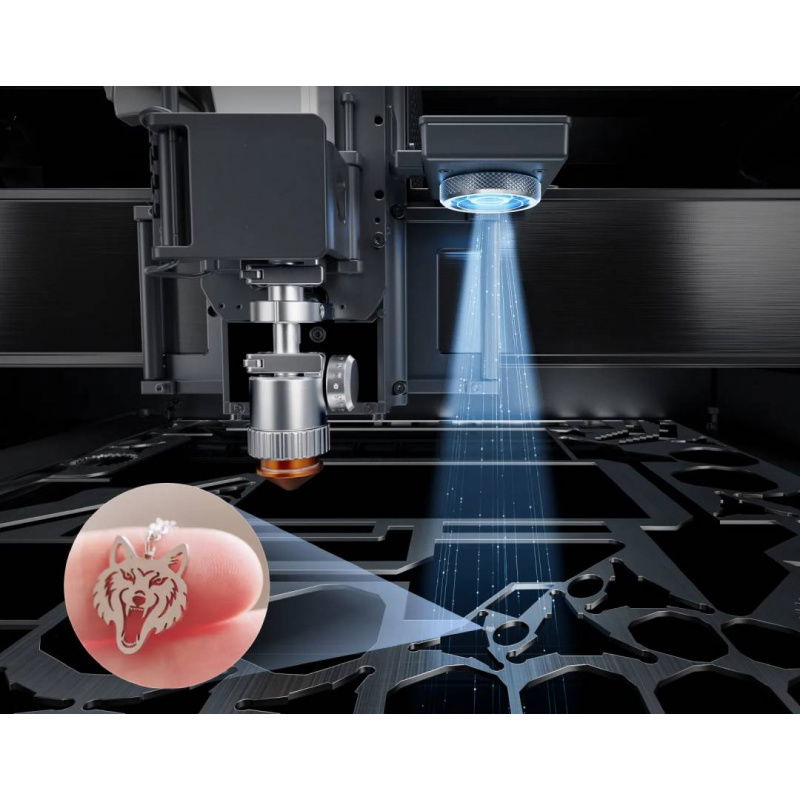

CNC cutting machine 1Azcx1X3 automatic and repeatable cutting

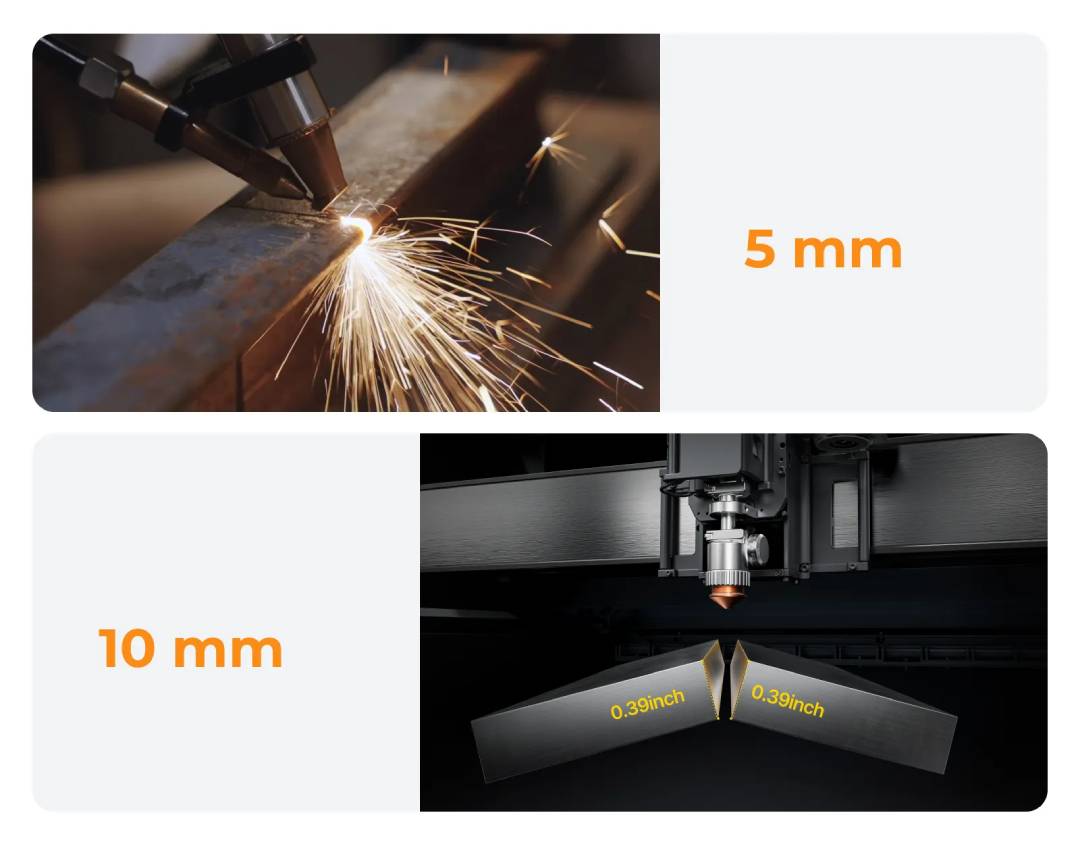

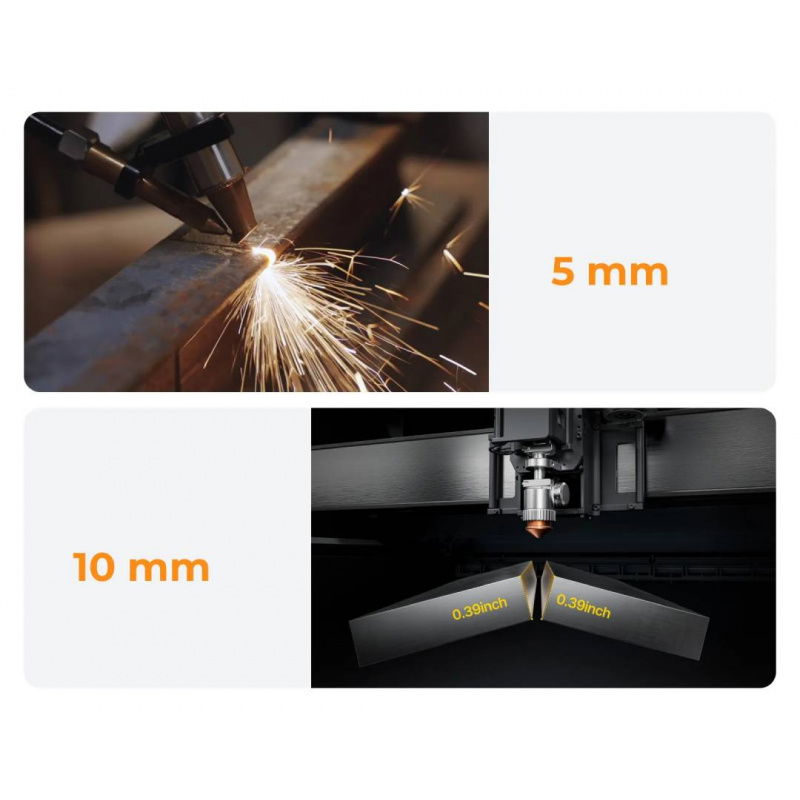

The xTool MetalFab CNC platform offers a 610 x 610 x 90 mm work area and the ability to through-feed materials of any length . Combined with a 1200 W welding machine , it allows for burr-free cutting of carbon steel up to 10 mm, stainless steel up to 5 mm, and aluminum up to 4 mm . The X/Y/Z axis system, height control, and VibeFreeCut™ and FlexiTrack™ technologies guarantee stability, accuracy, and clean edges, even with thin sheets.

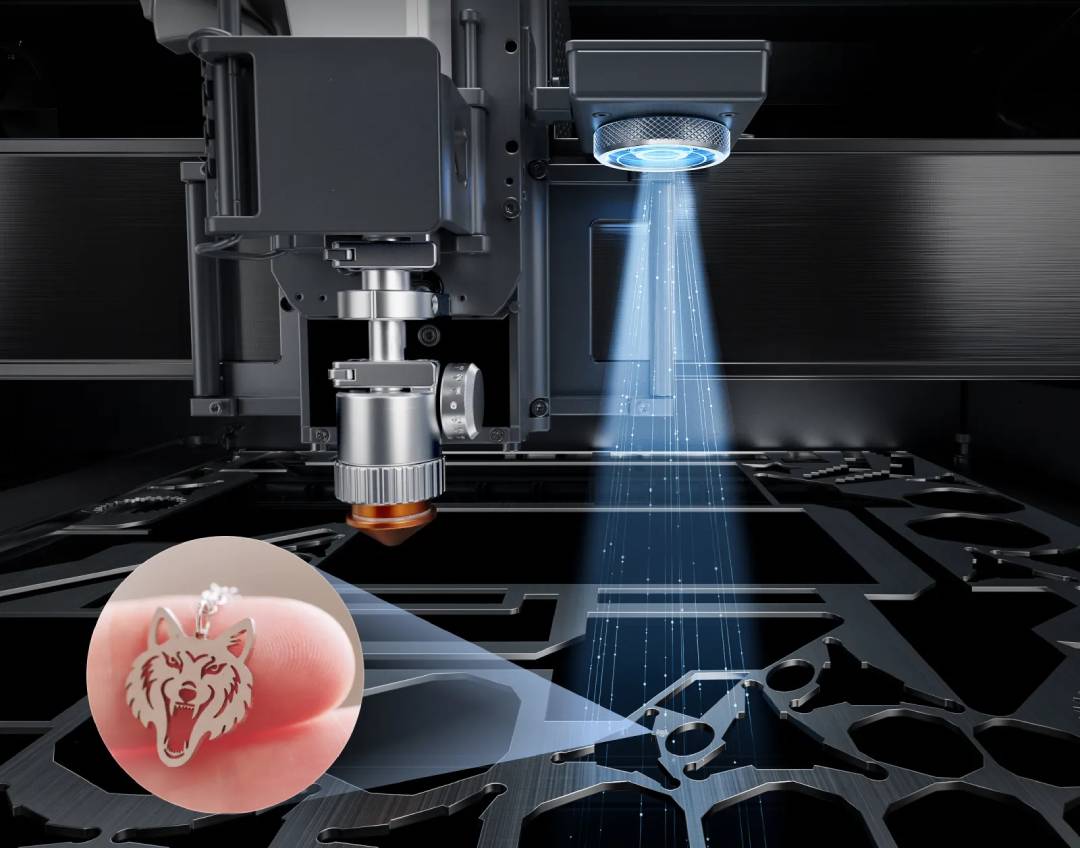

Dual cameras and intelligent footage management
A dual- camera system—a 16MPx panoramic camera and a close-up camera—enables precise design positioning and intelligently arranges components on the sheet metal. The Smart Nesting function automatically optimizes cutting layout , achieving up to 98.7% material utilization . The local camera allows for micrometric part matching during secondary machining , which is crucial for precision and small-scale production.
Intelligent arrangement of elements allows for maximum use of material.
xTool Creative Space (XCS) software ensures simple and convenient operation.
XCS Software - Full Control Without Experience
xTool MetalFab uses dedicated XCS software, which offers a library of over 108 preset parameters for 30+ materials . You select the material, and the system automatically adjusts power, speed, frequency, and shielding gas . Smart Flow Cutting and automatic path optimization significantly increase productivity, reducing machining time and material consumption by up to 50%.
Safety, durability and 24/7 continuous operation
The MetalFab 1200 W meets rigorous Class 4 laser safety standards and is equipped with 10 active protection systems , including temperature monitoring, cover sensors , and OD5+ filtration. The industrial-grade Coherent chip and efficient air cooling ensure stable operation in a temperature range of -10°C to 40°C . The laser's lifespan exceeds 10,000 hours , making the device a reliable tool for intensive use.
xTool MetalFab ensures stable performance even at temperatures ranging from -10°C to 40°C.

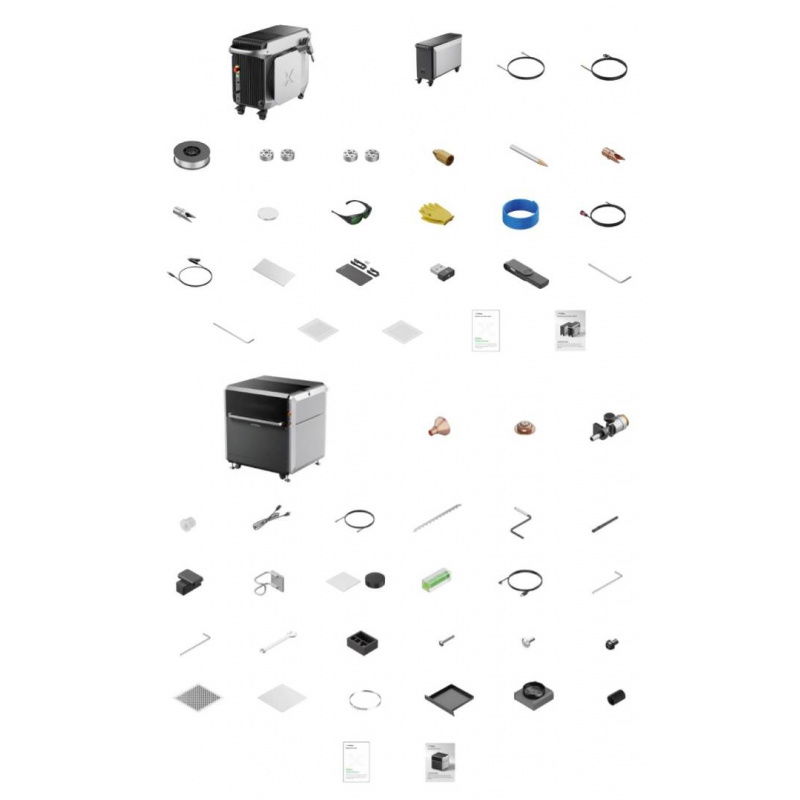

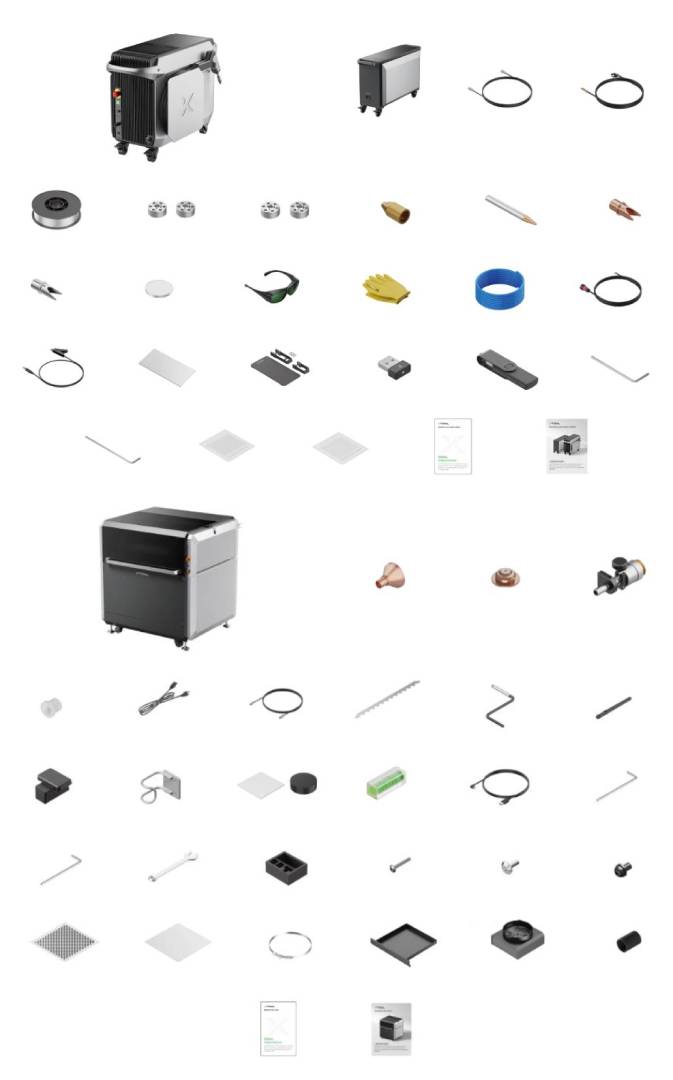

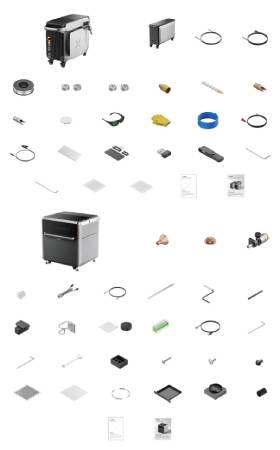

Elements included in the set.
Kit contents
- xTool MetalFab 1200 W Laser Welder
- Wire feeder
- xTool MetalFab CNC cutting machine
- Accessories - detailed content in the user guide of the welding machine and CNC cutting machine
| Technical specifications of the xTool MetalFab 1200 W laser welder | |
|---|---|
| Model | MHJ-K001-200 |
| Laser power | 1200 W |
| Laser type | fiber optic laser |
| Welding modes | continuous (CW), modulated (MW) |
| Laser wavelength | 1080 ± 10 nm |
| Supported material thicknesses | from 0.2 mm to 5 mm (steel, titanium), up to 4 mm (aluminum, brass) |
| Cleaning width | up to 45 mm (with optional MaxClean accessory), up to 10 mm after welding |
| Supported materials | stainless steel, carbon steel, aluminum, brass, titanium, galvanized steel, magnesium, nickel and zinc alloys |
| Photoelectric conversion efficiency | 36% |
| Recommended gases | nitrogen, argon, oxygen - 99.99% |
| Head cable length | 5 m |
| Minimum bending radius of the cable | ≥ 150 mm |
| Supply voltage | from 200 V to 240 V AC, 50 / 60 Hz |
| Maximum current consumption | 21 A |
| Rated power | 4200 W |
| Cooling | air cooling |
| Safety certification | class 4 (Class 4 Laser Safety) |
| Operating temperature | from -10°C to 40°C |
| Storage temperature | from -10°C to 60°C |
| Ambient humidity | from 10% to 85% |
| Dimensions | 728 x 327 x 512 mm |
| Mass | 38.2 kg |
| Wire feeder technical specifications | |
| Wire feed speed | from 2 mm/s to 100 mm/s |
| Supported wire diameters | 0.8mm, 1mm, 1.2mm, 1.6mm |
| Max spool weight | 15 kg |
| Max. outer diameter of the spool | 300 mm |
| Max. spool thickness | 105 mm |
| Wire feed tube length | 3 m |
| Operating voltage | 24V DC |
| Dimensions | 232 x 664 x 417 mm |
| Mass | 13.2 kg |
| Technical specifications of the xTool MetalFab CNC cutting machine | |
| Work area | 610 x 610 mm |
| Max cutting thickness | up to 10 mm |
| Movement accuracy | ±0.1 mm |
| Max operating speed | 400 mm/s |
| Z axis range | 90 mm |
| Dimensions | 1175 x 1157 x 1230 mm |
| Mass | 150 kg |
