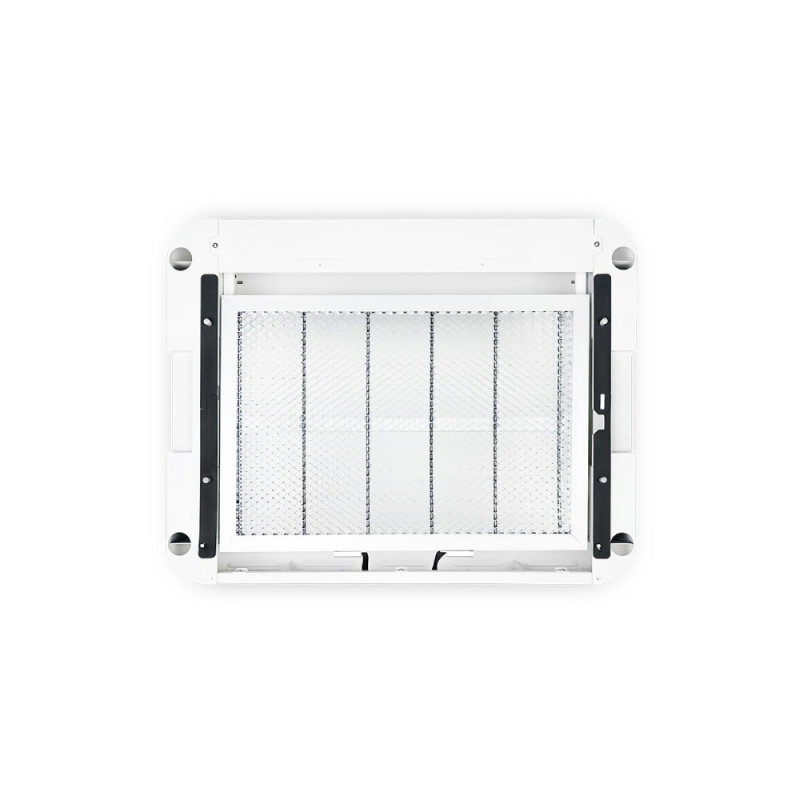

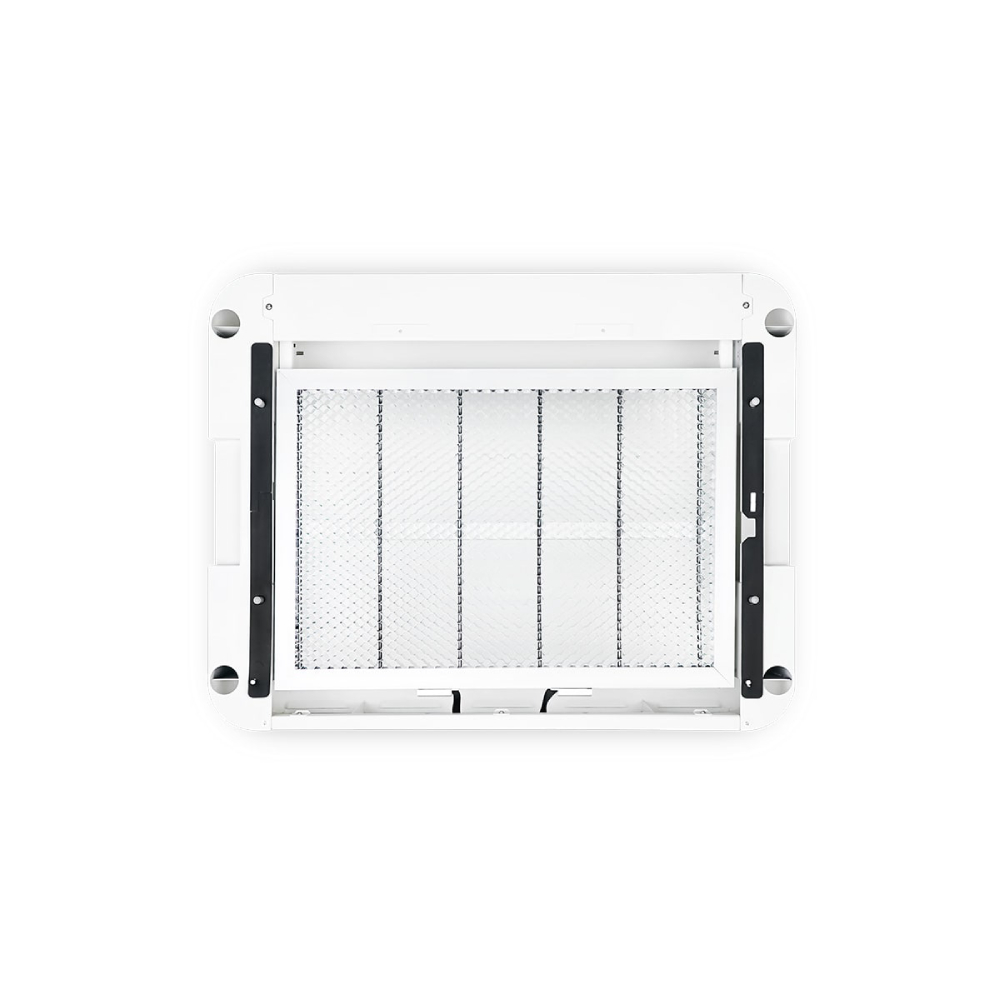

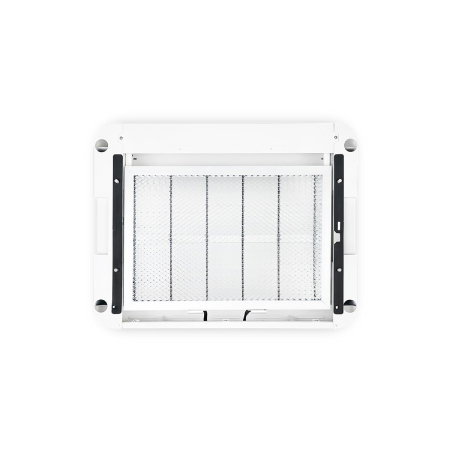

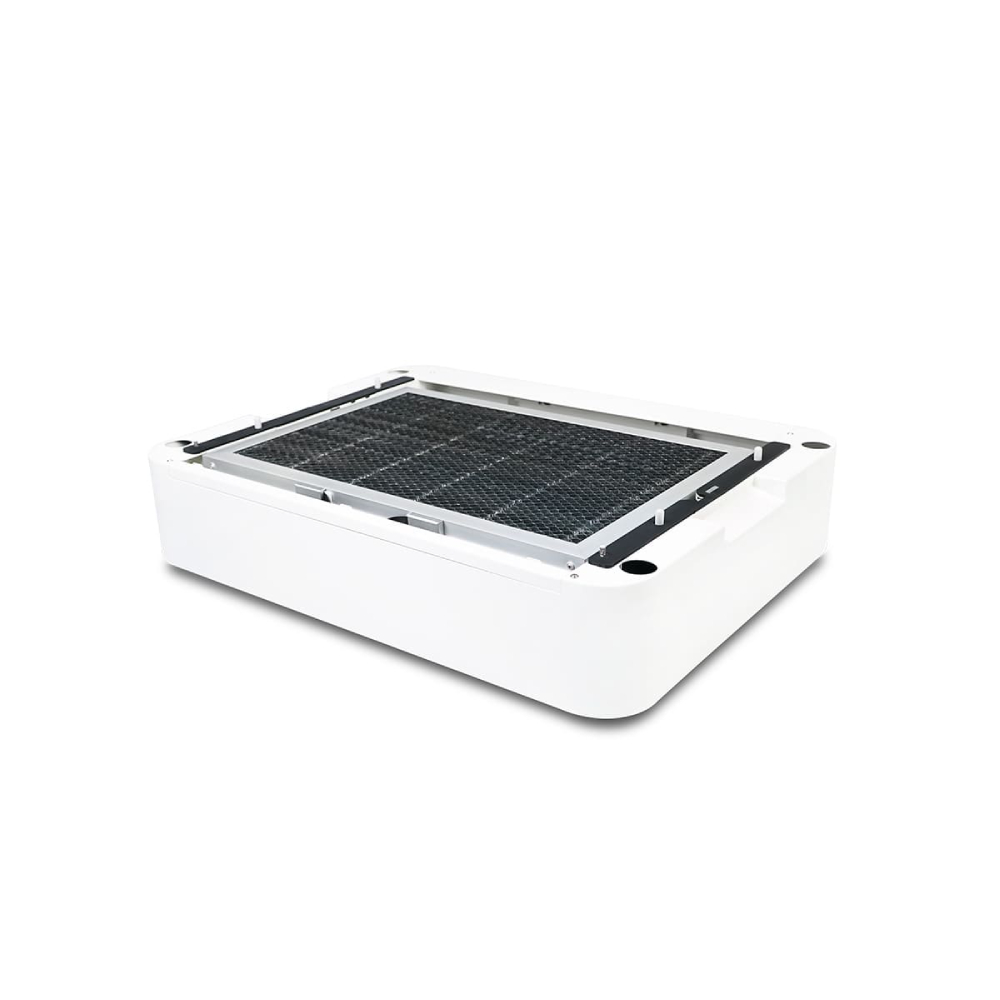

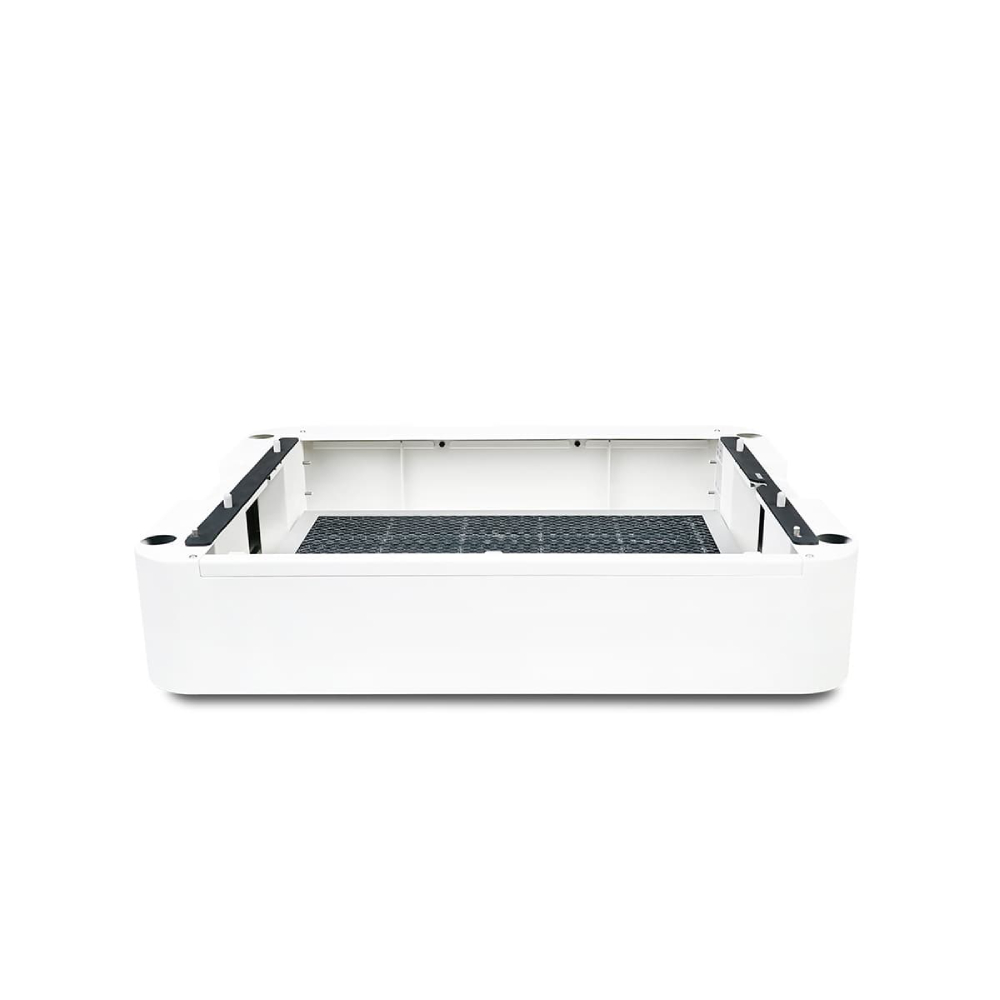

Product description: Extension base and honeycomb pass-through system for the FLUX Ador laser
A practical extension for the FLUX Ador laser engraver and cutter , it significantly expands the device's operating capabilities. The module raises the work area height, allowing for the processing of objects up to 4.6 inches tall with a honeycomb insert, or even 6.1 inches without one . This allows for the convenient engraving of larger objects and the implementation of more demanding projects. The extension's key feature is the pass-through system , which allows for the processing of materials of virtually unlimited length. The user can feed the material through the device while working, allowing for the creation of long, continuous patterns on boards, banners, strips, and other large-format elements. The adjustable design and included honeycomb insert ensure convenient setup and stable material support during cutting and engraving.
Extension base and honeycomb pass-through system for the FLUX Ador laser.
A practical extension for the FLUX Ador laser engraving and cutting machine, which significantly increases the device's operating capabilities.Special features
- FLUX Ador Compatibility: Dedicated extension for the FLUX Ador laser engraver
- Pass-through system: possibility of processing very long materials without length limits
- Increased working height: Handles objects up to 4.6" tall with honeycomb
- Adjustable honeycomb: the height of the working area can be adjusted to suit the project
- Greater work flexibility: ideal for large boards, panels and decorative elements
- Thick material handling: Handles materials up to 0.59" thick
- Stable construction: solid base for improved work comfort
- Rotary Accessory Support: Extension required to use the FLUX Ador Rotary module
- Easy installation: quick installation without the need to modify the device
- Space saving: compact design despite increased working capacity
Practical applications
The FLUX Ador Extension Base & Pass-Through is perfect for creating large engraving projects and cutting custom-sized elements. It's an ideal solution for advertising studios, makers, DIY workshops, and users engaged in mass production of decorations and signs. The module enables convenient processing of wood, acrylic, leather, cardboard, and other materials compatible with the FLUX Ador laser. Thanks to the pass-through system, users can create projects of almost any length without having to divide the design into smaller pieces.
Engraving and cutting long pieces
The pass-through system allows for continuous material feeding through the device, making it possible to create projects with lengths significantly exceeding the standard laser workspace. This solution is ideal for producing signs, decorative panels, and more. strips or advertising elements requiring a long working field.
The most important feature of the extension is the pass-through system, which allows the processing of materials of virtually unlimited length.

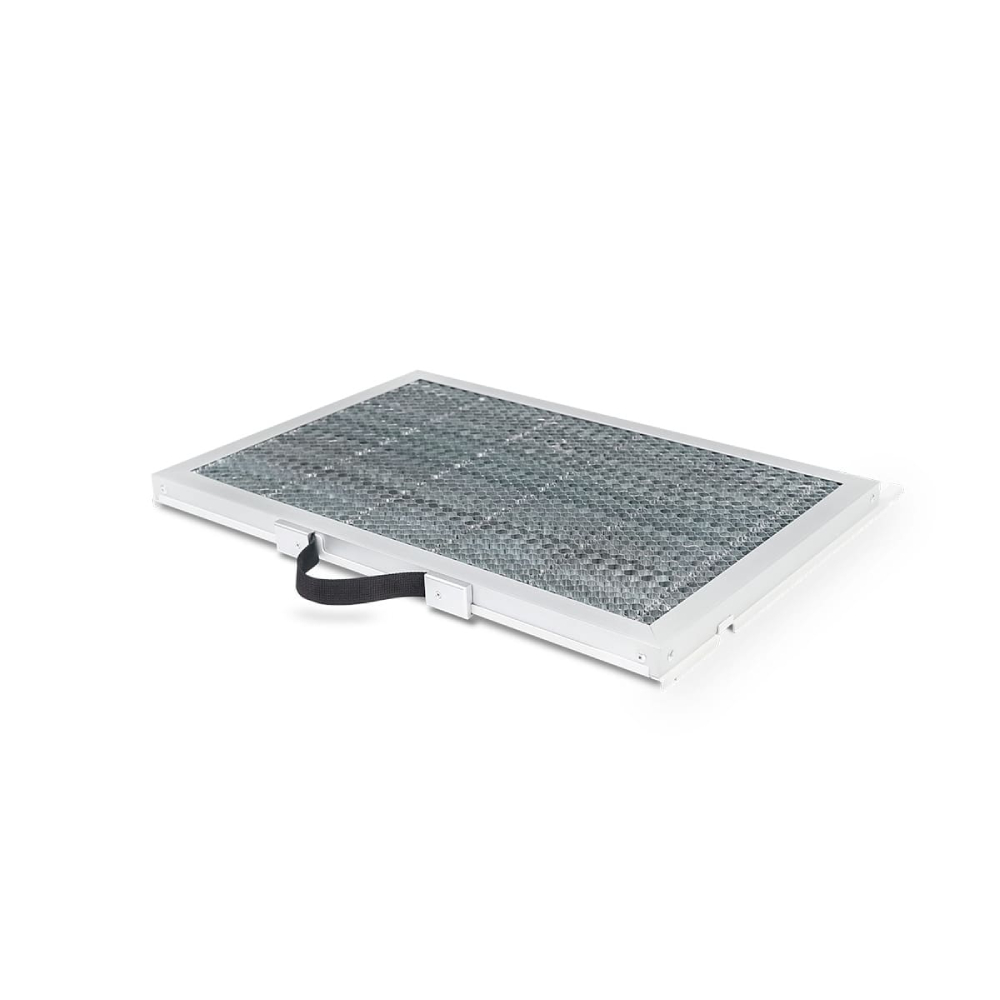

The adjustable design and included honeycomb ensure a comfortable setup and stable material support during cutting and engraving.Technical specifications of the module
- Compatibility: FLUX Ador
- Pass-through function: yes
- Maximum working height:
- 6.1" without honeycomb
- 4.6" with honeycomb
- Maximum material thickness in pass-through mode: 0.59"
- Pass-through material width: 19.69"
- Pass-through work area width: 16.93"
- Working area: 16.92" x 11.81"
- Honeycomb height adjustment: yes
- Honeycomb Included: Yes
- Rotary module compatibility: yes
- Color: white
- Product dimensions: 25.08" x 19.21" x 5.91"
Technical Content
- Extension base and pass-through system
- Honeycomb
- Mounting elements
